Warming Trends Outdoor Fireplace Insert Kit With UT230 Liquid Propane, Tree-Style Crossfire Brass Burner and Platinum Ignition for Openings 42" and Larger
Warming Trends Outdoor Fireplace Insert Kit With UT230 Liquid Propane, Tree-Style Crossfire Brass Burner and Platinum Ignition for Openings 42" and Larger
Log Set
-- Please Select --
No, Thank You
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

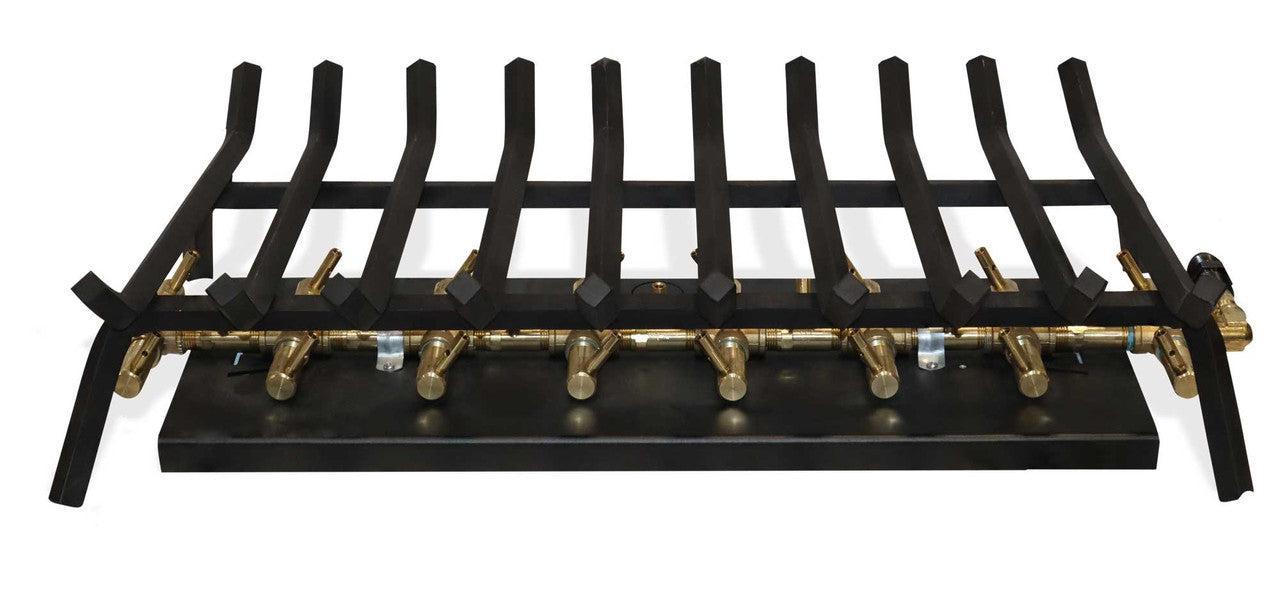

The All-New OUTDOOR FIREPLACE COLLECTION by Warming Trends® offers elegant kits designed to easily complete a beautiful gas fueled Outdoor Fireplace. The Outdoor Fireplace Kit for openings 42" and Larger includes a steel grate, Tree-Style CROSSFIRE® Brass Burner, elevated black powder-coated plate, Platinum Ignition Kit, and all connections needed for a quick and complete installation.
What's Included
- 230K BTU Outdoor Fireplace Insert Kit
- Tree-Style CROSSFIRE Brass Burner
- Black Powder-Coated Aluminum Plate
- Black Stainless Steel Grate
- Platinum Ignition Kit and Faceplate
- Flexline/Key Valve
- 3" and 12" Keys
- 8" Key Valve Extension
Not Included (Sold Separately)
- Ceramic Log Sets
Features
- 100% Brass CROSSFIRE® Brass Burner for ultimate durability
- Burner produces up to 230K BTU with Platinum Ignition
- Patented burner design delivers unmatched flame performance
- Designed, engineered, and assembled in the USA
Specifications
| Item Number | 104526 |
| Collection | Outdoor Fireplace |
| BTU | 230,000 |
| Fuel Type | Liquid Propane |
| Ignition | Platinum |
| Burner Material | Brass |
| Plate Material | Aluminum |
| Grate Material | Stainless Steel |
| Overall Insert Kit Weight | 57 lbs |
Dimensions
| Overall Grate Width | 32" |
| Overall Grate Depth | 16" |
| Overall Grate Height | 7" |
| Burner Depth | 2" |
| Burner Width/Diameter | 6" |
| Burner Length | 29" |
Warranty
 |
Limited Lifetime Warranty We stand behind our products and construction. Corrosion-resistant, Sustainable, and rust-proof, brass allows to offer the strongest lifetime warranty in the industry. |
Documents & Files
- Outdoor Fireplace Instruction Manual
- Outdoor Fireplace Instruction Manual Logs
- Outdoor Fireplace Certifications
- Warranty Guide
Frequently Asked Questions
What types of burners are available for the units?
The Fireplace line offers Tree-Style and H-Style burners. |
What components are included in the kit?
Each kit includes a black steel grate, a CROSSFIRE® brass burner strapped to a black, raised plate, a flex line/key valve kit, and a Push Button Ignition Kit. The kit also includes a 65K BTU and 90K BTU Reducing Orifice for optional installation. |
How many different sizes of grates are available?
We offer four grate sizes. They accommodate hearth widths of 24", 42", 42", and 48" or larger. |
What media options are available?
Logs are not included in the kits to allow the customer to select ceramic or steel logs that match their aesthetics. We carry two styles of log sets and provide recommendations and special discounts for each size kit. We also offer beautiful steel log sets to match any size kit. We offer black lava and rolled lava, the most common media to finish the look of the fireplace. |
What is the height of the grate at the top of the legs?
The grate is 4" tall at the top of the legs. It is designed to perfectly accommodate the CROSSFIRE burner and a wind cage for Warming Trends electronics below it. |
Why is the plate raised?
The plate is raised 1.25" to easily accommodate and conceal burner connections and pilot assembly parts underneath it. |
How are all burners attached to the plate?
All burners are securely strapped to the plate. |
What type of inlet is available?
The burners are all designed with a side inlet. The burner inlets come pre-installed on the right side of the unit. If the fireplace has a left-side gas inlet, the plate/burner and flex line connection can simply be rotated 180 degrees for this installation. |
What is the BTU capacity, and is there an option to reduce the BTU's?
BTU capacities range by type and size of burner selected, from 230K on the smallest kit to 290K on the largest kit. BTUs to the burner can be reduced by simply adjusting the key valve until the desired flame height (BTU delivery) is reached. Each kit also comes with an optional 65K BTU and 90K BTU Reducing Orifice. If required, the reducing orifice can be installed by simply replacing the 2" blank nipple with the reducing orifice. |
Where should the pilot be placed on the plate?
It is recommended that any pilot assembly for the units be installed toward the front of the plate fireplace to avoid overheating and causing possible damage to the pilot. We have provided pre-cut knockouts on the raised plate for the correct placement of pilot assemblies. |
Which log sets are recommended for each outdoor fireplace kit?
- 24" and Larger - Compatible with MOS or MWS. - 42" and Larger - Compatible with MOM, MOL, MWM, or MSL. - 42" and Larger - Compatible with MOL or MWL. - 48" and Larger - Compatible with MOL or MWL. |
