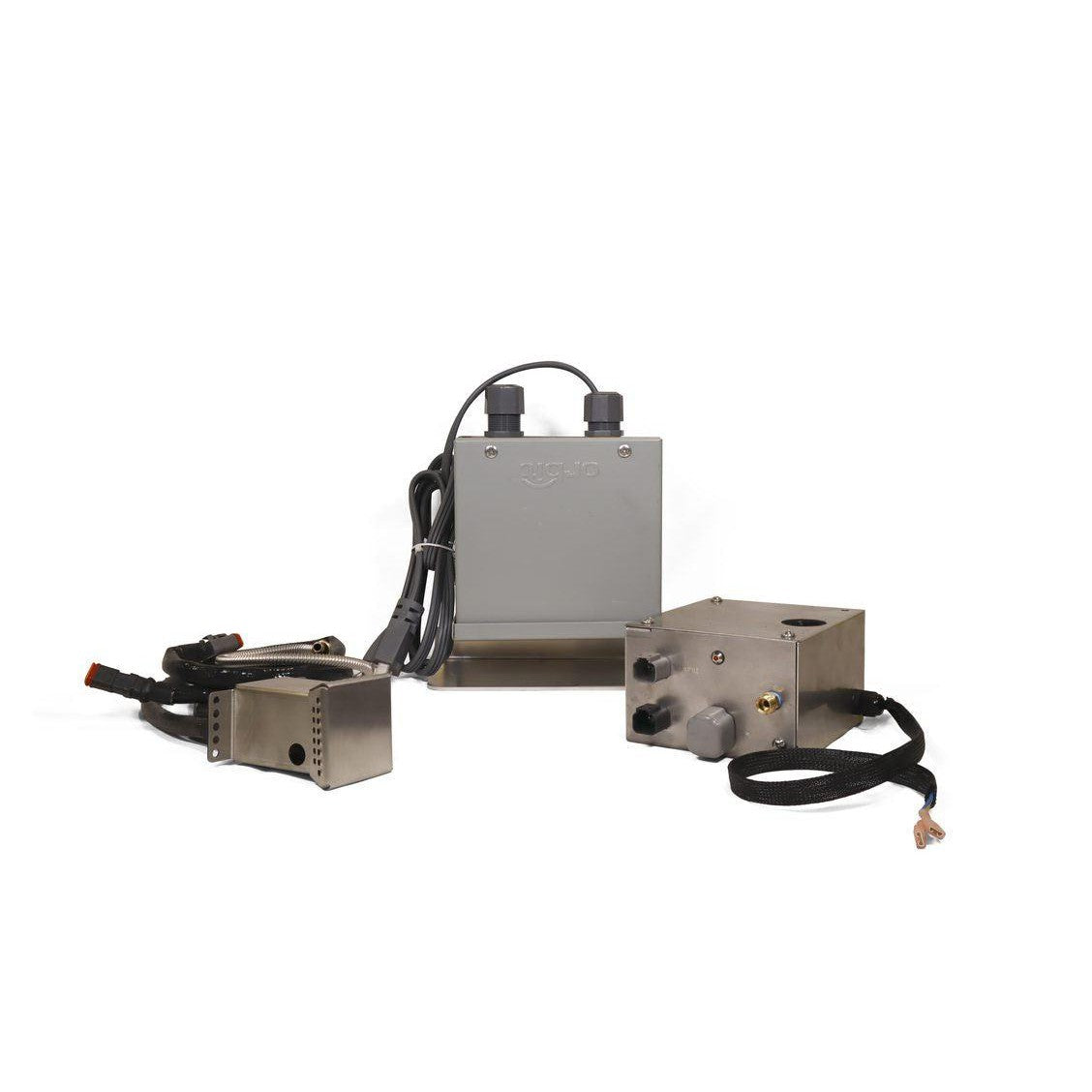

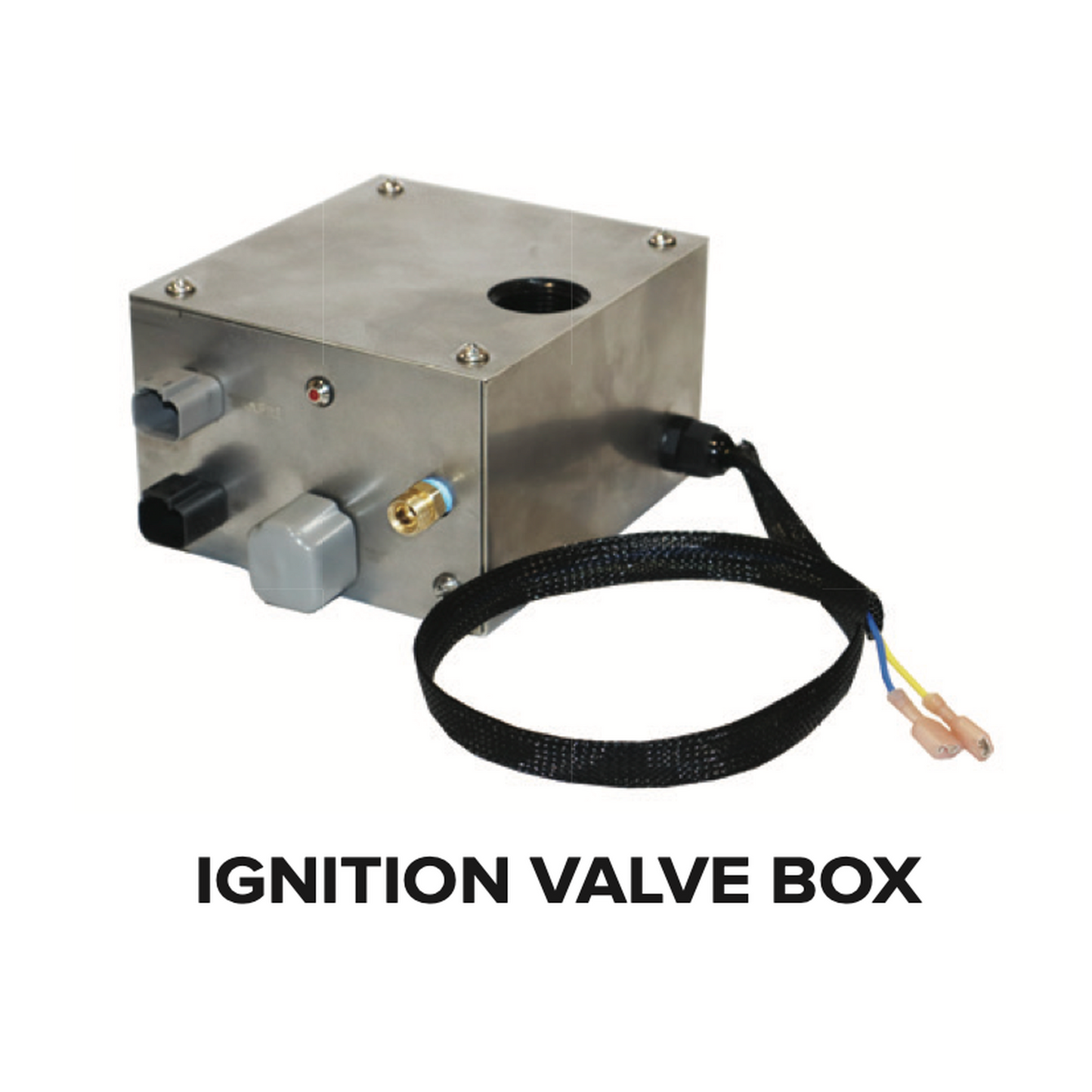

Warming Trends Platinum 24V Electronic Ignition System for 1/2" Manifolds (Liquid Propane)
Warming Trends Platinum 24V Electronic Ignition System for 1/2" Manifolds (Liquid Propane)
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The Platinum Ignition System™ delivers superior quality, performance, and value to our partners and their customers. Expertly engineered, this innovative ignition has been designed and built to eliminate industry-wide weaknesses in outdoor fire feature ignitions.
The Platinum has 680K BTUs of gas output. Superior performance, outstanding price - Warming Trends definition of innovation.
What's Included
- Hot Surface Igniter

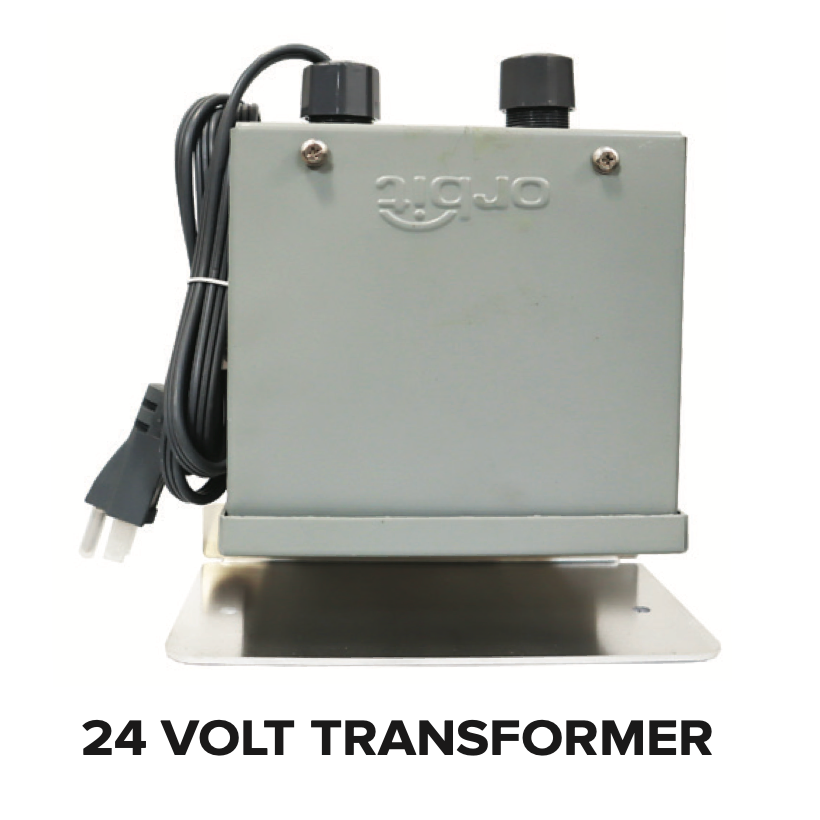

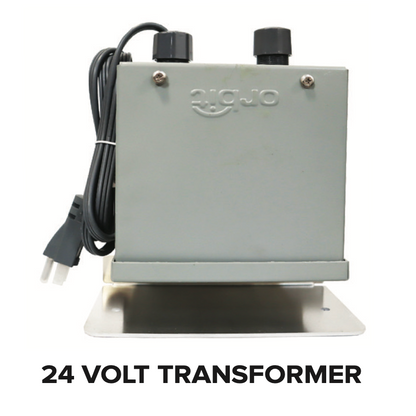

- 24V Transformer
Features
- Unique wind cage design that provides true protection to the pilot components from wind and rain.
- Customized ignition settings allow for better performance and reduce cycling faults.
- Robust components provide reliability and durability.
- LED-based diagnostics provide for quick and easy troubleshooting.
- Design allows for field serviceability.
- Coupled with the Warming Trends’ WATERSTOP® fitting provides unmatched protection of the ignition from water and debris.
- Hot Surface Igniter + 24V Transformer + for 1/2 In Manifolds + Maximum Gas Output 680K BTU/hr - Liquid Propane.
Specifications
| Item Number | 103064 |
| Fuel | Liquid Propane |
| Ignition | Electronic |
| Transformer | 24 Volt |
Documents & Files
- Platinum Ignition User Guide
- Platinum Ignition Sell Sheet
- Platinum Electronics and Clearance Diagram
- Platinum Ignition System QA
- Platinum CSA Certification Report
Videos
Frequently Asked Questions
Is there a standard and high capacity version of the platinum?
The Platinum Ignition is certifi ed up to 680,000 BTUs. There is no need for a Standard and a High Capacity version. |
What is the valve and inlet sizing?

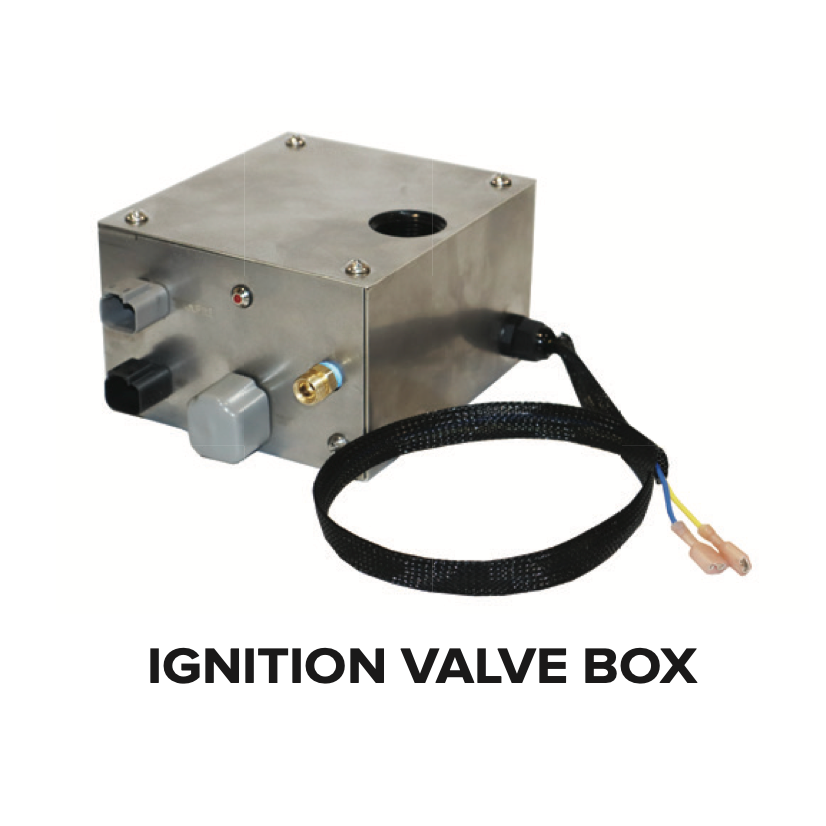

The Platinum has a 3/4" valve and gas inlet. It can be easily adapted to 1/2" manifolds. |
Is there any difference between the NG and LP version of the ignition?

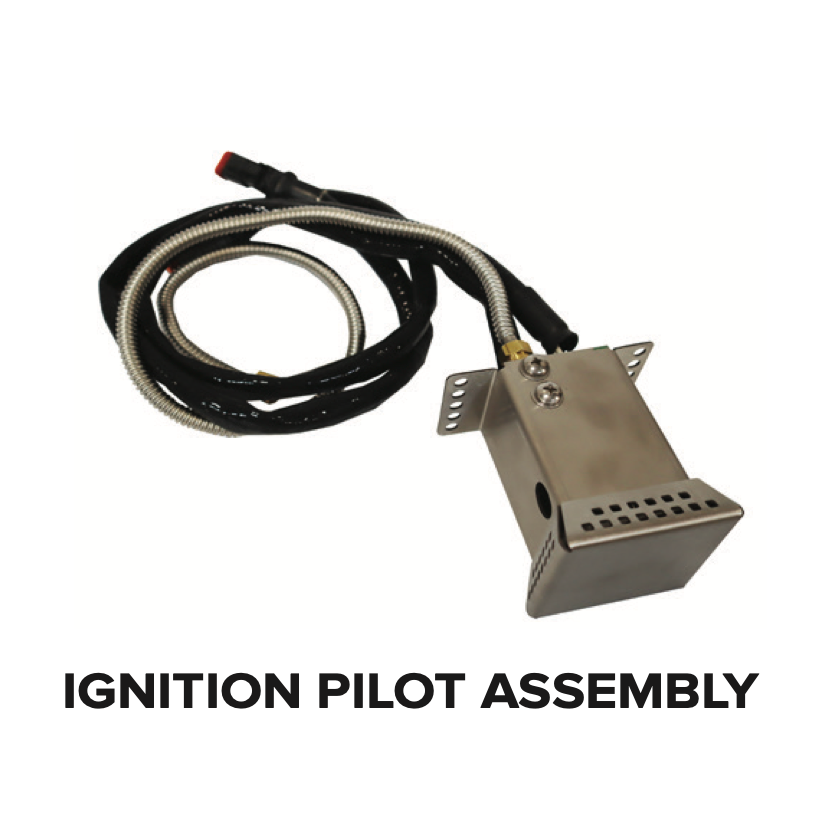

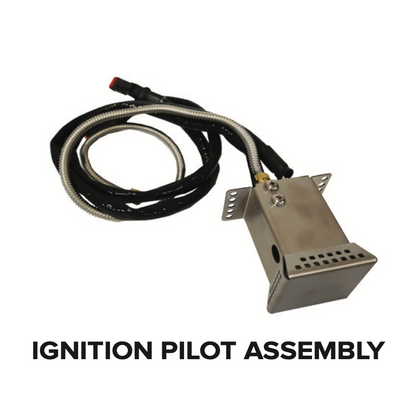

Yes, the Pilot Assembly on the Platinum is gas specific. |
Is this a dual pilot system?
No, the Platinum Ignition is a single pilot system. |
Will this be offered with pilot tube extensions?
Yes. The Platinum comes with a two-foot pilot tube. The Pilot can be extended up to an additional 10 feet. We offer pilot tubing in one-foot increments. |
What is the purpose of the led indicator light?
The LED Indictator light is for troubleshooting and diagnostic purposes and will pause between blinks to allow you to diagnose the issue being encountered. |
What is the voltage range of the platinum?
The Platinum operates at 24 volts. The transformer is wired for 120 volts. The transformer can be used with 240 or 480 volt outlets. This will require appropriate pig tail modifi cations to be made by the electrician on site. |
Does the platinum use a standing pilot?
Yes, the Platinum uses a standing pilot. |
