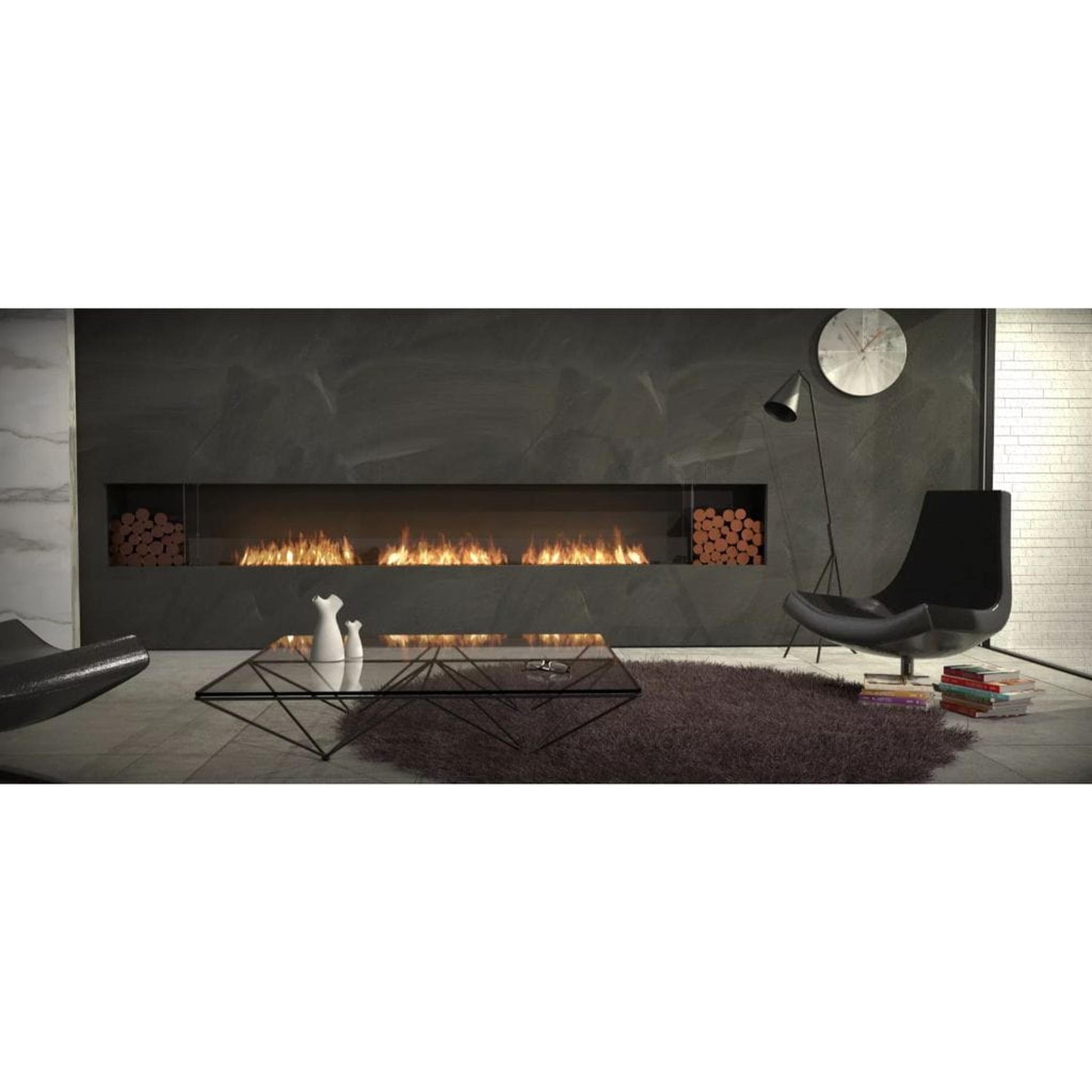

EcoSmart Fire Flex 122SS 130" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner by Mad Design Group

EcoSmart Fire Flex 122SS 130" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner by Mad Design Group

Regular price $18,295.00
Regular price $18,295.00 Sale price $18,295.00
Sale Sold out
Burner Color

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Enjoy an alluring flame from any angle you look at it.

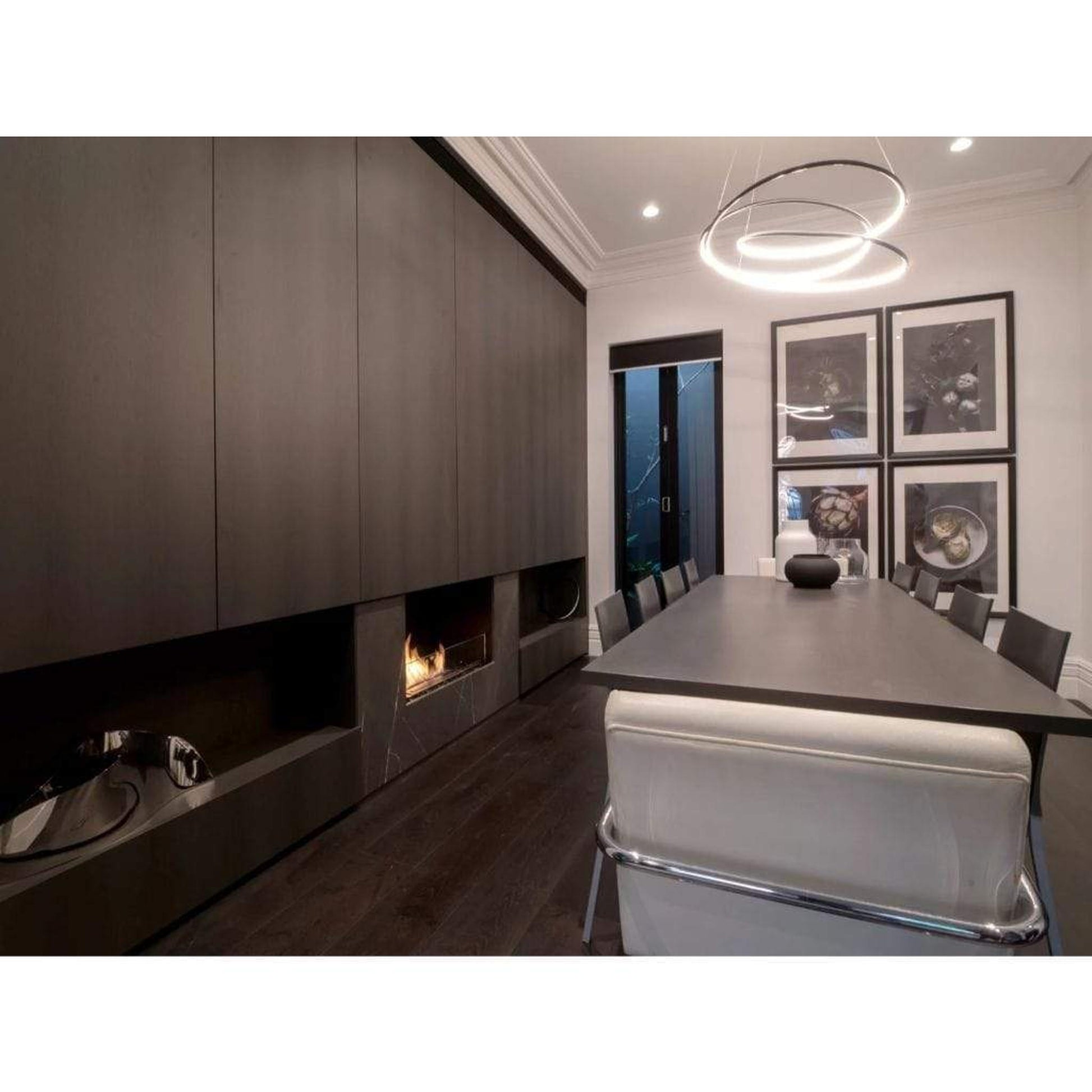

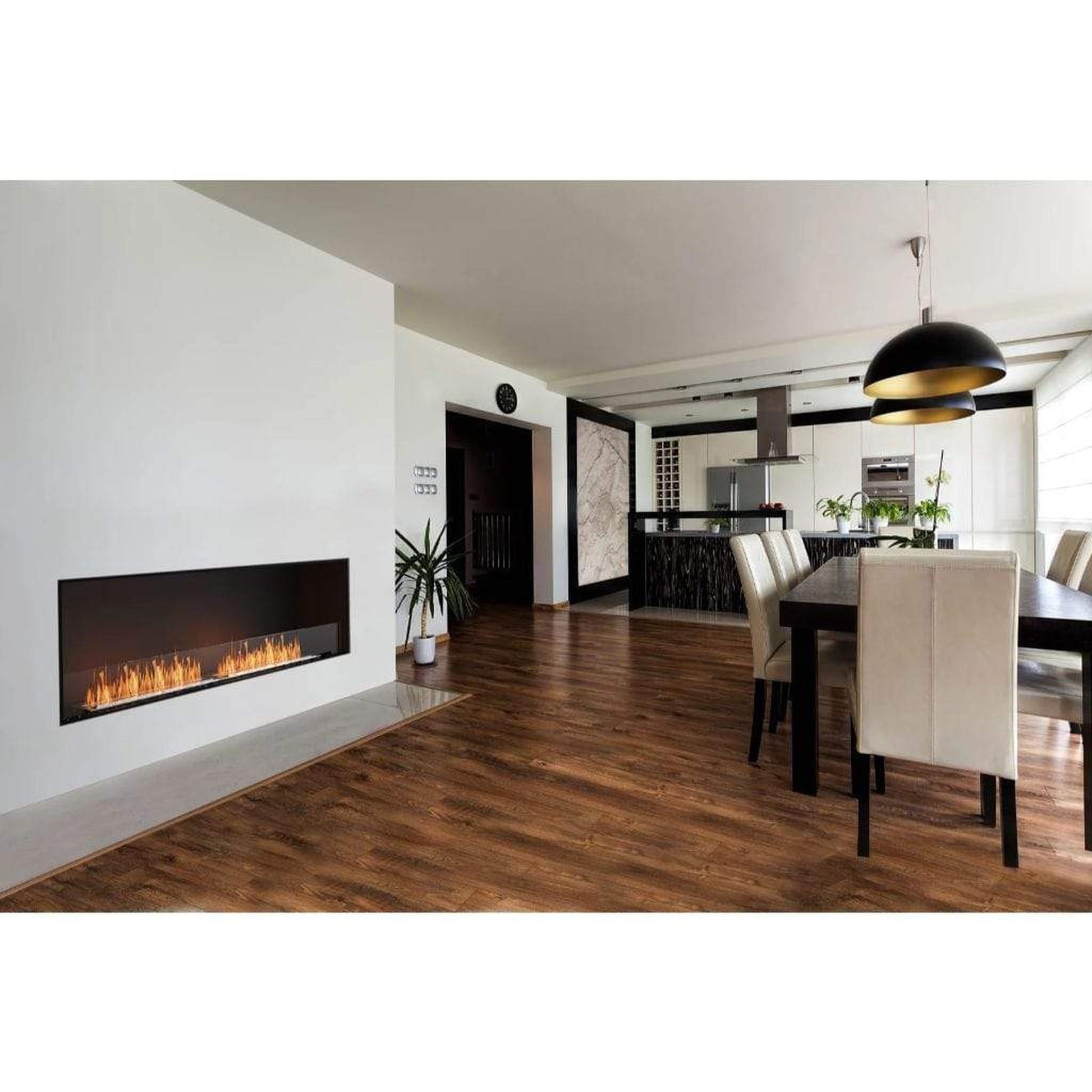

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

The clean lines and 'all flame' configuration of the Flex 122SS means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

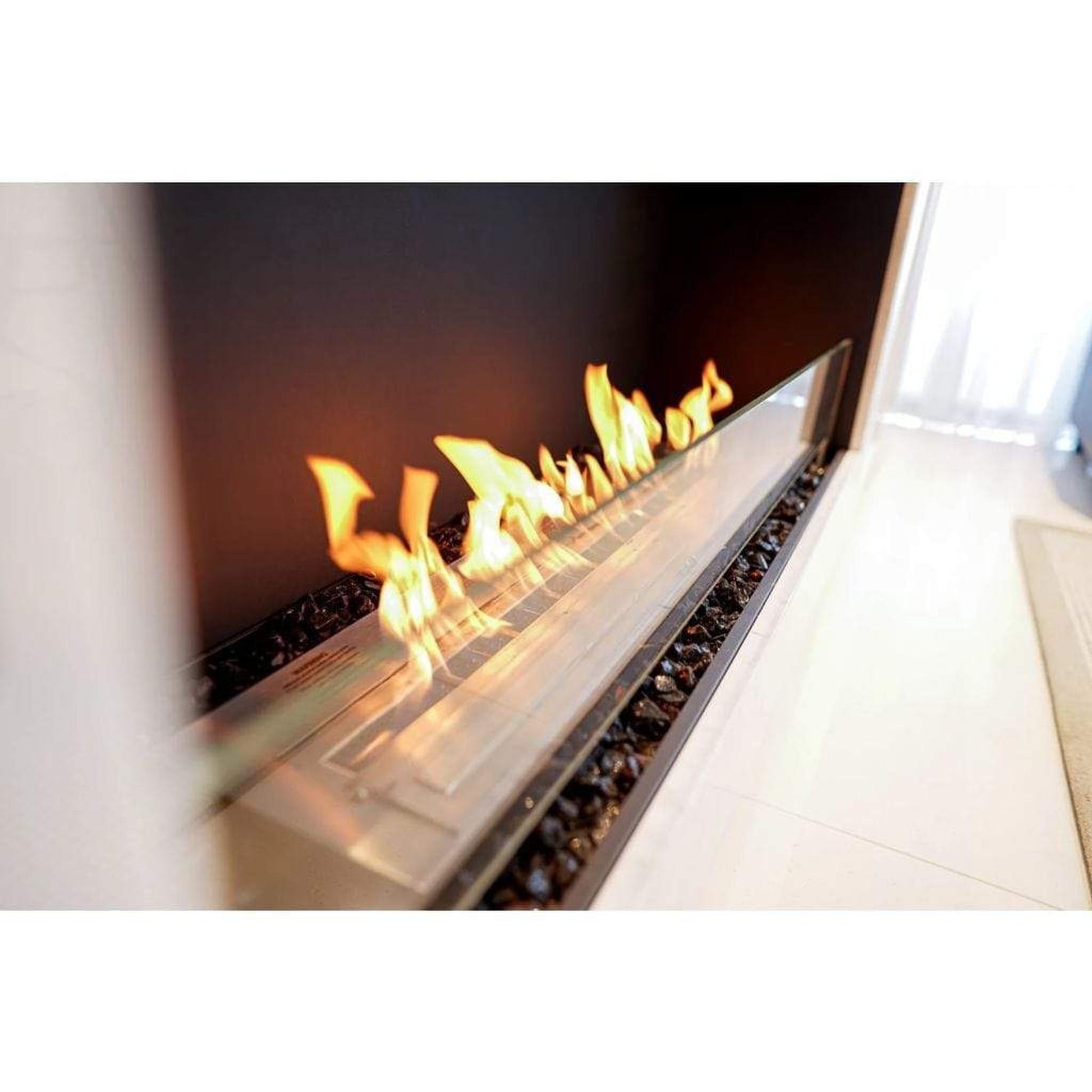

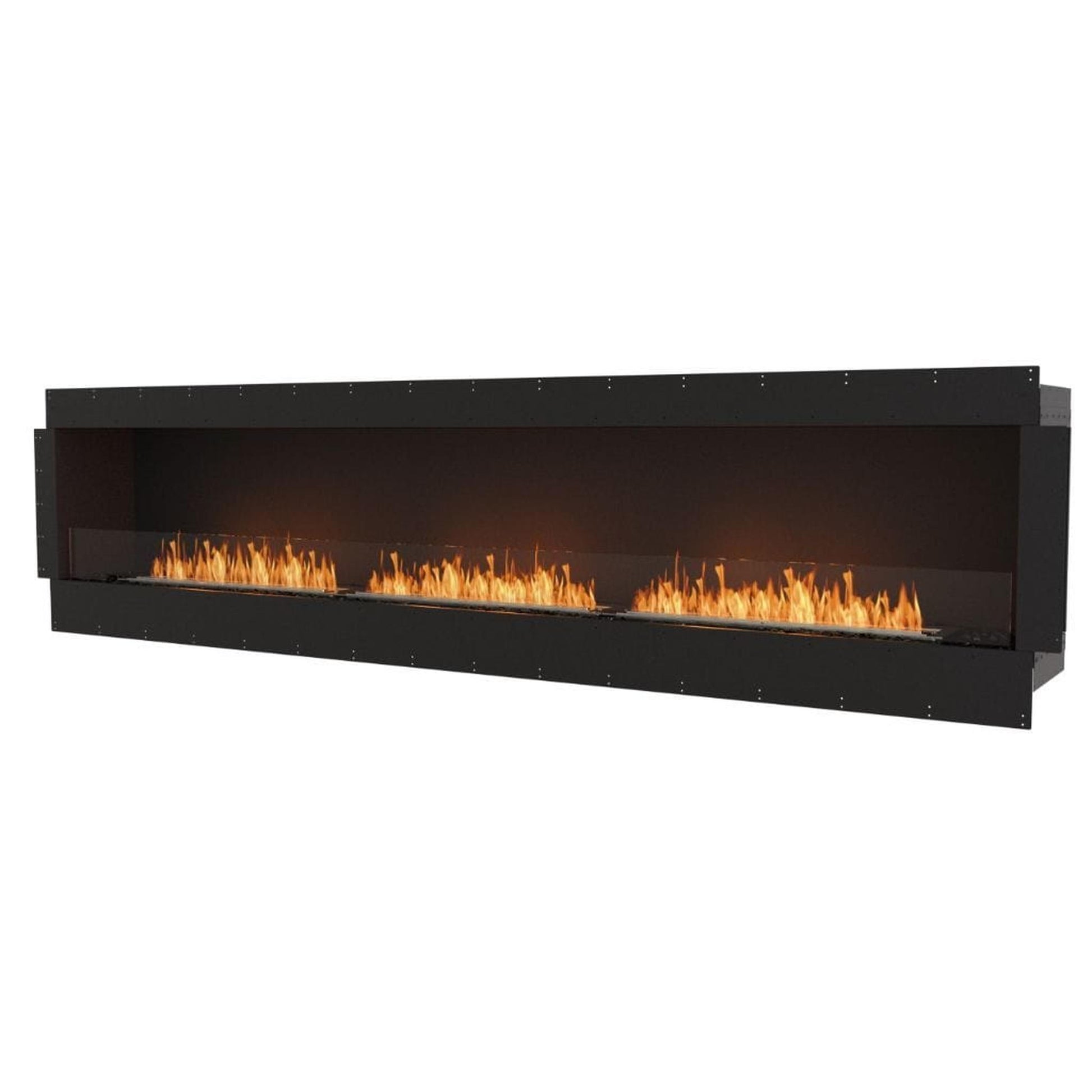

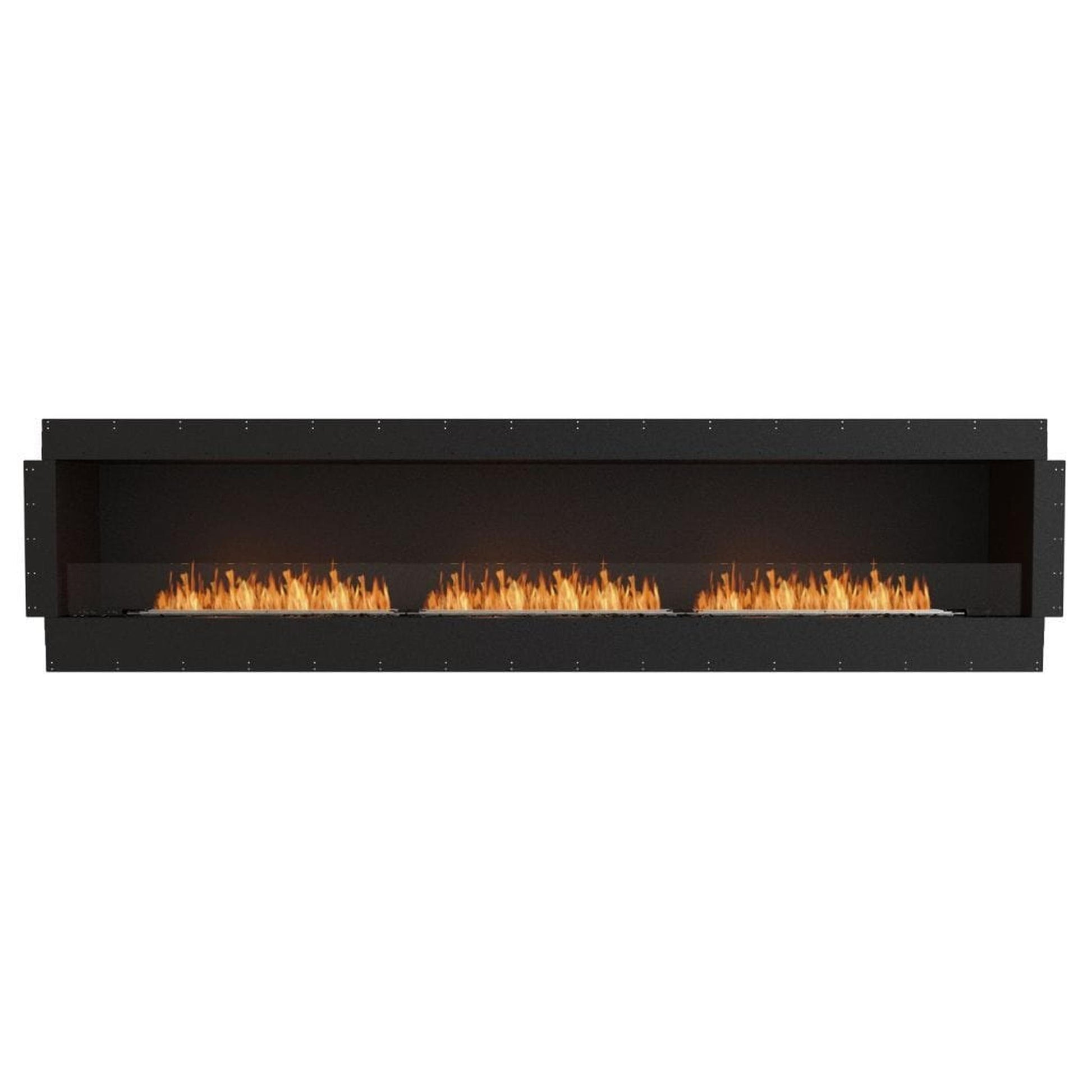

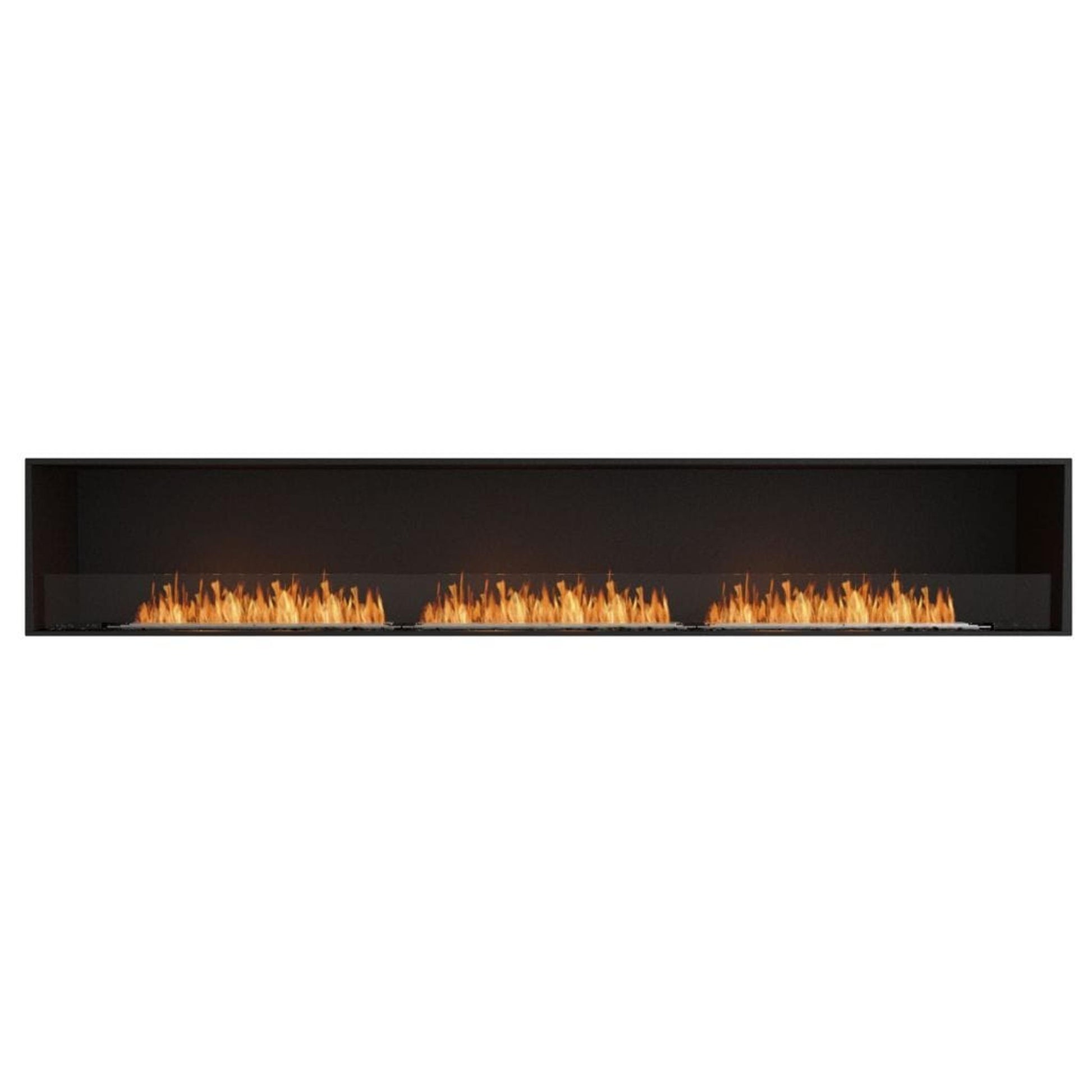

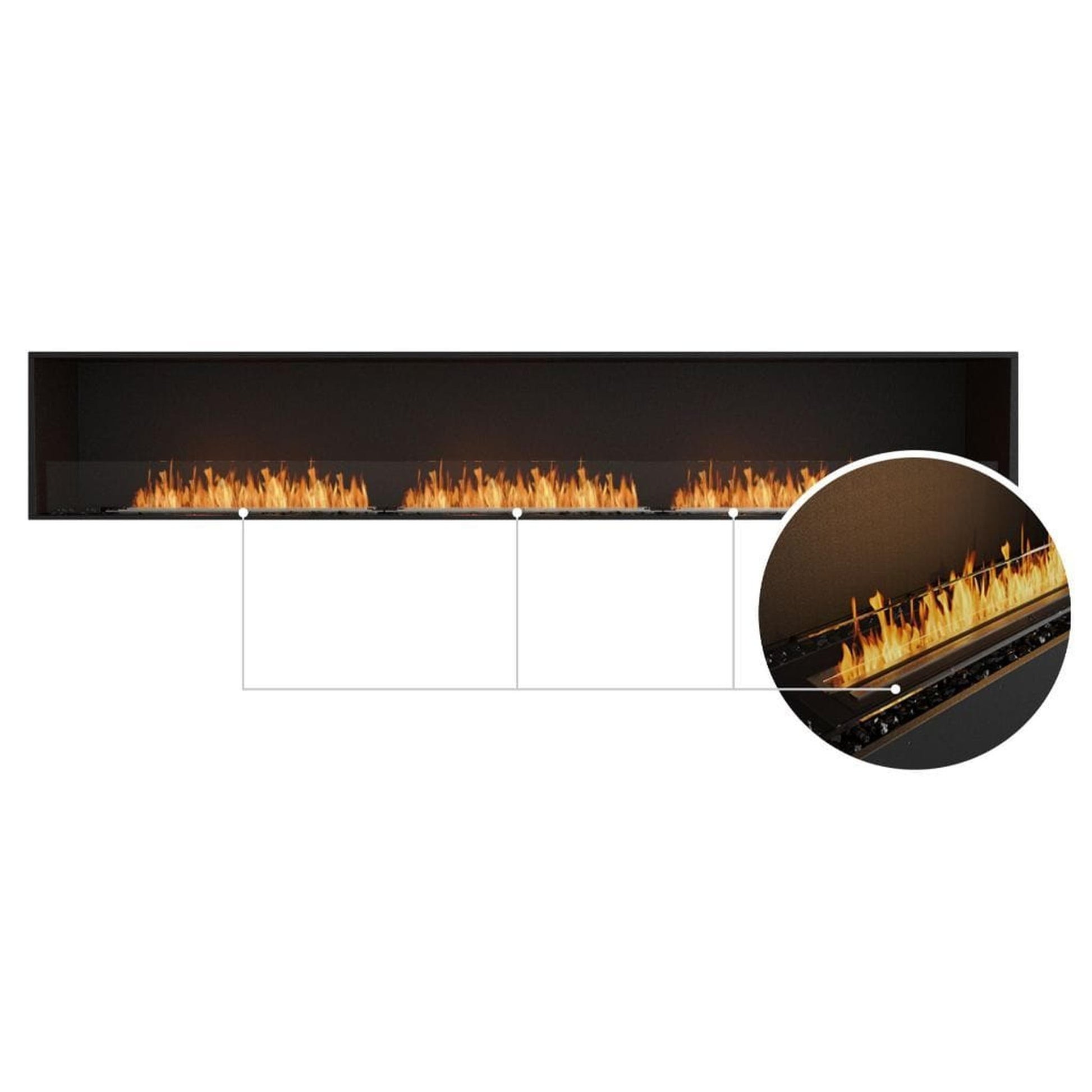

One of the longest flames available in the Flex Series is created by using 3 of our ever-popular XL900 Burners. With an overall heating capacity of 1938ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants. Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately)

  • e-NRG Bioethanol Fuel
  • Decorative Log Set

Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested world-wide

Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.

Specifications

Weight 378lb [172kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Black

Fuel Efficiency

Volume Capacity

7.1 Gal [27 L]

Heats on Average

1938ft2 [180m2]

Minimal Room

11654ft3 [330m3]

Thermal Output

48 MJ/h - 45000 BTU/h - 13.20 kW

Burn Time

8 - 13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 130.3in [3310mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings

Front View

Side View

Top View

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

How safe are bioethanol fireplaces?

EcoSmart Fire’s operating tools, procedures, and proprietary technologies were developed with safety as our top priority. Made from 304-grade stainless steel, EcoSmart Fire’s ethanol fireplace burners go through a deep-draw fabrication process that eliminates the potential for dangerous leaks. Additionally, our patented filling point is separated from the ignition zone and engineered so that the jerry can spout is fully supported prior to releasing the fuel supply. This eliminates the usual splash and spills that would otherwise occur when fuel is decanted into the burner while simultaneously reinforcing the maximum fill line within the burner. EcoSmart Fire’s ethanol fireplaces release heat, carbon dioxide (the same stuff we exhale) and steam. Allowing you to enjoy a clean-burning flame without the soot, smoke, ash or other harmful substances emitted by traditional wood burning fireplaces. When selecting an installation location for your ethanol fireplace it is important to consider the required minimum room sizes and clearances. Please reference our installation manual for more information.
What are the benefits of a zero clearance ethanol fireplace insert?

EcoSmart Fire’s Flex Fireplace Series has the necessary clearances to combustible frame components already built-in meaning they can be framed with wood studs. This gives you the freedom to install your ethanol fireplace insert in small and unique spaces. When selecting a location for the fireplace it is important to consider the required minimum room sizes and clearances. Please reference our Flex Series installation manual.

Do ethanol fireplaces smell?
All heating appliances have their own smell be it gas, wood or electric - ethanol fireplaces are no different. e-NRG ethanol fuel is made of fermented plants like sugarcane or corn and is essentially a liquid alcohol. To safely make “de-natured” and unfit for consumption, substances have been added. The burning of these substances may cause a slight smell upon initial lighting and when the flame is extinguished – similar to when you blow out a candle. e-NRG ethanol fuel is the only fuel recommended for your EcoSmart Fire ethanol fireplace. e-NRG ethanol fuel has the lowest odor and longest burn time on the market. The nice thing about using ethanol is that it’s not dry like gas or smokey like wood.
Is their heat output similar to a gas heater?
Burning bioethanol is similar to gas, but the room doesn't dry out like it does with gas - a more gentle, softer heat is created. Heat-wise, it depends on the models being compared. Some of our bioethanol burners output 15,000 BTU and can heat up to 60sqm of living space. Bioethanol is not, however, on an adjustable thermostat. Some may be turned up and down, but you can't control the room temperature in the same way as you do with gas on mains
What is a bioethanol fireplace?

A Bioethanol fireplace is an open fireplace that is fueled by bioethanol. A real flame is produced by the lighting of bioethanol, with a by-product being heat in the process. It is a fireplace that needs no flue for exhausting emissions, no utilities such as electricity or gas connection, and it uses a sustainable fuel source.

How large of an area will my ethanol fireplace heat?

The heat output of our indoor and outdoor ethanol fireplaces vary based on the model selected. When used indoors, EcoSmart Fire’s ethanol fireplaces comfortably heat between 215 sq feet and 700 sq feet.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.
