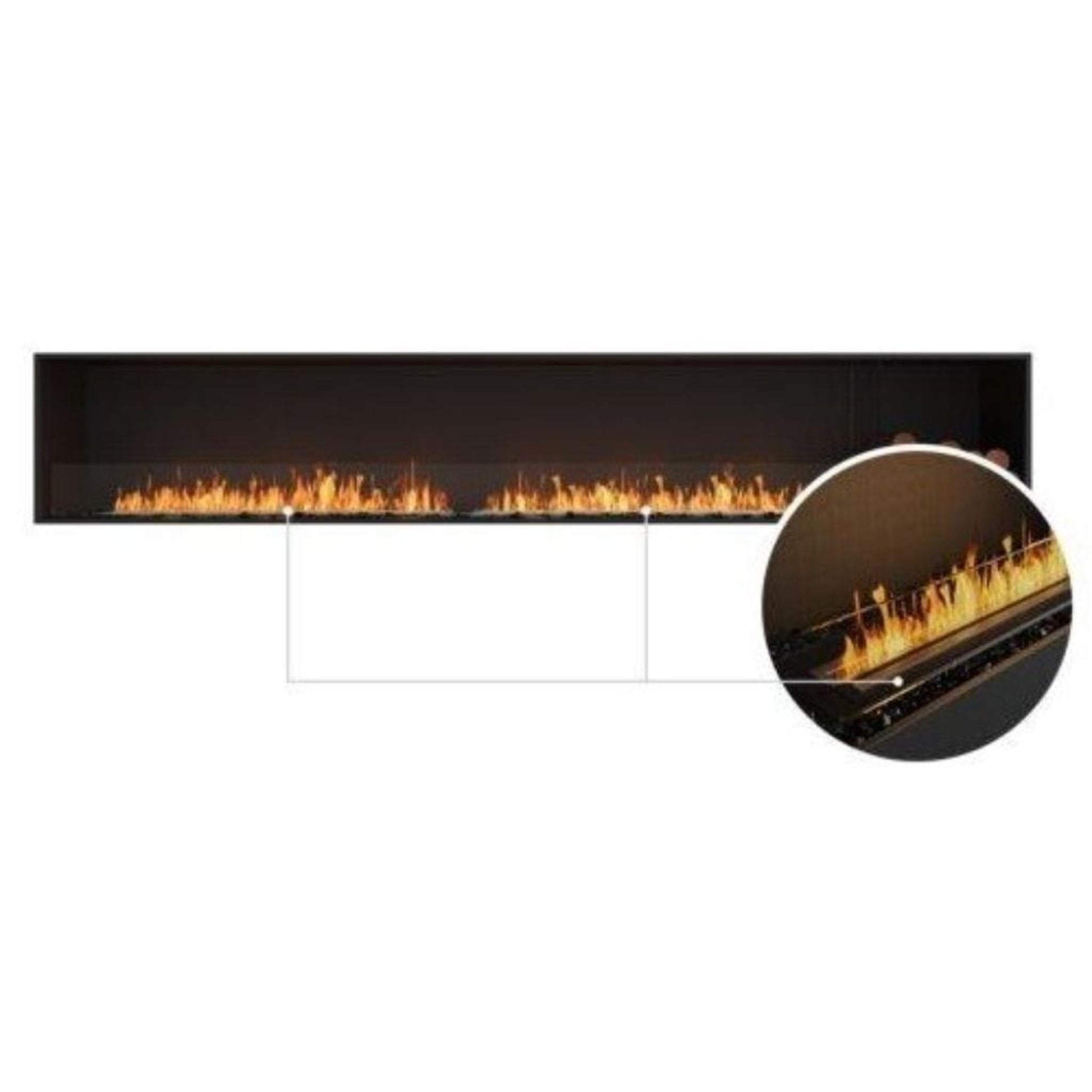

EcoSmart Fire Flex 122SS 130" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Left Side Decorative Box by Mad Design Group
EcoSmart Fire Flex 122SS 130" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Left Side Decorative Box by Mad Design Group
e-NRG Bioethanol Fuel
-- Please Select --
e-NRG Bioethanol Fuel-4 Gallons
e-NRG Bioethanol Fuel-8 Gallons
e-NRG Bioethanol Fuel-16 Gallons
e-NRG Bioethanol Fuel-20 Gallons
e-NRG Bioethanol Fuel-40 Gallons
e-NRG Bioethanol Fuel-80 Gallons
e-NRG Bioethanol Fuel-180 Gallons
No, Thank You
Decorative Log Set
Couldn't load pickup availability
- Free Shipping on Orders Over $400
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Enjoy an alluring flame from any angle you look at it.

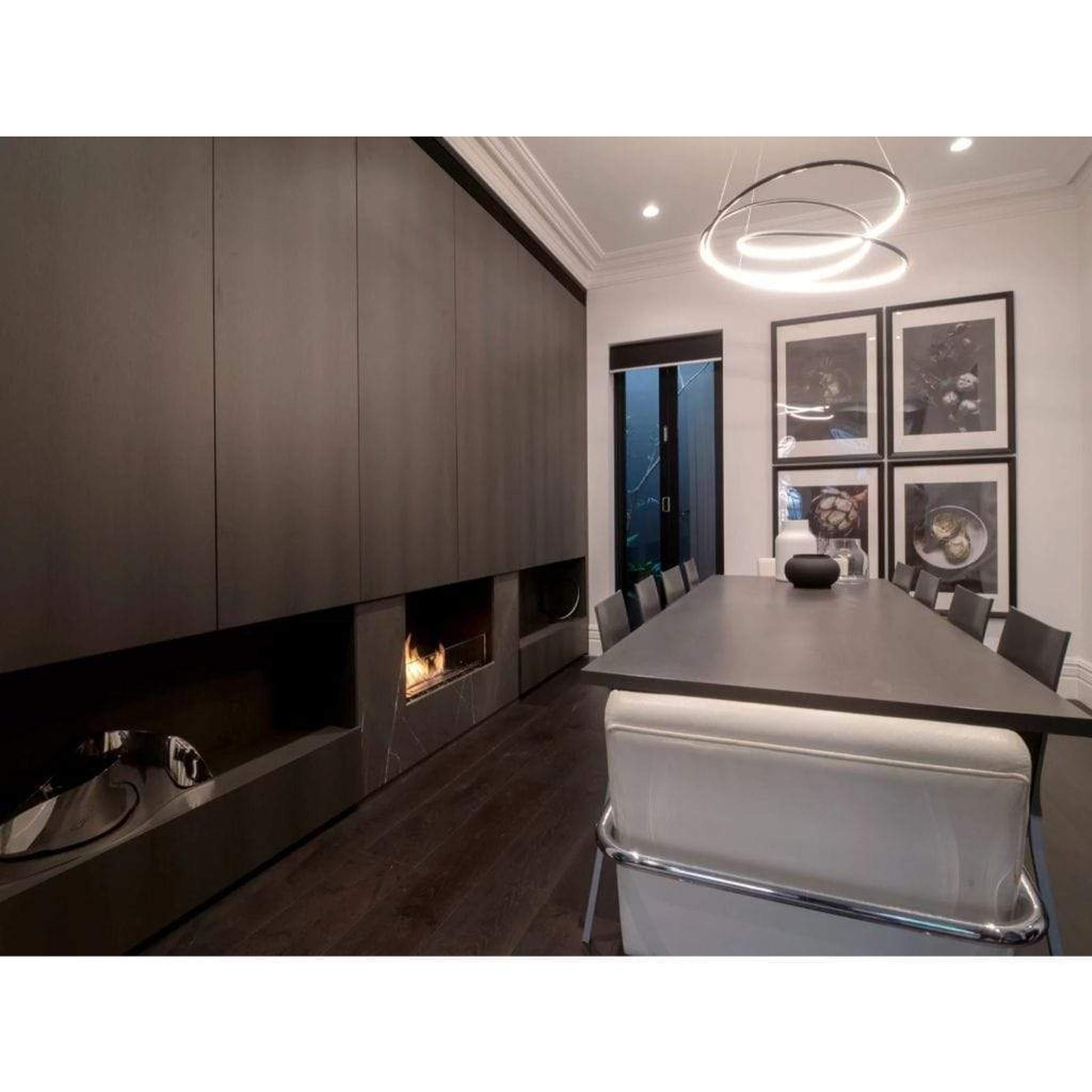

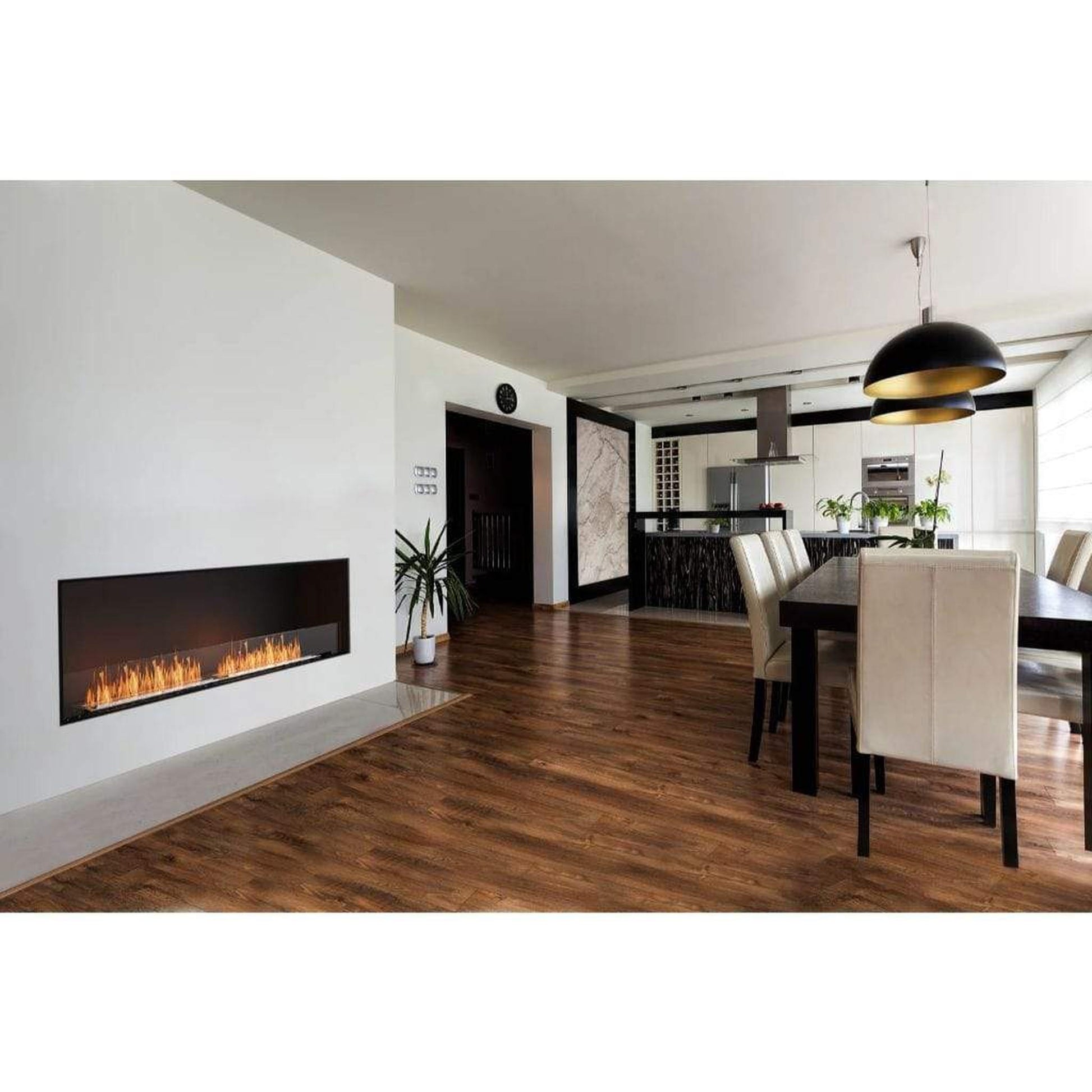

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

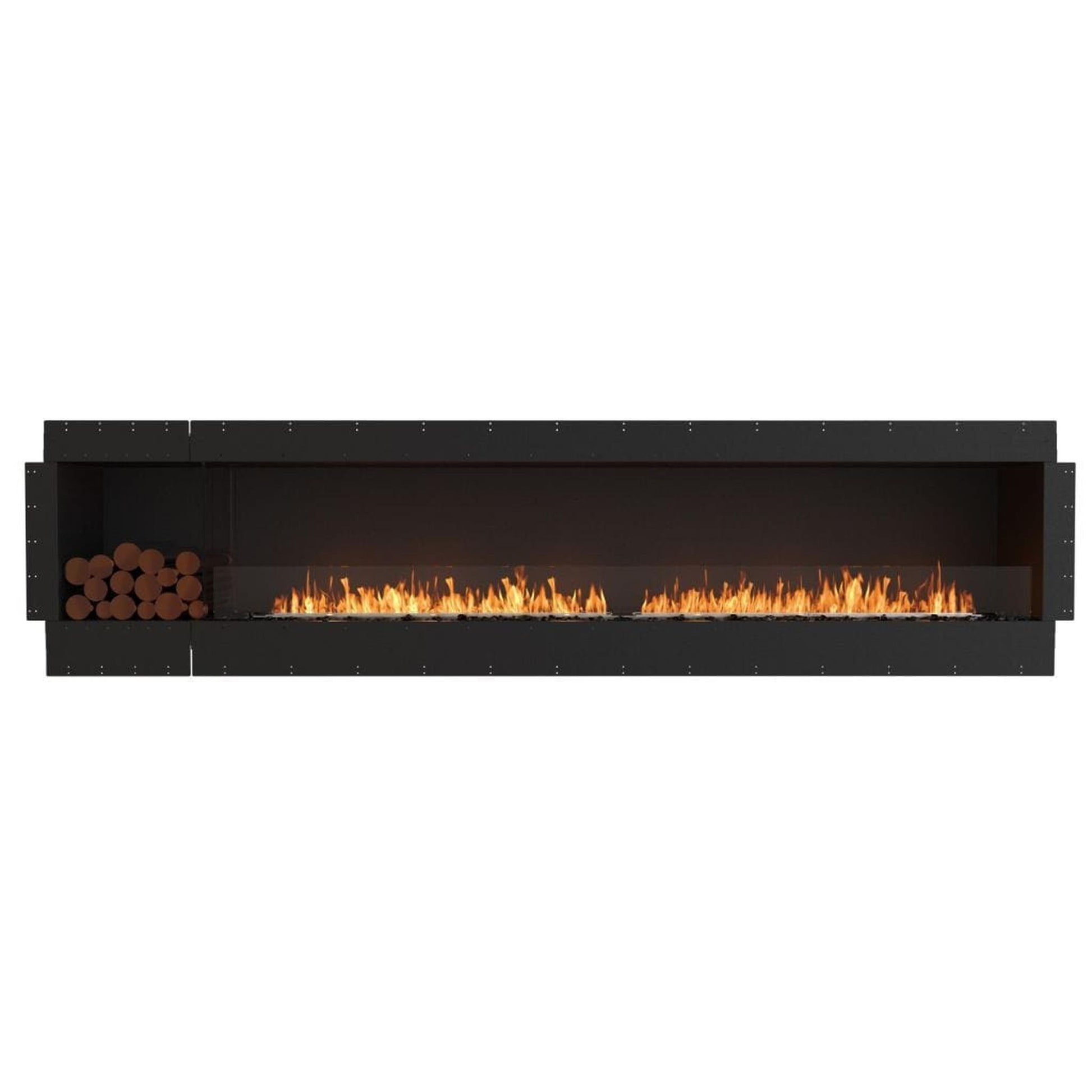

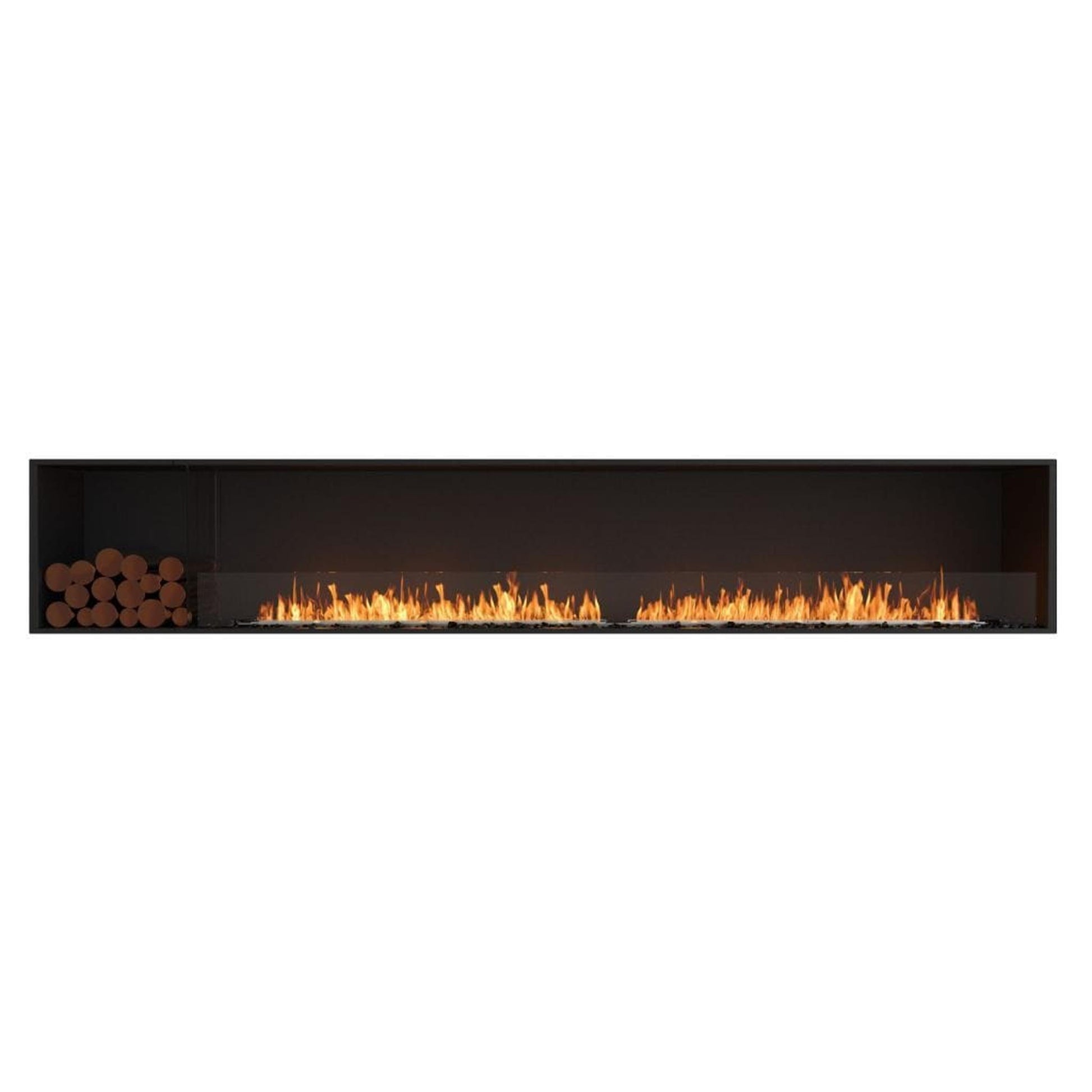

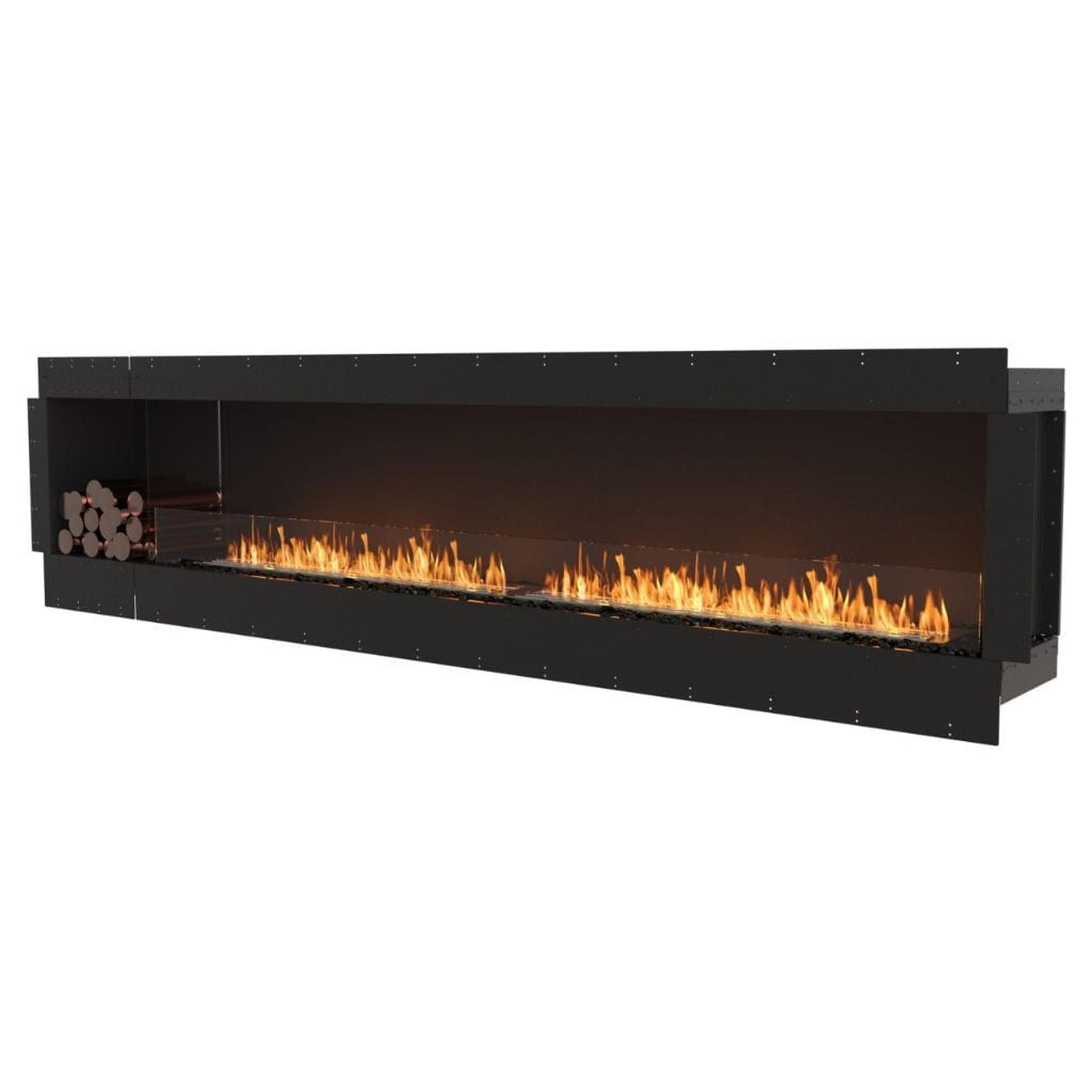

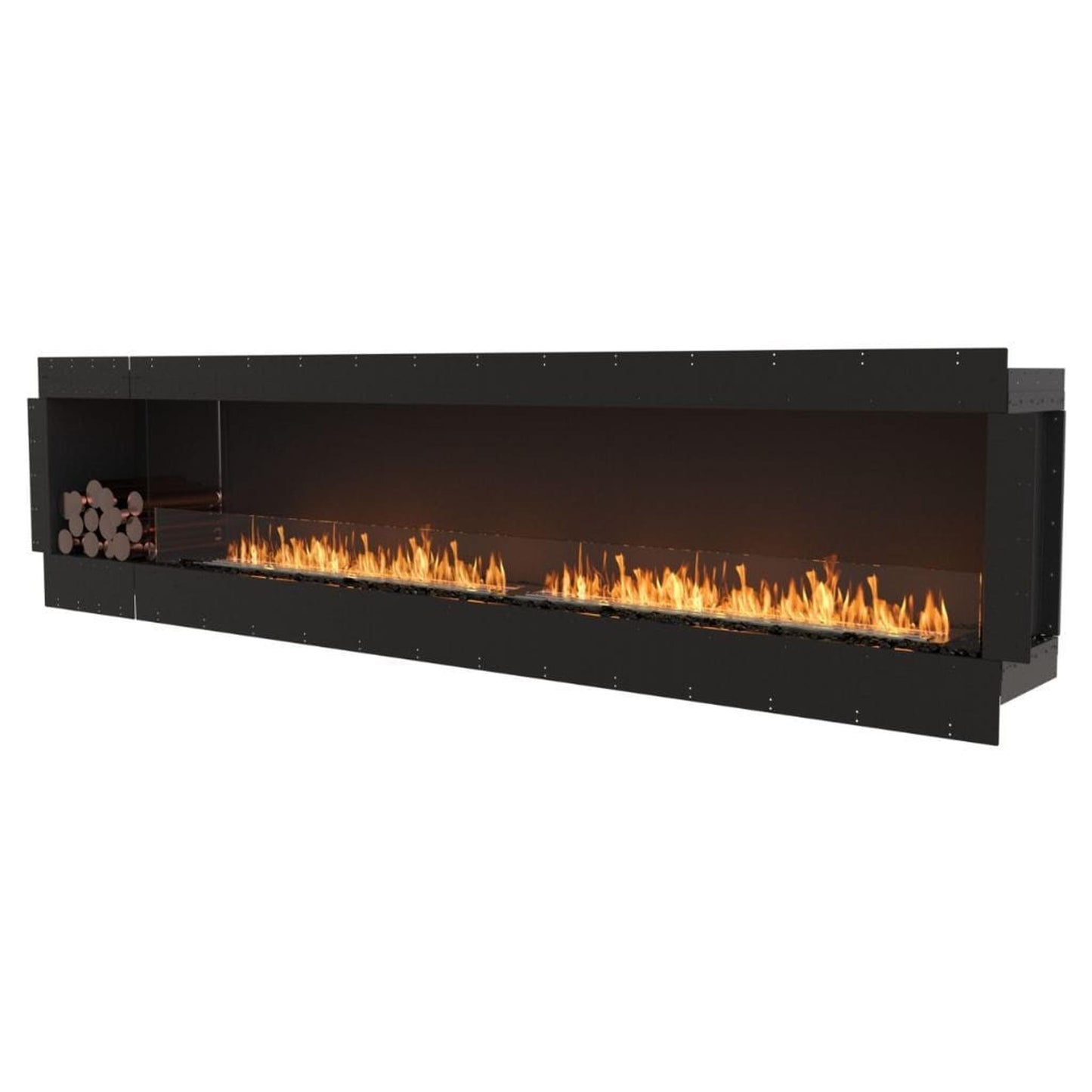

The Flex 122SS.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

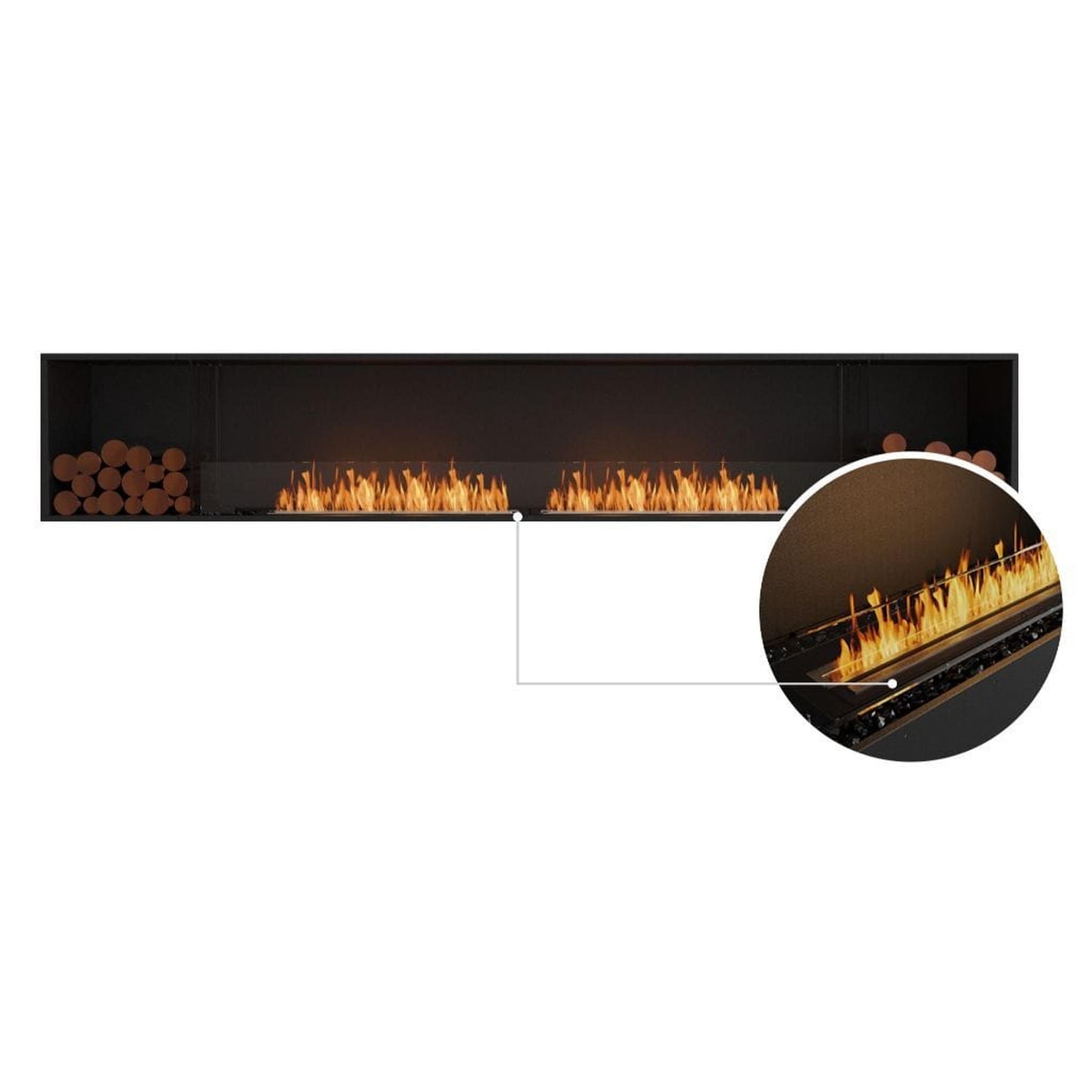

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 1399ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants. Each burner holds 2.6 gallons of fuel, and can deliver a stunning flame for up to 14 hours.
O-TL Listed in accordance with UL 1370.
What's Included
- Bioethanol Burner
- 1.25 Gallon Jerry Can
- Bottle Adapter
- Fire Lighter
- Lighting Rod
- XL Baffles
- Black Glass Charcoal
Not Included (Sold Separately)
- e-NRG Bioethanol Fuel
- Decorative Log Set
Features
Application
Indoor or outdoor single room application. With one open side, view the flame from the front.
Colors
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No Gas or Electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean Burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Zero Clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and Easy Assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust Proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious Finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Decorative side box
Includes one decorative side box to fill with your chosen noncombustible accessory.
Optional log sets
Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.
Wind Screen
Included integrated windscreen sits flush behind frame.
Tested world-wide
Our collection has been thoroughly tested against a number of global standards and is O-TL Listed in accordance with UL 1370 in the USA, certified in accordance with EN16647 in Europe and the UK, and satisfies the ACCC Safety Mandate for Australia.
Specifications
| Weight | 375lb [170kg] |
|---|---|
| Application | Indoor & Outdoor |
| Material | Stainless Steel Grade 304, Toughened Glass |
| Color | Black |
Fuel Efficiency
|
|
5.3 Gal [20 L] |
|
Heats on Average |
1399ft2 [130m2] |
|
Minimal Room |
8122ft3 [230m3] |
|
Thermal Output |
34 MJ/h - 30580 BTU/h - 9 kW |
|
Burn Time |
9 - 14h |
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
Dimensions
| Width | 130.3in [3310mm] |
| Height | 31.8in [807mm] |
| Depth | 14.4in [365mm] |
Technical Drawings
|
Front View |
|
|---|---|
| Side View |
|
| Top View |
|
Warranty
![]() |
Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase |
![]() |
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase |
Documents & Files
- Download Installation and Operation Manual
- Download Specs Sheet
- Download Summary Brochure
- Download Technical Specification
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
Videos
Frequently Asked Questions
What are the benefits of a zero clearance ethanol fireplace insert?
EcoSmart Fire’s Flex Fireplace Series has the necessary clearances to combustible frame components already built-in meaning they can be framed with wood studs. This gives you the freedom to install your ethanol fireplace insert in small and unique spaces. When selecting a location for the fireplace it is important to consider the required minimum room sizes and clearances. Please reference our Flex Series installation manual. |
What are some key benefits – compared to other heating options?
When you choose ethanol as your fuel source over gas or wood, you are totally simplifying your installation requirements and costs. There's no flue or chimney required when burning ethanol, which means that you have the ultimate in design flexibility to achieve an open fire in so many more areas of your home - both indoors and out. |
How long does it take to assemble?
|
Why use an ethanol fireplace?
|
Can I extinguish my ethanol fireplace before the fuel has burnt?Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use. |
Are ethanol fireplace inserts difficult to install?Unlike gas fireplaces or traditional wood burning fireplaces, our ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. They are simply mounted into the constructed main wall framework with the appropriate opening size for the fireplace insert selected. EcoSmart Fire’s ethanol fireplace inserts are extremely flexible and can be incorporated at any stage of your interior decorating, renovating or building works. For detailed specifications please contact us. |
Is Bioethanol easily obtainable?Yes, you can have fuel delivered to public and private premises in many countries. |
