SKU:ESF.FX.32SS

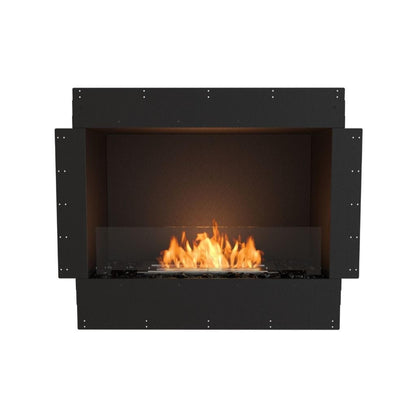

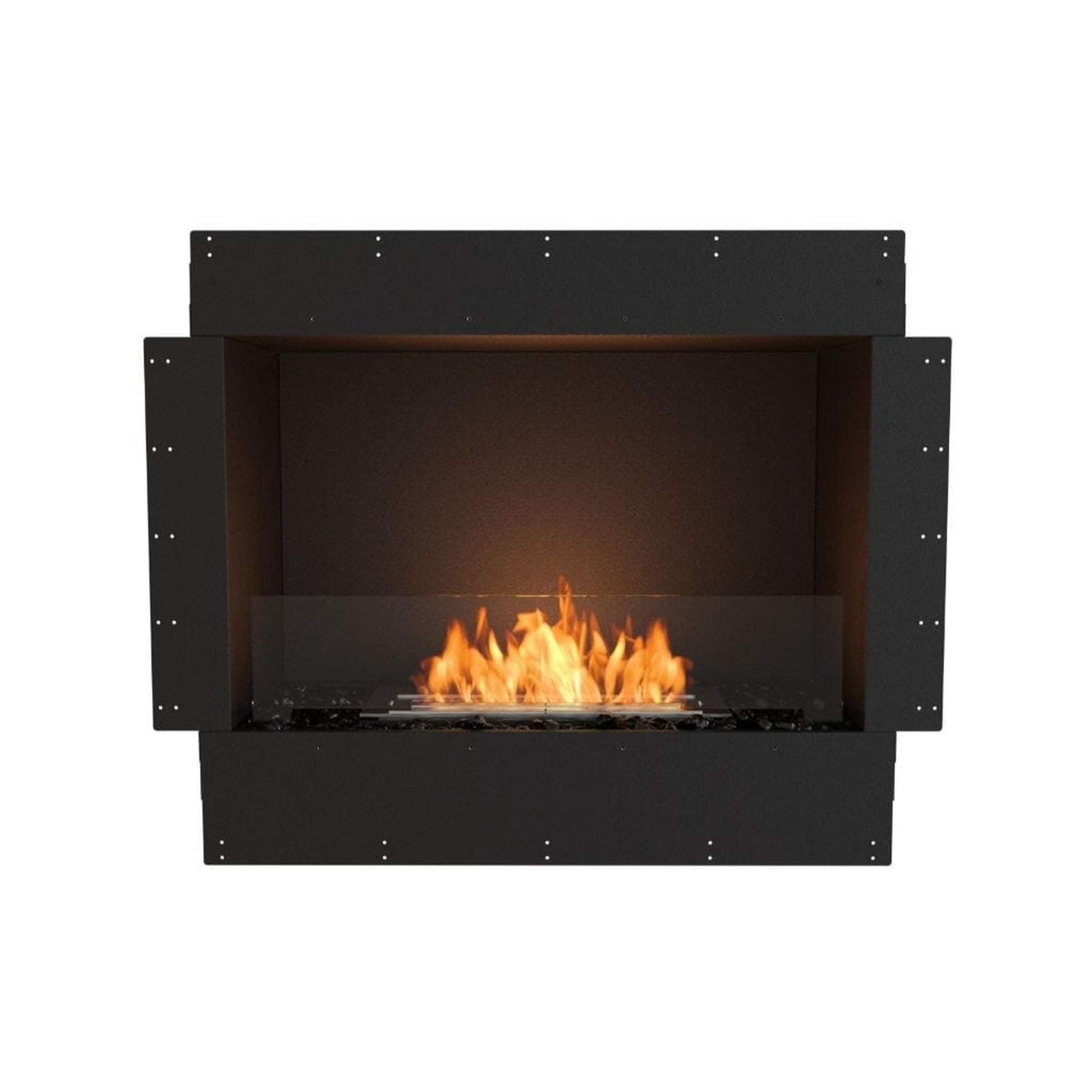

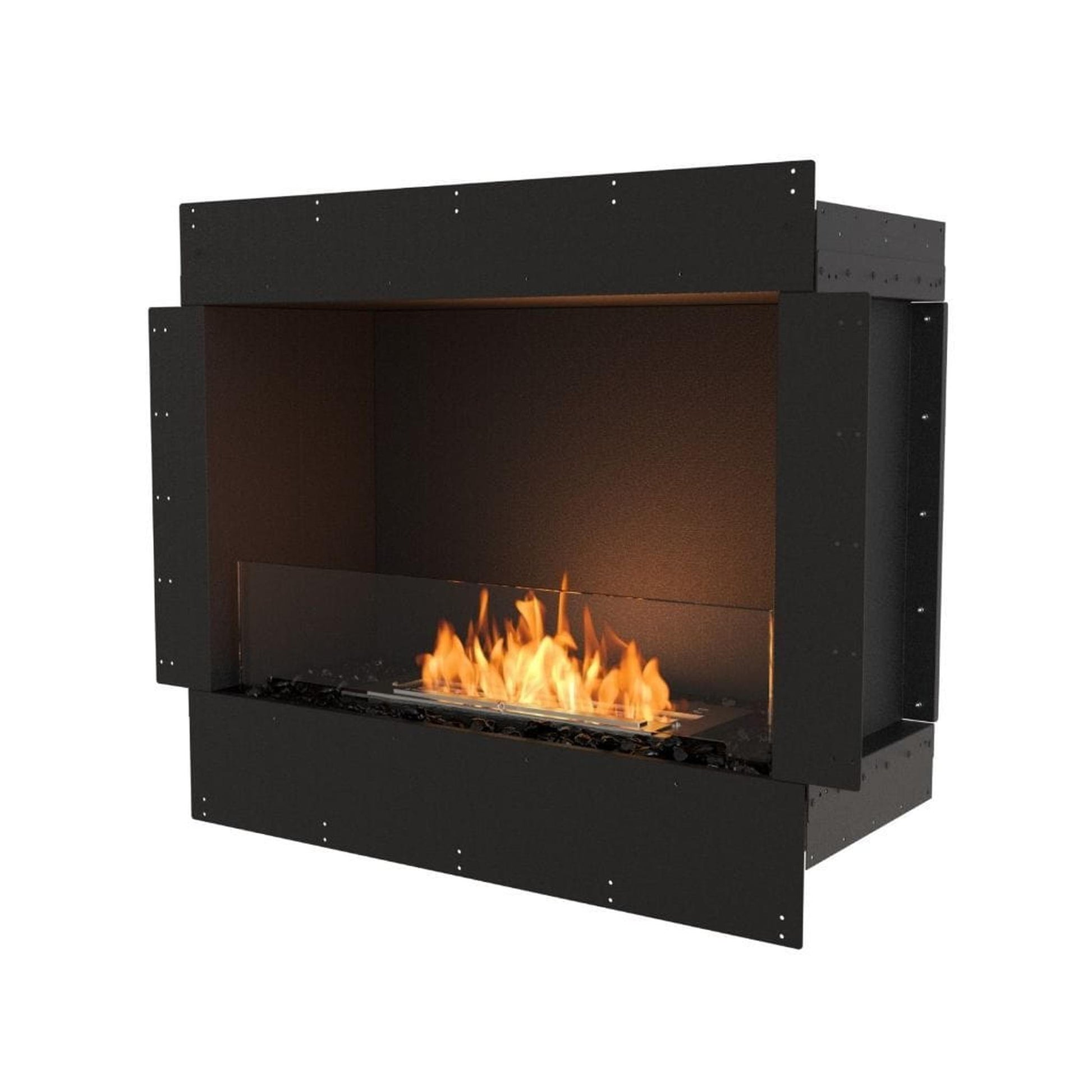

EcoSmart Fire Flex 32SS 39" Stainless Steel Single Sided Ethanol Fireplace Insert by Mad Design Group

EcoSmart Fire Flex 32SS 39" Stainless Steel Single Sided Ethanol Fireplace Insert by Mad Design Group

Regular price $5,395.00
Regular price $5,395.00 Sale price $5,395.00
Sale Sold out
Burner Color

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Enjoy an alluring flame from any angle you look at it.

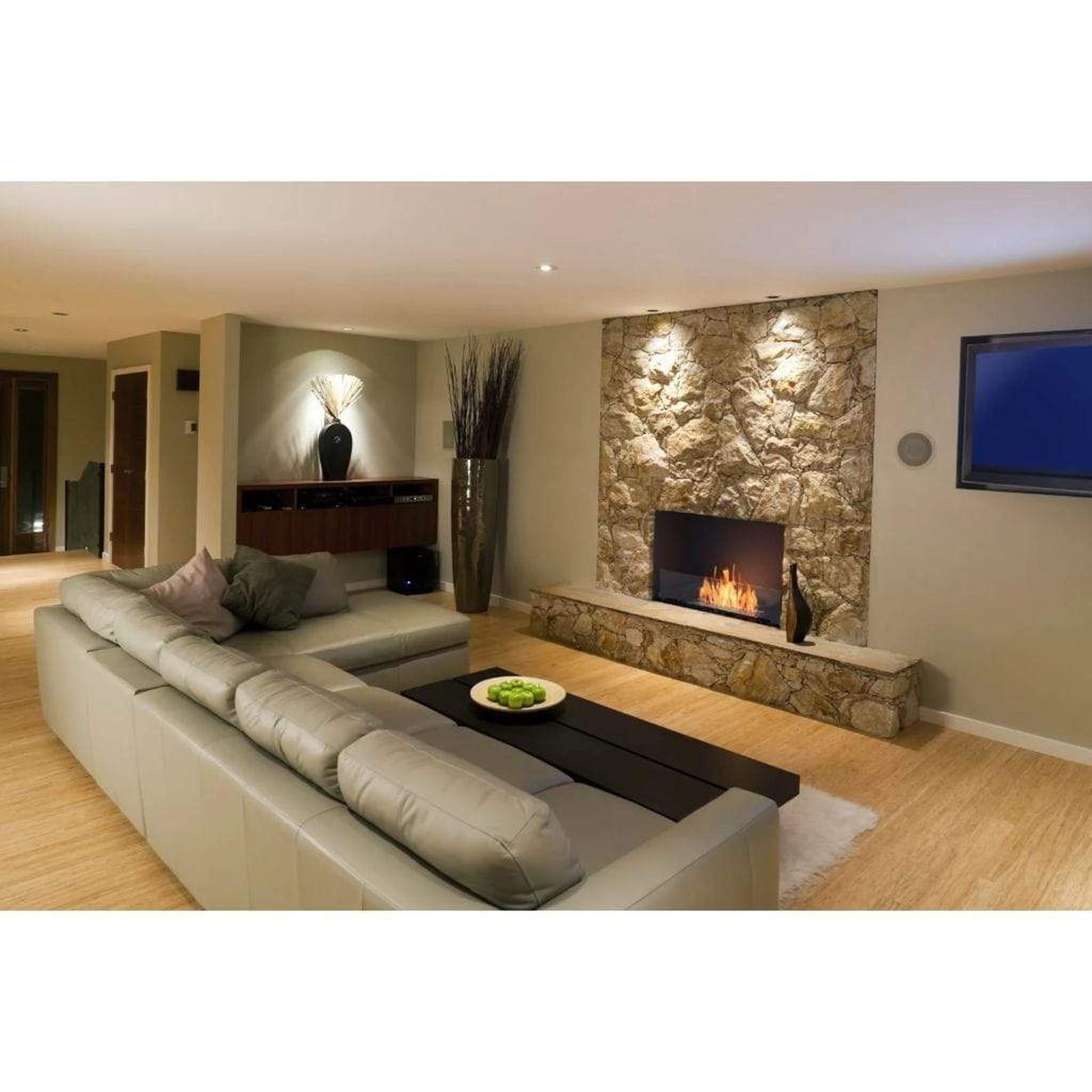

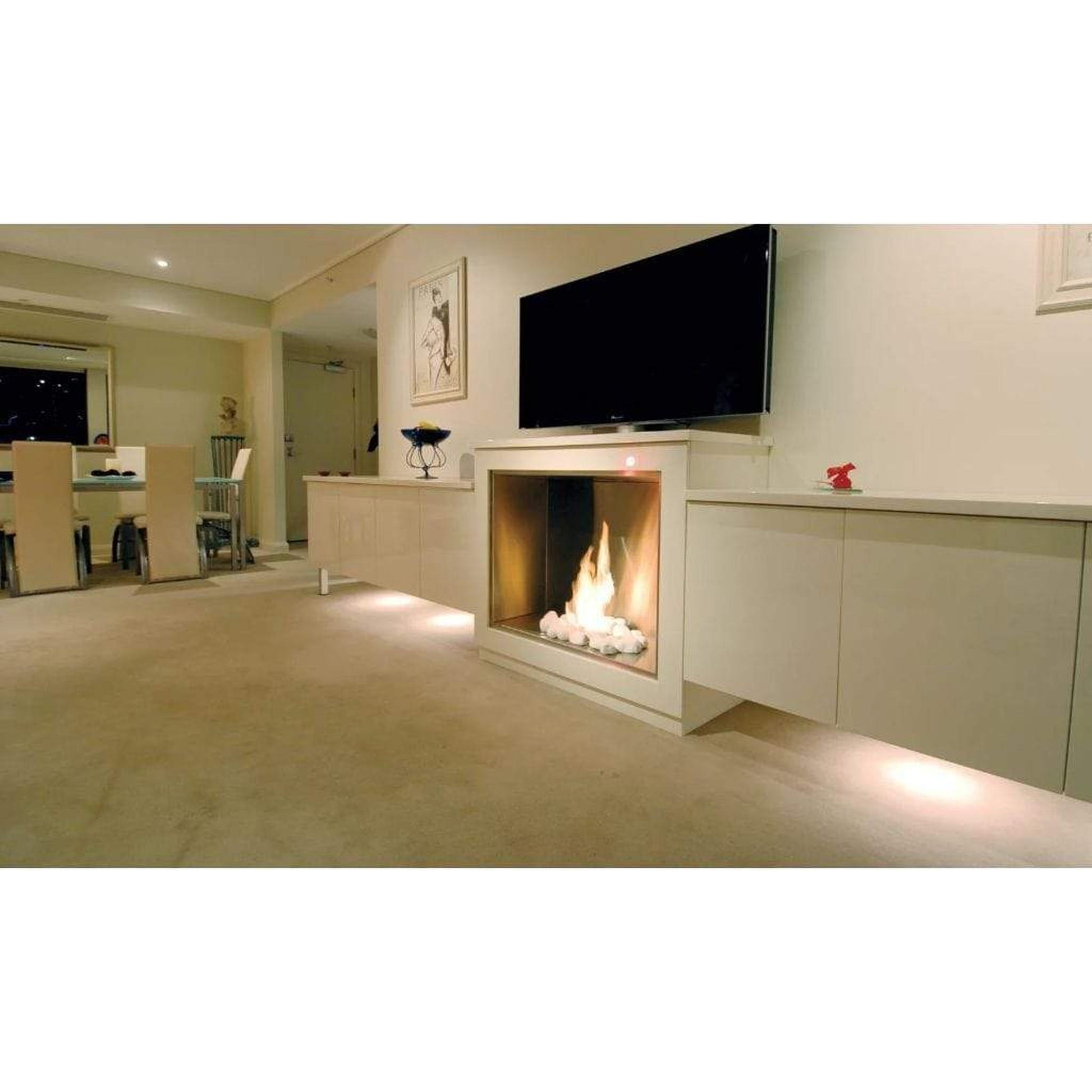

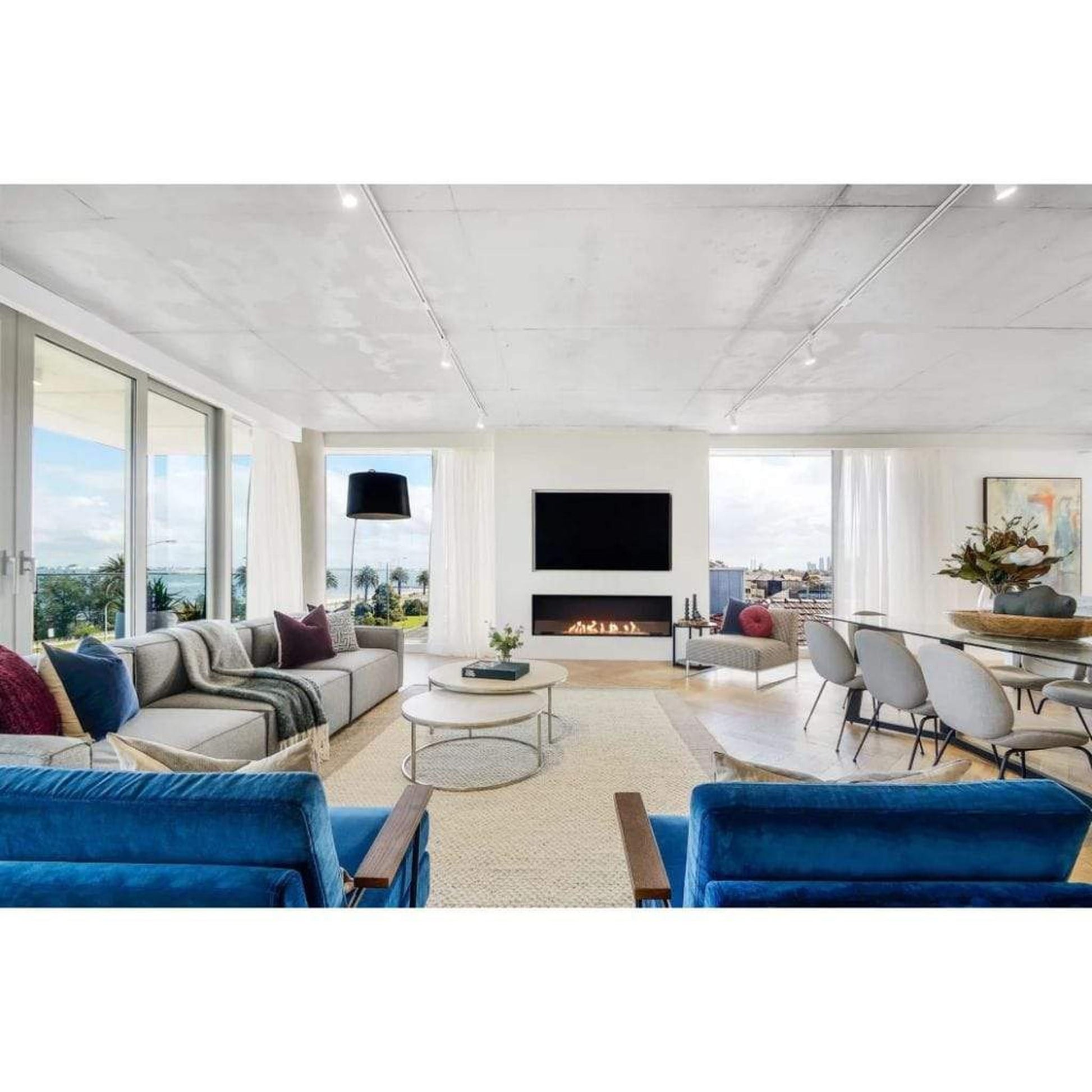

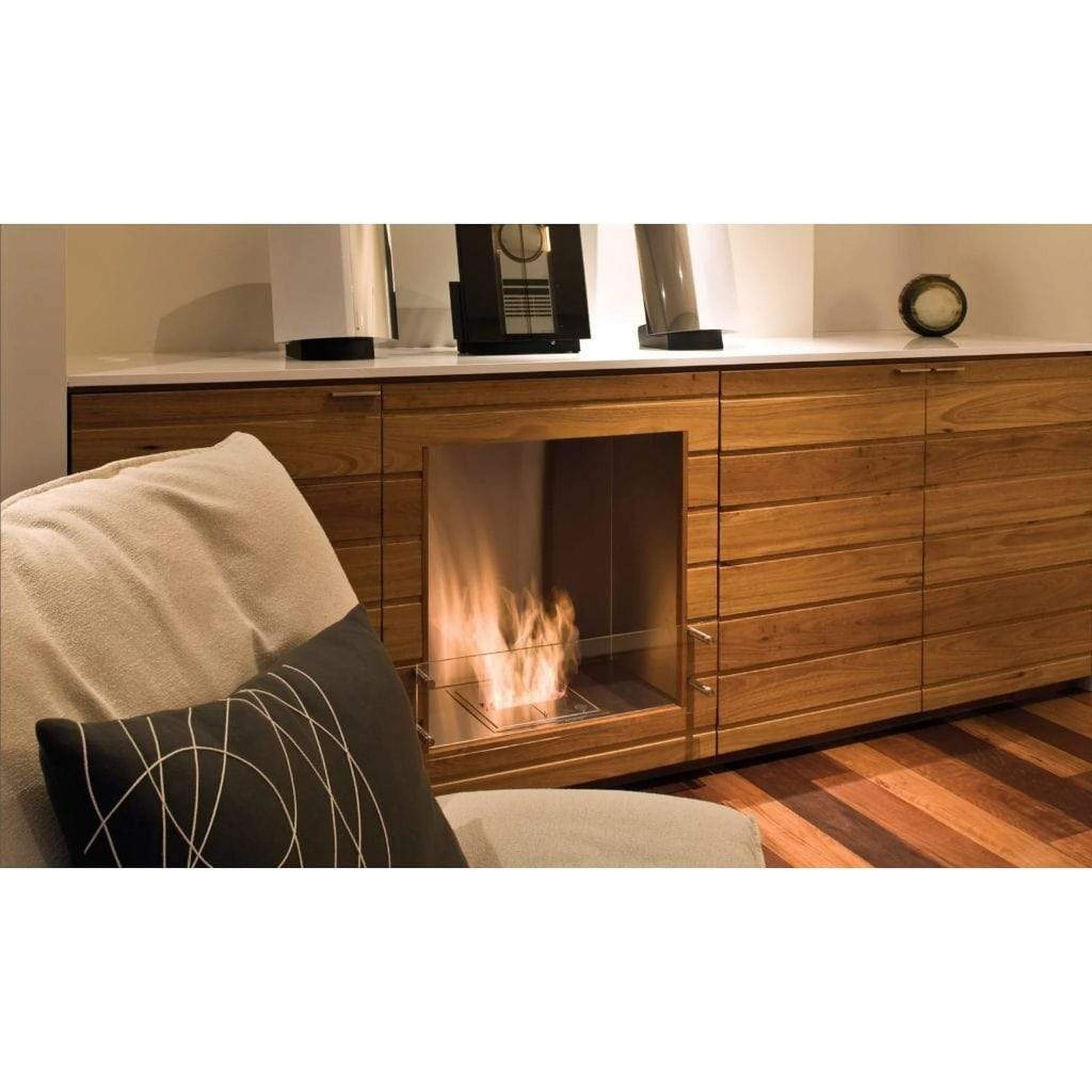

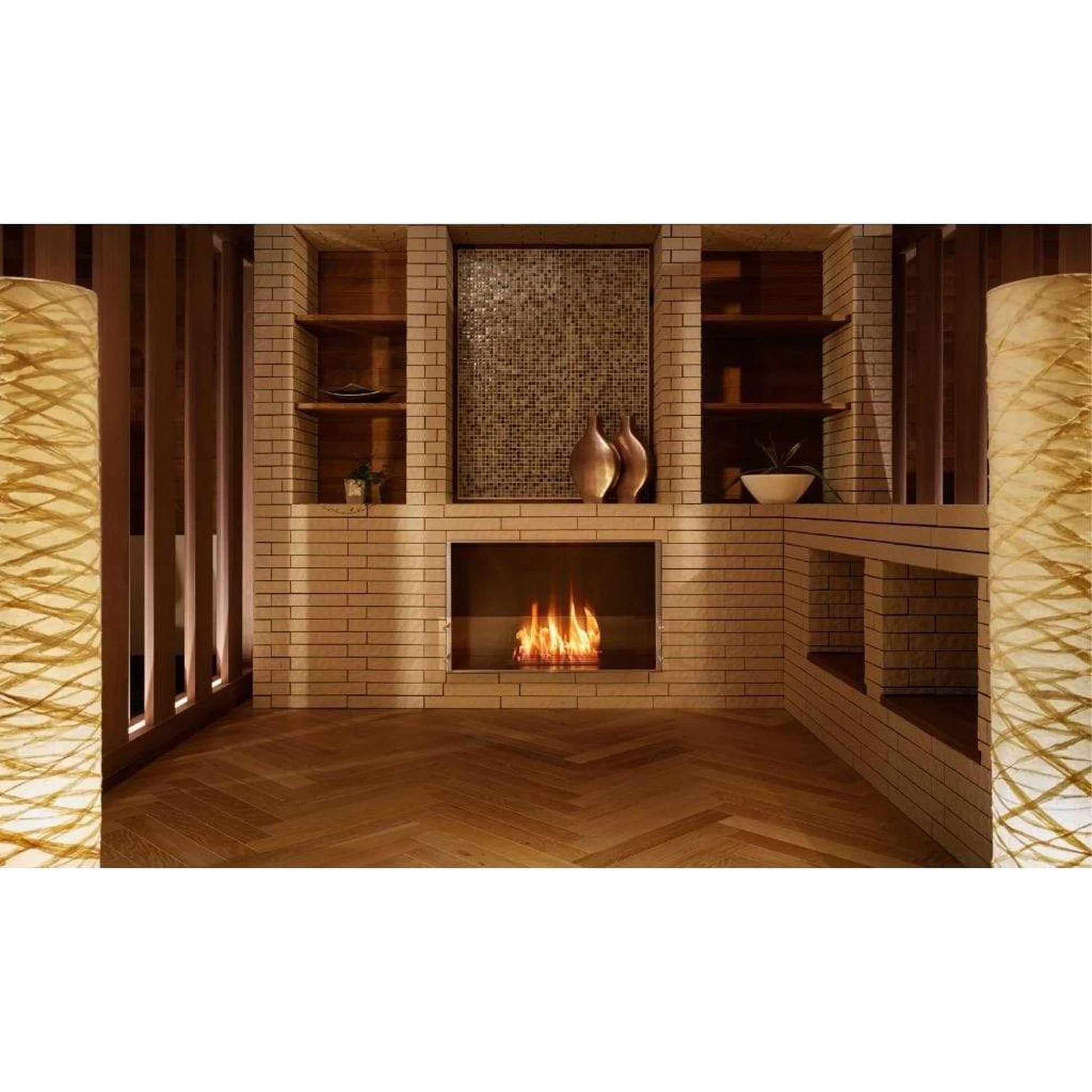

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

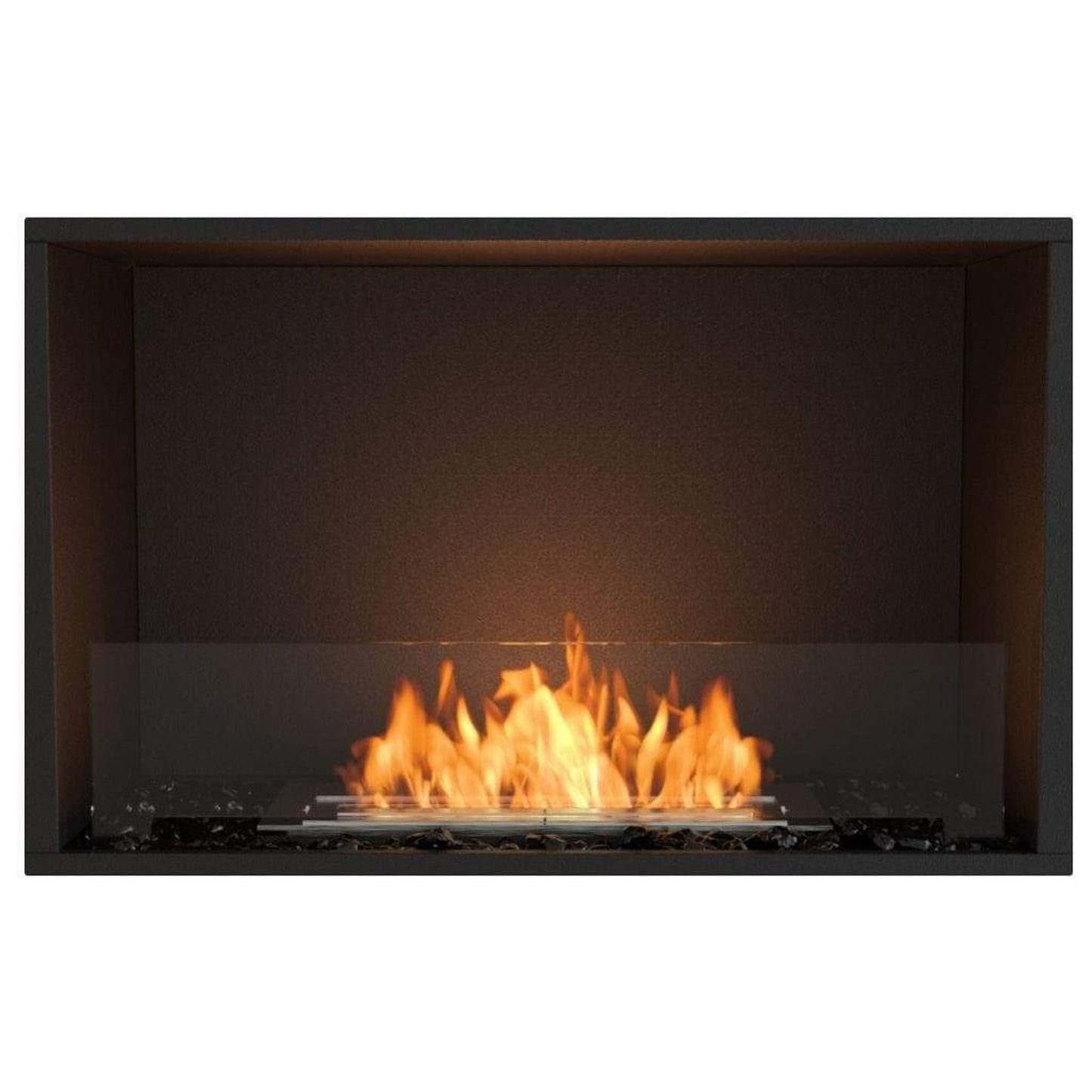

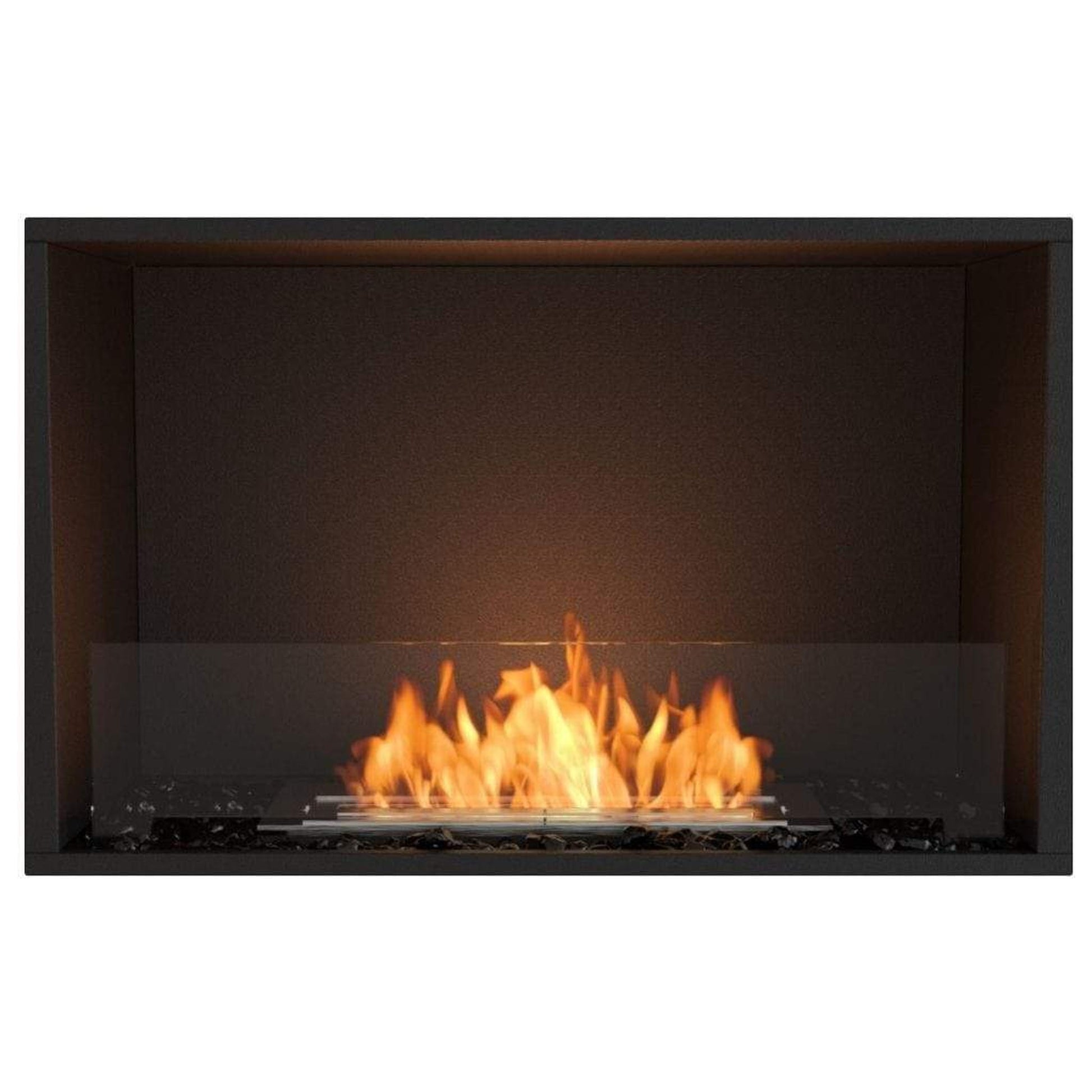

The clean lines and 'all flame' configuration of the Flex 32SS means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.

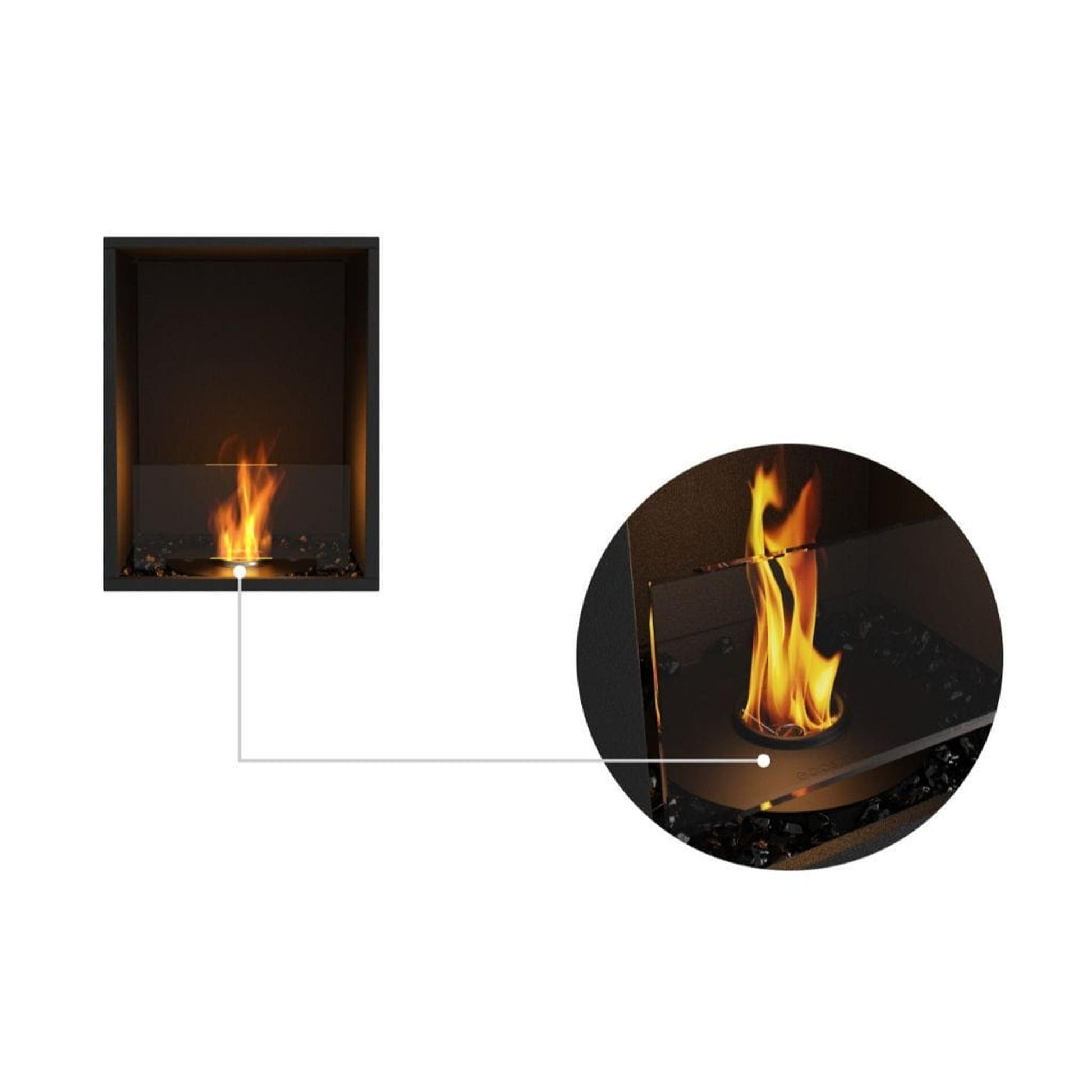

The XL500 burner, the 'baby' of the XL Series, delivers a stunning, long-lasting linear flame. It may be compact in size, but with a 1.3 gallons capacity, this ethanol burner can heat up to 431ft2. Efficiency is a key feature of this burner, delivering up to 13 hours of heat generating flame off a single refill.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately)

  • e-NRG Bioethanol Fuel

Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight 101lb [45.70kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Stainless Steel

Fuel Efficiency

Volume Capacity

1.3 Gal [5 L]

Heats on Average

431ft2 [40m2]

Minimal Room

2825ft3 [80m3]

Thermal Output

12 MJ/h - 11430 BTU/h - 3.4 kW

Burn Time

10 - 13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 39.8in [1010mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings

Front View

Side View

Top View

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

Do ethanol fireplaces give off heat?

EcoSmart Fire’s indoor ethanol fireplaces are ventless, meaning all the heat stays in the room rather than escaping up a flue or chimney like it would with a traditional wood burning fireplace. Increased heat retention also means increased fuel efficiency. EcoSmart Fire’s collection of ethanol fireplaces offer a heat output ranging from 5,000 BTU - 20,000 BTU’s.
How much does it cost to maintain an ethanol fireplace?

EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.

Can I extinguish my ethanol fireplace before the fuel has burnt?

Yes, you can turn your EcoSmart Fire ethanol burner off at any given time, even if there is ethanol still left in the burner. It is recommended however, that you leave it to burn until it completely runs out. The shut off mechanism is there for security and safety for those times when you need to leave the house, as it is not safe to leave a fire unattended. You need to wait until your appliance cools to room temperature (60 minutes) before re-igniting, this is because hot vapours are a hazard and may cause a strong, initial ignition if the ethanol has not cooled long enough. This is also to ensure that the flame has been totally extinguished and that the appliance is safe to refuel if the amount of fuel in the burner at that time is insufficient for your next ignition / use.

Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

Why use bioethanol?

Bioethanol, a renewable energy, is the cleanest and most efficient fuel on the market, which means there are no emissions and no soot or ash to clean up.

What is an ethanol fireplace insert?

EcoSmart Fire’s fireplace inserts are ready to install heating appliances that include single or multiple ethanol burners within a designed zero-clearance enclosure. Choose from over 219 single sideddouble sidedbaypeninsulaisland, and bench fireplace styles at multiple lengths. Unlike gas fireplaces or traditional wood burning fireplaces, EcoSmart Fire’s ethanol fireplace inserts require no venting, no gas line, no electricity - eliminating the need and cost of three sub contractors. Simply secure the ethanol fireplace insert in the framework, finish the surround, and it’s ready for use. EcoSmart Fire’s ethanol fireplace inserts can be installed virtually anywhere - in walls, cabinets, small spaces, high rise buildings, commercial spaces, indoors and outdoors.

Are ethanol fireplaces good for the environment?

EcoSmart Fire’s ethanol fireplace burners and fireplace inserts, when paired with our e-NRG bioethanol fuel are clean burning with the only byproduct being heat, steam and carbon dioxide (the same stuff we exhale). Unlike gas fireplace inserts and wood burning fireplace inserts, EcoSmart Fire’s ethanol fireplaces do not produce messy pollutants like soot, smoke, and ash.

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.
