EcoSmart Fire Flex 68SS 76" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Left Side Decorative Box by Mad Design Group

EcoSmart Fire Flex 68SS 76" Black Single Sided Ethanol Fireplace Insert with Stainless Steel Burner and Left Side Decorative Box by Mad Design Group

Regular price $9,995.00
Regular price $9,995.00 Sale price $9,995.00
Sale Sold out
Burner Color
Decorative Box

e-NRG Bioethanol Fuel

-- Please Select --

e-NRG Bioethanol Fuel-4 Gallons

e-NRG Bioethanol Fuel-8 Gallons

e-NRG Bioethanol Fuel-16 Gallons

e-NRG Bioethanol Fuel-20 Gallons

e-NRG Bioethanol Fuel-40 Gallons

e-NRG Bioethanol Fuel-80 Gallons

e-NRG Bioethanol Fuel-180 Gallons

No, Thank You

Decorative Log Set

Copper Log Set
Brass Log Set
  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Enjoy an alluring flame from any angle you look at it.

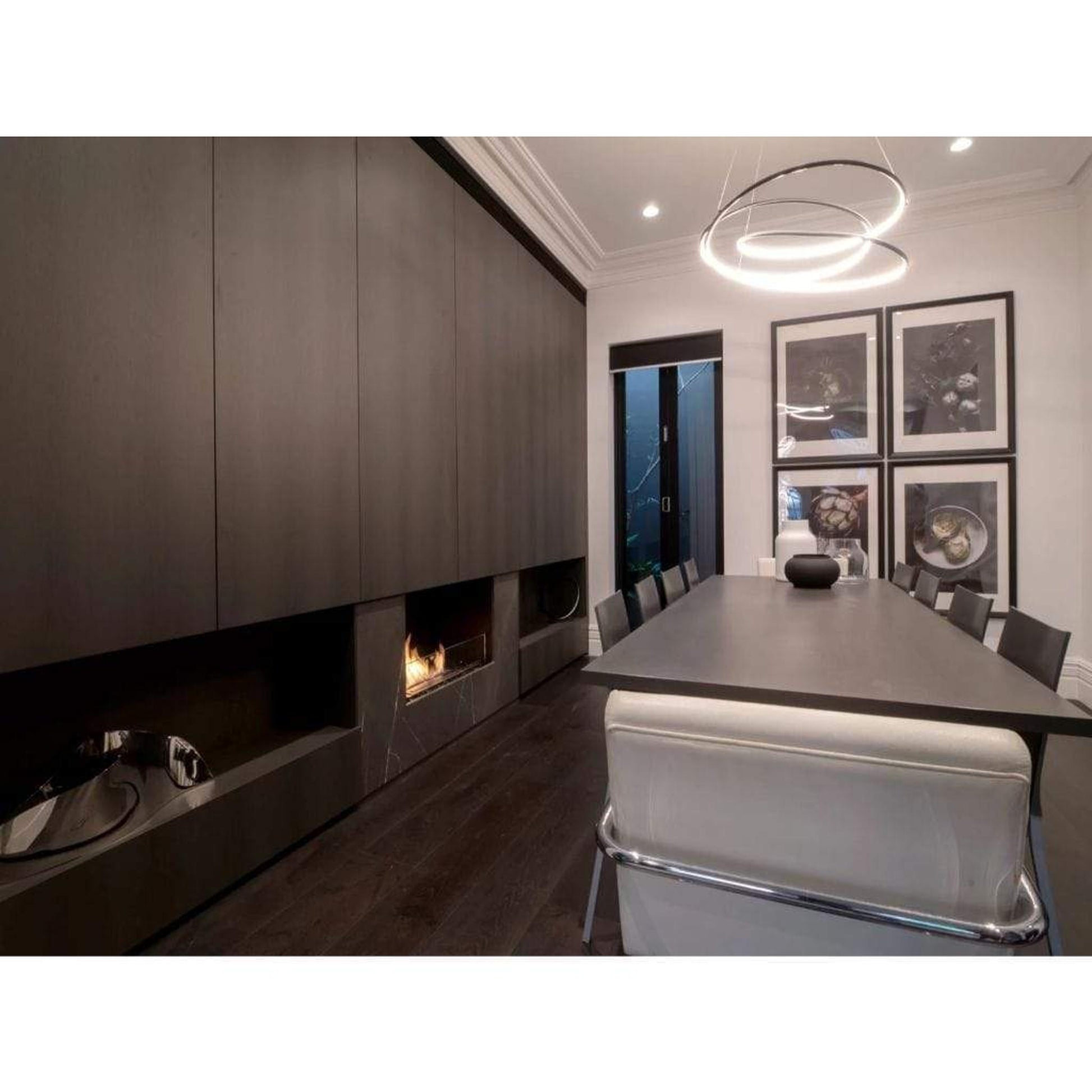

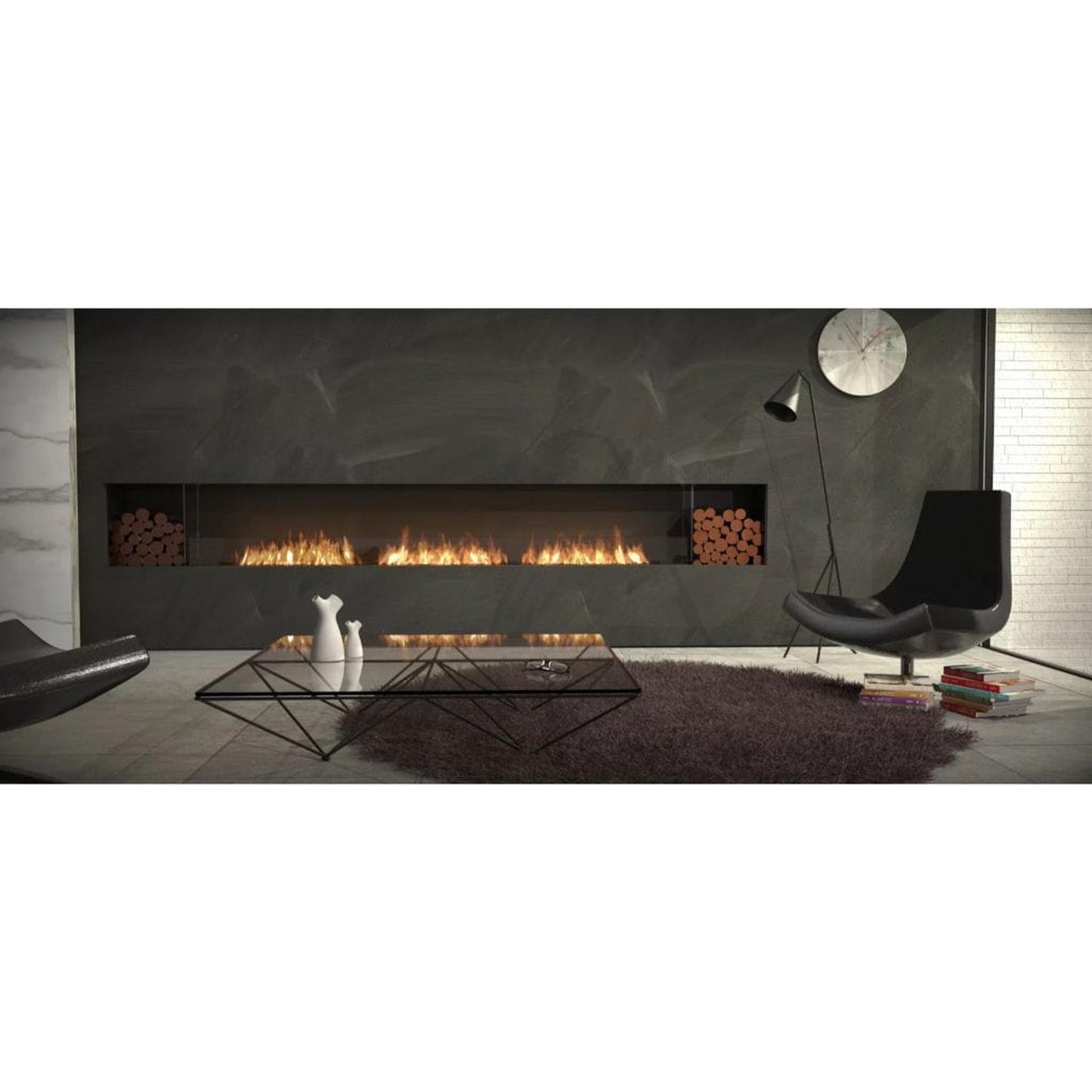

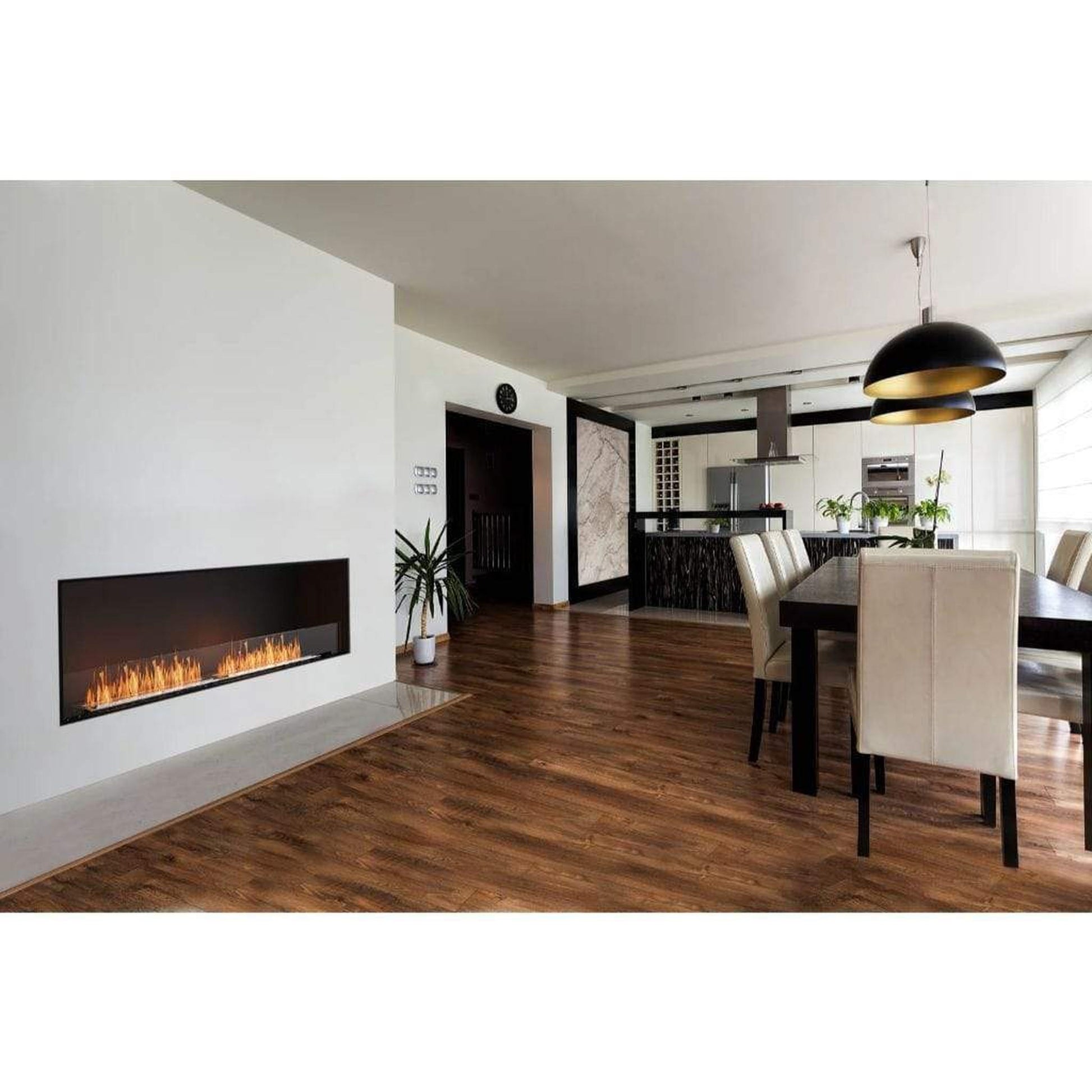

Specifically designed for a single room application, the Flex Single Sided Fireplace Insert features one open side, enabling the flame to be viewed from the front. The bioethanol, true zero-clearance fireplace can be used to create a striking addition to a feature wall, integrated within cabinetry or a fireplace setting - whether in a residential dining room, indoor or outdoor living area, or commercial spaces.

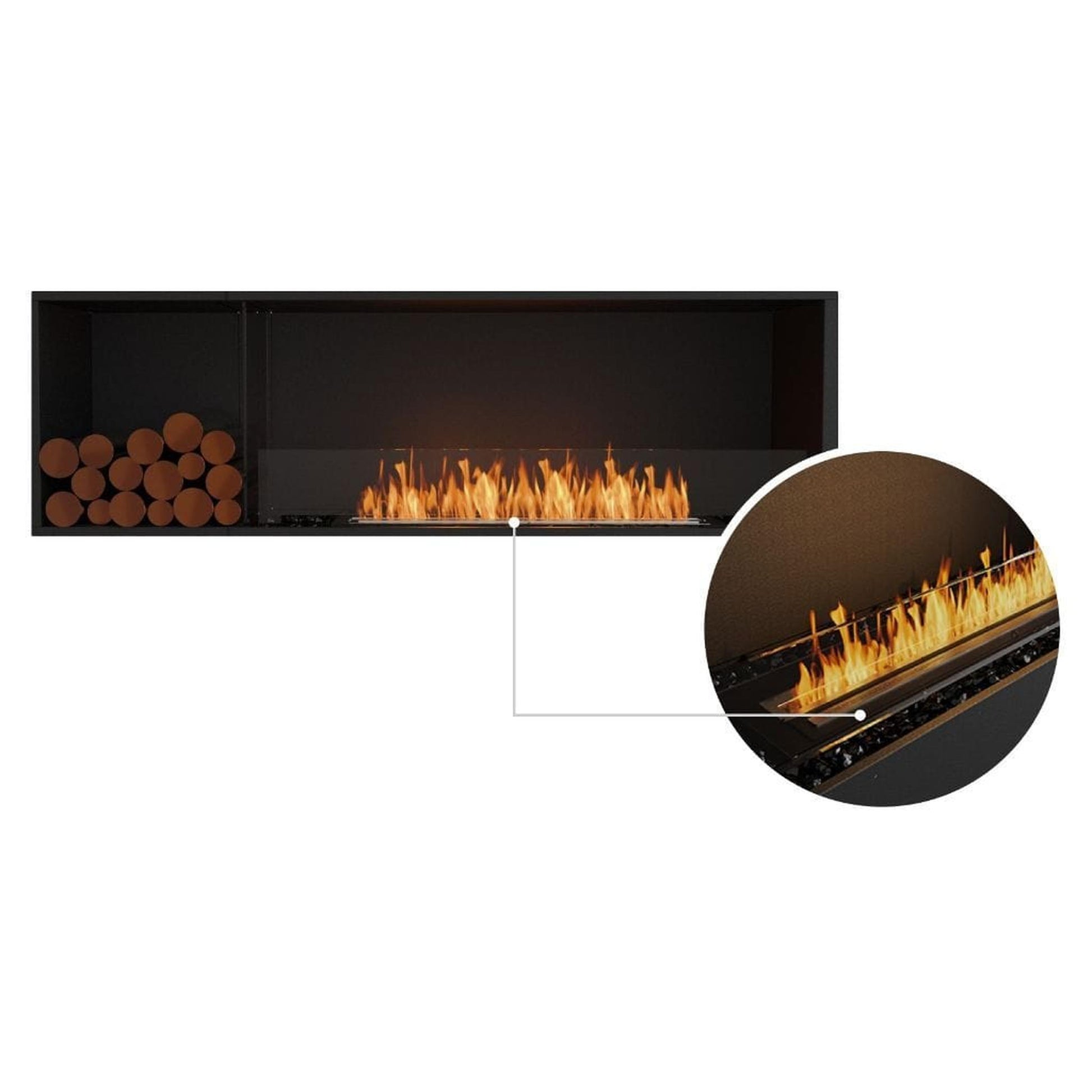

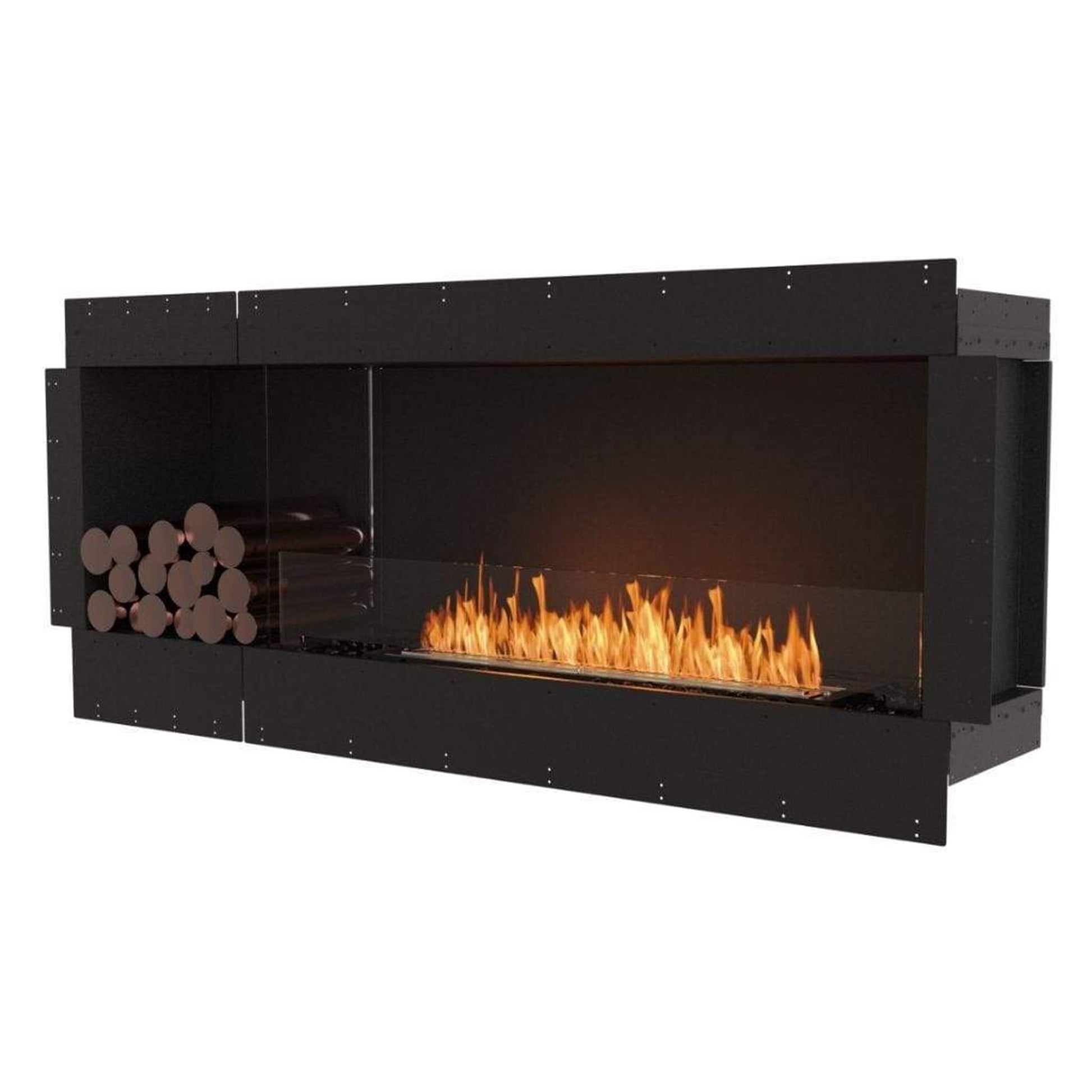

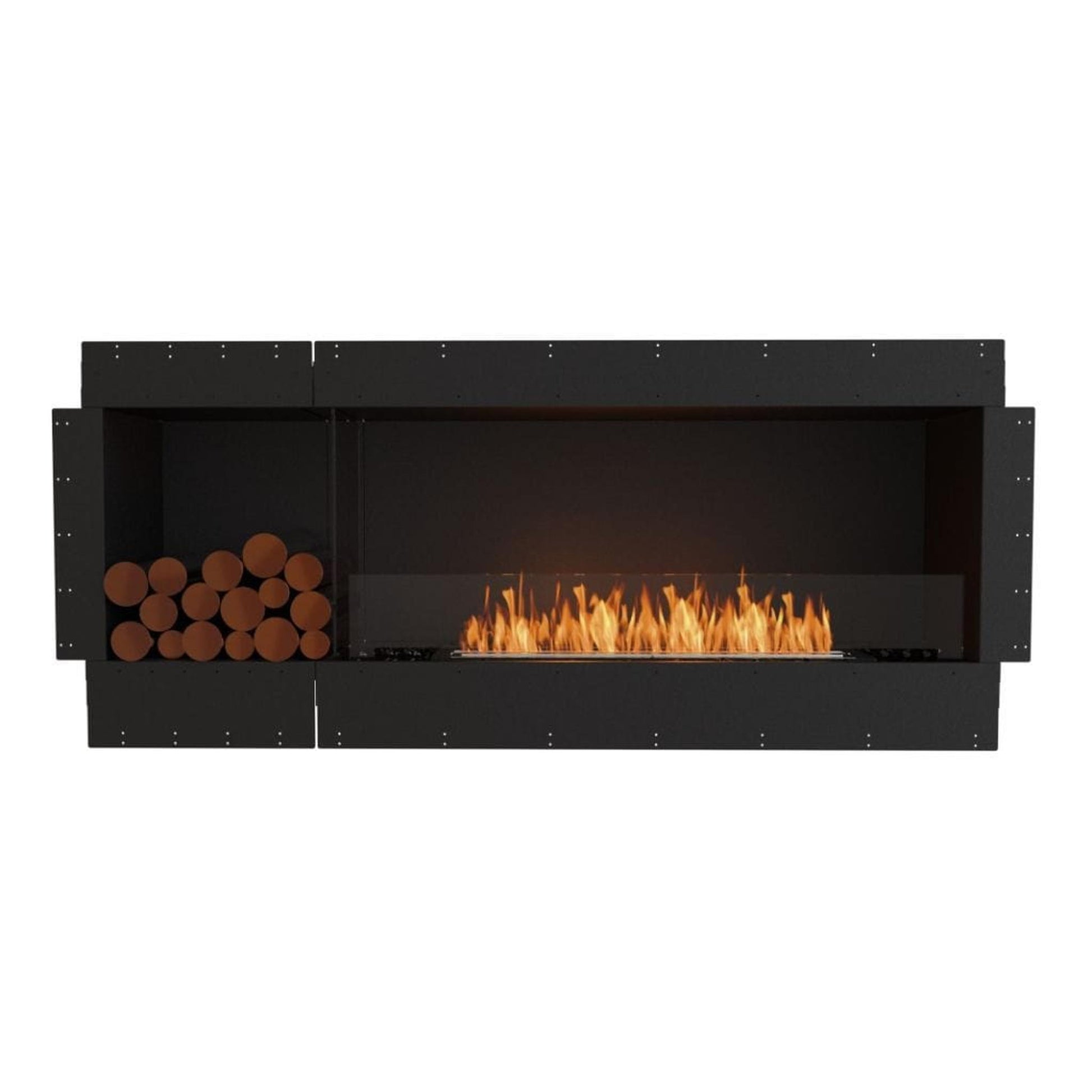

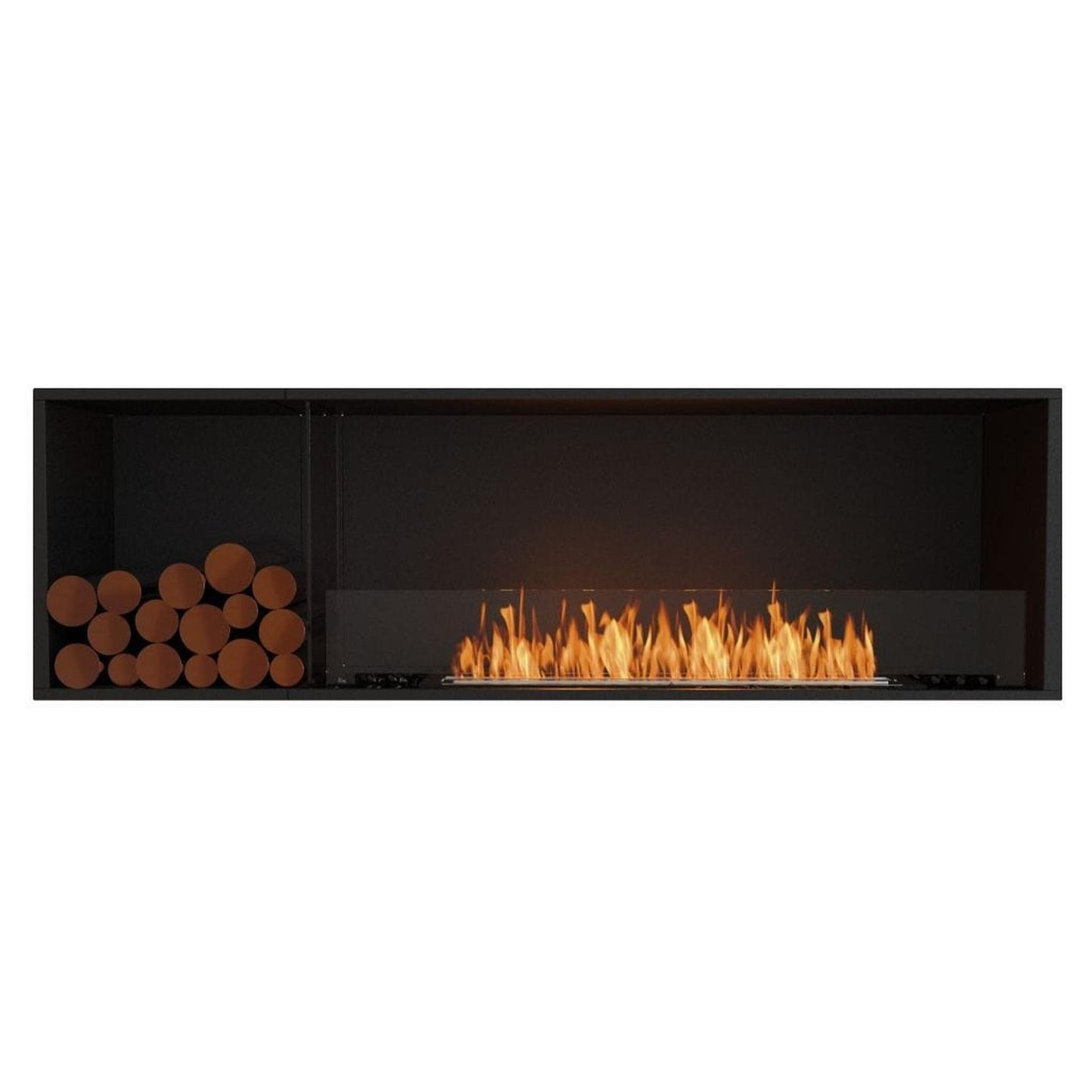

The Flex 68SS.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

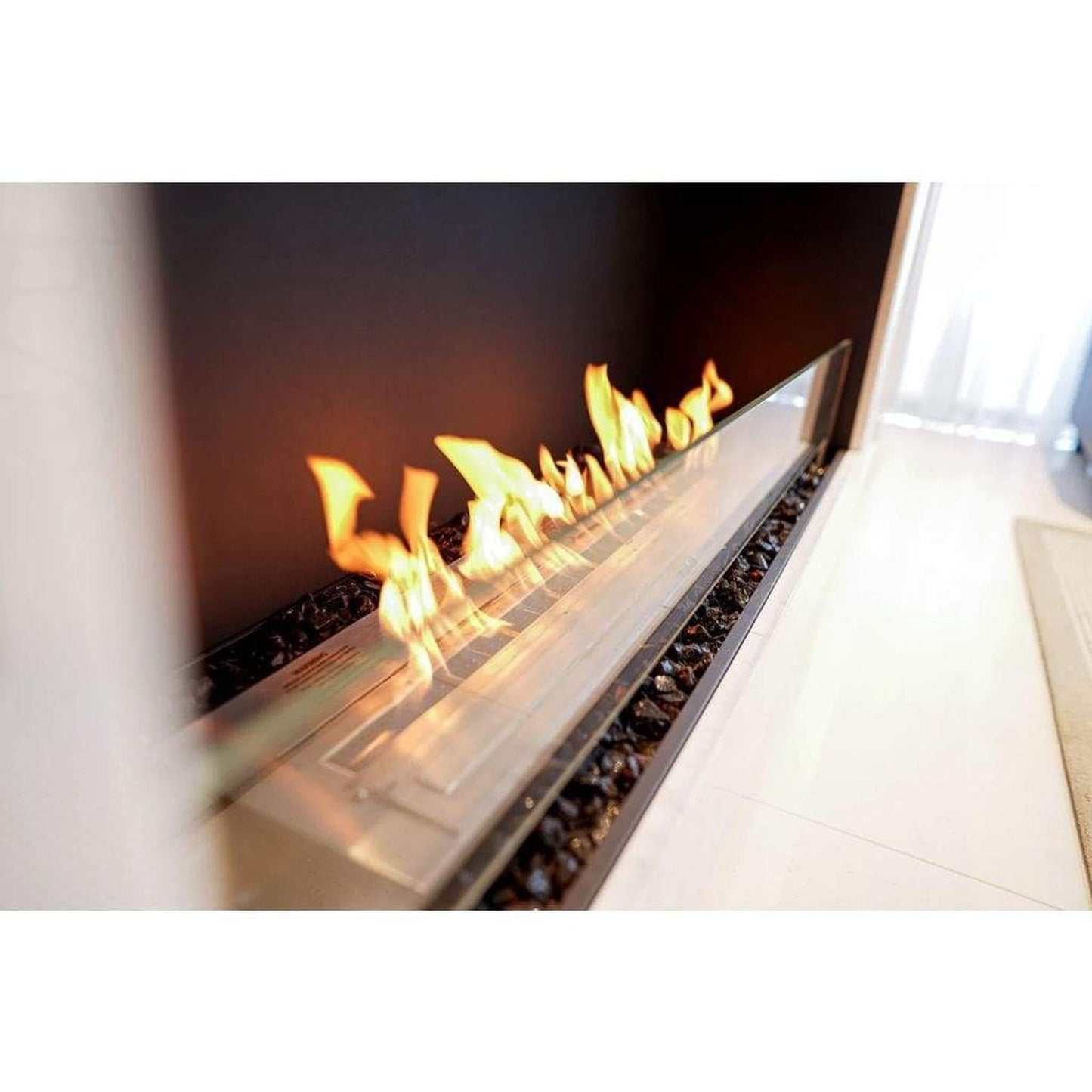

One of the most popular of the XL Series burners, the XL900 burner delivers a stunning linear flame. With a 2.4 gallons capacity, this elongated burner can heat up to 646ft2, making it ideal for larger residential and hospitality spaces such as open plan restaurants and bars or hotel lobby areas. Efficiency is a key feature of this burner, delivering up to 13 hours of heat generating flame from a single refill.

O-TL Listed in accordance with UL 1370.

What's Included

  • Bioethanol Burner
  • 1.25 Gallon Jerry Can
  • Bottle Adapter
  • Fire Lighter
  • Lighting Rod
  • XL Baffles
  • Black Glass Charcoal

Not Included (Sold Separately)

  • e-NRG Bioethanol Fuel
  • Decorative Log Set

Features

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

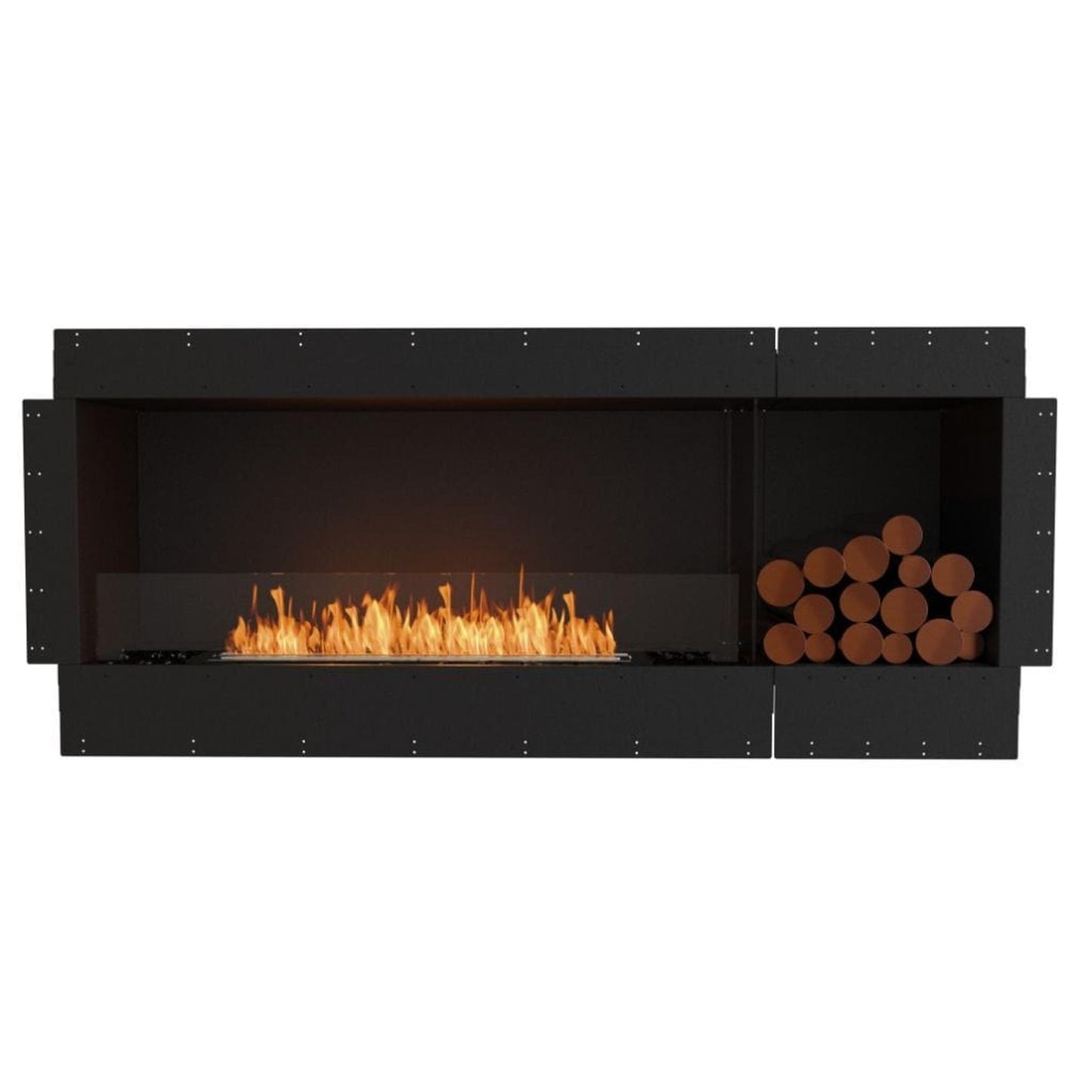

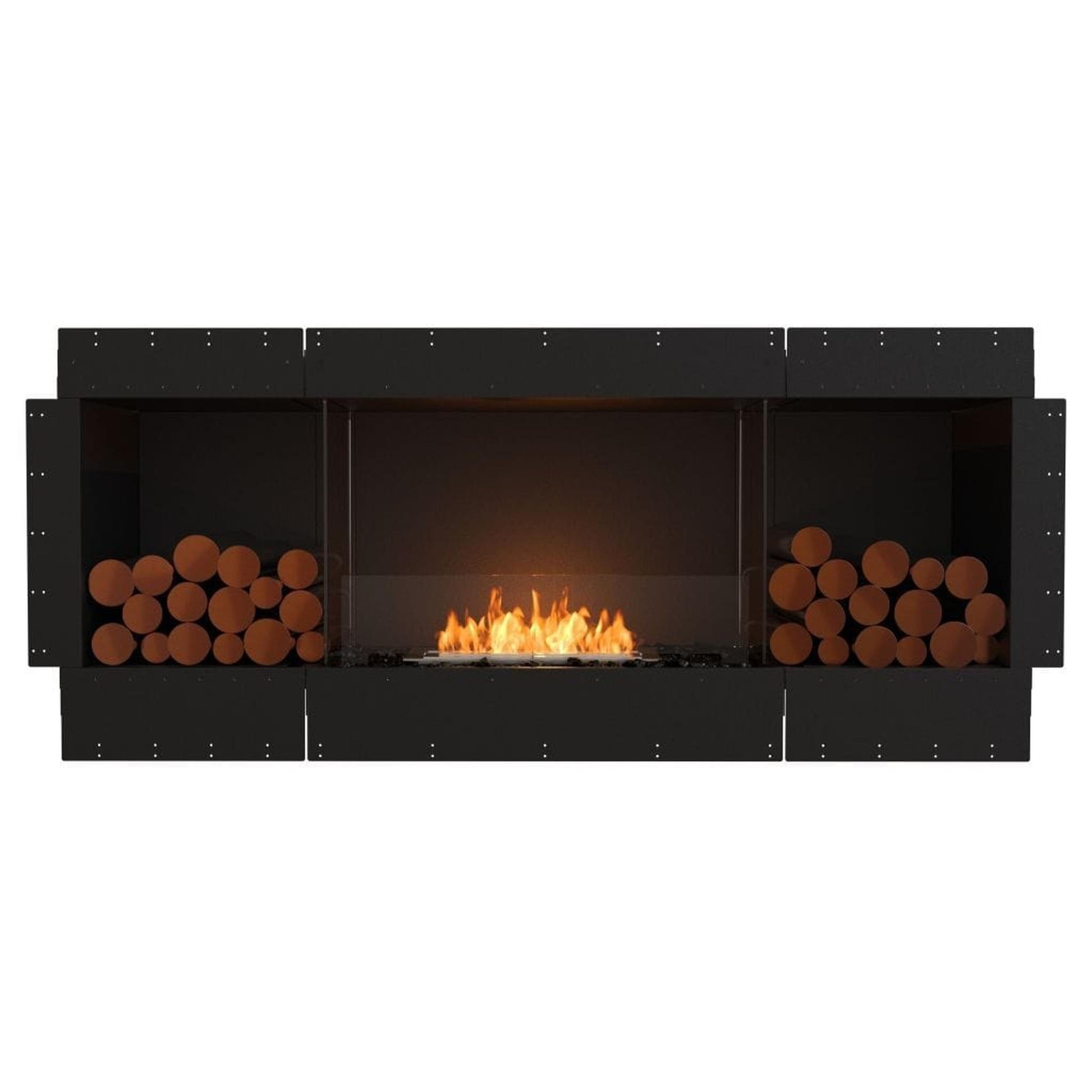

Decorative side box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional log sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

Specifications

Weight 210lb [95.10kg]
Application Indoor & Outdoor
Material Stainless Steel Grade 304, Toughened Glass
Color Black

Fuel Efficiency

Volume Capacity

2.4 Gal [9 L]

Heats on Average

646ft2 [60m2]

Minimal Room

3885ft3 [110m3]

Thermal Output

16 MJ/h - 15000 BTU/h - 4.4 kW

Burn Time

8 - 13h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

Dimensions

Width 76in [1930mm]
Height 31.8in [807mm]
Depth 14.4in [365mm]

Technical Drawings

Front View

  • BXL

  • BXR

  • BX2

Side View

Top View
  • BXL

  • BXR

  • BX2

Warranty

Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

Documents & Files

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

Videos

Frequently Asked Questions

What is bioethanol fuel?

Bioethanol (also known as methylated spirits or simply ethanol) is a form of renewable energy. It’s a clear, colourless liquid that’s commonly made from fermenting the sugar and starch components of plant by-products like sugarcane and grain crops.
Is Bioethanol easily obtainable?

Yes, you can have fuel delivered to public and private premises in many countries.

How do I clean my EcoSmart Fire ethanol burner?
Cleaning of the ethanol burner should be done only after you have used 50 litres of fuel or as soon as you notice a black residue forming around or on the burner. Before starting, make sure the burner is off, empty of ethanol, and at room temperature. Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth, making sure to wipe in the direction of the grain. If material has fallen into the ethanol fireplace burner use a vacuum cleaner to remove debris through the burner opening. If your burner smells unusually strong after extensive use, remove the empty and room temperature burner from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing.
Do bioethanol fireplaces produce heat?
Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.
How easy is it to install an ethanol fireplace?

There are different types of bioethanol fireplaces: there are freestanding models that require no installation; and there are others that are built-in fireplaces that are designed to be easily fixed into a stud wall or existing joinery. Overall, they are much easier to install than any gas or wood-burning fireplaces.

How to install a TV or AV equipment above an ethanol fireplace?

This design can be achieved as long as the TV is protected. You have 3 possible solutions:

Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield

Solution 2: The TV needs to be recessed in a niche

Solution 3: The TV needs to sit back off the level of the flame

How to position your TV

What maintenance is required for ethanol fireplaces?

Clean your EcoSmart Fire unit after you have used 50 liters [13.20 Gal.] of fuel or as soon as you notice black deposits on or near the burner of the ethanol fireplace. Black marks can be removed from the stone, solid surfaces or stainless steel with a mild abrasive washing product such as JIF or similar. It is recommended to test a small area first to ensure the cleaning product chosen is appropriate and will not mark or damage the surface. Burners can be washed as required in hot soapy water (even in your dishwasher) from time to time and the internal mechanics won’t deteriorate like some other brands as all internal parts are stainless steel.
