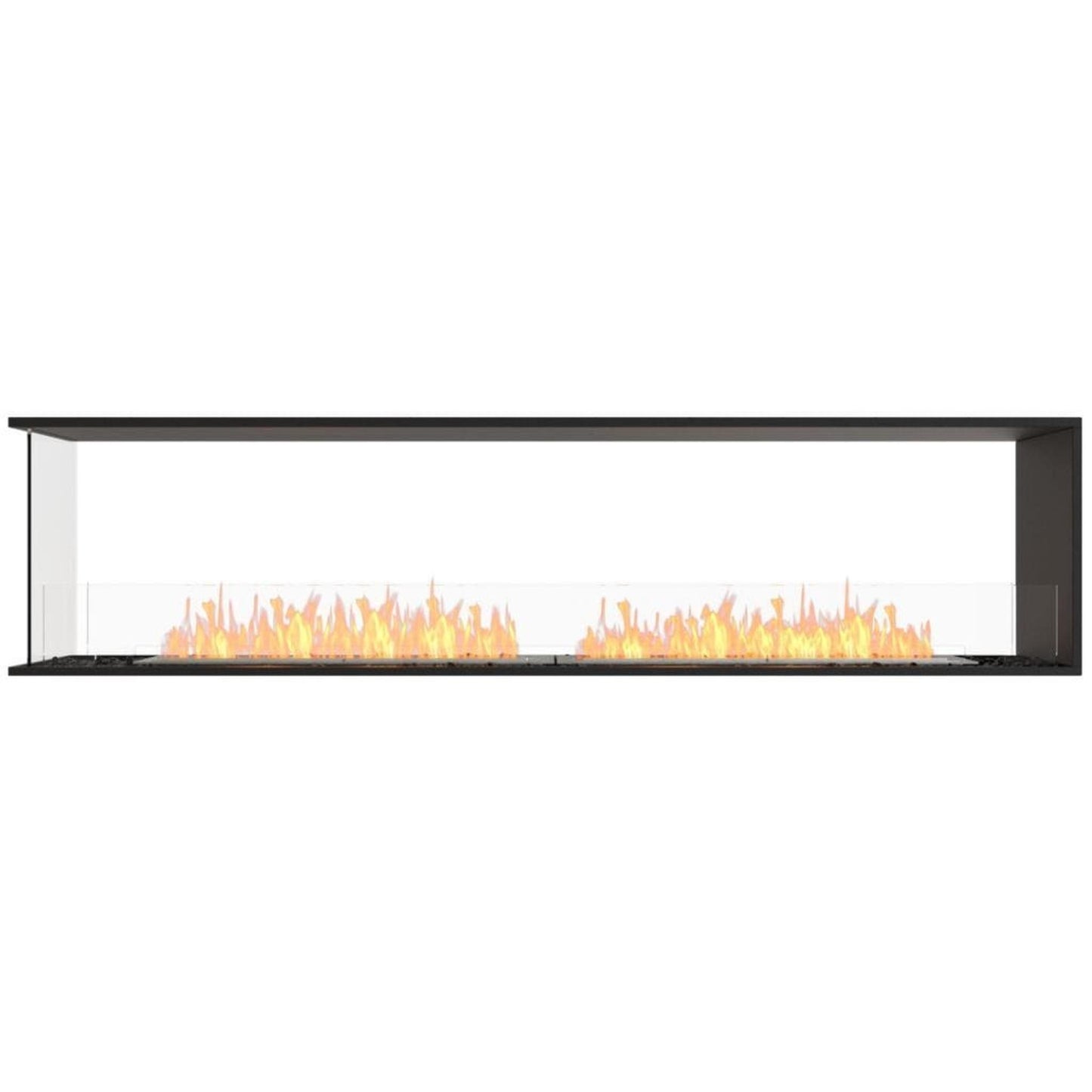

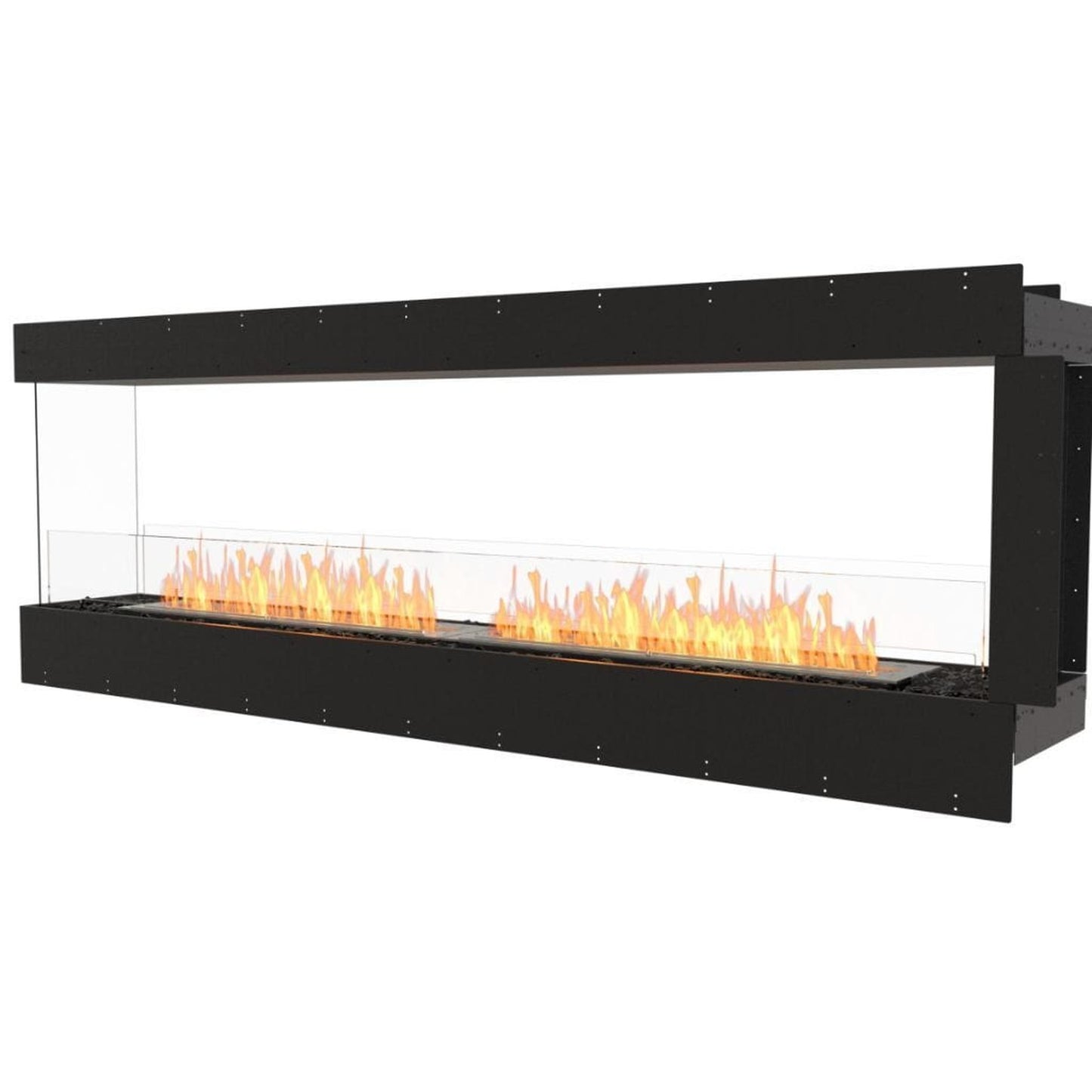

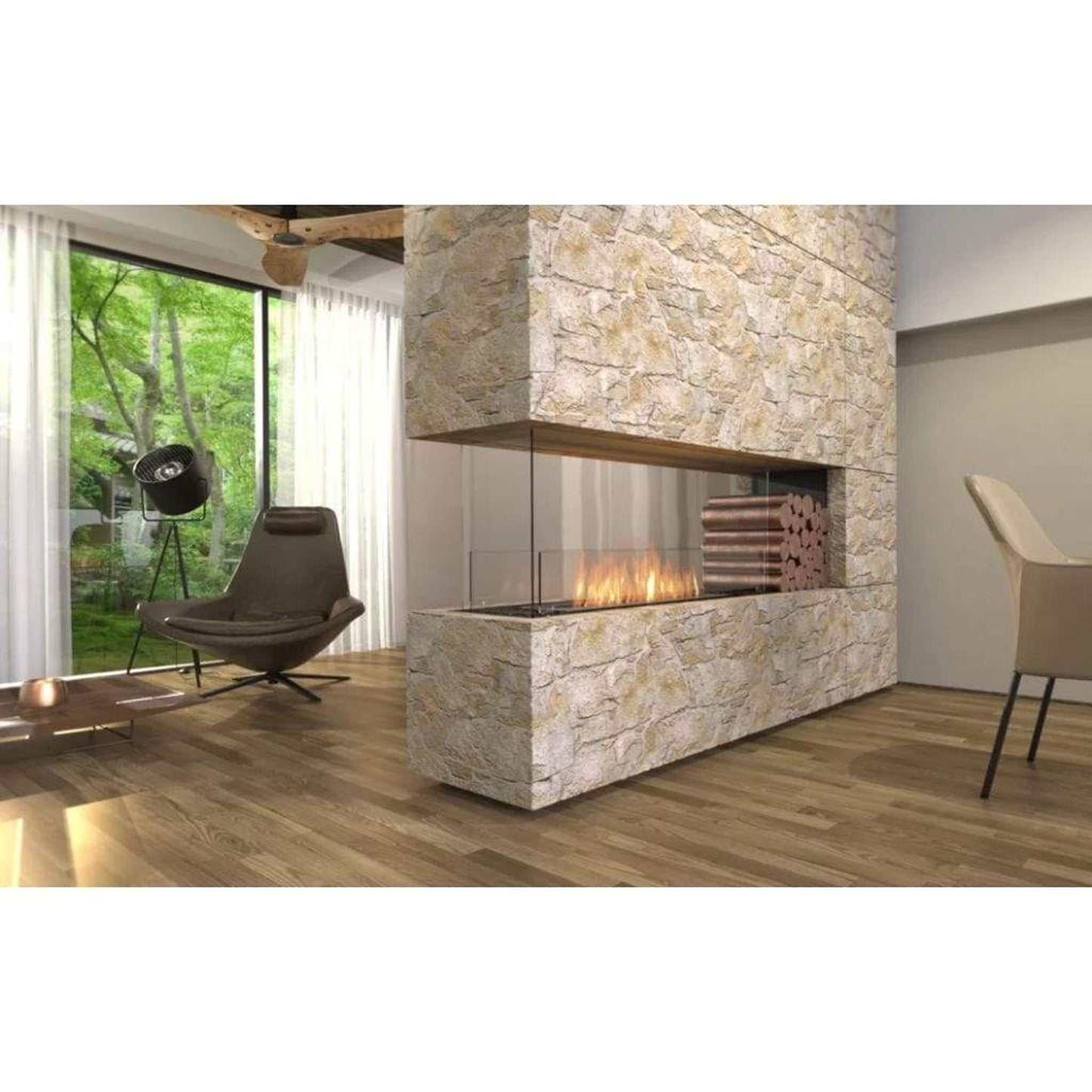

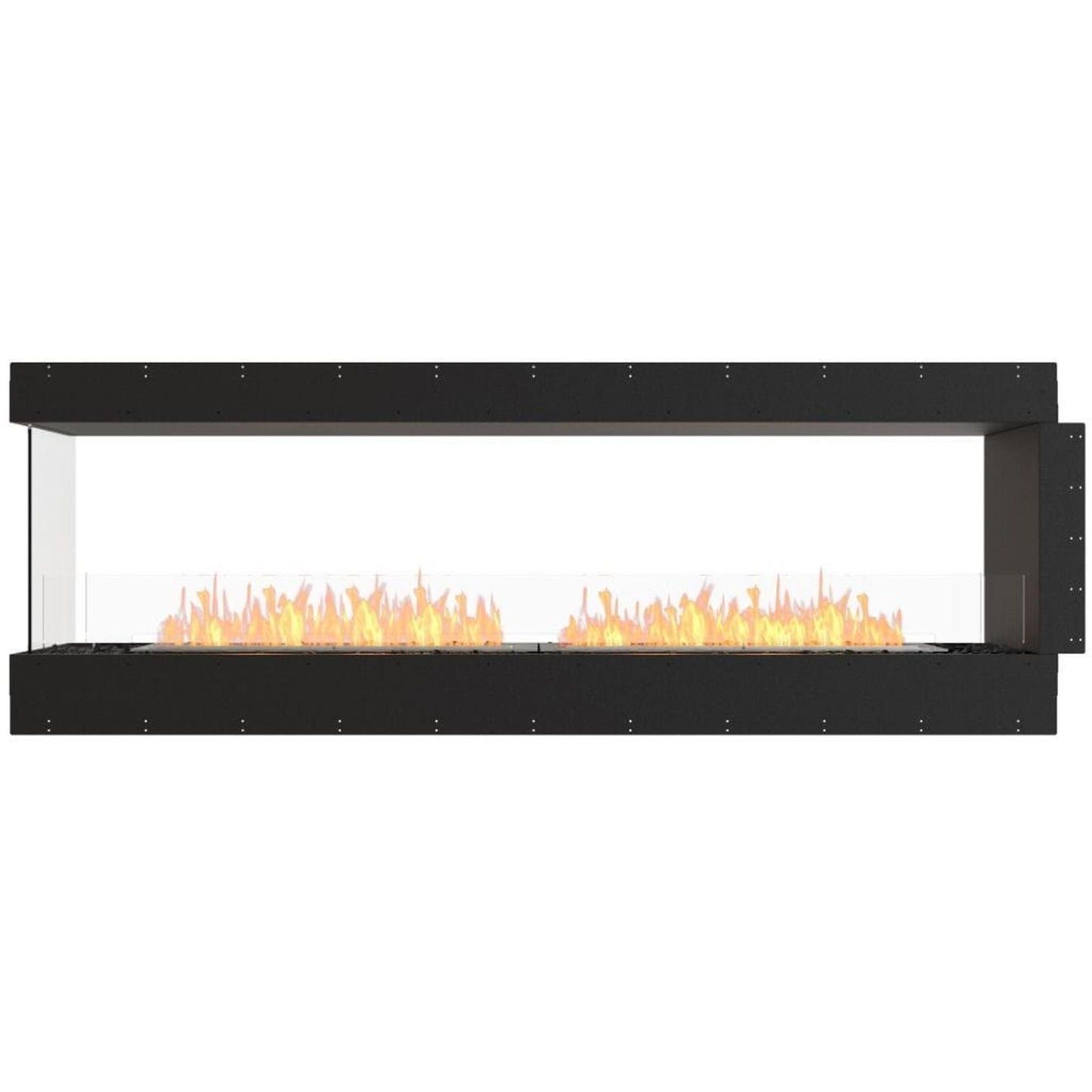

Designed as a room divider, the Peninsula Fireplace Insert features three open sides, enabling the mesmerizing flame to be viewed from any direction - the front, back and open side.

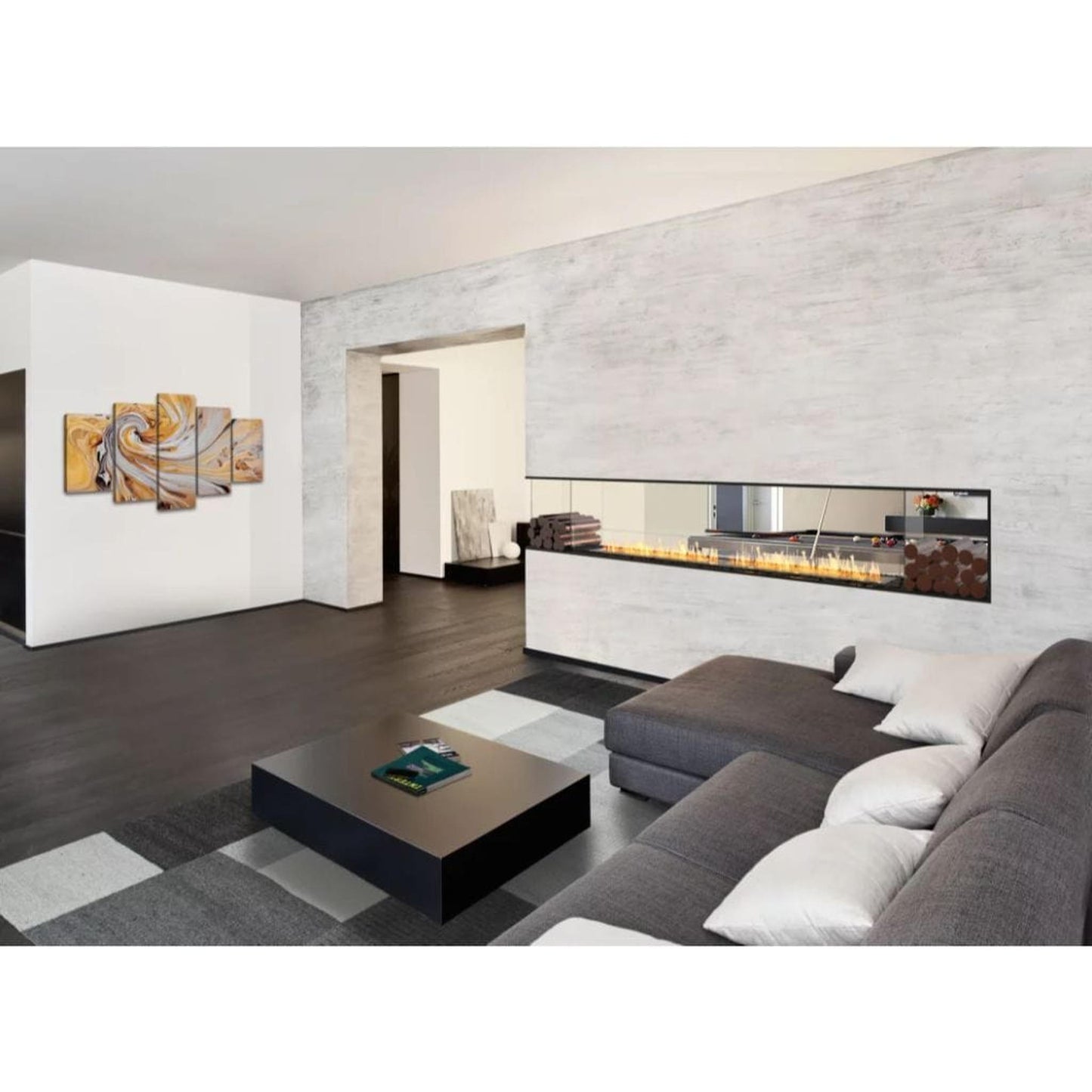

The three transparent sides create an eye-catching focal point and provide the perfect solution to heating multiple rooms, to integrating within commercial/hospitality spaces and dividing open floor plans.
The clean lines and 'all flame' configuration of the Flex 86PN means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
Providing endless design flexibility and installation freedom to interior designers, architects, builders, landscapers and homeowners, EcoSmart’s Flex Fireplace Series ensures your next commercial project or residential renovation includes a captivating fire feature.
The iconic zero clearance models – Bay, Single Sided, Left Corner, Right Corner, Peninsula, Double Sided, Island, Bench styles– are ventless, free of smoke and soot, and fueled by e-NRG Bioethanol, a renewable energy source.

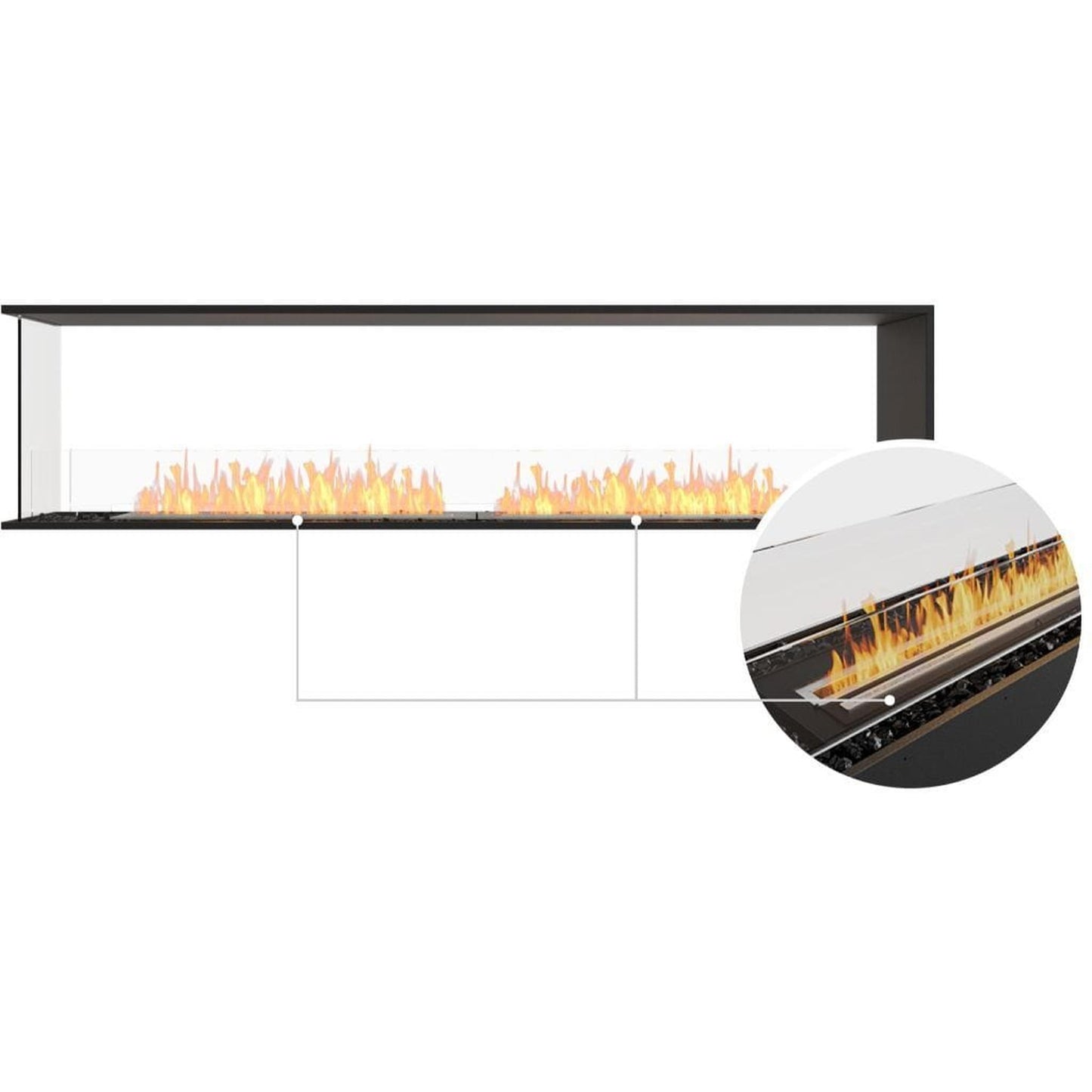

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 Burners. With an overall heating capacity of 1292ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants. Each burner holds 2.4 gallons of fuel, and can deliver a stunning flame for up to 13 hours.
Manufacturer approved surround for the UL Listed XL900 burner.
Peninsula Ethanol Fireplace Inserts are available in other sizes and configuration i.e. 18PN, 32PN, 42PN, 50PN, 50PN with Decorative Box, 60PN with Decorative Box, 68PN, 68PN with Decorative Box, 78PN with Decorative Box, 86PN with Decorative Box, 104PN, 104PN with Decorative Box, 122PN, 122PN with Decorative Box, 140PN with Decorative Box, 158PN, 158PN with Decorative Box
4.8 Gal [18 L]
Heats on Average
32 MJ/h - 30000 BTU/h - 8.8 kW
8 - 13h
*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."
What's Included: Fireplace Insert, Glass Windscreen, Black Glass Charcoal, Bioethanol Burner, 1.25 Gallon Jerry Can, Bottle Adapter, Lighting Rod and XL Baffles
*Note: "e-NRG Bioethanol Fuel for the burner is sold separately. Glass windscreen included. Black Fireboxes come with Stainless Steel Burners. Model comes with Black Glass Charcoal."
Click to see Included Accessories
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
JERRY CAN 1.25 GAL
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system.
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.
BLACK GLASS CHARCOAL
The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.
Indoor or outdoor single room application. With one open side, view the flame from the front.
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No Gas or Electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and Easy Assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Included integrated windscreen sits flush behind frame.
Tested World Wide
EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.
- Built-in 3-Sided Ethanol Firebox for Indoor or Outdoor Installation
- Made of Mild Steel and Toughened Glass
- No Gas, Electricity, Chimney, or Venting Required
- Adjustable Flame - allows you to control the flame intensity and heat output.
- Safe Filling - safer than most other ethanol fireplaces.
- 2 Glass Windscreen Included - for safety and wind protection.
- ISO Certified
|91.8" W x 13.9" D x 31.8" H|
CA Residents: See Prop 65 WARNING.
- Download Installation and Operation Manual
- Download Specs Sheet
- Download Summary Brochure
- Download Technical Specification
- Download Look Book
*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."
OPTIONS & ACCESSORIES:
Click to see e-NRG Bioethanol
e-NRG is the highest quality bioethanol fuel available
Formulated for use in ventless bioethanol fireplaces, e-NRG is the cleanest, most efficient liquid ethanol fuel on the market and produces the best flame each and every time.
