EcoSmart Fire 91" Flex 86PN Peninsula Ethanol Fireplace Insert with Decorative Box by Mad Design Group

Burner Color: Stainless Steel
Decorative Box: Left Side


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

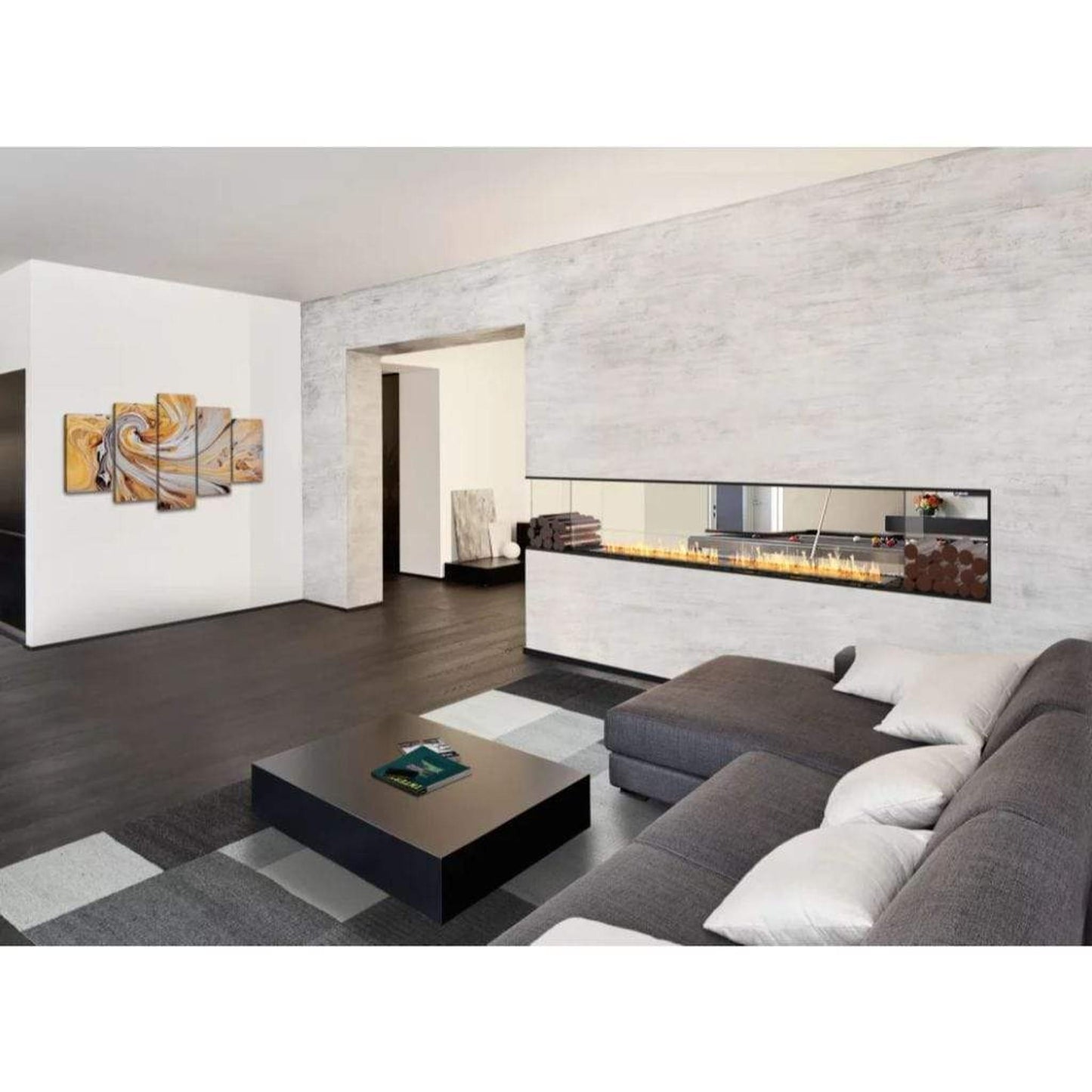

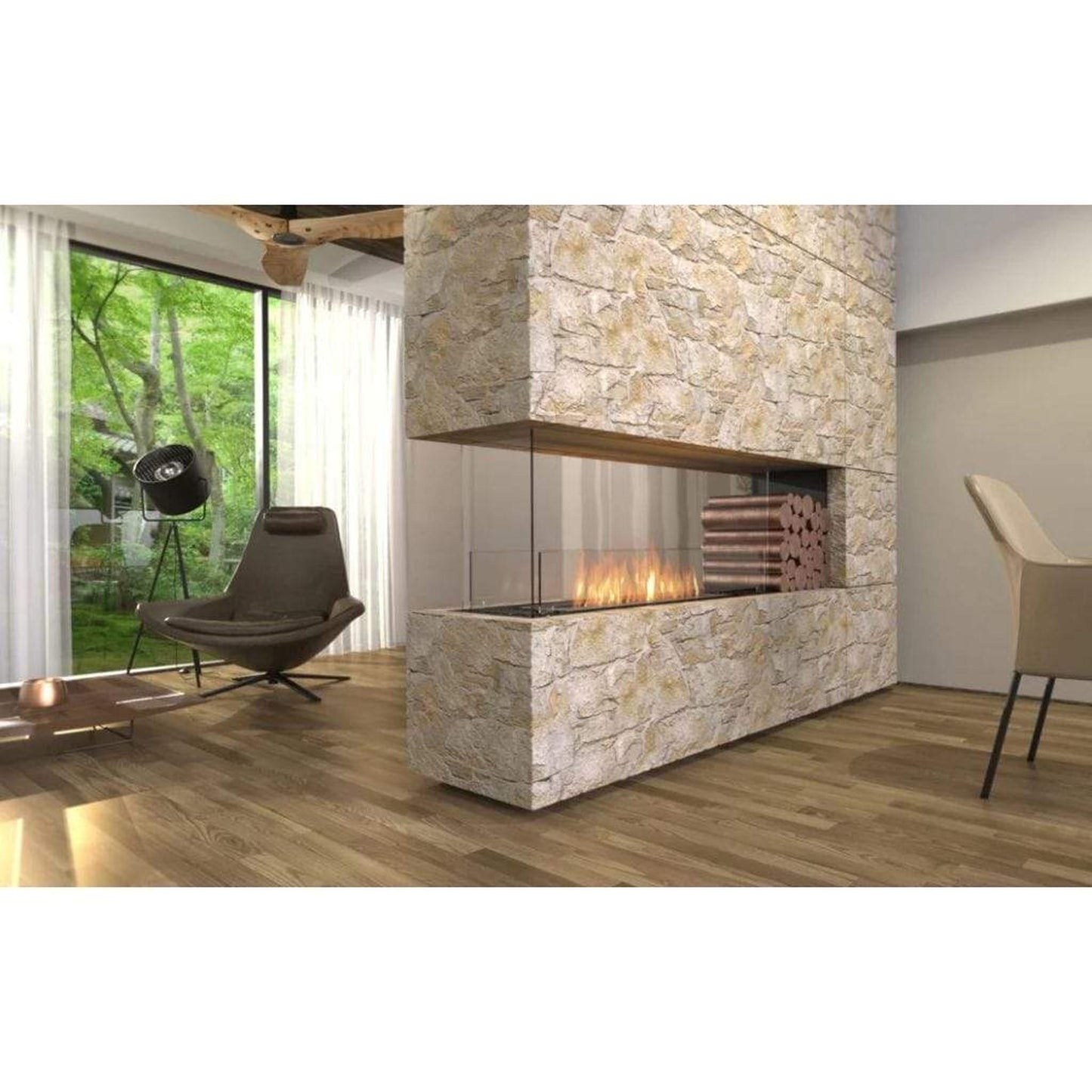

Designed as a room divider, the Peninsula Fireplace Insert features three open sides, enabling the mesmerizing flame to be viewed from any direction - the front, back and open side.

The three transparent sides create an eye-catching focal point and provide the perfect solution to heating multiple rooms, to integrating within commercial/hospitality spaces and dividing open floor plans.

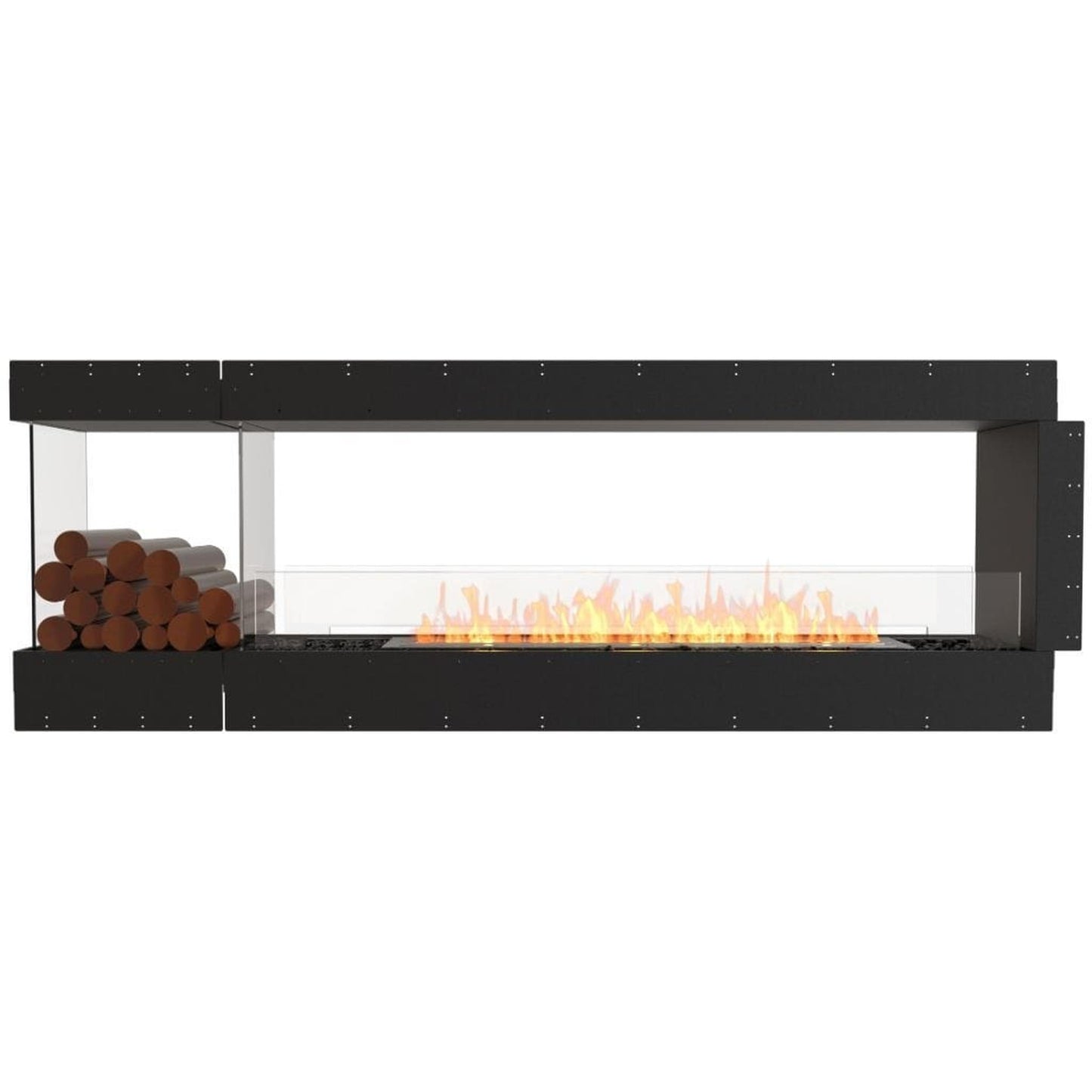

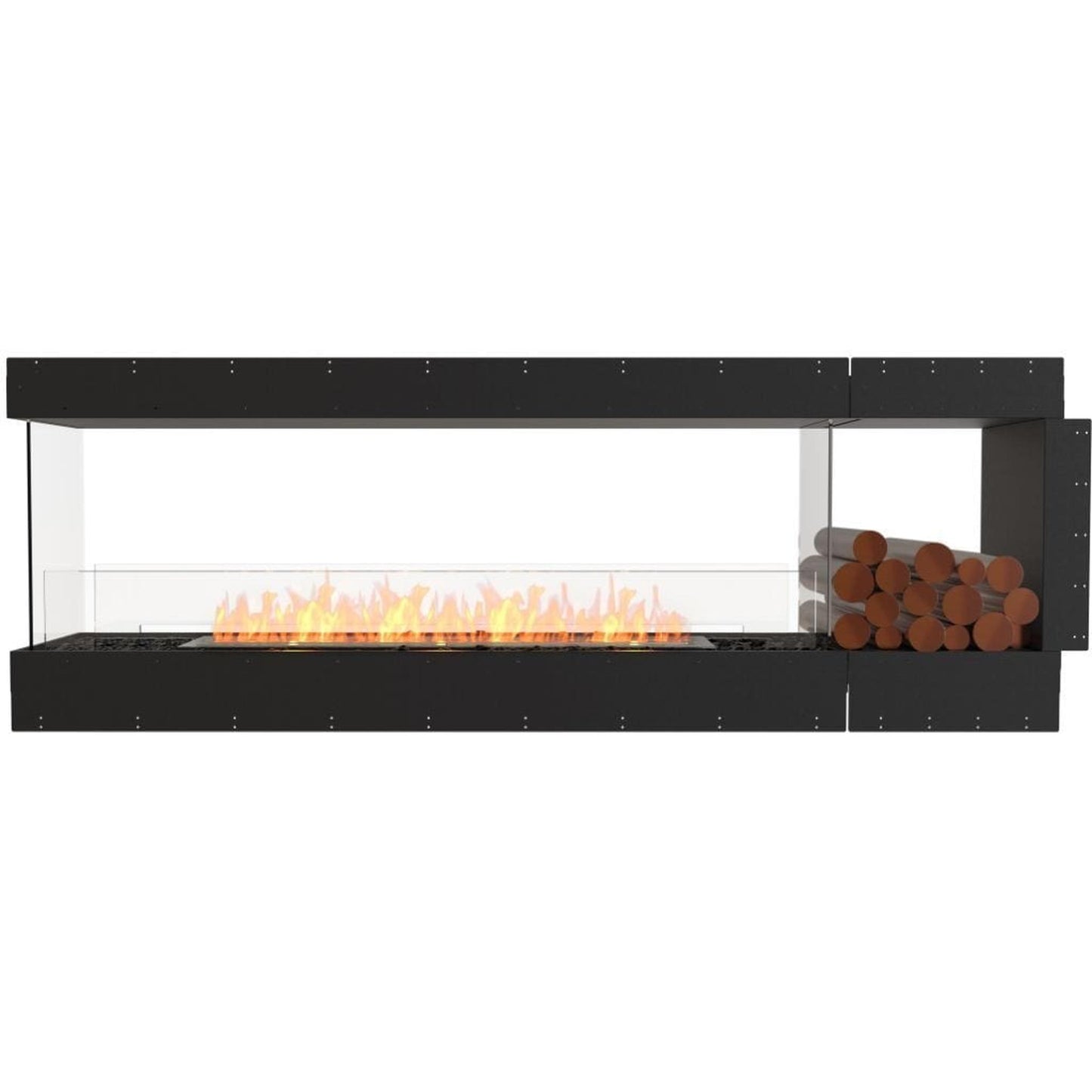

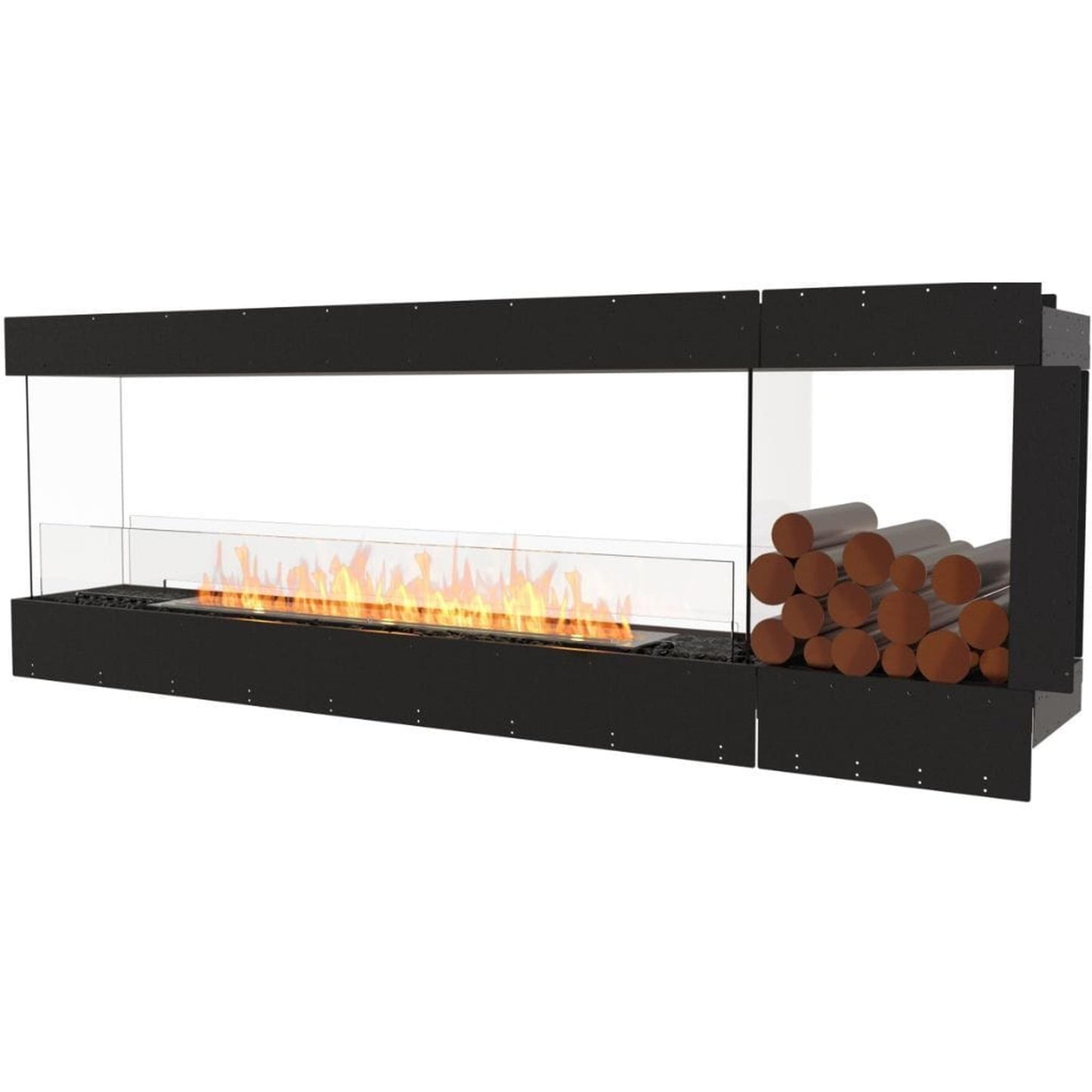

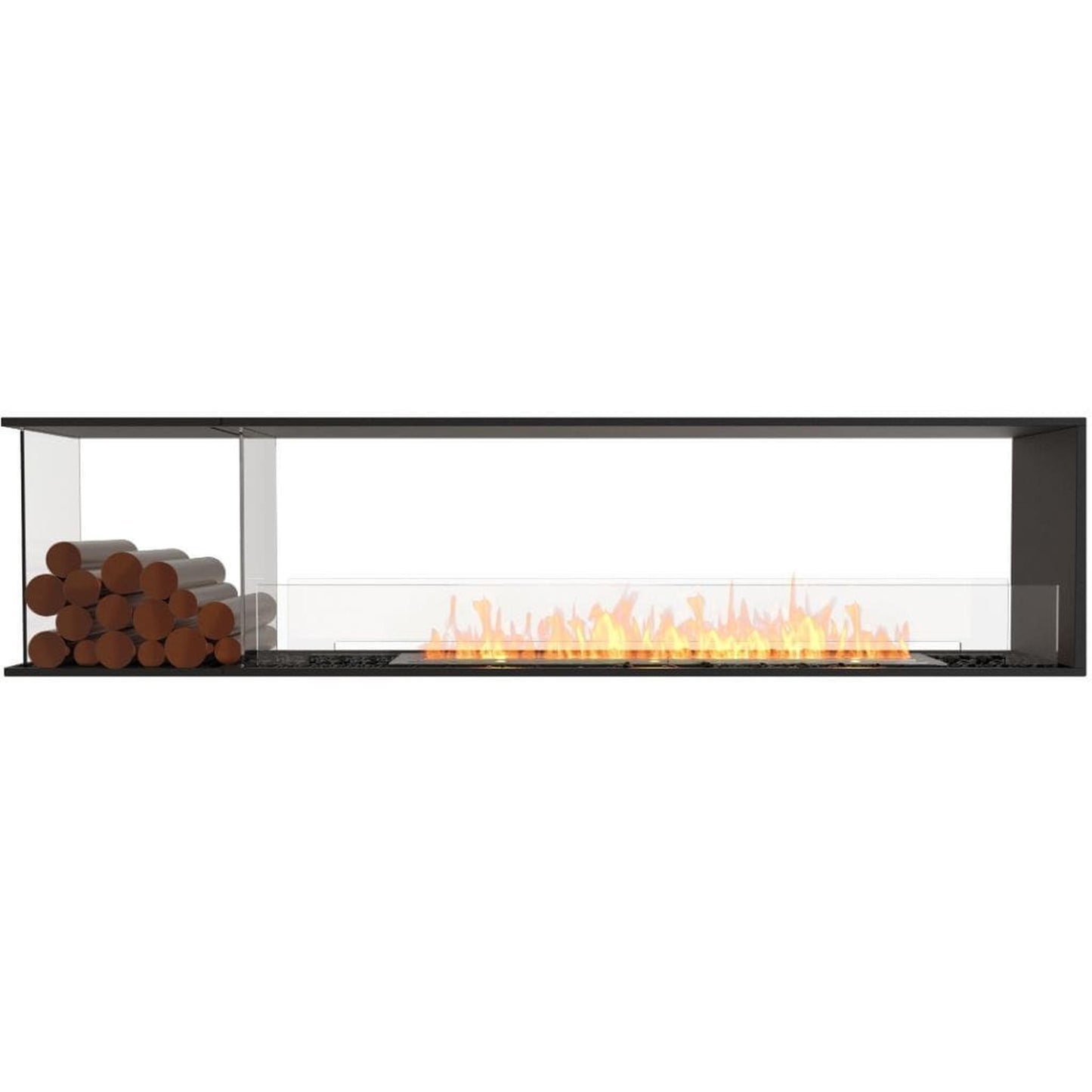

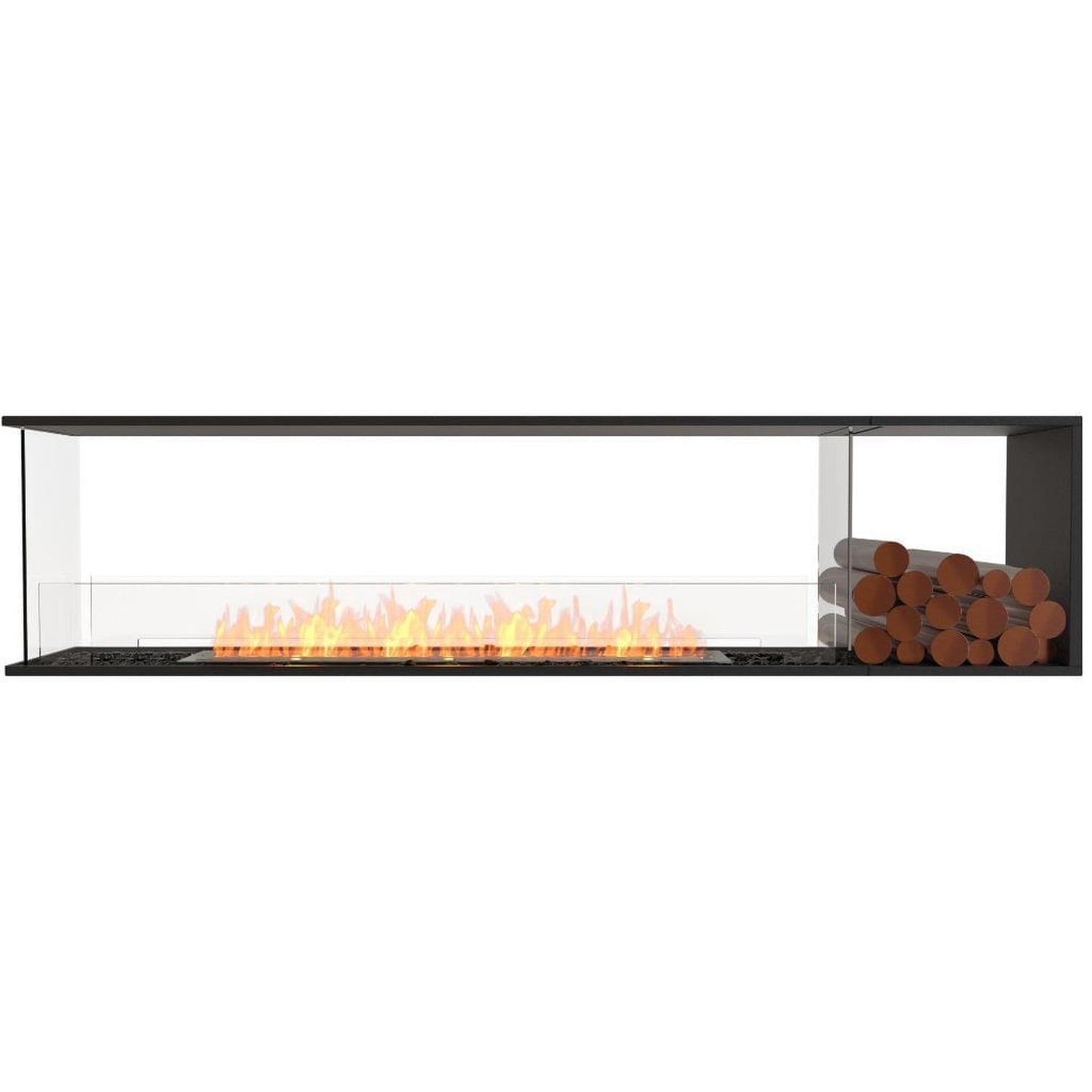

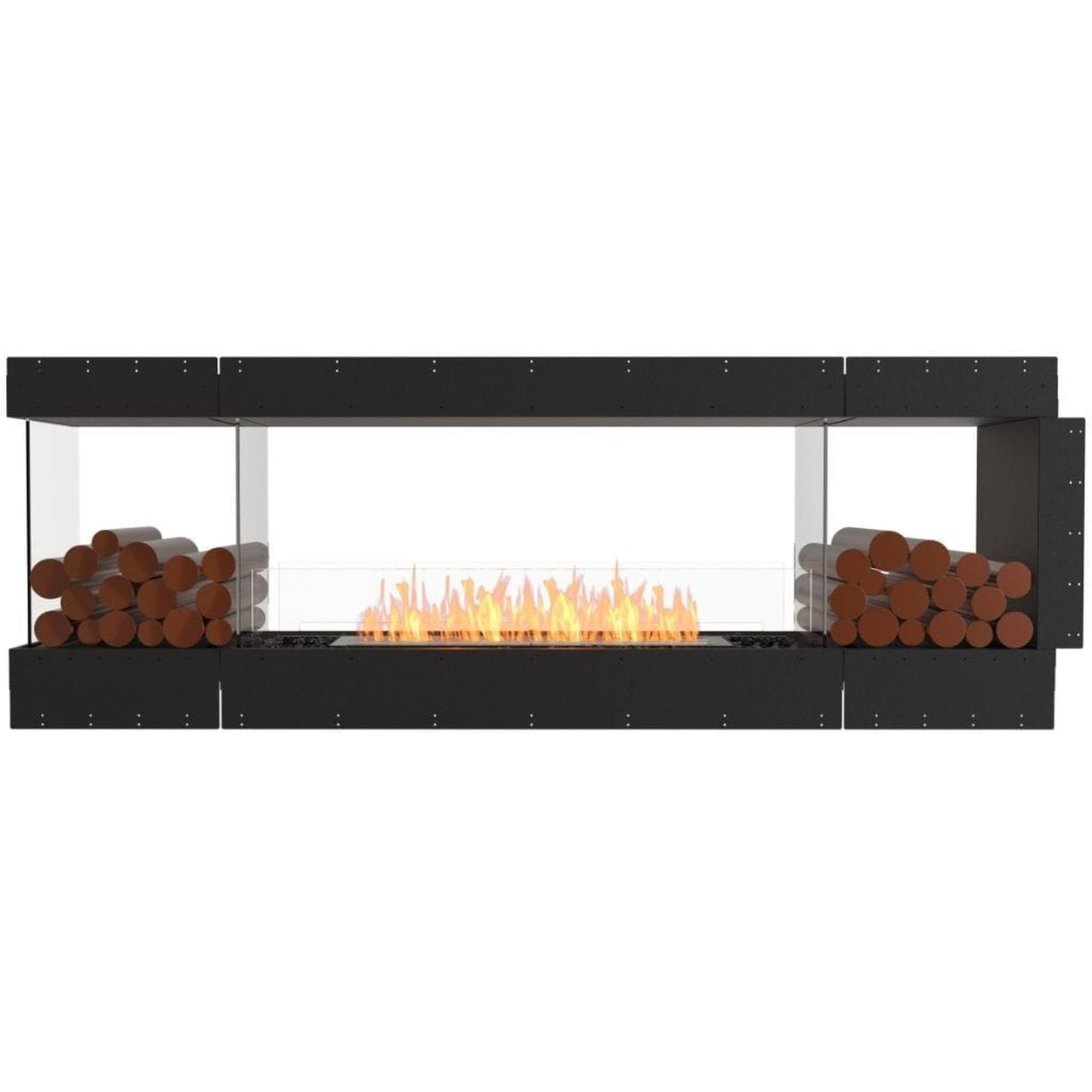

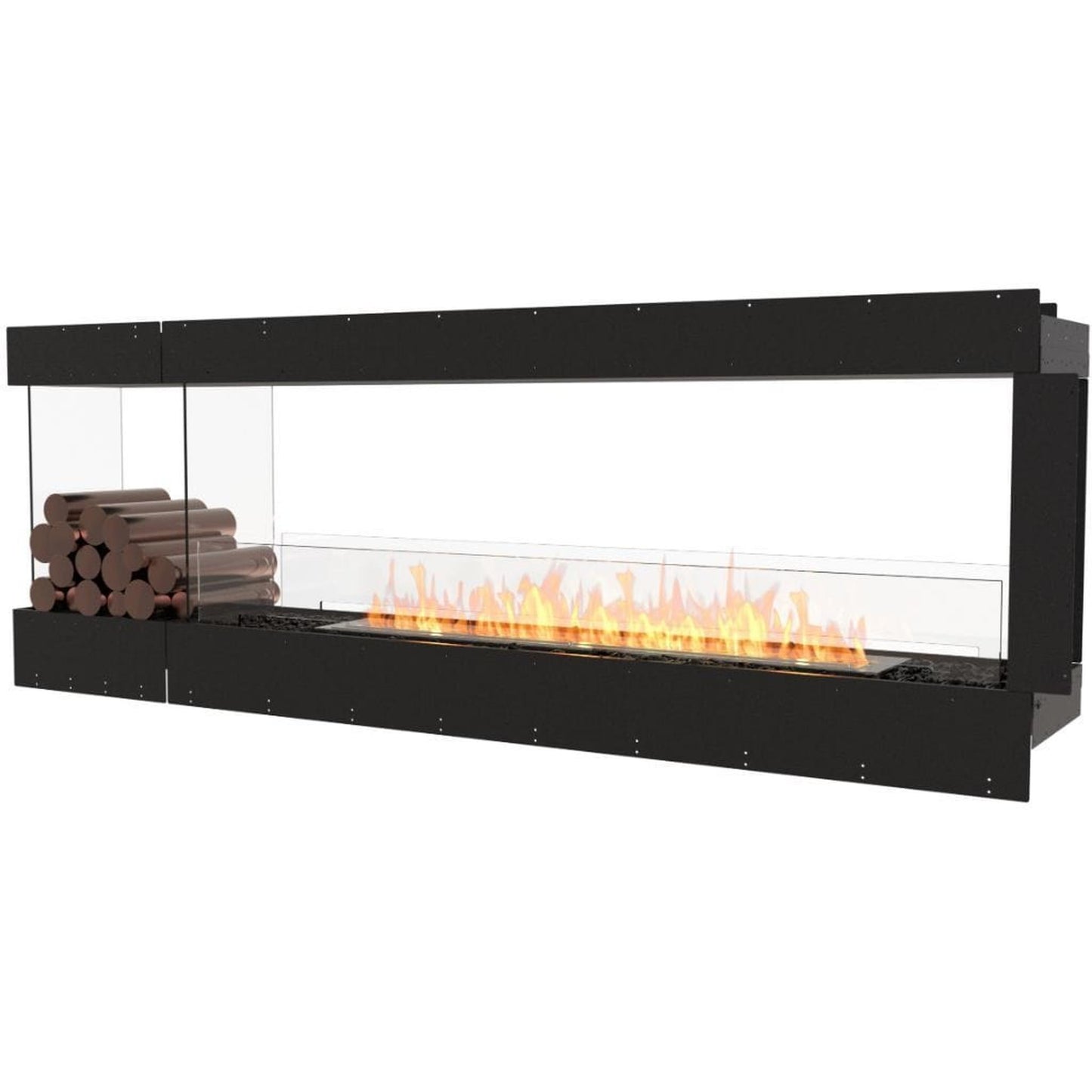

The Flex 86PN.BXL comes with a Decorative Box on the left-hand side, 86PN.BXR comes with a Decorative Box on the right-hand side and 86PN.BX2 comes with Decorative Box on the both sides. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

Providing endless design flexibility and installation freedom to interior designers, architects, builders, landscapers and homeowners, EcoSmart’s Flex Fireplace Series ensures your next commercial project or residential renovation includes a captivating fire feature.

The iconic zero clearance models – Bay, Single Sided, Left Corner, Right Corner, Peninsula, Double Sided, Island, Bench styles– are ventless, free of smoke and soot, and fueled by e-NRG Bioethanol, a renewable energy source.

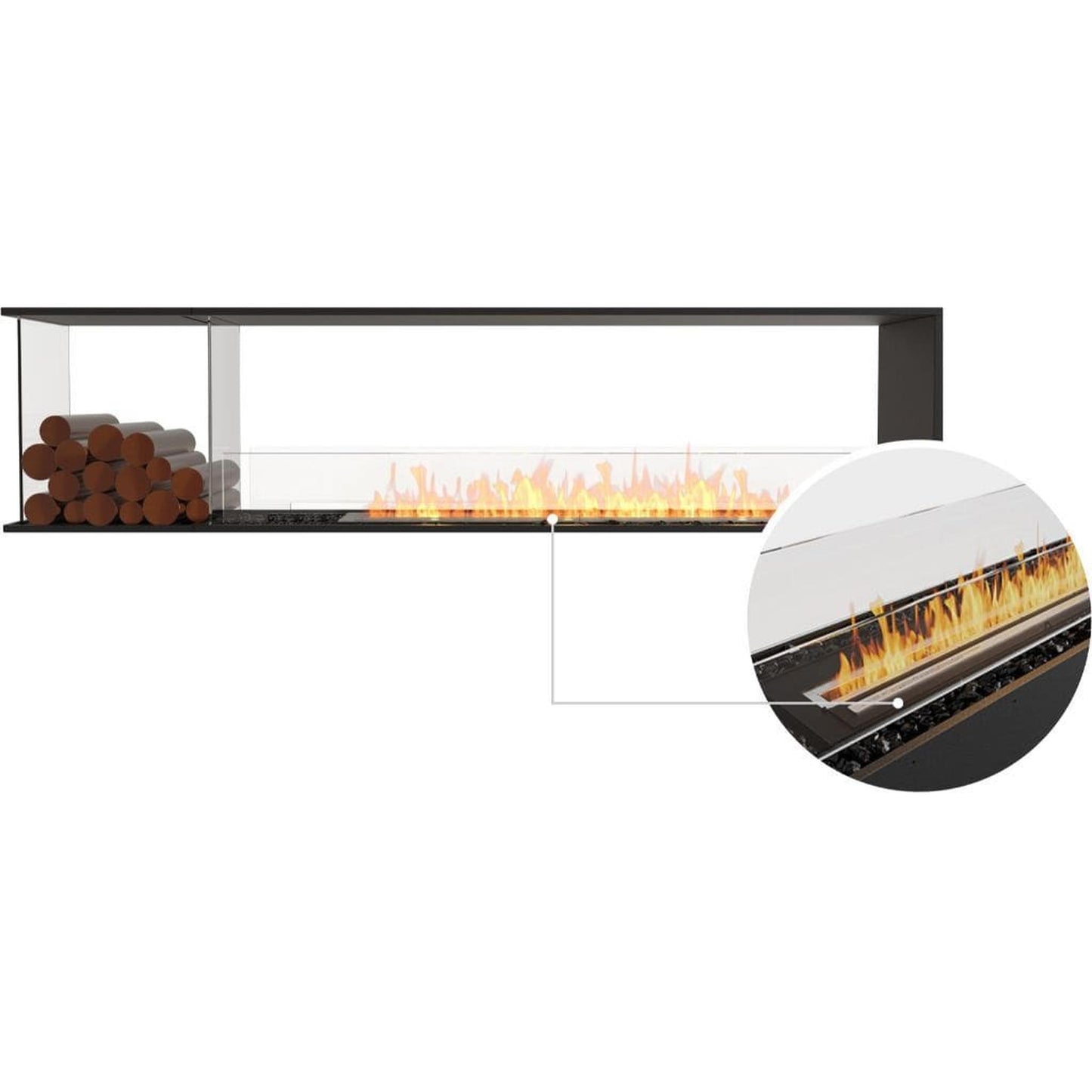

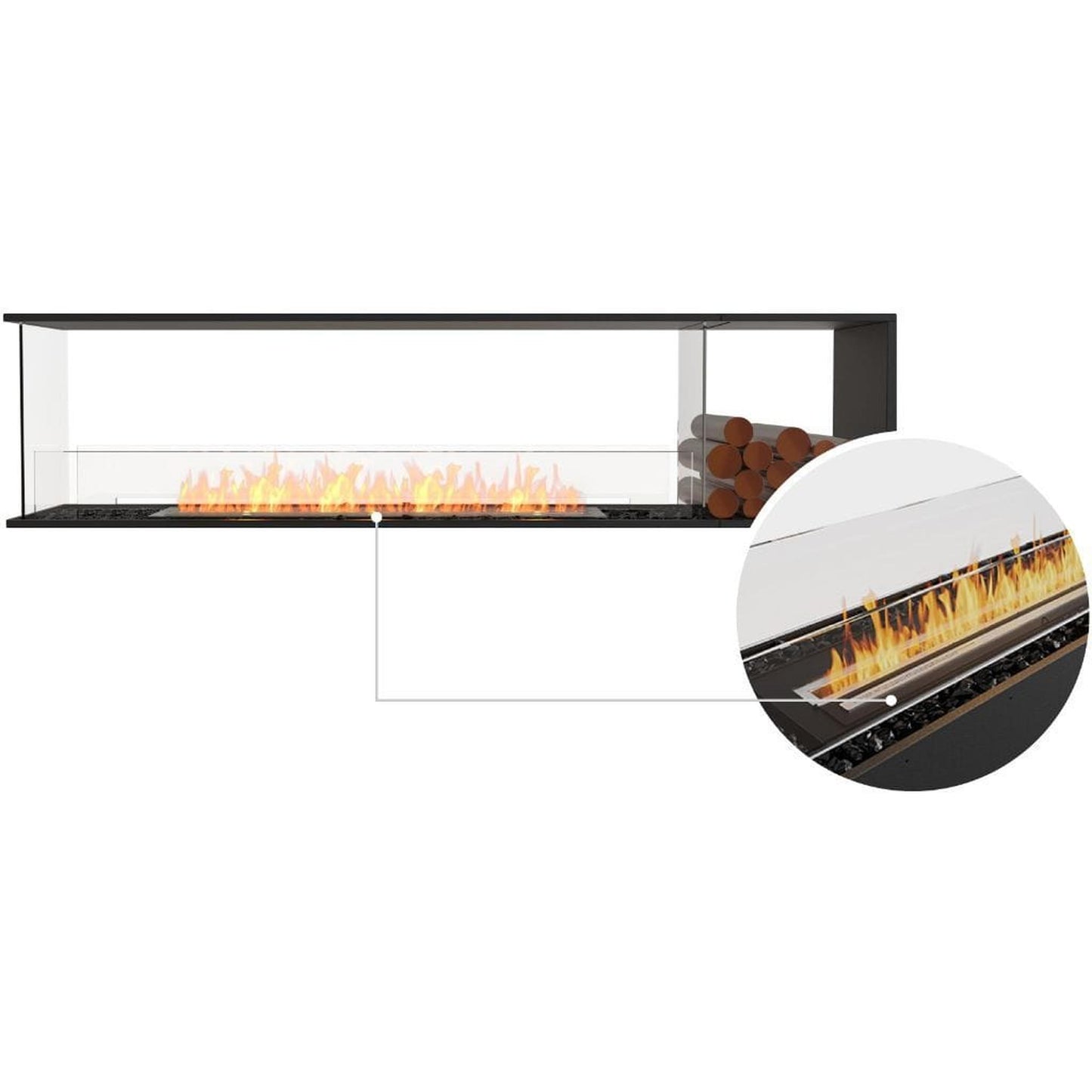

The longest of the XL Burner series, the XL1200 delivers a stunning linear flame to be use with BXL(Decorative Box with Left Side) and BXR(Decorative Box with Right Side) model. This elongated burner can heat up to 700ft2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.

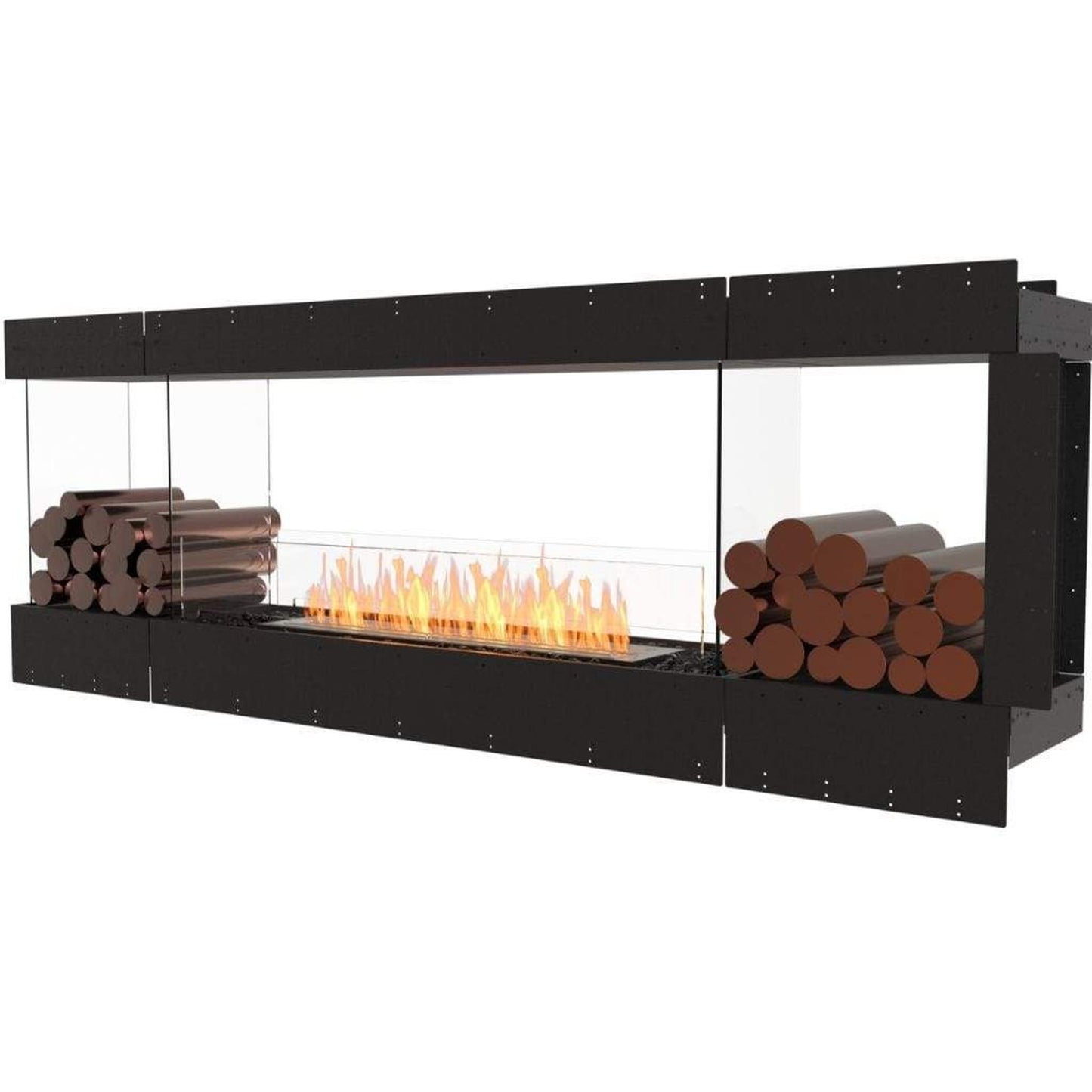

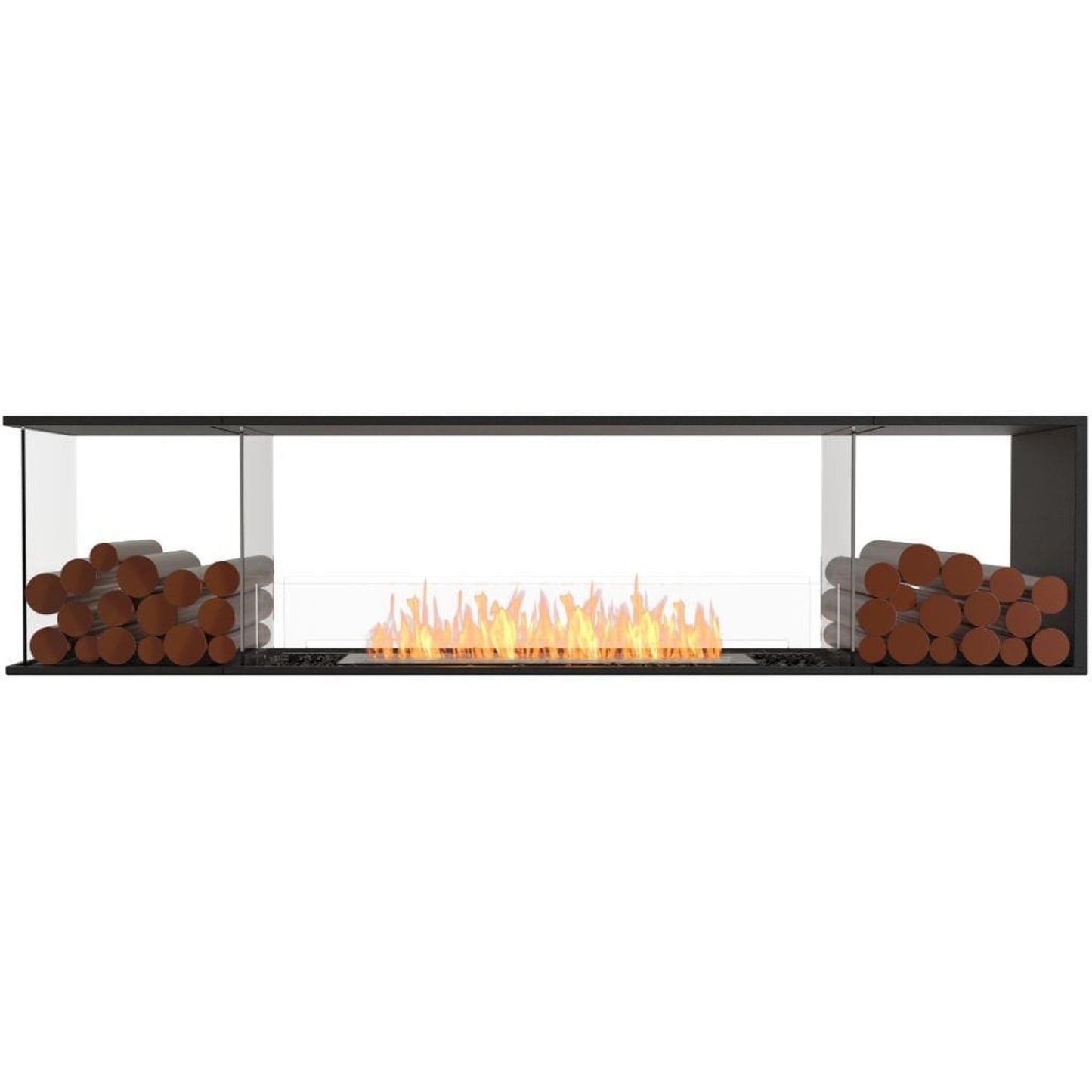

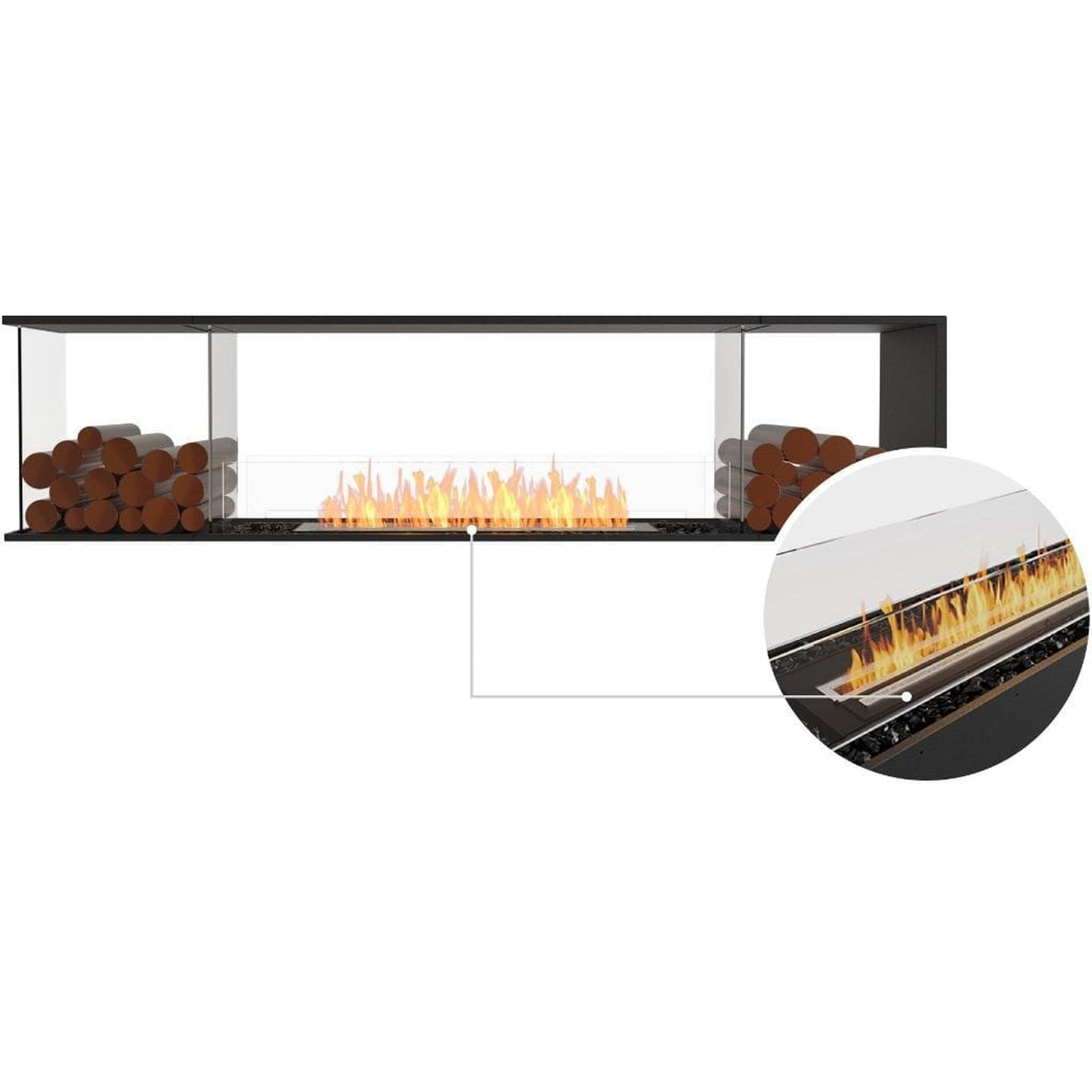

One of the most popular of the XL Series burners, the XL900 burner delivers a stunning linear flame to be use with BX2(Decorative Box with Both Sided) model. With a 2.4 gallons capacity, this elongated burner can heat up to 646ft2, making it ideal for larger residential and hospitality spaces such as open plan restaurants and bars or hotel lobby areas.

Manufacturer approved surround for the UL Listed XL1200 and XL900 burner.

Peninsula Ethanol Fireplace Inserts are available in other sizes and configuration i.e. 18PN32PN42PN50PN50PN with Decorative Box60PN with Decorative Box68PN68PN with Decorative Box78PN with Decorative Box86PN104PN104PN with Decorative Box122PN122PN with Decorative Box140PN with Decorative Box158PN158PN with Decorative Box

FUEL EFFICIENCY:

Volume Capacity

  • XL900: 2.4 Gal [9 L]
  • XL1200:  2.6 Gal [10 L]

Heats on Average

  • XL900: 646ft2 [60m2]
  • XL1200: 700ft2 [65m2]

Minimal Room

  • XL900: 3885ft3 [110m3]
  • XL1200: 4061ft3 [115m3]

Thermal Output

  • XL900: 16 MJ/h - 15000 BTU/h - 4.4 kW
  • XL1200: 17 MJ/h - 15290 BTU/h - 4.5 kW

Burn Time

  • XL900: 8 - 13h
  • XL1200: 9-14h

*Please Note: "These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country."

What's Included: Fireplace Insert, Glass Windscreen, Black Glass Charcoal, Bioethanol Burner, 1.25 Gallon Jerry Can, Bottle Adapter, Lighting Rod and XL Baffles

*Note: "e-NRG Bioethanol Fuel for the burner is sold separately. Glass windscreen included. Black Fireboxes come with Stainless Steel Burners. Model comes with Black Glass Charcoal."

Click to see Included Accessories




LIGHTINING ROD

This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.

JERRY CAN 1.25 GAL

Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system.

BOTTLE ADAPTOR

The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.

FIRE LIGHTER

This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.

XL BAFFLES

XL Baffles are used to regulate and further stabilise the flame increasing fuel efficiency of the burner.

BLACK GLASS CHARCOAL

The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC.

KEY FEATURES:

Application

Indoor or outdoor single room application. With one open side, view the flame from the front.

Colors

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Wind Screen

Included integrated windscreen sits flush behind frame.

Tested World Wide

EcoSmart collection has been thoroughly tested against a number of global standards and are UL Listed in the USA, Certified for EU and UK in accordance with EN16647, and satisfy the ACCC Safety Mandate for Australia.

STANDARD FEATURES:

  • Built-in 3-Sided Ethanol Firebox for Indoor or Outdoor Installation
  • Decorative Box on the Left, Right, or Both Sides
  • Made of Mild Steel and Toughened Glass
  • No Gas, Electricity, Chimney, or Venting Required
  • Adjustable Flame - allows you to control the flame intensity and heat output.
  • Safe Filling - safer than most other ethanol fireplaces.
  • 2 Glass Windscreen Included - for safety and wind protection.
  • ISO Certified
  • UL Listed

SPECIFICATIONS:

Dimensions

91.8" W x 13.9" D x 31.8" H
Weight
  • BXL/BXR: 274lb [124kg]
  • BX2: 240lb [109kg]
Warranty
  • Stainless steel parts including raw, linished and powder coated: 2 Years from Date of Purchase
  • Mild steel including powder coated and chrome plated, Cement, Glass, Leather, Fabric and MDF (Painted OR Cement Rendered): 1 Year from Date of Purchase

TECHNICAL DRAWINGS:

Front View

  • BXL

  • BXR

  • BX2

Side View

Top View
  • BXL

  • BXR

  • BX2

CA Residents: See Prop 65 WARNING.

DOWNLOADS:

*Note: "Read the manual carefully before operating the burner. Physical model dimensions should be verified against cut out dimensions BEFORE installation begins to confirm tolerances align."

OPTIONS & ACCESSORIES:

Click to see e-NRG Bioethanol

e-NRG is the highest quality bioethanol fuel available

Formulated for use in ventless bioethanol fireplaces, e-NRG is the cleanest, most efficient liquid ethanol fuel on the market and produces the best flame each and every time.



Click to see Log Set Copper

Great finishing with our stainless steel copper Log Set. Adding copper stainless steel log set to your side box fire installation is a great finishing touch.

* Important Note: "Decorative logs must NOT be placed directly over an open flame. They are designed to sit near heat but not over flames."



Click to see Log Set Brass

Great finishing with our stainless steel brass Log Set. Adding brass stainless steel log set to your side box fire installation is a great finishing touch.

* Important Note: "Decorative logs must NOT be placed directly over an open flame. They are designed to sit near heat but not over flames."
