SKU:DVCTL60CFP95N

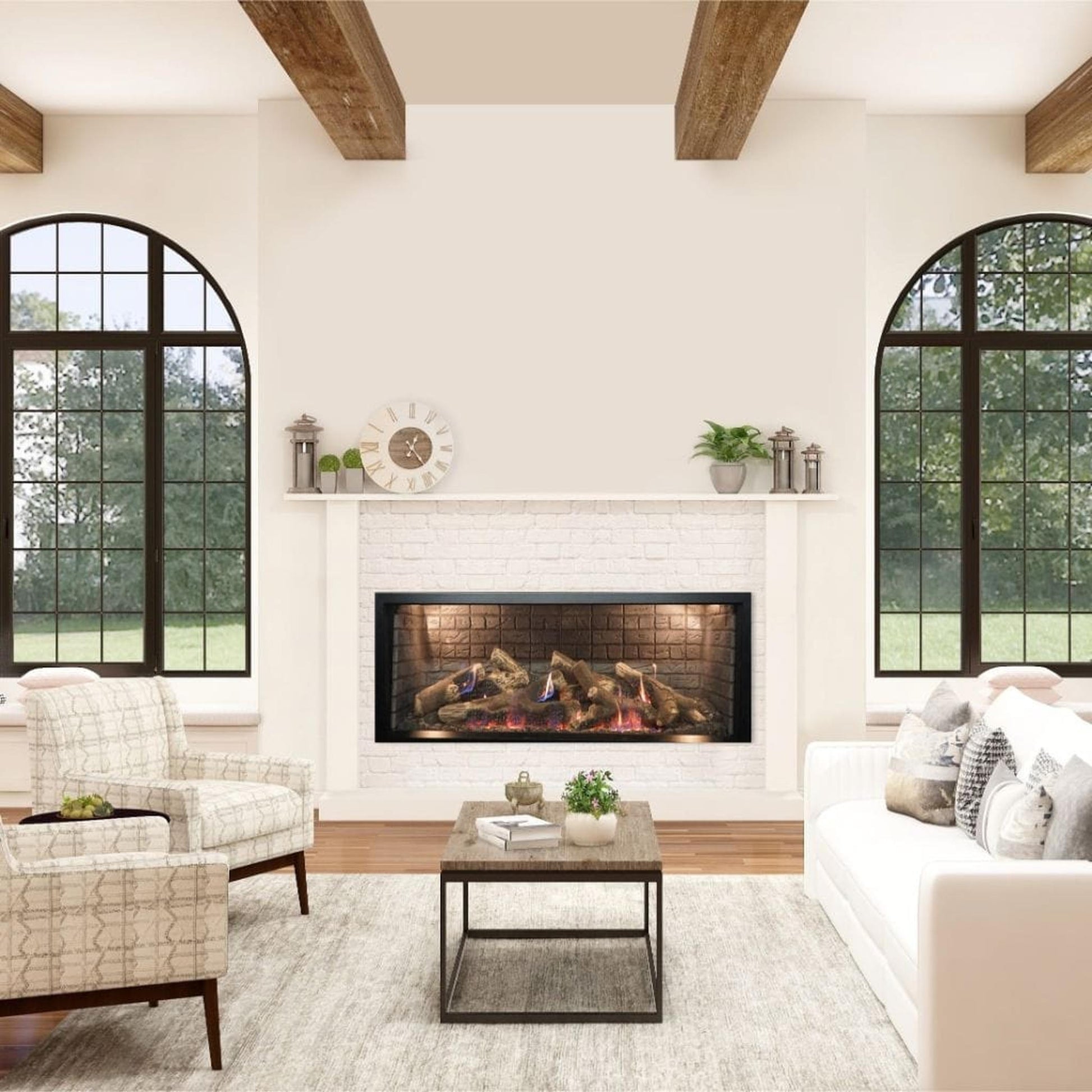

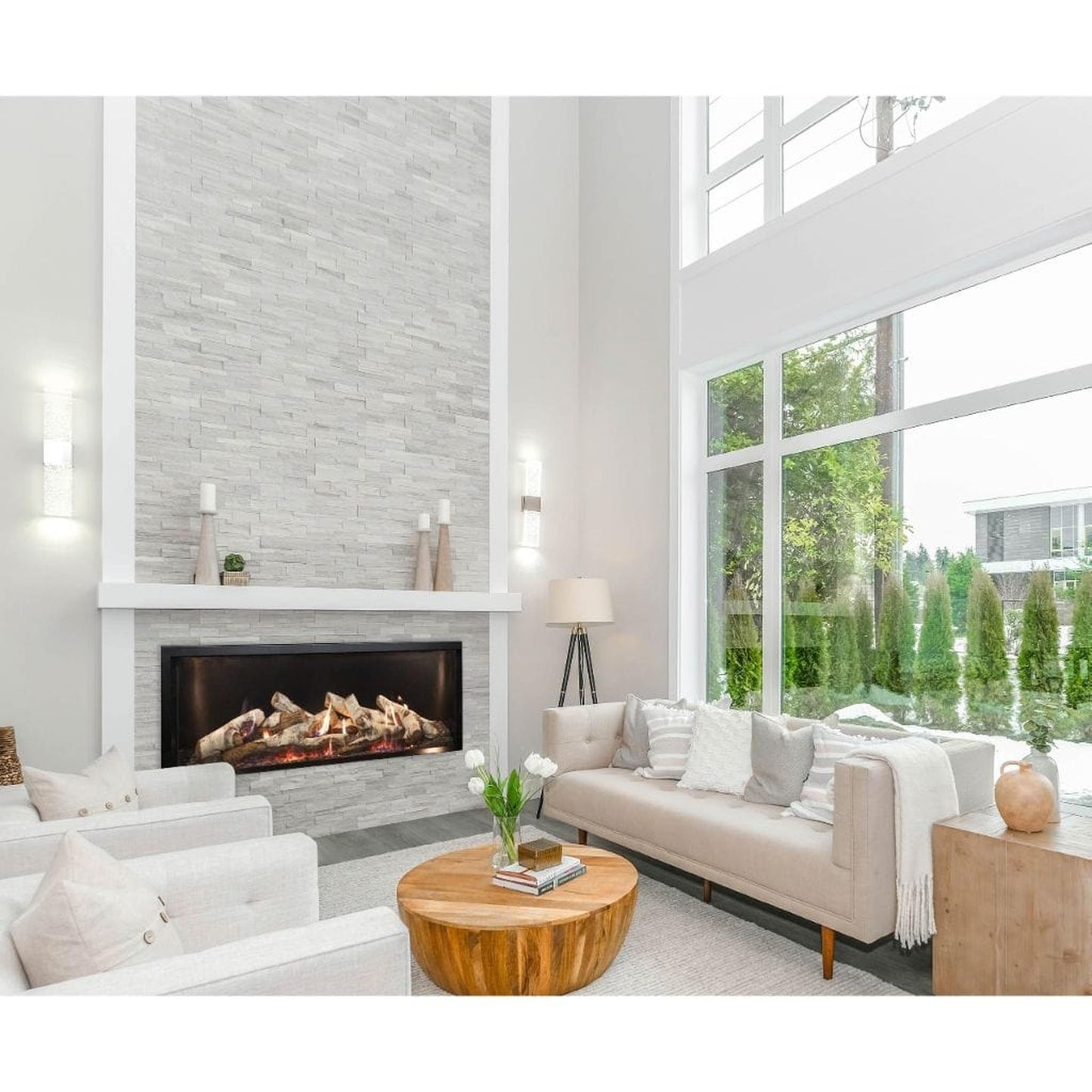

Empire McKinley 60" TruFlame Direct Vent Linear Gas Fireplace
Empire McKinley 60" TruFlame Direct Vent Linear Gas Fireplace
Log Set (Required)
-- Please Select --
No, Thank You
Liner (Required)
-- Please Select --
No, Thank You
Blower
-- Please Select --
No, Thank You
Gas Conversion Kit
-- Please Select --
No, Thank You
Forced Air Kit (Heat Management)
-- Please Select --
No, Thank You
Flex Vent (Required for Forced Ait Kit)
-- Please Select --
No, Thank You
Horizontal Power Vent (Required)
-- Please Select --
No, Thank You
Conversion Kit (Convert Horizontal to Vertical Power Vent)
-- Please Select --
No, Thank You
For 5x8 Vent Pipe (Pipe Reducer Required for Power Vent)
-- Please Select --
No, Thank You
Wire Harness (Required for Power Vent)
-- Please Select --
No, Thank You
Forged Iron Fronts
Beveled Frame
Couldn't load pickup availability
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Personalize your experience with multiple logs sets, liners and trim kits to choose from.
What's Included
- Fine Mesh Barrier Screen
- LED Lighting under burner
- Thermostat Variable Remote Control
- Extension Kit to mount lighting wall controls
up to 6 ft. away
Not Included (Sold Separately)
- Log Set (Required)
- Liners (Required)
- Power Vent (Required)
- Twin Blower
- Heat Management
- Gas Conversion Kit
- Decorative Forged Front
- Beveled Frame
- Wire Harness
Features
- Single Sided
- Fine Mesh Barrier
- Non-Combustible Board
- Choice of Interior Liners
- Choice of Ceramic Fiber or Burncrete® Logs
- UL Listed
- Optional Blower
- Optional Fronts
- Zero Clearance Gas Fireplace
- Power Vent - Maximum 50' Vent Run up to (6) Elbows
- Multi-Function System with Thermostat Variable Remote Control
- Multi-Function Remote to Control
- Front and Rear Burner
- 6-Step Variable Flame Height
- Independent Rear Burner On/Off (70% Turn Down)
- Accent Lighting On/Off with 6-Step Dimming
- Optional Double Blower On/Off with 6-Speed Settings
- TruFlame Technology
- Catalyst allows Large Flame and Extensive Ember Bed
- Clean Burn
Specifications
| Max BTU (w/both burners) | 58,000 |
| Min BTU (w/both burners) | 38,000 |
| Min BTU (front burner only) | 14,500 |
| Vent Type | Direct Vent |
| Gas Type | Natural Gas | Propane |
| Ignition | IPI - Intermittent Pilot Ignition |
| Venting | 4" x 6 5/8" Top Vent Only |
| KWH (Maximum) | 17 |
| KWH (Minimum) | 11.14/4.25 |
| Orifice - Front | #43 |
| Orifice - Rear | 3.1 mm |
| Air Shutter Opening Front / Rear | Fully Closed |
| Gas Inlet Shut-Off Valve (pipe) | 1/2 NPT |
Dimensions
| Width | 66.19" |
| Height | 41.5" |
| Depth | 11.06" |
| Ceramic Glass Width | 60.12" |
| Ceramic Glass Height | 18.25" |
| Framing Width | 75.12" |
| Framing Height | 59.87" |
| Framing Depth | 23.5" |
Warranty
10-years Limited Warranty on Combustion Chamber, Limited Lifetime on Glass. All other parts carry a three-year limited warranty. All remote controls and lighting systems carry a one-year limited warranty.
Documents & Files
Frequently Asked Questions
Does our product work during a power outage?
Yes, most of our appliances have the ability to be used in a power outage situation please see a local dealer for more information. |
What is the difference between, Millivolt and electronic ignition fireplaces?
Millivolt fireplaces use the electricity produced by a standing pilot to operate the fireplace. Electronic ignition fireplaces rely on a power source to power the fireplace, this can be house voltage as well as battery voltage. |
Can I use a Wi-Fi Thermostat with my unit?
Our units are designed to be operated by millivolts or low voltage, most Wi-Fi thermostats use 24volts and are not compatible. |
Where can I find my model and serial number?
There is a rating plate attached to the valve of your appliance that will have the model and serial number information. |
Can you tell me how old my unit is?
Once you locate your rating plate the serial number will help identify the age, the first two digits of the serial number denote the year of manufacture (21, 20, 19...) the next two digits identify the week of that year that the unit was built. |
What is the difference between a fireplace, a firebox, and an insert?
Fireplaces are designed to be installed into a framed opening with specific clearances to combustibles. Fireboxes are just like Fireplaces in terms of where they can be installed but in addition a burner and a set of logs is required to finish off the unit. Inserts are designed to be installed into an existing wood burning fireplace that meets all standards of construction. |
