Enervex RS 014 EcoDamper Gas Burning Chimney Fan System

Name: Enervex RS 014 EcoDamper Gas Burning Chimney Fan System
Brand: Enervex
SKU: 101.0699.1200 + 302.0100.1200
Price: 4885.0 USD
Availability: InStock

$4,885.00

Sale Sold out

Product variants

Controls & Accessories

Steel Chimney Adapters for Air Cooled Chimneys for RS and RSHT 009 to 014 - ASCA

Steel Chimney Adapter for Air Cooled Chimneys for RS and RSHT 012 and 014 - ASCA

Steel Chimney Adapters for Air Cooled Chimneys for RS and RSHT 012 to 016 - ASCA

Steel Chimney Adapter for RS and RSHT 012 and 014

Mechanical Fireplace Dampers for RS 014 and 016 with 24V - 304 Stainless Steel

Mechanical Fireplace Dampers for RS 014 and 016 with 120V - 304 Stainless Steel

MFD Slip Ring for Air Cooled Chimneys

Plenum Boxes - PLX (316L Stainless Steel)

Estimated Delivery Date: Between December 25th and December 31st to all states excl. Alaska & Hawaii if ordered in the next 24 hours 00 minutes 00 seconds.

Free Shipping on Orders Over $300
Same-Day Order Processing
Easy Monthly Installments Starting at 0% APR*

Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Overview

Perfect Fire. Any Fuel. ENERVEX provides a full line of listed, fully integrated residential venting systems for a truly one-stop design.

All products are manufactured by one manufacturer, which means our systems will work together seamlessly. No guesswork in the design process, and the flexibility to add what you need, when you need it.

At ENERVEX, one supplier takes full responsibility for the performance, efficiency and sustainability of your system with the best guarantees and warranties in the business.

Corporate History

Description

Automated Draft and Damper System (EcoDamper - Gas)

An economical, sustainable and quiet draft solution for gas-fired fireplaces that saves energy and maintains safe and proper draft while protecting against dangerous chimney downdraft and fireplace spillage.

The environmentally friendly ENERVEX EcoDamper System is the first combined draft and damper system for use with gas fireplaces.

The EcoDamper System quietly manages a perfect draft and prevents heat from escaping through the chimney when the fireplace is not in use. It eliminates the need for glass doors, opening up many new design options while allowing for a larger view area of the fire and a more natural look.

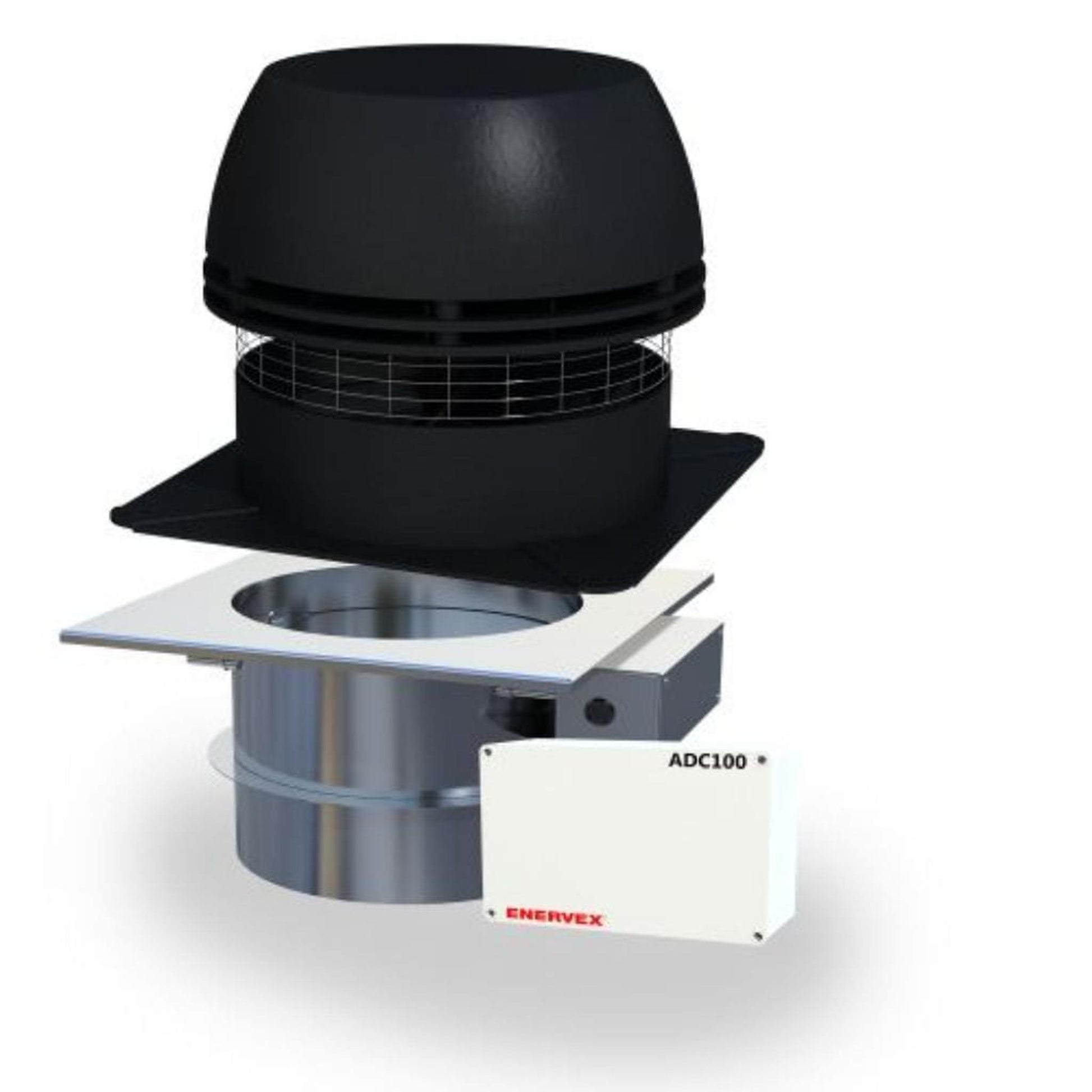

The system consists of the RS Chimney Fan, the Mechanical Fireplace Damper (MFD) and the ADC100 Control.

Features:

Can be integrated into virtually any fireplace design
Perfect draft saves fuel, eliminates spillage & carbon emissions
Protects against downdrafts and spillage
Automatically shuts down fireplace in unsafe conditions
Chimney closes when fireplace is not in use, saving energy
No need for glass doors

Benefits:

Provides ambiance
Ensure proper draft & safe operating conditions at all times
Save fuel and energy
Get design freedom for virtually any chimney application
Discreet termination

How it works:

The Eco Damper connects a draft and safety controller, the ADC100 and its pressure sensor, to an RS 014 Chimney Fan, the MFD Chimney Damper and the fireplace’s gas valve.

ADC100, Universal Control w. variable speed & PDS

In gas-fired fireplaces modulation may not always be required. In this case, an ENERVEX Fan and Damper Control (ADC 100) is a great choice.

This fan controller may be interlocked with the fireplace to control the speed of the fan and maintain proper draft in the chimney. It provides a 10-120 VAC signal to single-phase fans, and a 0-10 VDC signal that can be interpretted to control three-phase fans by an EDrive.

Use: The ENERVEX ADC100 Appliance Draft Control is used to control draft in systems where modulation is not required. It controls the speed of the fan to maintain proper pressure in the chimney. The ADC100 is for indoor installations only. The control can be used with Models RS and GSV Fans.

The ADC100 is typically used to control the draft of a gas-fired furnace, fireplace, stove, or pizza oven.

Description: The ADC100 comes with an external PDS. The PDS is a NO/NC switch that monitors the pressure in the chimney.

The ADC100 operates a chimney fan at a set speed to create and maintain proper mechanical draft at the outlet of a heating appliance(s). The control provides a 10-120 VAC signal to single phase fans, as well as a 0-10 VDC signal that can be used to control 3-phase fans by a variable frequency drive.

The ADC100 comes with an external PDS. The PDS is a NO/NC switch that monitors the pressure in the chimney. In case of inadequate draft, the PDS will open and if open for 15 seconds, the control will go into alarm mode and lock out the appliance until draft is restored.

The control features a manual and automatic adjustment mode which is selected via dipswitch. The PDS check function and manual or automatic reset function are also selected through a dipswitch.

An integrated damper relay allows a damper to be connected directly to the ADC100. The control ensures that the damper is fully open before allowing the appliance to operate by interlocking the damper end-switches to the control. In the event that the controller senses any mechanical failures, the control will initiate a retry sequence.

Material:
The enclosure is made of NEMA 1 rated ABS plastic.

Standard Equipment:
• ADC 100 Control Box
• PDS Proven Draft Switch Box
• Stack Probe
• 6' Silicone Tubing

Features:

0-10 VAC control signal and 10-120 VAC for variable speed
For indoor installations only
For use with RS Fans
Includes an external PDS Proven Draft Switch
Controls both 1x120V and 3x230V/460V fan (three-phase fans require an EDrive)

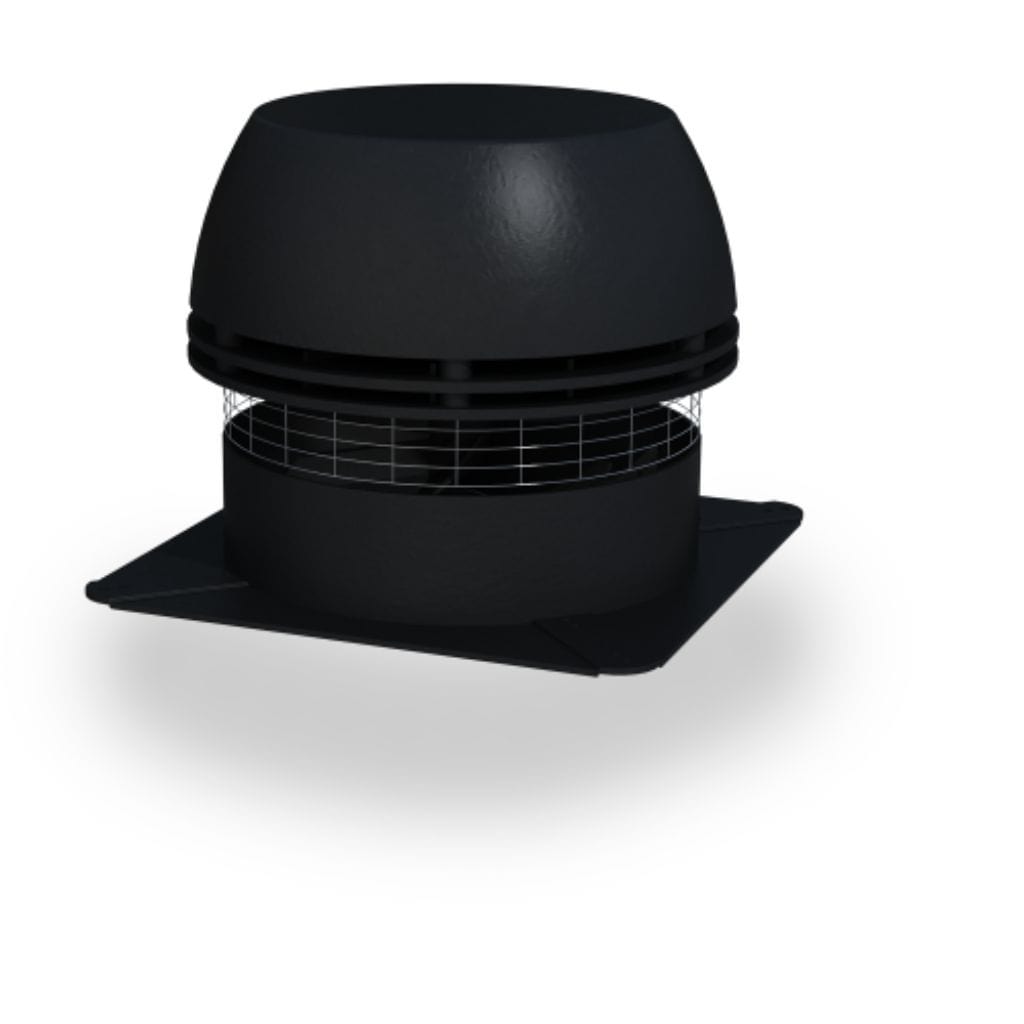

RS 014 Chimney Fan

Are you having incurable draft problems? Look no further for a solution. The RS Chimney Fan mounts outside the chimney, where it literally sucks the smoke out from the chimney flue.

The chimney fan is designed to disperse the smoke sideways (horizontal) just like a standard chimney cap. The RS is particularly suitable for gas-fired fireplaces and stoves.

Installation is clean and easy - and the fan's compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.

Features:

Quiet Operation
Variable-speed motor
Use with gas-fired appliances
Comes in 4 sizes
Complete fan and control packages available from a single manufacturer
Low operating costs
6-months Performance Guarantee

MFD Mechanical Fireplace Damper

This MFD Mechanical Fireplace Damper prevents heat from escaping up through the chimney when the fireplace is not in use, and prevents backdraft down the chimney. It is designed for chimney top installations.

The MFD is used as a component in a combined fan and damper system. The damper actuator can be interlocked to a control (ADC100 or ADC150) so it only operates when the fireplace is in use and the fan is running.

The damper is equipped with fail safe system and is rated for 1400°F (760°C).

Features:

Saves energy
Meets energy code requirements
Integrated fail safe system
Low profile

Download EcoDamper Brochure here.

Specification

Model	ADC100, Universal Control w. variable speed & PDS
Power Supply	1 x 120VAC
Amperage	6.3A
Control Signals	0-10 VAC (for VFD) and 120/240 VAC (for direct connect)
Output	10-120VAC / 0-10VDC
Control Relays	(2) Max 120VAC/8A
EMC Standard	Emission: EN50 081-1, Immunity: EN50 081-2
Warranty	2 Years
Listing Certification	For use with Model RS listed to UL 378, Standard for Draft Equipment UL508/UL 60947, Standard for Industrial Control Panels CSA C22.2 No. 14-95, Standard for Industrial Control Equipment

Model	RS Chimney Fan
Capacities	0-1,800 CFM (0-3,000 m3/h)
Material	Cast Aluminum Housing and Stainless Steel Axial Vane
Drive	Axial Vane
Motor	Variable Speed, TEFC, Class H
Max. Temp	575°F (300°C)
Warranty	2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation
Listings	UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster

Model			RS 014
Discharge			Horizontal
Fan Type			Axial Vane
Motor Type			Totally enclosed, Variable speed, Class H
Voltage		VAC	1x120V @ 60 Hz
Amperage		Amps	1.4
RPM			1600
CFM		at 0.0Ps	1400
Motor Output		hp / kW	1/7 / 0.1
Weight		lbs / kg	47 / 21
Weight		kg	21
Dimensions	A	in / mm	13.1 / 334
	B x B	in / mm	16.6 / 422
	C	in / mm	15.5 / 395
	D	in / mm	3.9 / 100
	E	in	13.5 / 342
Temperature Rating		Interm.	575°F / 300°C
Temperature Rating		Cont.	482°F / 250°C

Model	MFD Mechanical Fireplace Damper
Available Sizes (ID)	6" to 16" (150mm to 400mm)
Material	Stainless Steel 316L
Actuator	Brushless DC Motor
Power	120VAC or 24VAC/VDC Brushless Motor
Torque	54 in-lbs (6 Nm)
Speed	90° in 15 Sec.
End Switches	2
Temperature Rating	1400°F (760°C)
Warranty	2-year Factory Warranty

Accessories

We complete our systems with the addition of a wide range of accessories. That is one of the advantages of working with a single manufacturer. No need to deal with multiple suppliers hoping everything will go together properly in the field..

Click to see accessories

MFD Mechanical Fireplace Damper

An energy-saving, low profile, automated chimney-top mounted fireplace damper for use with gas-fired applications.

SCA Steel Chimney Adapter

The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round steel chimney.

ASCA Steel Chimney Adapter

The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney.

Click HERE to shop for more Accessories.
