Overview
Perfect Fire. Any Fuel. ENERVEX provides a full line of listed, fully integrated residential venting systems for a truly one-stop design.
All products are manufactured by one manufacturer, which means our systems will work together seamlessly. No guesswork in the design process, and the flexibility to add what you need, when you need it.
At ENERVEX, one supplier takes full responsibility for the performance, efficiency and sustainability of your system with the best guarantees and warranties in the business.
Corporate History
|
Innovative Venting Designs. Engineered for Savings. ENERVEX is a world-leading supplier of mechanical draft systems and integrated venting design solutions. We introduced the industry’s first mechanical draft fan in 1958 and today we deliver custom-built, one-stop venting systems from boiler outlet to chimney termination. ENERVEX serves North and Central America as well as the Middle East, operating from our 80,000-sq. ft. facility in Atlanta, GA. ENERVEX evaluates and builds every solution from the ground up with careful evaluation of the unique cost variables and long-term financial savings for each customer. Through superior manufacturing technology and decades of experience, we’re delivering high-quality, listed and certified venting solutions that are economical, environmentally sustainable, aesthetically pleasing, reliable, and code compliant. Backed by the best performance guarantee in the business. All of our solutions are delivered under a single, highly respected name with full responsibility taken for operational excellence. That’s our performance guarantee, and the reason why the ENERVEX brand has been trusted by some of the most successful projects in the world. Established in 1990, ENERVEX is based in Alpharetta, Georgia and operates in a number of countries with emphasis on the US, Canada, Central American and the Middle East. The company's global business is 70 percent commercial (offices, healthcare, education, sports facilities, multi-family and mixed-use buildings, hotels and resorts) and 30 percent residential. Since the invention of the chimney fan, ENERVEX continues to bring innovative draft control and mechanical draft solutions to market:
|
Description
Manual Draft and Damper System (EcoDamper - Solid Fuel)
An economical, sustainable and quiet draft solution for wood-fired fireplaces that saves energy and maintains safe and proper draft while protecting against dangerous chimney downdraft and fireplace spillage.
The environmentally friendly ENERVEX EcoDamper System is the first combined draft and damper system for use with wood-fired fireplaces, stoves etc.
The EcoDamper System quietly manages a perfect draft and prevents heat from escaping through the chimney when the fireplace is not in use. It eliminates the need for glass doors, opening up many new design options while allowing for a larger view area of the fire and a more natural look.
The system consists of the RSHT Chimney Fan, the Manual Fireplace Damper (MFD-S) and the EFC 211 Control.
Features:
- Can be integrated into virtually any solid fuel fired fireplace or stove design design
- Perfect draft saves fuel, eliminates spillage & carbon emissions
- Protects against downdrafts and spillage
- Chimney can be closed when fireplace is not in use, saving energy
- No need for glass doors
Benefits:
- Provides ambiance
- Ensure proper draft & safe operating conditions at all times
- Save fuel and energy
- Get design freedom for virtually any chimney application
- Discreet termination
How it works:
The Eco Damper connects a draft and safety controller, the EFC211 to an RSHT Chimney Fan, the MFD-S Manual Fireplace Damper.
EFC211 Solid Fuel Fan Controller

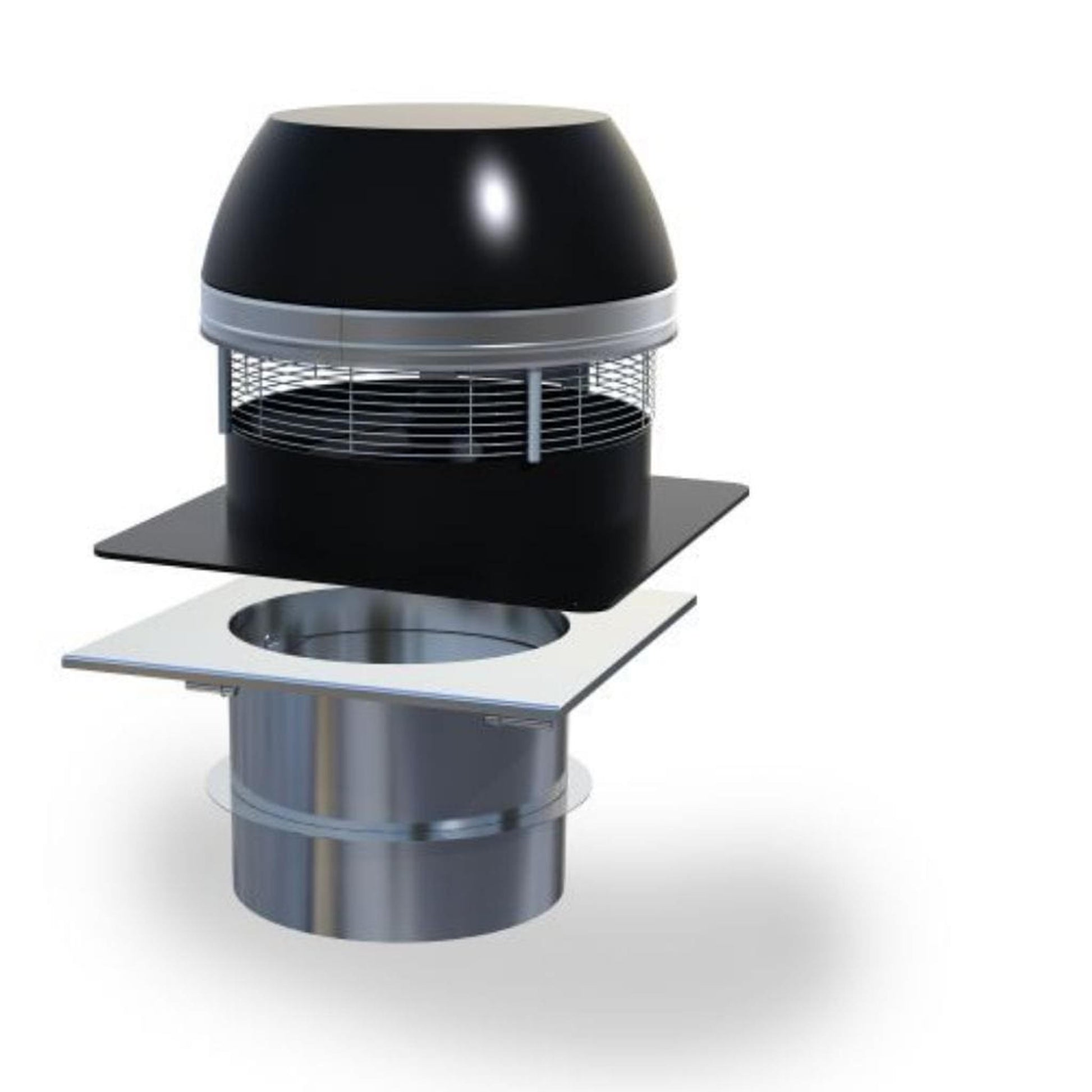

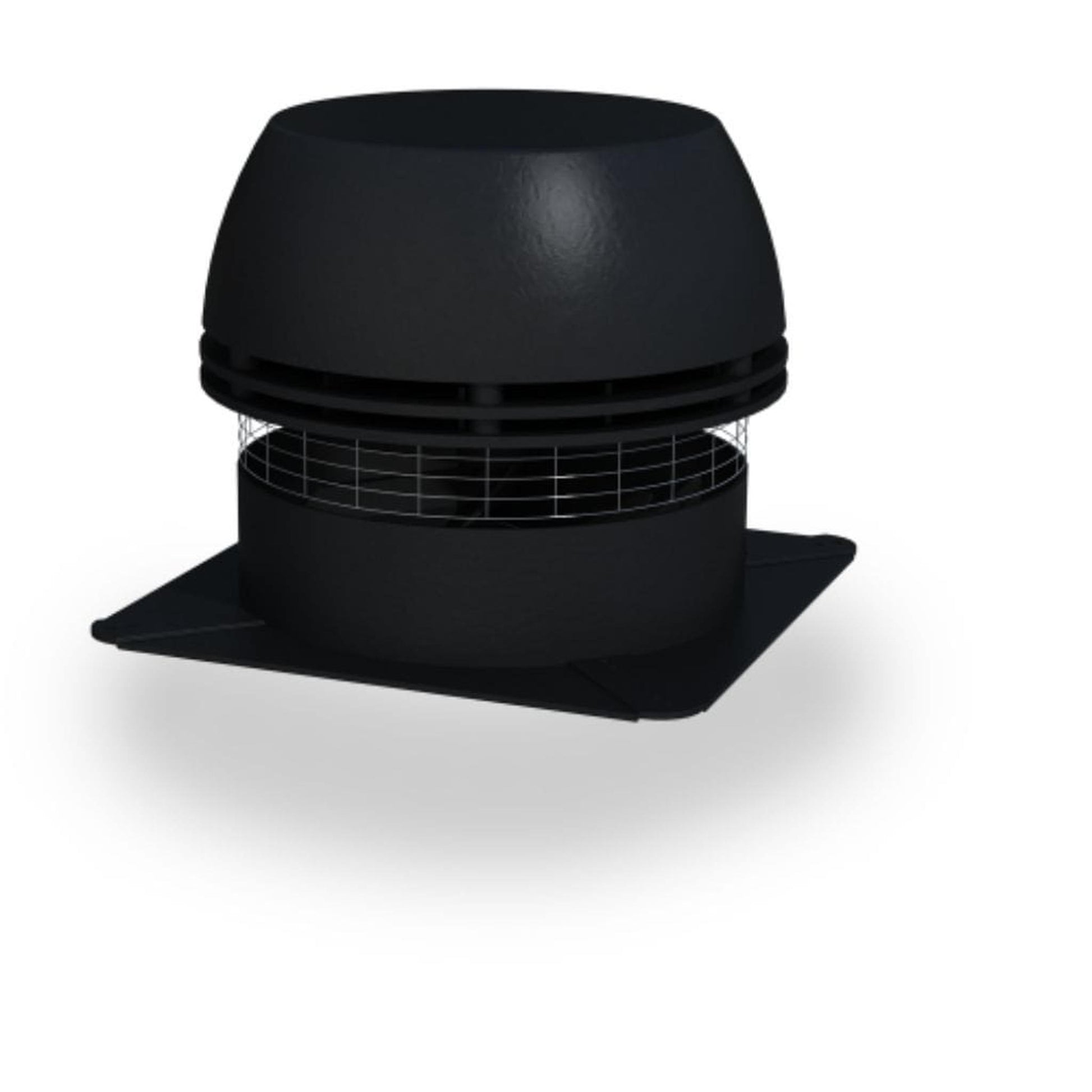

RSHT 014 Chimney Fan
|
Tired of smoke getting into your eyes? The RSHT is the cure. It will literally suck the smoke out from the chimney flue This high-temperature exhaust fan is typically used in venting solid-fuel fireplaces, BBQs, pizza ovens and stoves. Installation is clean and easy - and the fan's compact design is barely visible from the ground level. The fan can be recessed or hidden behind the chimney top enclosure.
Features:
|
MFD-S Manual Fireplace Damper
|
The MFD-S Manual Fireplace Damper for solid fuel prevents excess heat from escaping through the chimney when the fireplace is not in use, and prevents backdraft down the chimney. It is designed for chimney top installations. The MFD-S is a manual operated and gravity activated fireplace damper for round chimneys. Although it is designed to support and function with an ENERVEX chimney fan, it works equally well without it. It can be used as a replacement for worn-out, zero clearance fireplace dampers. The damper is operated with a pull chain and handle (included) mounted in the fireplace. The MFD-S is designed for chimney top installations and is rated for temperatures up to 1400°F (760°C).
Features:
|
Download EcoDamper Brochure here..
Specification
| Model | EFC211, Solid Fuel Fan Controller |
| Power Supply | 1 x 120VAC |
| Max Amperage | 5.8 Amps |
| Operating Temperatures | -4°F to 122°F (-20°C to 50°C) |
| Speed Control Output | 10-120 VAC |
| Listing Certification |
UL378 Standard for Draft Equipment UL508 Standard for Industrial Controls |
| Model | RSHT Chimney Fan |
| Capacities | 0-1,500 CFM (450-2,550 m3/h) |
| Material | Stainless Steel Housing and Axial Vane |
| Drive | Axial Vane |
| Motor | Variable Speed, TEFC, Class H |
| Max. Temp | Interm. 1400° (760°C), Contin. 1000°F (540°C) |
| Listings |
UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster |
| Model | RSHT 014 | ||
| Discharge | Horizontal | ||
| Fan Type | Axial Vane | ||
| Motor Type | Totally enclosed, Variable speed, Class F | ||
| Voltage | VAC | 1x120V @ 60 Hz | |
| Amperage | Amps | 2.70 | |
| RPM | 1600 | ||
| CFM | at 0.0Ps | 880 | |
| Motor Output | hp / kW | 0.34 / 0.25 | |
| Weight | lbs / kg | 41.9 / 19.0 | |
| Dimensions | A | in / mm | 14.6 / 372 |
| B x B | in / mm | 16.6 / 422 | |
| C | in / mm | 15.6 / 395 | |
| D | in / mm | 3.9 / 100 | |
| E | in | 13.0 / 330 | |
| Temperature Rating | Interm. | 1400ºF / 760ºC | |
| Cont. | 1000ºF / 538ºC | ||
| Model | MFD-S Manual Fireplace Damper |
| Material | Stainless Steel 316L |
| Available Sizes | 6 |
| Warranty | 2-year Factory Warranty |
Accessories
We complete our systems with the addition of a wide range of accessories. That is one of the advantages of working with a single manufacturer. No need to deal with multiple suppliers hoping everything will go together properly in the field.Click to see accessories
|
MFD-S Manual Fireplace Damper
|
This is an energy-saving, low profile, manually operated fireplace damper used as a component in a combined fan and damper system for use with solid-fuel applications only. |
|
SCA Steel Chimney Adapter
|
The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round steel chimney. |
|
ASCA Steel Chimney Adapter
|
The adapter used to provide support for the installation of an RS or RSHT chimney fan on a round, air-cooled steel chimney. |
Click HERE to shop for more Accessories.
