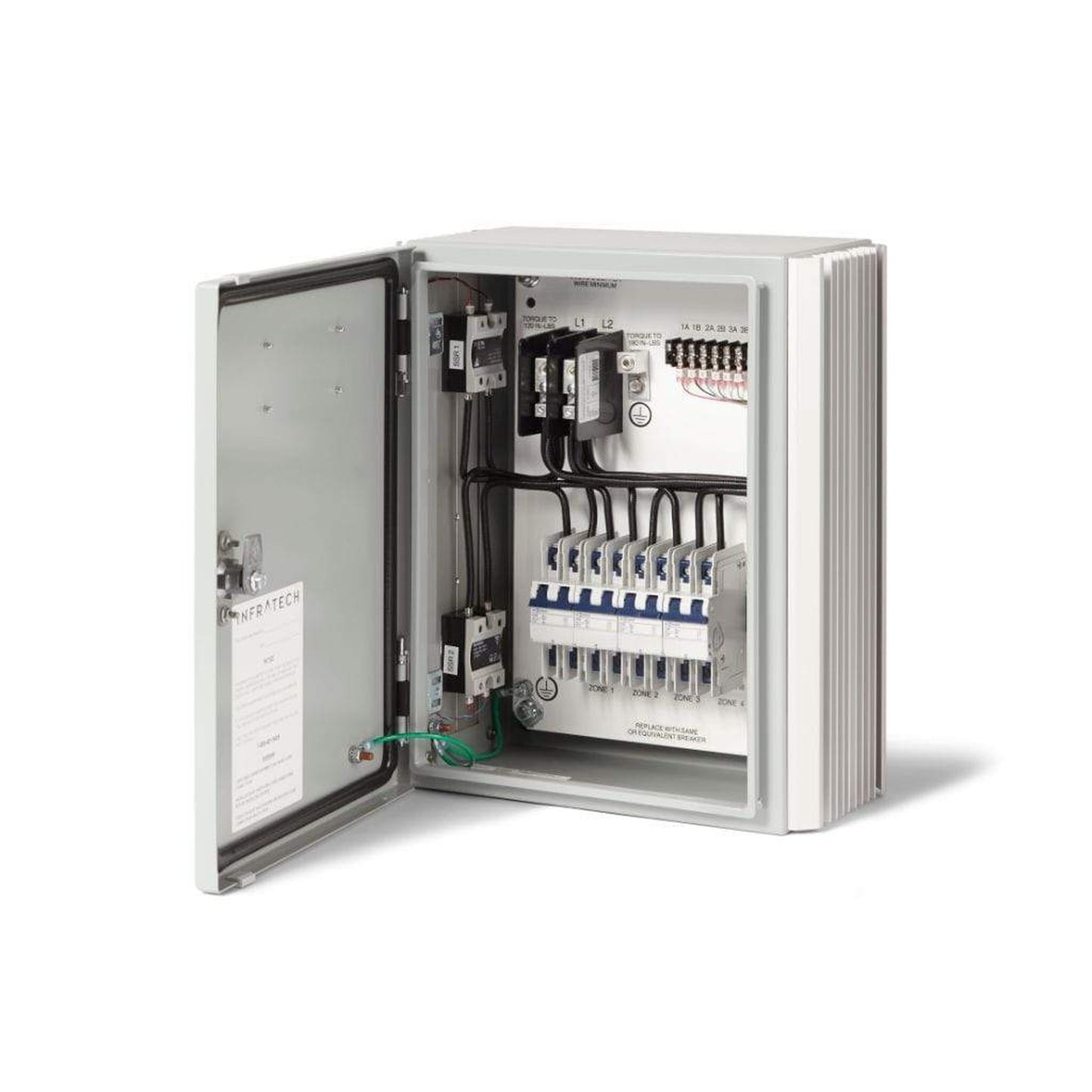

Infratech Comfort Relay Solid State Control Panel
Infratech Comfort Relay Solid State Control Panel
- Free Shipping on Orders Over $200
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email firstname.lastname@example.org
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Infratech’s Solid State Control Packages are designed to provide efficient operation for spaces that range from upscale residences to large-scale commercial properties with multiple heating zones.
- Energy efficiency – including timer functions, control versatility, and ease of use.
- The ability to adjust the heating intensity, to achieve the ideal comfort for your space.
- The Solid State Relay Panel and Zone Analog Controller (with or without an optional timer) work together and are project-specific.
- Zone Heating – the capability to control one or more heaters to heat specified target areas within a large-scale space with a single touch.
- Electrical wiring diagrams are provided for each installation.
Consists of a Solid State Relay Panel and Zone Analog Controllers
- Infratech’s Solid State Controls are engineered for your individual project and are suitable for commercial or residential installations of any size.
- Multiple zoning capabilities.
- Allows for the option to adjust the intensity of heat of one or more heaters in a specified target area.
- Available with optional timers.
- Controls are built to UL 508 listing, which is a higher safety standard than the National Electric Code (NEC).
- Heaters are hard-wired directly to the Solid State Relay Panel.
- Tested before leaving the factory, and provided wiring diagrams for each installation.
Required to complete Solid State Package Control System:
- Solid State Relay Control - Compatible with all voltages. Must purchase a Solid State Relay Panel
- Solid State Relay Panel - Compatible with all voltages. Must purchase a Solid State Relay Control.
|Ideal when using multiple heaters to set up zones for a variety of simple or complex applications|
|Infinite Heat Control|
|Use Any Switch||Solid-State Control Packages work in conjunction with Infratech’s Analog Controllers Only|
|Timer||---||Analog Controllers are offered with or without Digital Timers|
|Smart Phone/Tablet Application|
|NEMA Rating||---||NEMA 12 Analog / NEMA 4 Panel|
|Wiring Diagrams Provided|
|Tested Before It Leaves The Factory|
|Assigned a UL Listing Number|
|Panel Built Job Specific|
|Overall Dimensions||14" (W) x 7" (D) x 16" (H)|
|Interior measurements||16" H x 12" W x 6" D|
|Each relay has a max capacity of 9,000 Watts.|
|Each heater on a single relay must be the same wattage.|
|This unit is installed as a sub-panel. The heaters are connected to the relay box, then the relay box connects to your electrical service panel, or has a separate service.|
|This system is compatible with the Solid-State Relay Controls.|
Each Control Knob can control up to 3 Relays.
