Kingsman

ZVF33P

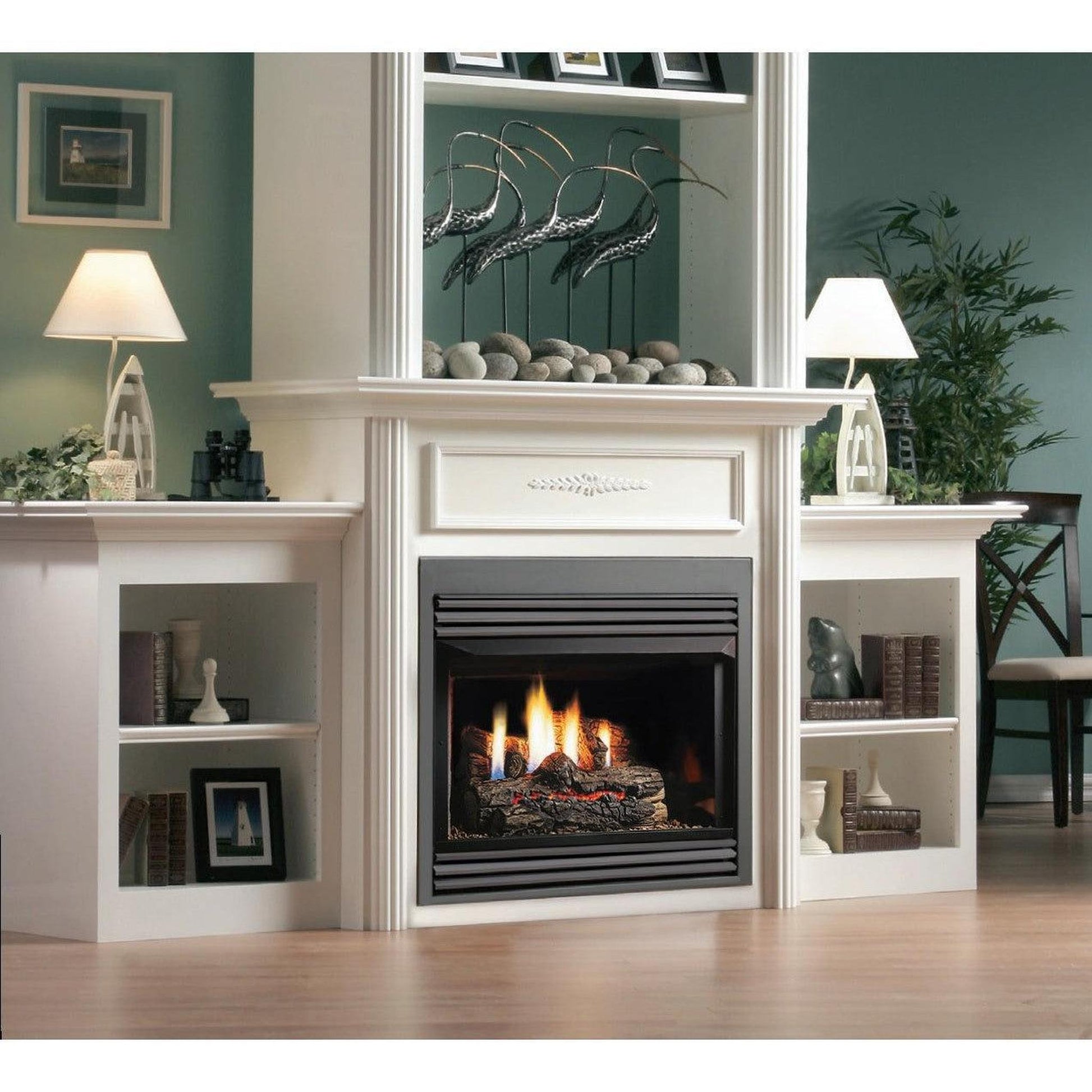

Kingsman 33" ZVF33P Zero Clearance Vent Free Gas Firebox


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

The ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.

The Kingsman Zero-Clearance Vent-Free Gas Fireplace could be a 33 inch unit for larger spaces. If you decide to equip a ZVFB33P millivolt burner specifically, then it is often matched with a full line of remotes or wall switches and is CSA/ANSI certified. There are manual valve options available with this burner type, however, they're not compatible with the remotes or wall switches. A burner is required to finish the unit and is purchased separately. you also have your choice of two different log sets to finish your fireplace. This fireplace features a reliable standing pilot valve with a flame guard, and Kingsman includes safety barrier screens.

This fireplace is often configured in several ways to meet the requirements of your installation. Various decorative liner and surround options are available to match your decor, while multiple log kit sizes offer a customizable firebox look. Additionally, optional features available include fan kits, remote options, and other decorative upgrades to permit further customization as desired.

STANDARD FEATURES

  • Color: Black
  • Size: 33 Inch
  • Pull Screen
  • Black Canopy Hood
  • Decorative Ash Bed
  • Vent Type: Vent Free
  • Includes safety barrier screens
  • Fireplace Type: Standard Firebox
  • Choose from two different log sets
  • Vent-free fireplace for larger spaces
  • Fuel Type Options: Natural Gas, Propane Gas
  • Reliable standing pilot valve with flame guard
  • Burner must be purchased separately to complete the unit
  • ANSI/CSA listed when equipped with ZVFB33 series burner
  • Able to be equipped with a full line of remotes and wall switches (millivolt burners only)

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Technical Specifications

  • Max BTU Output: 25,001 to 30,000
  • Framing Dimensions: 33 1/8" W 31" H and 13 3/4" D
  • Overall Unit Dimensions: 32 1/2" W 30 1/2" H and 14" D

DIMENSIONS

CA Residents: See Prop 65 WARNING

OPTIONAL ACCESSORIES

Click to see Burner System (Required to Complete)


Burner System

ZVFB3330MAN / ZVFB3330MAP / ZVFB3330MVN / ZVFB3330MVP

  • Ignition: Manual Valve, Millivolt Valve
  • Certified to: ANSI Z21.11.2-2007
  • Manually operated variable flame control
  • Wall Switch Control (for Millivolt Systems Only)
  • Vent-free burner system includes matchless piezo starter
  • Fuel Type: Natural Gas, Liquid Propane (Not convertible)
  • Inlet gas pressure: 5 1/2 to 7 inches(NG) and 11 inches()LP of W.C.
  • Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
  • An ODS sensor that constantly monitors the room air and provides 100% gas shut off if oxygen is reduces below acceptable levels
  • Designed to fit ZVF33P series fireplaces
Click to see Log Set (Required to Complete)


Log Set

Fiber Split Oak Log Set (LOGF18/LOGF24)

  • Size: 18/24 Inches
  • Vent Type: Vented
  • Log Style: Split Oak
  • Fireplace Type: Standard
  • High-quality logs will last years
  • Simulated split oak logs are manufactured from ceramic fiber that glows when heated

* Please Note: This item is a vent-free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Click to see Grill Kit (Required to Complete)


Grill Kit

VI30GBL

  • Finish: Black
  • Type: Grill Kit
  • Allows heat to radiate readily into the room
  • Required to complete the installation of the unit
  • Louver kit for ZDV3318 and ZVF33P series fireplaces
    Click to see Decorative Surround


    Decorative Surround

    Decorative Black Surround (Z6SBL)

    • Finish: Black
    • Type: Decorative Surround
    • Measures 36 5/8" Wide by 31 3/16" High
    • Wide perimeter design offers an accent between the fireplace and adjacent wall
    • Designed to be used with the ZDV3318 and ZVF33P series fireplaces
        Click to see Door Frame with Safety Screen


        Door Frame with Safety Screen

        Door Frame with Safety Screen (ZVF33DS)
        • Color: Black
        • Type: Door Frame
        • Designed to be easily removable as needed
        • Decorative door frame overlay with an integral safety barrier screen
        • Provides a realistic appearance for ZVF33P series fireplaces
            Click to see Fan Kit


            Fan Kit

            Variable Wall Mount Speed Control (Z33FK)

            • Type: Fan Kit
            • Temperature Sensing
            • Thermal switch for automatic on/off operation
            • Variable speed control with built-in all offsetting
            • Squirrel cage blower design for quiet and powerful operation
            • Designed to fit ZDV3318, ZVF24 and ZVF33P series fireplaces
                Click to see Log Bits Kit


                Log Bits Kit

                Four Piece Log Bits Kit (VLBIT4)

                • Designed to bolster the look of existing Kingsman log sets
                • Includes four large log chunks
                • Easy to install and arrange as desired

                    Six Piece Log Bits Kit (VLBIT6)

                    • Designed to bolster the look of existing Kingsman log sets
                    • Includes six large log chunks
                    • Easy to install and arrange as desired
                    Click to see Thermostat


                    Thermostat



                    Wall Mount Thermostat- For Millivolt Units- Z2MT

                    • Simple on/off millivolt thermostat design
                    • Easy to use digital control
                    • Allows convenient operation of gas appliances
                    • Simple to wire to existing millivolt systems

                    Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

                    • Schedule programmable for desired operation
                    • Works with Kingsman millivolt appliances
                    • Easy to read digital LCD display
                    Click to see Remote Control

                    Remote Control

                    On/Off Remote Control for Millivolt/IPI Units- GFRC

                    • Simple on/off operation for millivolt appliances
                    • Allows for the operation of the appliance without manual control
                    • Included receiver easily mounts within the appliance chassis
                    • Reliable RF transmitter operation

                      Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC

                      • On/off operation with modulating thermostat control
                      • Allows for the operation of the appliance without manual control
                      • Included receiver easily mounts within the appliance chassis
                      • Reliable RF transmitter operation

                      Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units-
                      GTMRCN, GTMRCP, EGTMRCN, EGTMRCP

                      • On/off operation with modulating thermostat control
                      • Allows for the operation of the appliance without manual control
                      • Included receiver easily mounts within the appliance chassis
                      • Reliable RF transmitter operation
                      • Includes high/low modulating motor for natural gas and propane gas fireplaces

                      Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP

                      • On/off operation with modulating thermostat control
                      • Allows for the operation of the appliance without manual control
                      • Included receiver easily mounts within the appliance chassis
                      • Reliable RF transmitter operation
                      • Includes high/low modulating motor for natural and propane gas fireplaces
                      • Allows for control of optional fan operation
