Kingsman

ZVFCV42

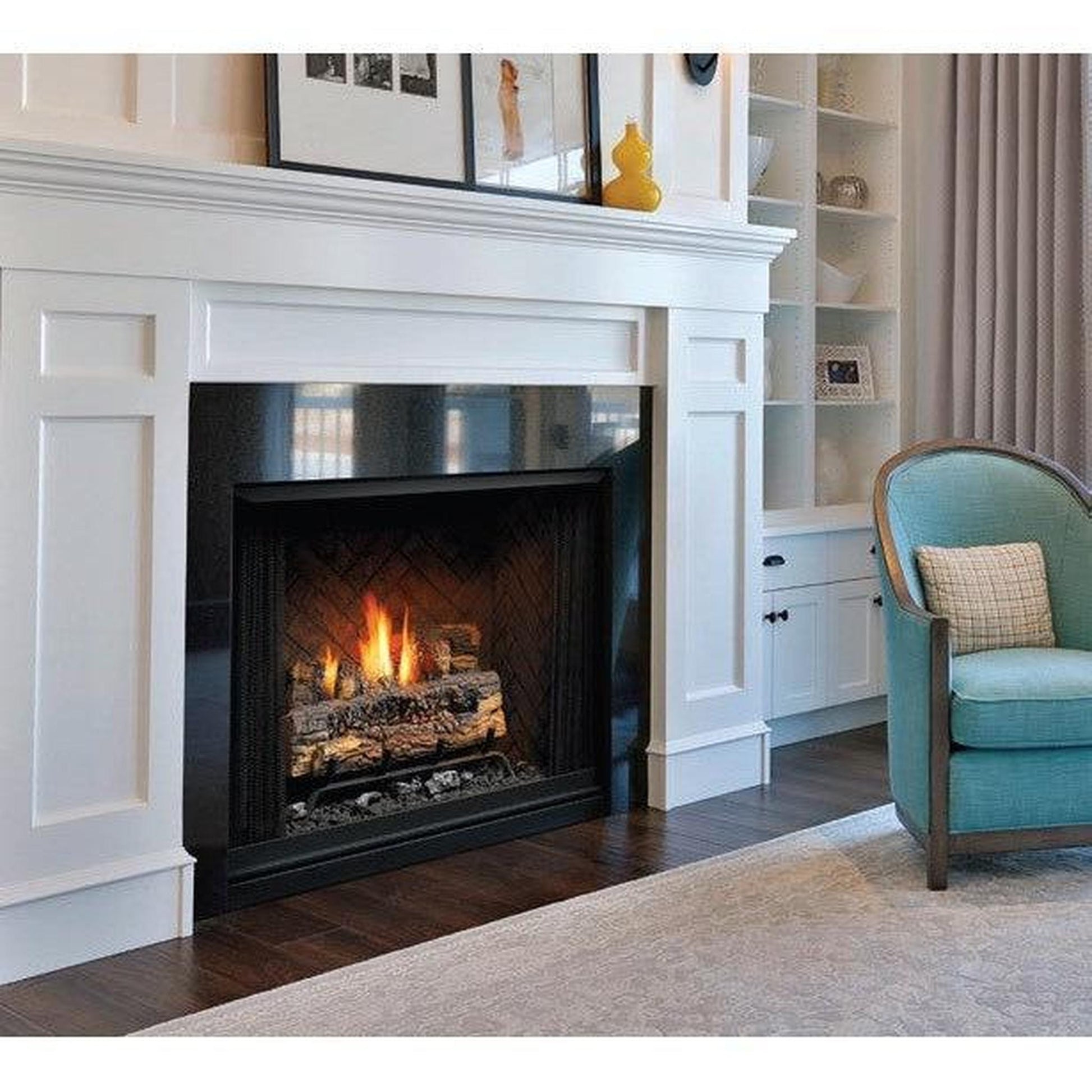

Kingsman 42" ZVFCV42 Zero Clearance Clean View Circulating Universal Vent Free Firebox


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

The ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.

The Kingsman Zero Clearance Clean View Circulating Universal Vent Free Firebox is available during a 42-inch box. This firebox requires the utilization of a manual or a remote-ready GLVF24 burner assembly. you'll choose from LOGF18 or LOGF24 fiber log assembly. For your peace of mind, this fireplace has an ODS, or Oxygen Density Sensor, to consistently monitor the air in the room and automatically shuts the gas off if the oxygen levels in the room drop below safe levels. Another great feature of this firebox is that the black heat deflector. This canopy hood protects any items placed above the firebox from heat.

No chimney systems are required and this product is often used almost anywhere in your home (except in the bathroom, bedroom, spa room, mobile home, or recreational vehicle), but provisions for adequate combustion and ventilation must be provided (room size and BTU's of the appliance are the deciding factors of what BTU size can be used for a specific installation). The appliance uses room air for combustion and exhausts to the room. These appliances are 99.9% efficient and therefore the vent-free burner systems have an ODS pilot system, which ensures that the burner systems will shut down if oxygen in the room falls below acceptable limits.

STANDARD FEATURES

  • Color: Black
  • Size: 34 Inch
  • Vent Type: Vent Free
  • Fireplace Type: Standard Firebox
  • Decorative pull screens included
  • Burners use matchless piezo ignition system
  • Fuel Type Options: Natural Gas, Propane Gas
  • Standard wall switch control for millivolt burners
  • Uses either LOGF18 or LOGF24 fiber log assemblies
  • Black heat deflector canopy hood protects mantels and wooden shelves
  • Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
  • Must be completed with manual or remote ready GLVF24 burner assemblies
  • ODS sensor monitors room air and provides gas shut off if oxygen is below acceptable levels

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

Technical Specifications

  • Max BTU Output: 35,001 to 40,000
  • BTU Input Ratings: 38,250 NG / 38,000 LP
  • Framing Dimensions: 42 1/2" W 40 3/8" H and 20 5/16" D
  • Overall Unit Dimensions: 42 7/16" W 40 5/16" H and 20 3/16" D
  • Firebox opening dimensions: 33 7/8" FW 26 7/8" BW 29 1/8" H and 15 1/2" D

    DIMENSIONS

    CA Residents: See Prop 65 WARNING

    OPTIONAL ACCESSORIES

    Click to see Burner (Required to Complete)


    Burner

    GLVF24MAN / GLVF24MAP / GLVF24MVN / GLVF24MVP

    • Size: 24 Inches
    • Vent Type: Vent Free
    • Fireplace Type: Standard
    • Pilot Type: Safety Pilot
    • Certified to: ANSI Z21.11.2-2013
    • Max BTU Output: 35,001 to 40,000
    • Manually operated variable flame control
    • Simple and reliable on/off Millivolt/manual gas valve
    • Certification: ANSI Certified, CSA Certified
    • Gas Type: Natural Gas, Propane Gas (Not convertible)
    • Vent-free burner system includes matchless piezo starter
    • Oxygen depletion sensor shuts down the burner if low oxygen levels are detected
    • Inlet gas pressure: 5 1/2 to 7 inches (Natural Gas) and 11 inches (Propane Gas) of W.C.
    • 25,500 to 38,250 BTU/HR (Nat)
    • 29,000 to 38,000 BTU/HR (LP)
      Click to see Log Set (Required to Complete)


      Log Set

      Fiber Split Oak Log Set (LOGF18/LOGF24)

      • Size: 18/24 Inches
      • Vent Type: Vented
      • Log Style: Split Oak
      • Fireplace Type: Standard
      • High-quality logs will last years
      • Simulated split oak logs are manufactured from ceramic fiber that glows when heated

      * Please Note: This item is a vent-free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

      Click to see Surrounds


      Surrounds

      Hearth Mount Surround 4” Wide (ZCV42S1BL)

      • Color: Black
      • Wide hearth mount style surround with safety screen
      • Measures 44 5/8" wide by 38 1/8" high
      • Designed to surround the fireplace when positioned at ground or hearth level
      • Designed for ZCV42, ZCV42H, MCVST42, and ZVFCV42 series fireplaces

              Picture Frame Surround 4” Wide (ZCV42S1PFBL)

              • Color: Black
              • Wide picture frame style surround with safety screen
              • Measures 44 5/8" wide by 40 1/8" high
              • Designed to frame the fireplace opening and transition to the surrounding wall
              • Designed for ZCV42, ZCV42H, MCVST42, and ZVFCV42 series fireplaces

              Picture Frame Surround 1 5/8” Wide (ZCV42S2PFBL)

              • Color: Black
              • Slim picture frame style surround with safety screen
              • Measures 40 1/8" wide by 35 5/8" high
              • Designed to frame the fireplace opening and transition to the surrounding wall
              • Designed for ZCV42, ZCV42H, MCVST42, and ZVFCV42 series fireplaces
              Click to see Refractory Liner Kit


              Refractory Liner Kit

              3 Piece Traditional Refractory Fiber Liner (ZCV42RLT)

              • Color: Brown
              • Designed to add a realistic appearance to the firebox interior
              • Durable cast refractory construction
              • Installation hardware included
              • Mimics the look of traditional running courses of brick
              • Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces
              3 Piece Herringbone Refractory Fiber Liner (ZCV42RLH)
              • Color: Brown
              • Designed to add a realistic appearance to the firebox interior
              • Durable cast refractory construction
              • Installation hardware included
              • Provides the look of a herringbone style brick pattern
              • Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces

              3 Piece Red Herringbone Refractory Fiber Liner (ZCV42RRH)

              • Color: Red Herringbone
              • Designed to add a realistic appearance to the firebox interior
              • Durable cast refractory construction
              • Installation hardware included
              • Provides the look of a herringbone style brick pattern
              • Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces
              3 Piece Stacked Brick Refractory Fiber Liner (ZCV42RLS)
              • Color: Brown
              • Designed to add a realistic appearance to the firebox interior
              • Durable cast refractory construction
              • Installation hardware included
              • Mimics the look of traditional running courses of brick
              • Designed specifically for ZCV42/ZCV42H/ZVFCV42 fireplaces
              Click to see Fan Kit


              Fan Kit

              Speed Temperature Sensing Fan Kit (Z46FK)

              • Squirrel cage blower design for quiet and powerful operation
              • Thermal switch for automatic on/off operation
              • Variable speed control with built in all off setting
              • Designed to fit Kingsman fireplaces
                        Click to see Accent Lighting


                        Accent Lighting

                        Universal Light Kit - Two Lamps for Glass Trays (ULK2)

                        • Dual halogen lamps accent glass media installations
                        • Works with Kingsman fireplaces
                        • Backlight affect adds a unique touch to glass equipped fireplaces
                        • Can be used to illuminate the fireplace when not in use
                        Click to see Tile Lip Kit


                        Tile Lip Kit

                        Tile Lip Kit (ZCV-TLK)

                        • Color: Black
                        • Type: Tile Lip Kit
                        • Provides a finished edge for tile, brick, or stone against fireplace edges
                        • Recommended for installations without surrounds
                        • Fits Kingsman fireplaces only
                            Click to see Log Bits Kit


                            Log Bits Kit

                            Four Piece Log Bits Kit (VLBIT4)

                            • Designed to bolster the look of existing Kingsman log sets
                            • Includes four large log chunks
                            • Easy to install and arrange as desired

                                Six Piece Log Bits Kit (VLBIT6)

                                • Designed to bolster the look of existing Kingsman log sets
                                • Includes six large log chunks
                                • Easy to install and arrange as desired
                                Click to see Thermostat


                                Thermostat



                                Wall Mount Thermostat- For Millivolt Units- Z2MT

                                • Simple on/off millivolt thermostat design
                                • Easy to use digital control
                                • Allows convenient operation of gas appliances
                                • Simple to wire to existing millivolt systems

                                Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

                                • Schedule programmable for desired operation
                                • Works with Kingsman millivolt appliances
                                • Easy to read digital LCD display
                                Click to see Remote Control

                                Remote Control

                                On/Off Remote Control for Millivolt/IPI Units- GFRC

                                • Simple on/off operation for millivolt appliances
                                • Allows for the operation of the appliance without manual control
                                • Included receiver easily mounts within the appliance chassis
                                • Reliable RF transmitter operation

                                  Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC

                                  • On/off operation with modulating thermostat control
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation

                                  Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units-
                                  GTMRCN, GTMRCP, EGTMRCN, EGTMRCP

                                  • On/off operation with modulating thermostat control
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation
                                  • Includes high/low modulating motor for natural gas and propane gas fireplaces

                                  Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP

                                  • On/off operation with modulating thermostat control
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation
                                  • Includes high/low modulating motor for natural and propane gas fireplaces
                                  • Allows for control of optional fan operation

                                  DOWNLOADS
