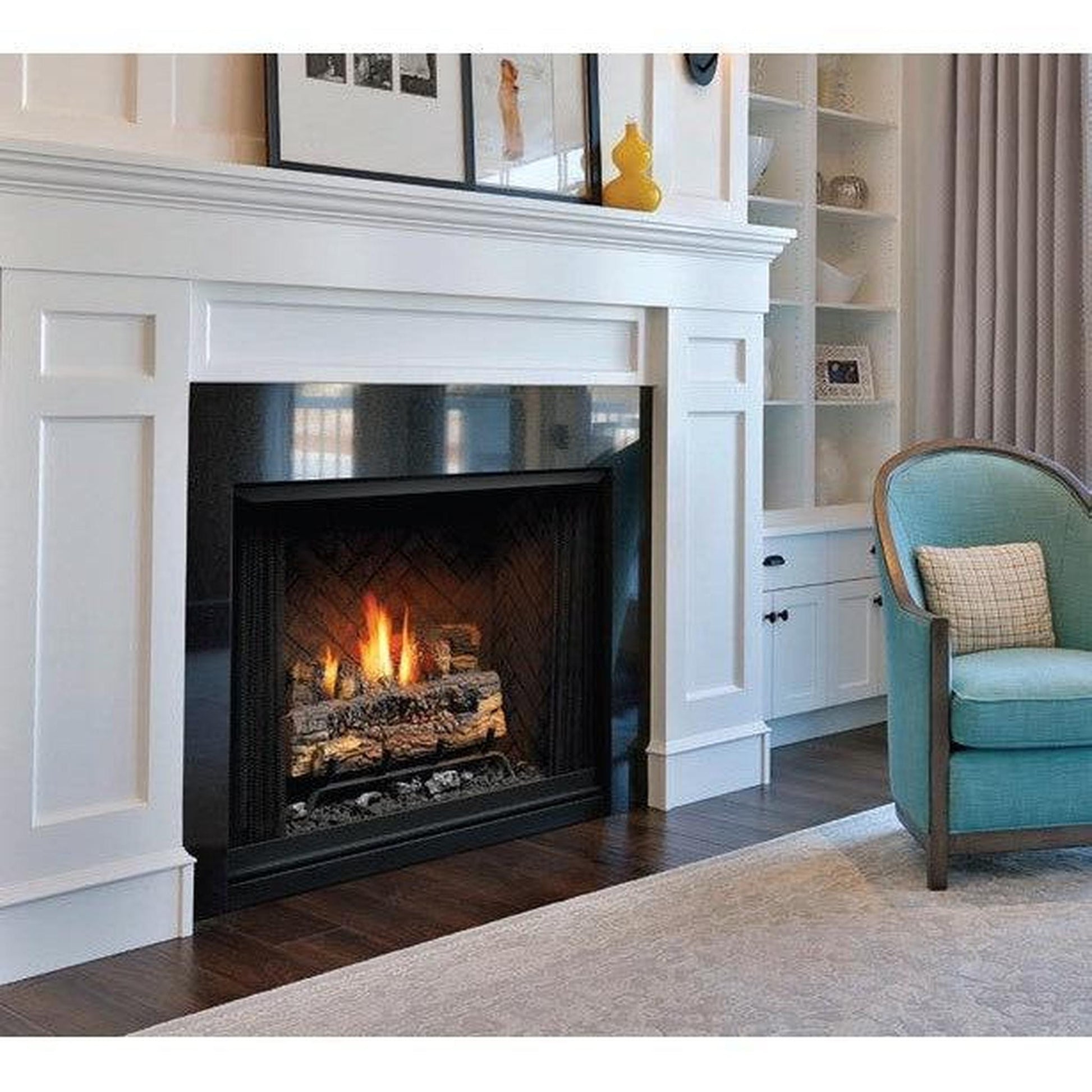

Kingsman 47" ZVFCV47 Zero Clearance Clean View Circulating Universal Vent Free Firebox


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

OVERVIEW

The ultimate in Zero Clearance Vent-Free Fireplaces for new home construction or renovation, and your most suitable option for installation anywhere throughout your home.

The Kingsman Zero Clearance Clean View Circulating Universal Vent-Free Firebox is available during a 47-inch box. This firebox requires either the manual or remote-ready GLVF24 burner assembly and utilizes anybody of the LOGF18, LOGF24, LOGF30 fiber log assemblies as well. This firebox features a black heat deflector canopy hood, which can help to protect anything you place above your fireplace. Burner options use the matchless piezo ignition, and if they're millivolt equipped, they can have a wall switch control. With Kingsman's dedication to safety, they have included decorative pull screens for this firebox.

No chimney systems are required and this product is often used almost anywhere in your home (except in the bathroom, bedroom, spa room, mobile home, or recreational vehicle), but provisions for adequate combustion and ventilation must be provided (room size and BTU's of the appliance are the deciding factors of what BTU size can be used for a specific installation). The appliance uses room air for combustion and exhausts to the room. These appliances are 99.9% efficient and therefore the vent-free burner systems have an ODS pilot system, which ensures that the burner systems will shut down if oxygen in the room falls below acceptable limits.

STANDARD FEATURES

  • Color: Black
  • Decorative pull screens included
  • BTU Input Ratings: 38,250 NG / 38,000 LP
  • Burners use matchless piezo ignition system
  • Standard wall switch control for millivolt burners
  • Uses either LOGF18, LOGF24, or LOGF30 fiber log assemblies
  • Black heat deflector canopy hood protects mantels and wooden shelves
  • Must be completed with manual or remote ready GLVF24 burner assemblies
  • Hi/low Millivolt or manual valve with variable adjustment of flame and BTU
  • Overall Unit Dimensions: 48 3/4" Width, 45 3/8" Height, and 22 1/2" Depth
  • Framing Dimensions: 48 1/2" Width, 45 7/16" Height, and 22 5/8" Depth
  • Firebox opening dimensions: 39 3/4" Front Width, 29 3/4" Back Width, 34 1/8" Height, and 17 1/4" Depth
  • ODS sensor constantly monitors room air and provides 100% gas shut off if oxygen is reduced below acceptable levels

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

    DIMENSIONS

    CA Residents: See Prop 65 WARNING

    OPTIONAL ACCESSORIES

    Click to see Burner (Required to Complete)


    Burner

    GLVF24MAN / GLVF24MAP / GLVF24MVN / GLVF24MVP

    • Size: 24 Inches
    • Vent Type: Vent Free
    • Fireplace Type: Standard
    • Pilot Type: Safety Pilot
    • Certified to: ANSI Z21.11.2-2013
    • Max BTU Output: 35,001 to 40,000
    • Manually operated variable flame control
    • Simple and reliable on/off Millivolt/manual gas valve
    • Certification: ANSI Certified, CSA Certified
    • Gas Type: Natural Gas, Propane Gas (Not convertible)
    • Vent-free burner system includes matchless piezo starter
    • Oxygen depletion sensor shuts down the burner if low oxygen levels are detected
    • Inlet gas pressure: 5 1/2 to 7 inches (Natural Gas) and 11 inches (Propane Gas) of W.C.
    • 25,500 to 38,250 BTU/HR (Nat)
    • 29,000 to 38,000 BTU/HR (LP)
      Click to see Log Set (Required to Complete)


      Log Set

      Fiber Split Oak Log Set (LOGF18 / LOGF24 / LOGF30)

      • Size: 18/24/30 Inches
      • Vent Type: Vented
      • Log Style: Split Oak
      • Fireplace Type: Standard
      • High-quality logs will last years
      • Simulated split oak logs are manufactured from ceramic fiber that glows when heated

      * Please Note: This item is a vent-free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

      Click to see Surrounds


      Surrounds

      Hearth Mount Surround 4” Wide (ZCV47S1BL)

      • Color: Black
      • Classic black finish
      • Measures 50 9/16" wide by 43 3/16" high
      • Hearth mount surround for floor-mounted installations
      • Creates a border around the fireplace and accents the perimeter glass
      • Designed for ZVFCV47 fireplaces
              Click to see Refractory Liner Kit


              Refractory Liner Kit

              Traditional Refractory Fiber Liner (ZCV47RLT)

              • Color: Brown
              • No of piece: 3
              • Installation hardware included
              • Durable cast refractory construction
              • Mimics the look of traditional running courses of brick
              • Designed to add a realistic appearance to the firebox interior
              • Designed specifically for ZVFCV47 series fireplaces
              Herringbone Refractory Fiber Liner (ZCV47RLH)
              • Color: Brown
              • No of piece: 3
              • Installation hardware included
              • Durable cast refractory construction
              • Provides the look of a herringbone style brick pattern
              • Designed to add a realistic appearance to the firebox interior
              • Designed specifically for ZVFCV47 series fireplaces

              Traditional Refractory Fiber Liner (ZCV48RLT)

              • Color: Brown
              • No of piece: 3
              • Installation hardware included
              • Durable cast refractory construction
              • Mimics the look of traditional running courses of brick
              • Designed to add a realistic appearance to the firebox interior
              • Designed specifically for ZVFCV47 series fireplaces
              Herringbone Refractory Fiber Liner (ZCV48RLH)
              • Color: Brown
              • No of piece: 3
              • Installation hardware included
              • Durable cast refractory construction
              • Provides the look of a herringbone style brick pattern
              • Designed to add a realistic appearance to the firebox interior
              • Designed specifically for ZVFCV47 series fireplaces
              Stacked Brick Refractory Fiber Liner (ZCV48RLS)
              • Color: Brown
              • No of piece: 3
              • Installation hardware included
              • Durable cast refractory construction
              • Mimics the look of traditional running courses of brick
              • Designed to add a realistic appearance to the firebox interior
              • Designed specifically for ZVFCV47 series fireplaces
              Click to see Fan Kit


              Fan Kit

              Speed Temperature Sensing Fan Kit (Z46FK)

              • Squirrel cage blower design for quiet and powerful operation
              • Thermal switch for automatic on/off operation
              • Variable speed control with built in all off setting
              • Designed to fit Kingsman fireplaces
                        Click to see Accent Lighting


                        Accent Lighting

                        Universal Light Kit - Two Lamps for Glass Trays (ULK2)

                        • Dual halogen lamps accent glass media installations
                        • Works with Kingsman fireplaces
                        • Backlight affect adds a unique touch to glass equipped fireplaces
                        • Can be used to illuminate the fireplace when not in use
                        Click to see Tile Lip Kit


                        Tile Lip Kit

                        Tile Lip Kit (ZCV-TLK)

                        • Color: Black
                        • Type: Tile Lip Kit
                        • Provides a finished edge for tile, brick, or stone against fireplace edges
                        • Recommended for installations without surrounds
                        • Fits Kingsman fireplaces only
                            Click to see Log Bits Kit


                            Log Bits Kit

                            Four Piece Log Bits Kit (VLBIT4)

                            • Designed to bolster the look of existing Kingsman log sets
                            • Includes four large log chunks
                            • Easy to install and arrange as desired

                                Six Piece Log Bits Kit (VLBIT6)

                                • Designed to bolster the look of existing Kingsman log sets
                                • Includes six large log chunks
                                • Easy to install and arrange as desired
                                Click to see Thermostat


                                Thermostat



                                Wall Mount Thermostat- For Millivolt Units- Z2MT

                                • Simple on/off millivolt thermostat design
                                • Easy to use digital control
                                • Allows convenient operation of gas appliances
                                • Simple to wire to existing millivolt systems

                                Programmable Digital Wall Mount Thermostat- For Millivolt Units-Z80PT

                                • Schedule programmable for desired operation
                                • Works with Kingsman millivolt appliances
                                • Easy to read digital LCD display
                                Click to see Remote Control

                                Remote Control

                                On/Off Remote Control for Millivolt/IPI Units- GFRC

                                • Simple on/off operation for millivolt appliances
                                • Allows for the operation of the appliance without manual control
                                • Included receiver easily mounts within the appliance chassis
                                • Reliable RF transmitter operation

                                  Thermostat Remote Control Millivolt/IPI Units- GTRC, EGTRC

                                  • On/off operation with modulating thermostat control
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation

                                  Thermostat On/Off modulating for Natural Gas/Propane Millivolt/IPI Units-
                                  GTMRCN, GTMRCP, EGTMRCN, EGTMRCP

                                  • On/off operation with modulating thermostat control
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation
                                  • Includes high/low modulating motor for natural gas and propane gas fireplaces

                                  Thermostat On/Off modulating and fan control for Natural Gas/Propane Millivolt/IPI Units- GTFRCN, GTFRCP, EGTFRCN, EGTFRCP

                                  • On/off operation with modulating thermostat control
                                  • Allows for the operation of the appliance without manual control
                                  • Included receiver easily mounts within the appliance chassis
                                  • Reliable RF transmitter operation
                                  • Includes high/low modulating motor for natural and propane gas fireplaces
                                  • Allows for control of optional fan operation
