SKU:ECHEL36IN-C

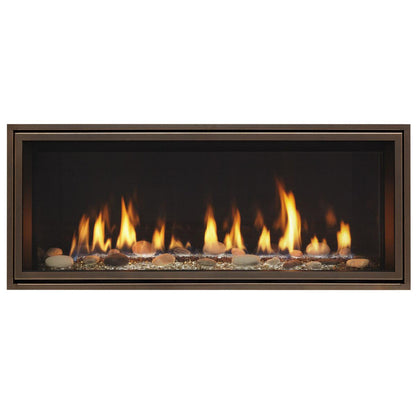

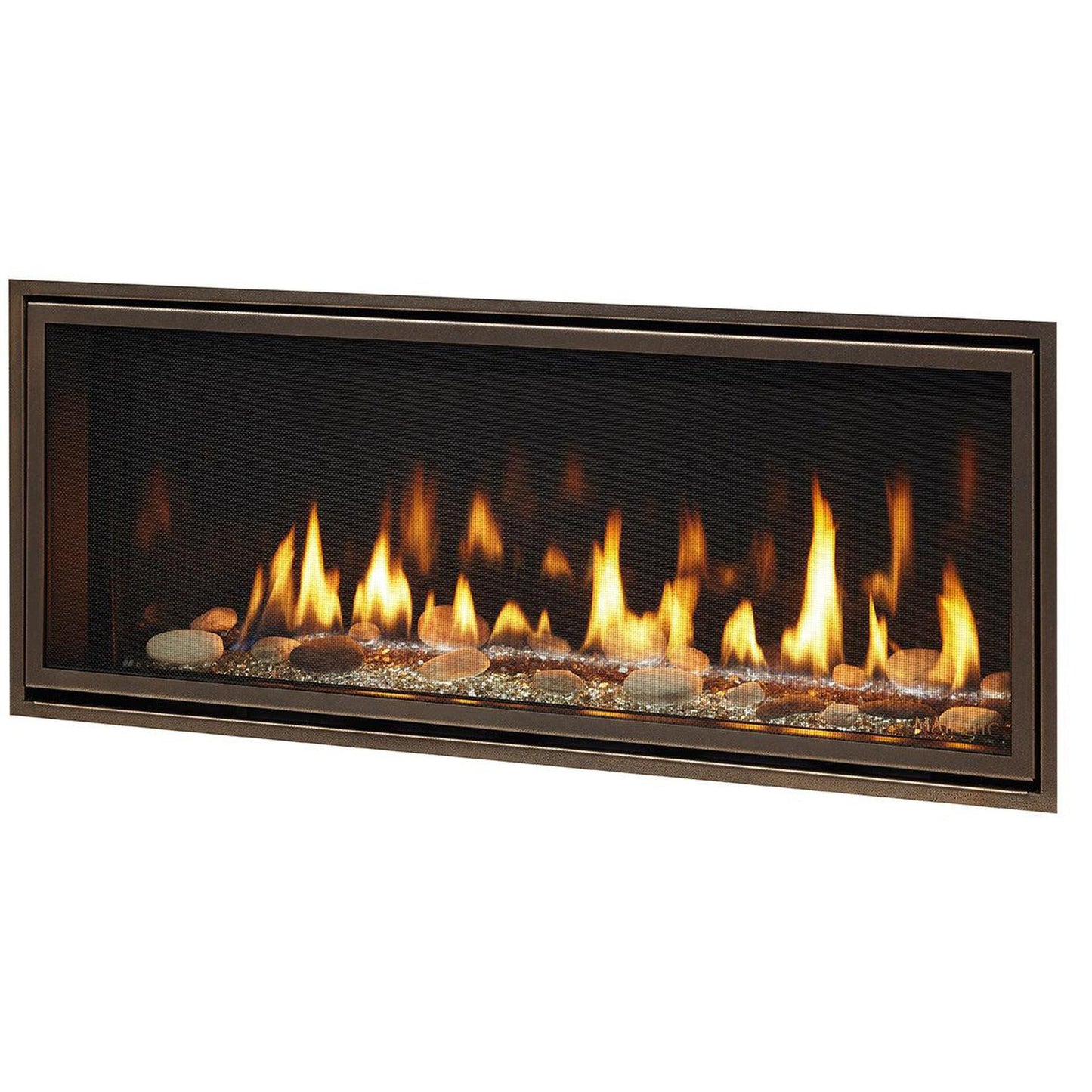

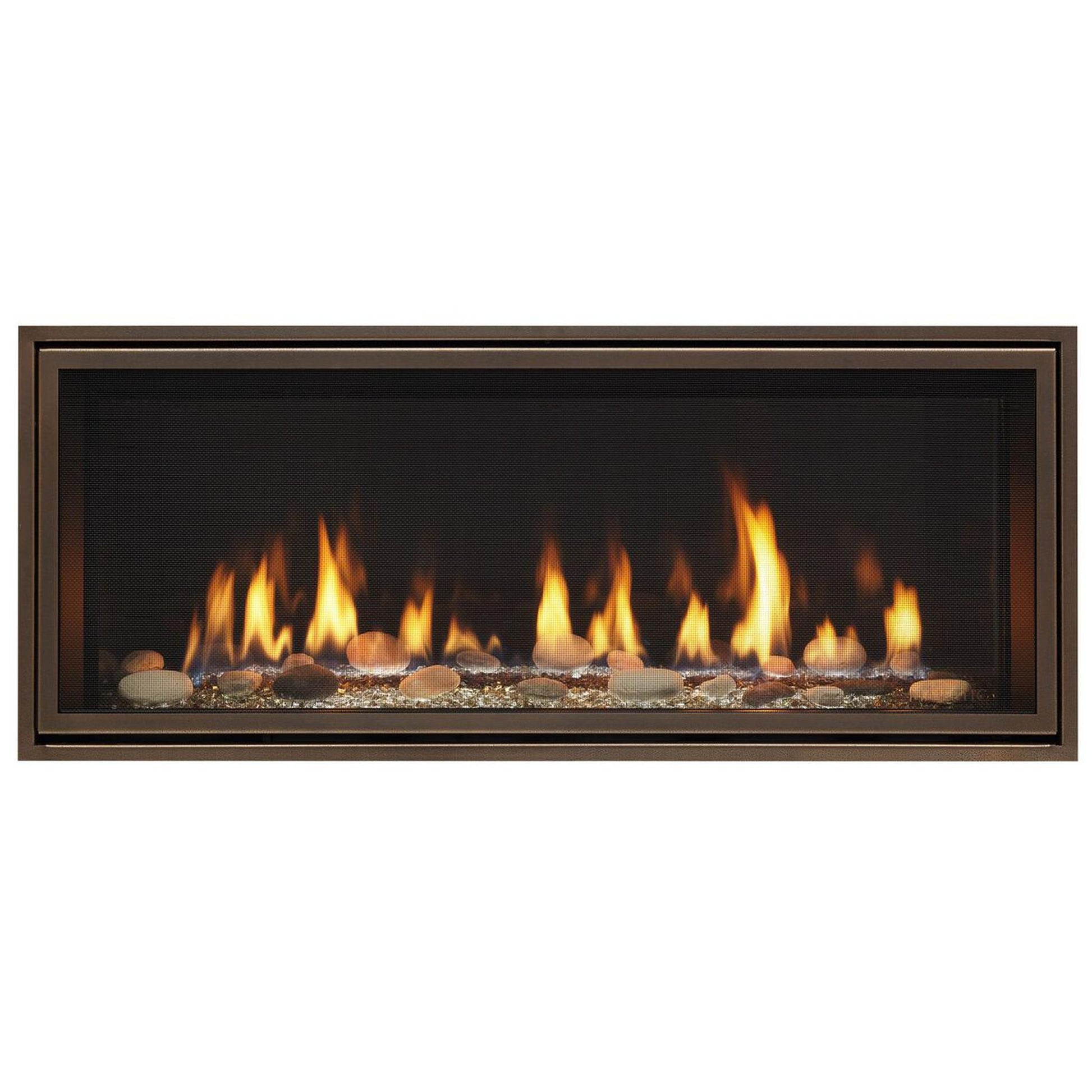

Majestic Echelon II 36" Linear Contemporary Direct Vent Natural Gas Fireplace With IntelliFire Touch Ignition System
Majestic Echelon II 36" Linear Contemporary Direct Vent Natural Gas Fireplace With IntelliFire Touch Ignition System

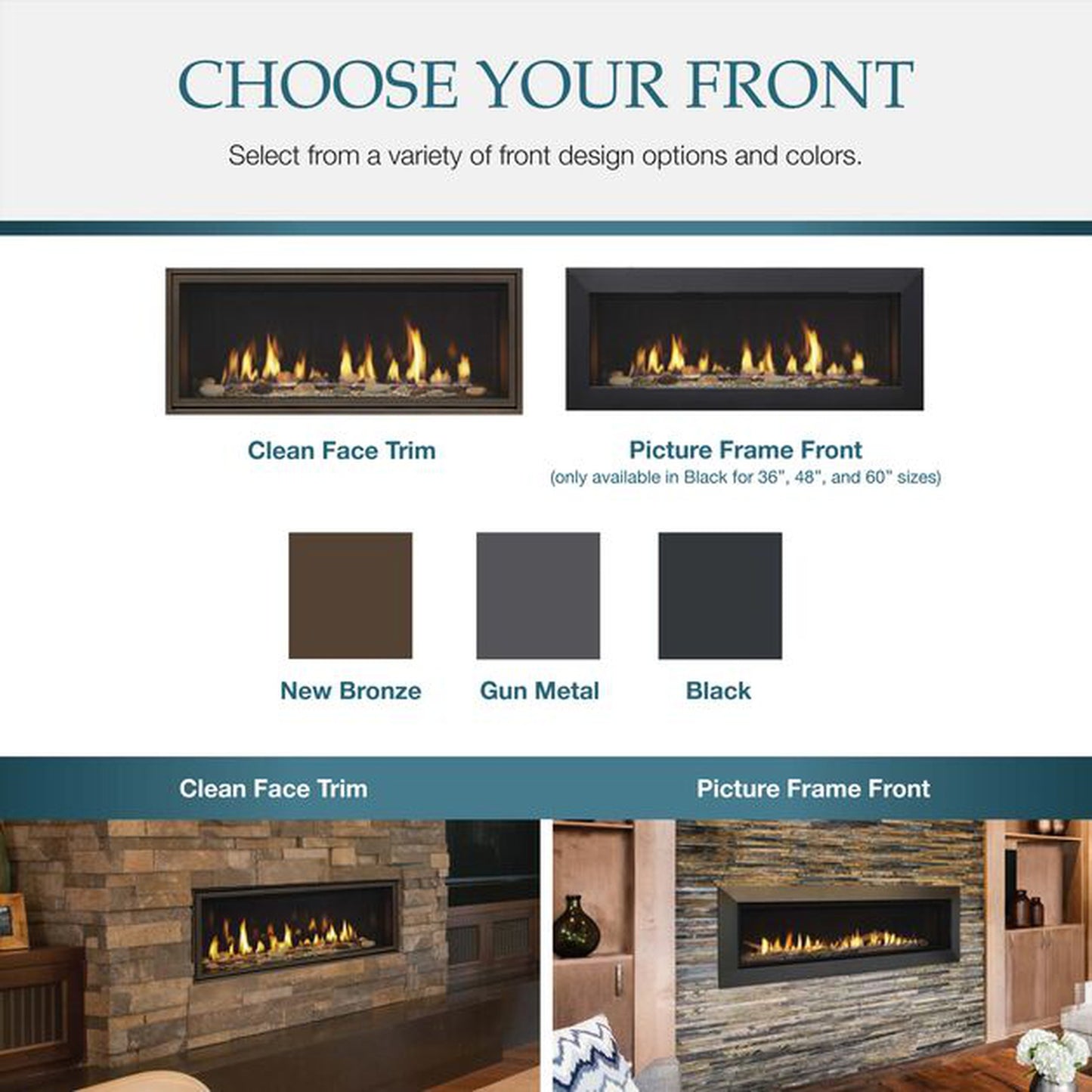

Front
Required to Complete
-- Please Select --
Majestic Black Clean Face Trim for 36" Echelon II Fireplace
Majestic Bronze Clean Face Trim for 36" Echelon II Fireplace
Majestic Pewter Clean Face Trim for 36" Echelon II Fireplace
Majestic Charcoal Picture Frame Front for 36" Echelon II Fireplace
No, Thank You
LP Conversion Kit
-- Please Select --
Majestic Liquid Propane Conversion Kit for 36" Echelon II Fireplace
No, Thank You
Liner Kit
-- Please Select --
Majestic Reflective Black Ceramic Glass Liner Kit for 36" Echelon II Fireplace
No, Thank You
Log Set
-- Please Select --

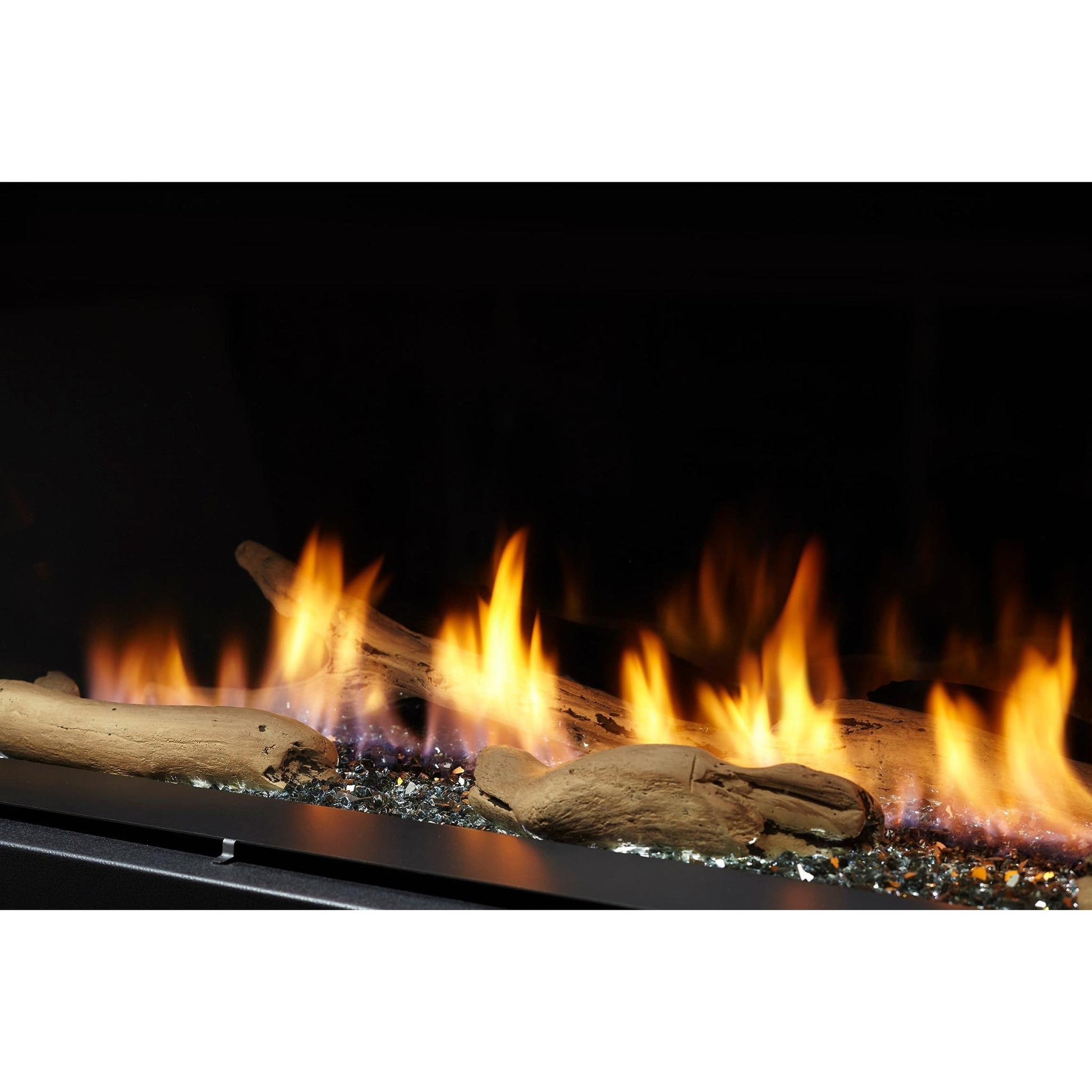

Majestic Driftwood Log Set for 36" Echelon II Fireplace
No, Thank You
Stone Kit
-- Please Select --
Majestic 1 Bag. Natural Stones Kit
No, Thank You
Header & Riser
-- Please Select --
Majestic 55" x 6" Driftwood Marble Linear Header and Riser
No, Thank You
Linear Legs
-- Please Select --
Majestic 18.25" x 6" 2-Piece Driftwood Marble Linear Legs
No, Thank You
Heat Management
Control System
Media Options
Replacement
Venting Options
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

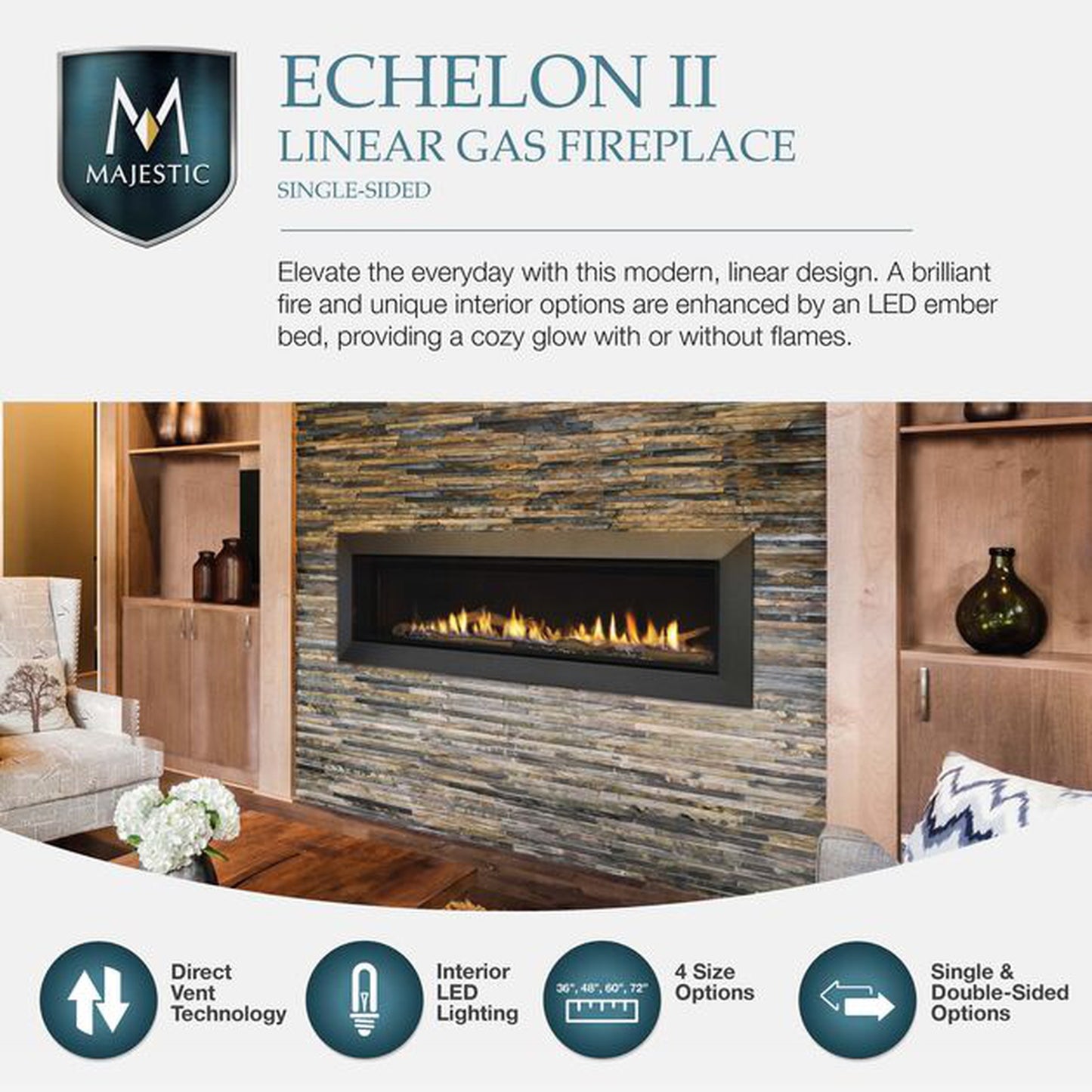

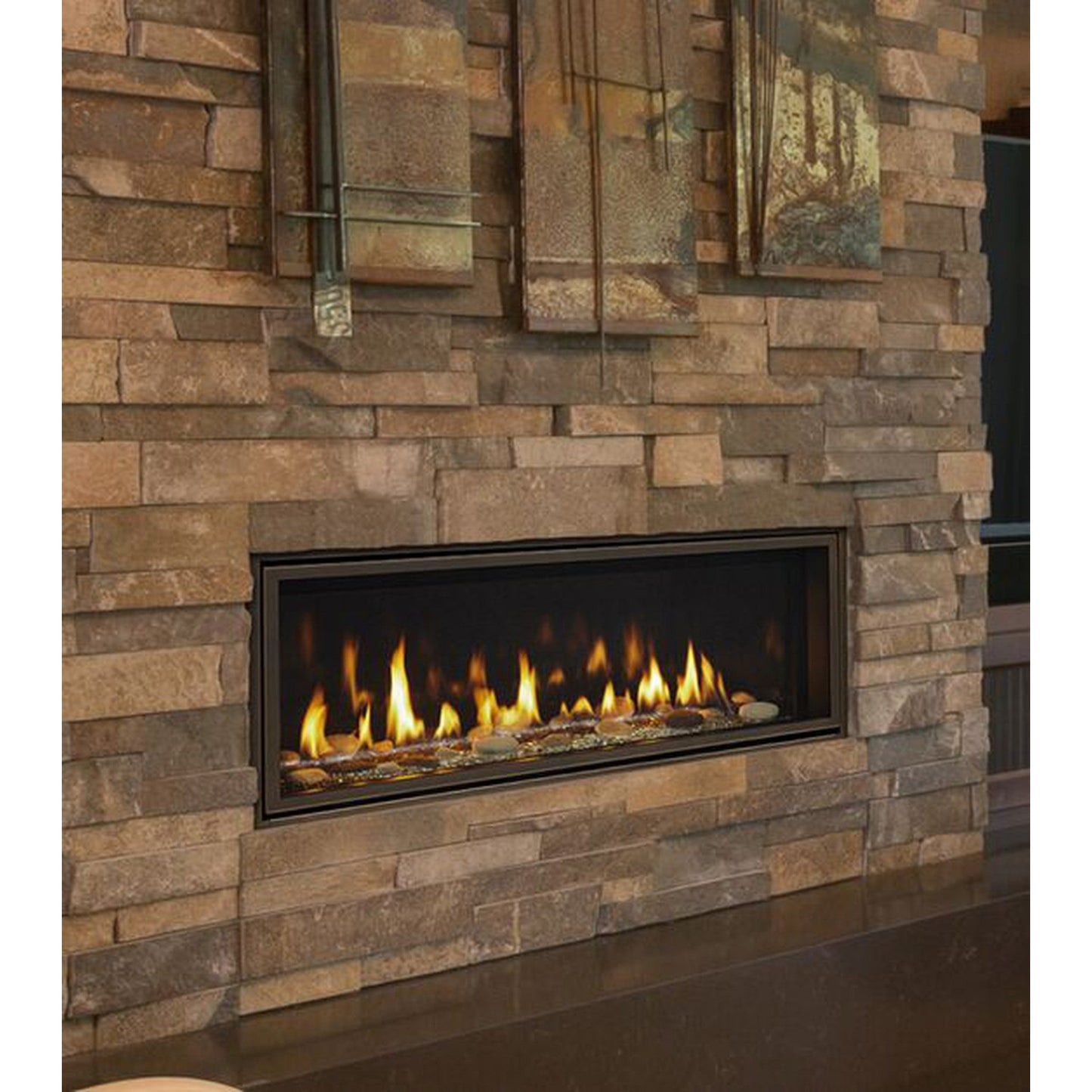

Making memories starts with something special. The exclusive Echelon II series gas fireplace creates a place to relax and enjoy life. Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve.
What's Included
- Fireplace Unit
- Clear LED Dimmable Lights
- RC400 Remote Control
- Battery Backup
- Ceramic Glass
- Standard with Bronze Glass Media
- IntelliFire Touch Ignition System
- Note: Not available for sale in Rhode Island
Not Included
- Fronts - Non-Operable (Required to Complete)
- LP Conversion Kit
- Liner Kit
- Heat Management
- Control, Other Remotes, Wall Switches
- Venting
- If changing media, follow required number of bags below:
--> Crushed Glass: 3 bags of Glass
--> Natural Stones: 2 bags of Stone
--> Log Set & Stones: 1 bag of Stone
Features
- Battery backup - Ensures you always have a reliable source of warmth even with a winter power outage.
- Direct Vent Technology - Removes any fumes or combustion exhaust efficiently and effectively from your home.

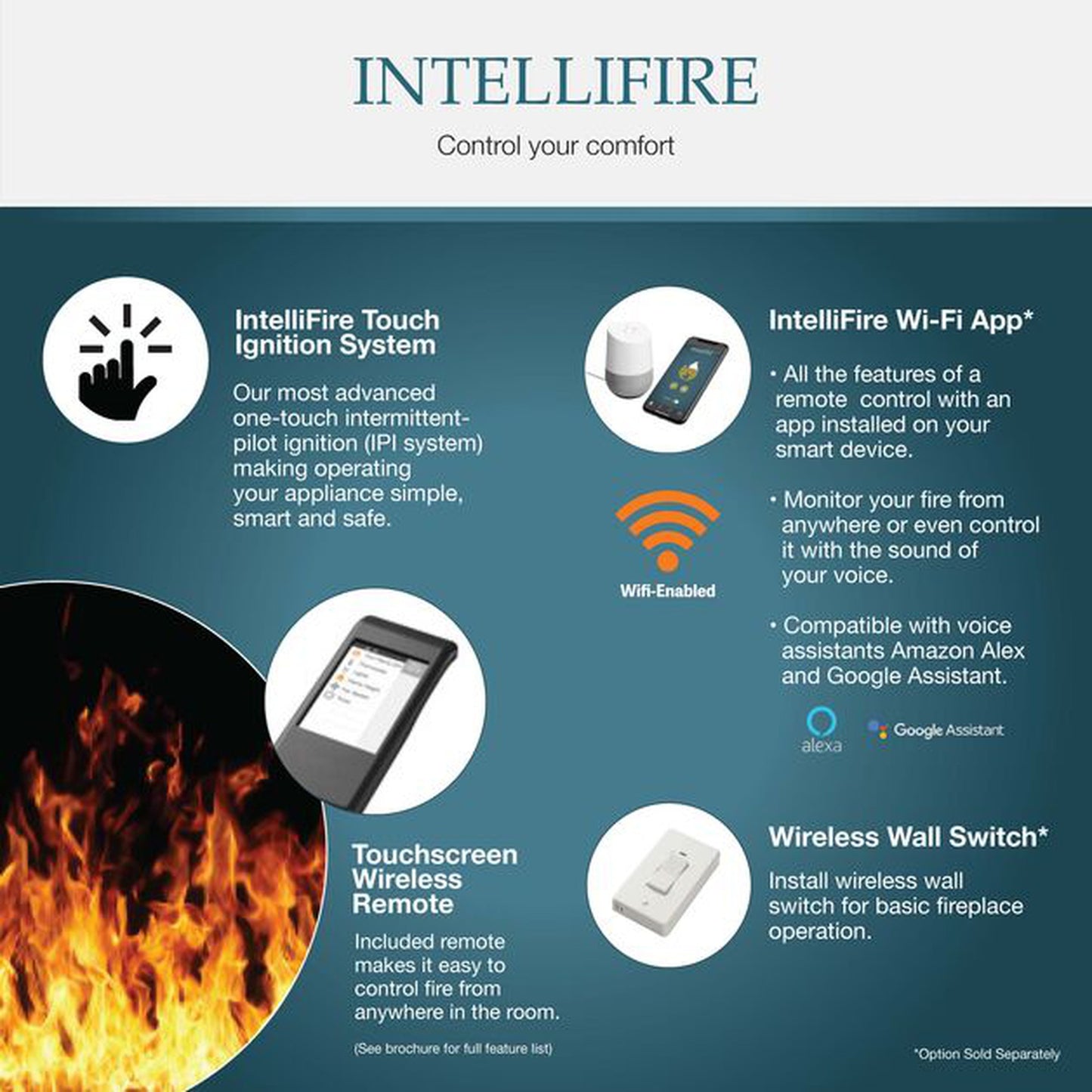

- IntelliFire Touch® - Offers you a touchscreen remote control or wireless wall switch to fit your life.
- LED Ember Bed Glow - Adds brilliant LED sparkle to your hearth for an ambient glow with or without a fire burning.

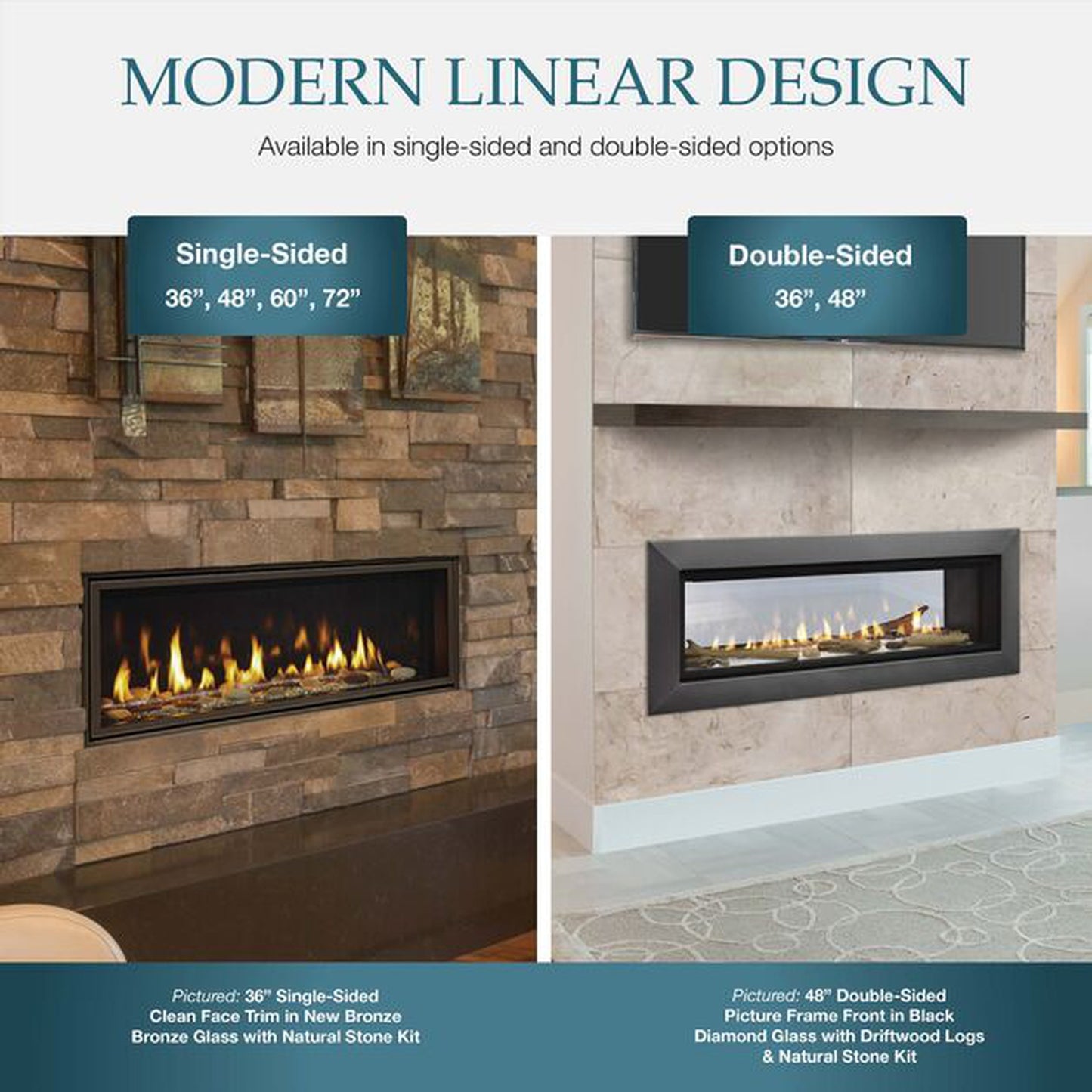

- Single-sided available in 36", 48", 60" or 72" models; See-through available in 36" or 48 models
- Showcase the interior with glass illuminated by LED lights

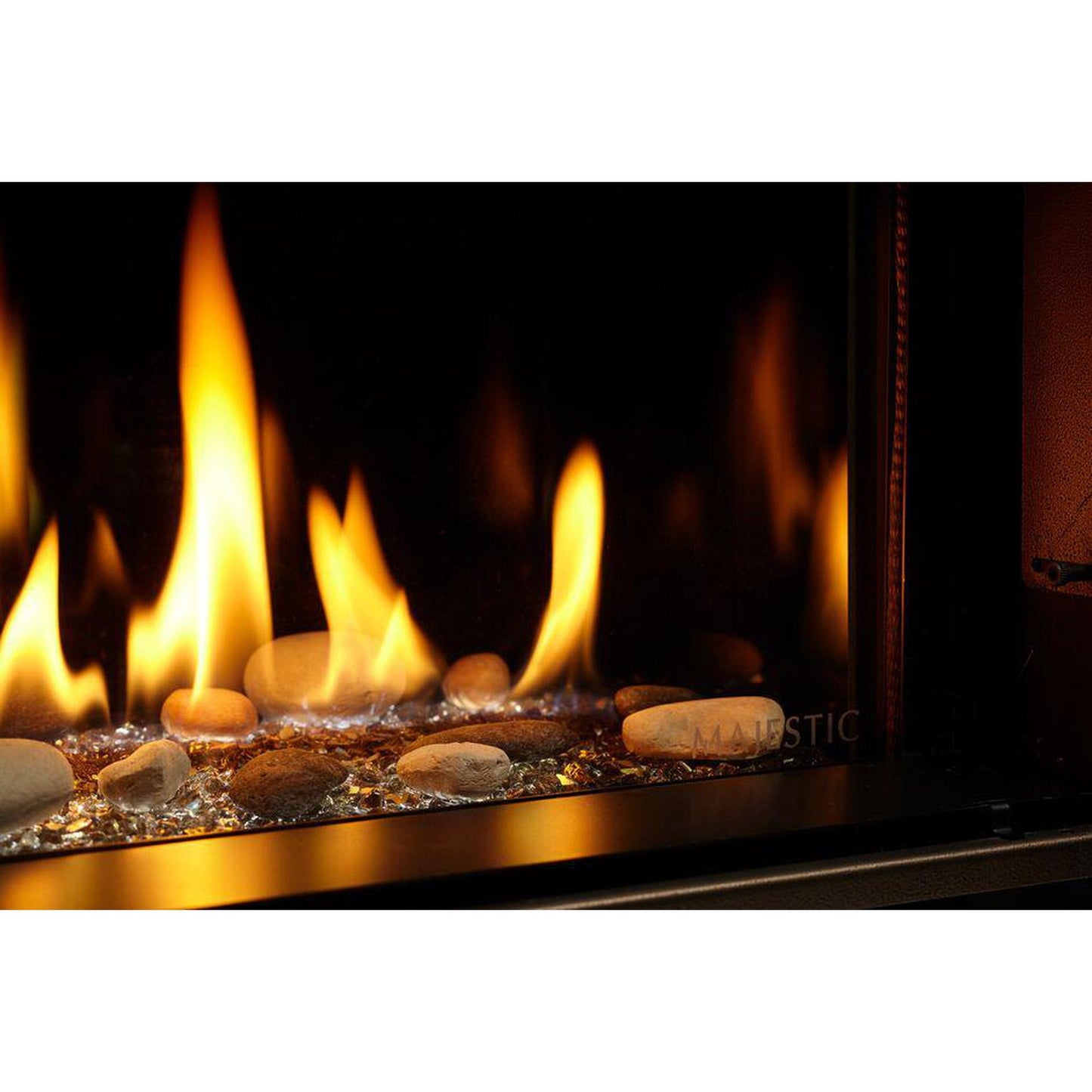

- Customize the interior with Reflective Black Glass panels, driftwood logs, natural stones and glass firebed options
- Optional heat distribution systems direct warmth to more areas of the home
Venting Notes
- Requires 8" DVP pipe. Must have a 18" minimum vertical vent before attaching a 90° elbow to unit. See venting section of manual.
- Approved for use with PVLP-SLP, PVI-SLP-B and PVV-SLP with power vent wire harness (order separately) and IFT-RC400 remote. See venting section of manual.

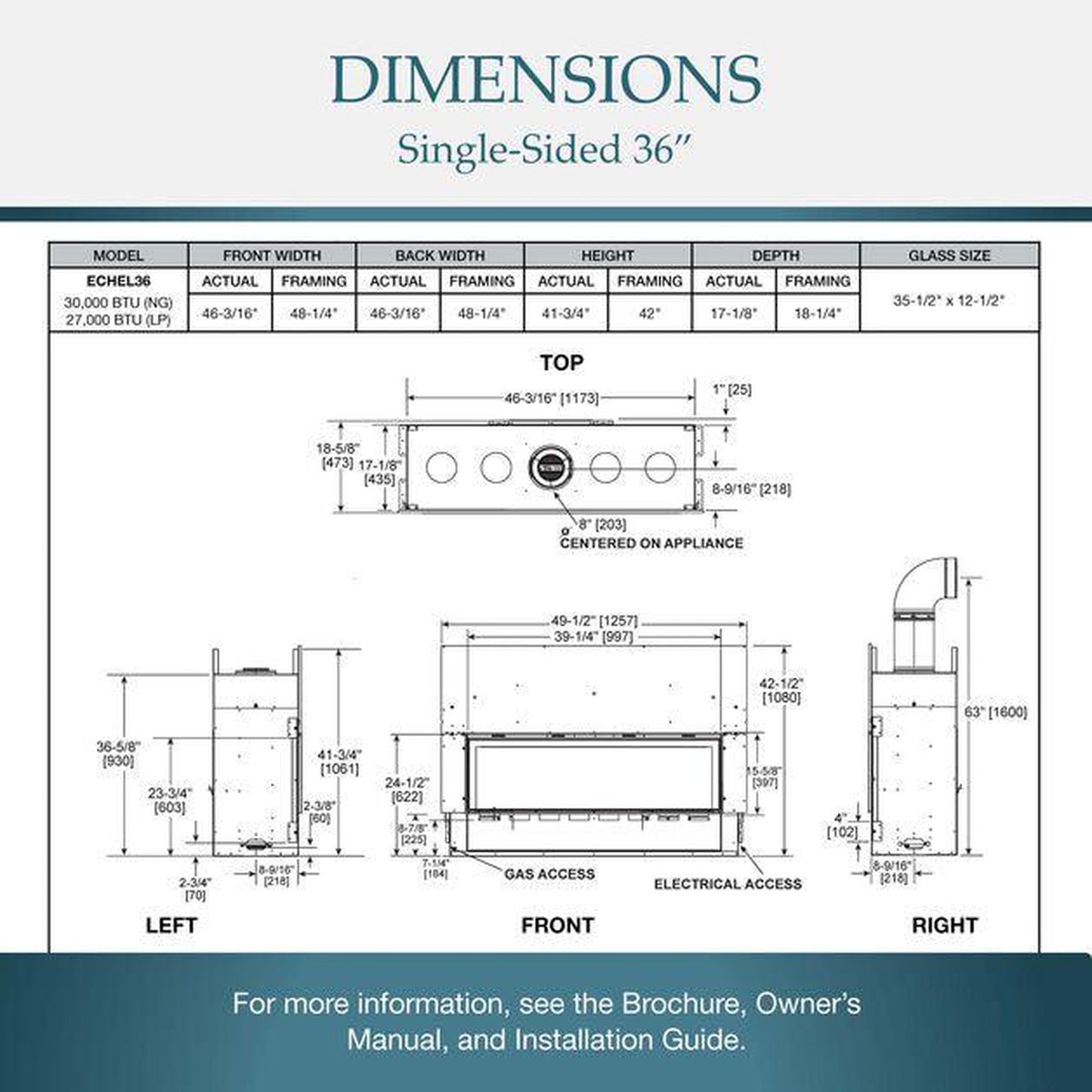

Specifications
Model | Echelon II 36 Rev C Gas Fireplace - DV |
Item Number |
ECHEL36IN-C |
Fuel Type |
Natural Gas or Propane by conversion |
Viewing Area | 35-1/2 x 12-1/2" |
BTU/hr Input | 30,000 (NG); 27,000 (LP) |
Heating Capacity | Up to 700 sq ft |
Unit Width | 46-3/16" |
Unit Height | 41-3/4" |
Unit Depth | 17-1/8" |
Framing Height | 42" |
Framing Depth | 18-1/4" |
Framing Front Width | 48-1/4" |
Framing Back Width | 48-1/4" |
Warranty
Majestic warranties illustrate commitment to producing the best and most reliable products available—and allow you to own your hearth appliance with confidence. You can read and download the specifics of the warranties below. |
Click to See Warranty Coverage and LimitationsHearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances (each a “Product” and collectively, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”) that are purchased from a HHT authorized dealer or distributor. WARRANTY COVERAGE HHT warrants that the Products and their Component Parts will be free from defects in materials and workmanship for the applicable period of Warranty coverage set forth in the table below (“Warranty Period”). If a Product or Component Parts are found to be defective in materials or workmanship during the applicable Warranty Period, HHT will, at its option, repair the applicable Component Part(s), replace the applicable Component Part(s), or refund the purchase price of the applicable Product(s). The maximum amount recoverable under this Warranty is limited to the purchase price of the Product. This Warranty is transferable from the original purchaser to subsequent owners, but the Warranty Period will not be extended in duration or expanded in coverage for any such transfer. This Warranty is subject to conditions, exclusions, and limitations as described below. WARRANTY PERIOD Warranty coverage begins at the date of installation. In the case of new home constructions, Warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product(s) by an independent, authorized HHT dealer or distributor, whichever occurs earlier. However, the Warranty coverage shall commence no later than 24 months following the date of Product shipment from HHT, regardless of the installation or occupancy date. Check Warranty Policy. WARRANTY CONDITIONS
|
Documents & Files
-
Echelon II Series Brochure
-
Echelon II Series Installation Manual
-
Echelon II Series Owner's Manual
-
ECHEL36IN-C Service Parts
- ECHEL36IN-C Architect Guide
-
HEAT-OUT-GAS - Installation Instructions
-
HEAT-ZONE-GAS - Installation Instructions
-
Heat-Zone-Gas Adapter - Installation Instructions
-
Ducted Passive Heat Kit (Front Discharge) - Installation Instructions
- Ducted Passive Heat Kit (Side Discharge) - Installation Instructions
-
Passive Heat Trim Kit (PH-SIDETRIM) - Installation Instructions
-
Passive Heat Kit (PH-FRONT / PH-SIDE) - Installation Instructions
- Power Vent Low Profile (PVLP-SLP) - Installation Instructions
Videos
Frequently Asked Questions
Why a Fireplace?From an elemental standpoint, fire is king. From a design standpoint, the regal ambiance a fireplace brings to a space is undeniable. With today’s hearth innovations and technologies, it’s possible to include a fireplace in virtually any room in your residential or commercial project. Why a Gas Fireplace? Gas fueled fireplaces offer the most versatility of placement, model variety, and technology. Majestic gas fueled fireplaces will not only add an unforgettable focal point to your home, but ambiance and comfort to the spaces you’re creating to deliver an experience of royal proportions. Clean-burning and efficient, building and design professionals typically include at least one gas fueled fireplace in entry level new construction homes as well as a second or third fireplace when planning move-up or luxury/custom properties. Why a Wood Fireplace? Majestic wood burning fireplaces are a robust, reliable and budget-friendly alternative to true masonry fireplaces and are ideal for projects where the hearth is used seasonally or when end-users are seeking the hands-on experience of a woodfueled appliance. It’s important to understand local codes when specifying wood burning models, particularly when seeking to comply with EPA requirements and other state, city or provincial mandates. |
What are Majestic's Key Technologies?Learn about the key technologies that make Majestic Products a great addition to your home. IntelliFire Touch Controls IntelliFire Touch is the most advanced and intuitive IntelliFire system available, making operating your fireplace simple, smart, and safe. Direct Vent Technology With Direct Vent Technology, your fireplace can use outside air for combustion, expelling 100% of the combustion exhaust and by-products. Heat Management Solutions Heat Management solutions allow you to enjoy the fire in comfort and at the same time control the heat. IntelliFire Technology IntelliFire features intermittent-pilot Ignition (IPI) allowing you to conserve fuel and money when the fireplace is not in use. Power Venting Technology Power venting technology makes it possible to install a gas fireplace virtually anywhere. Zone Heating This climate control technology provides homeowners with the option to redirect heat output to specific areas of the home, improving heating efficiency. |
What is Majestic's IntelliFire Technology?The IntelliFire™ Ignition System (IPI) is an advanced intermittent pilot ignition system. IntelliFire constantly monitors ignition, ensures safe functioning and conserves up to $10/month in energy costs. IntelliFire Plus (IPI Plus) takes this technology to the next level with more safety and memory settings and a programmable wireless remote control. IntelliFire Touch is the most advanced and intuitive IntelliFire system, making operating your fireplace simple, smart and safe. Select the wireless wall switch, touchscreen remote control or iOS app for the solution that fits your life. |
What is IntelliFire Touch?IntelliFire Touch is the most advanced and intuitive IntelliFire system available, making operating your fireplace simple, smart and safe. Select from the IntelliFire app, touchscreen remote control or wireless wall switch for a solution that fits your lifestyle. IntelliFire App The IntelliFire app provides smart control for the way you live. Control your fire from anywhere so a cozy environment greets you when you walk in the door. You can even control your fireplace with the sound of your voice! To sync your fireplace with the app, installation of the IntelliFire WiFi Module is required. IntelliFire App Brochure RC400 Touchscreen Remote Control Gone are the days of stacking wood and blowing on newspaper to nurture a spark. With the RC400 remote control, you can control all the features of your fireplace, from flame height to fan speed, with a quick tap of your finger. Safety features include a child lock and timer mode, allowing enjoyment of your fireplace with total peace of mind. RC400 Remote Control User Guide RC150 Wireless Wall Switch With the flip of a switch, enjoy instant ambiance. It doesn’t get simpler than that! Installation of the RC150 battery-operated wall switch is a cinch, too, with no special wiring required. You can also stash the switch in a drawer if you’d prefer to leave your walls unadorned! Live in a cold climate? Turn on climate mode to reduce condensation on your fireplace glass. |

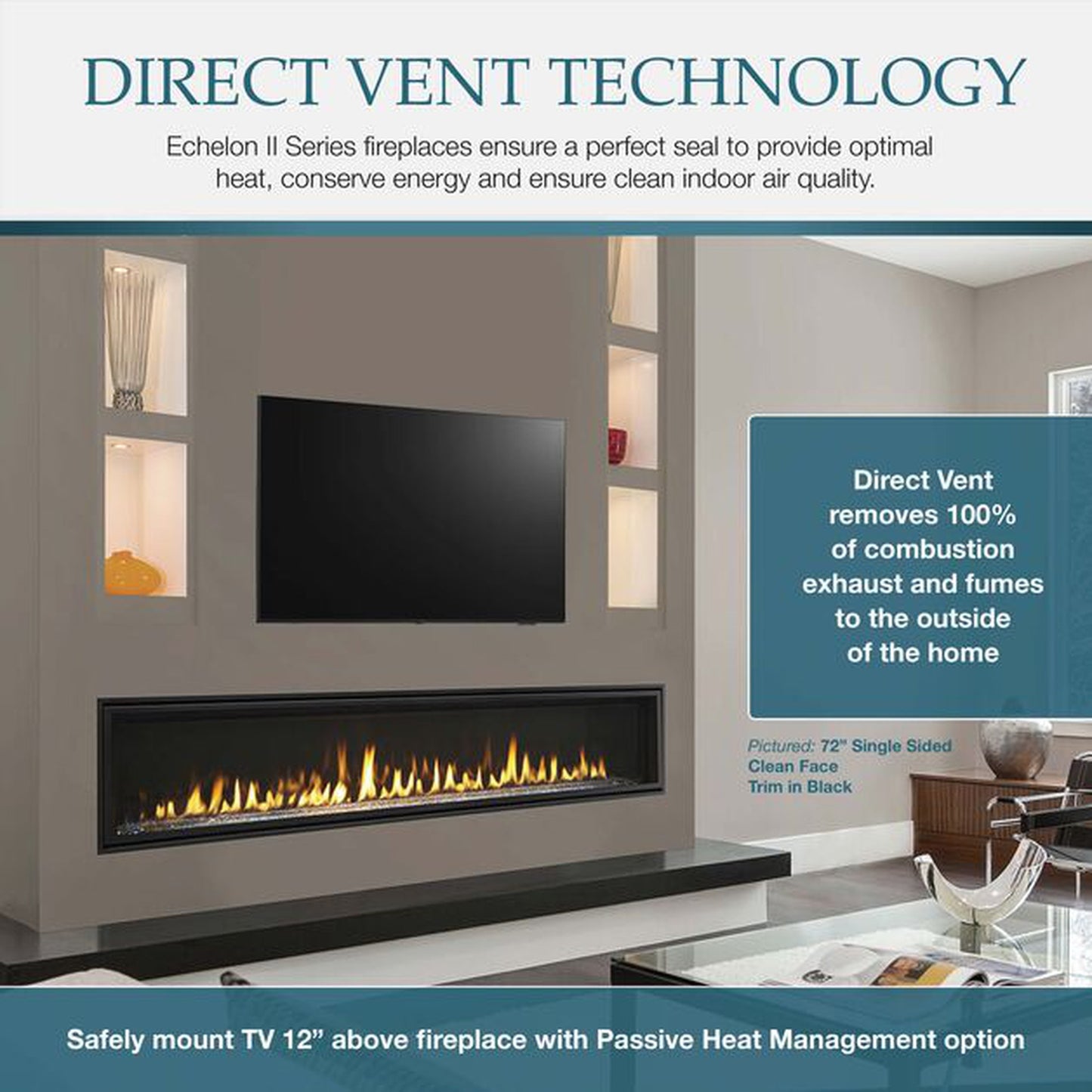

What is Direct Vent Technology?Using our Direct Vent technology, all fumes and combustion exhaust created by our fireplaces and inserts are efficiently and effectively removed from your space. This technology ensures the highest air quality, while improving performance, so that you get the most out of your hearth product. |

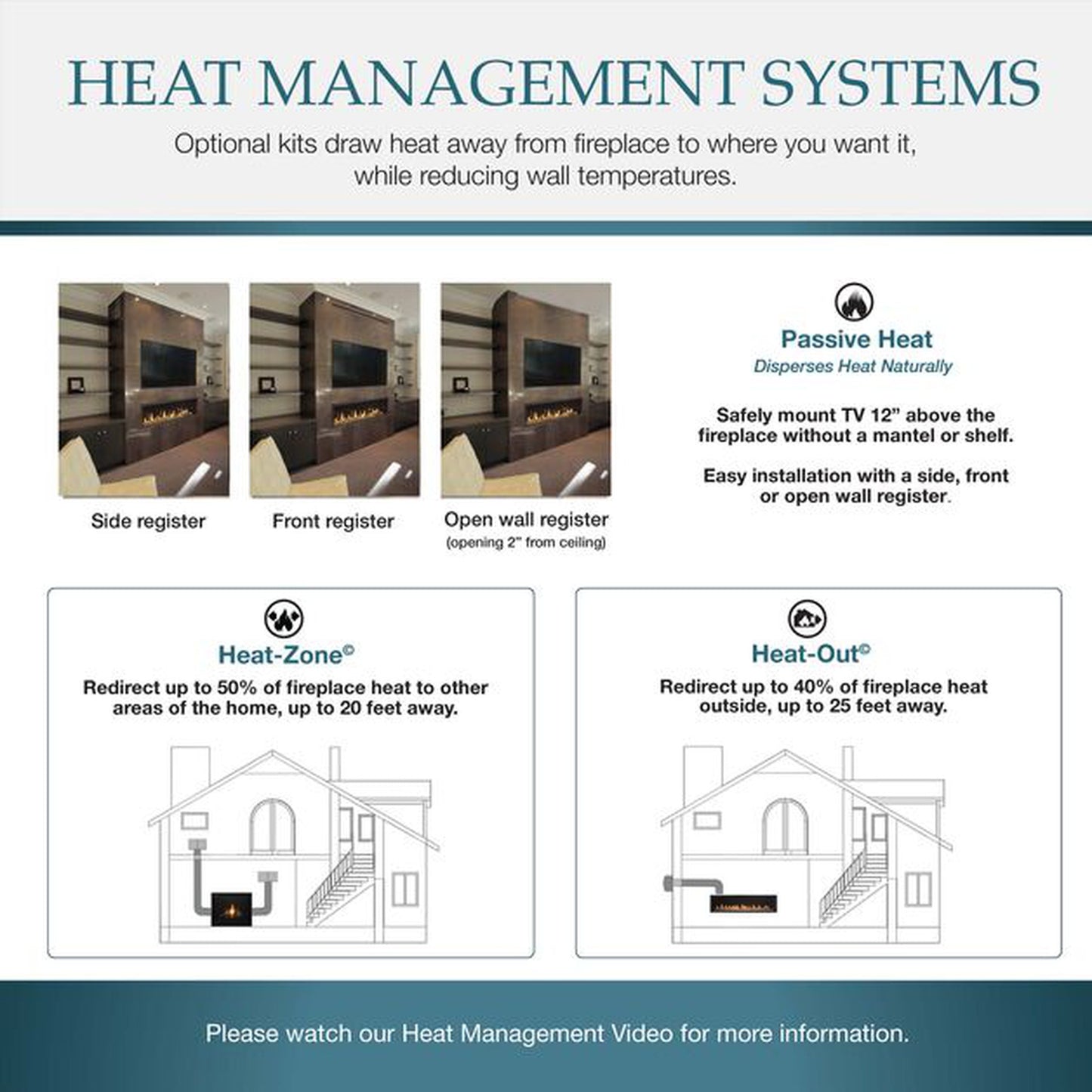

What are Majestic's Heat Management Solutions?Heat Management solutions allow you to enjoy the fire in comfort and at the same time control the heat. What is the concept of “heat management”? Allows you to enjoy the fire in the comfort while at the same time control the heat What are the Benefits of Heat Management Solutions? Comfort/control of heat
Design versatility
Opportunity

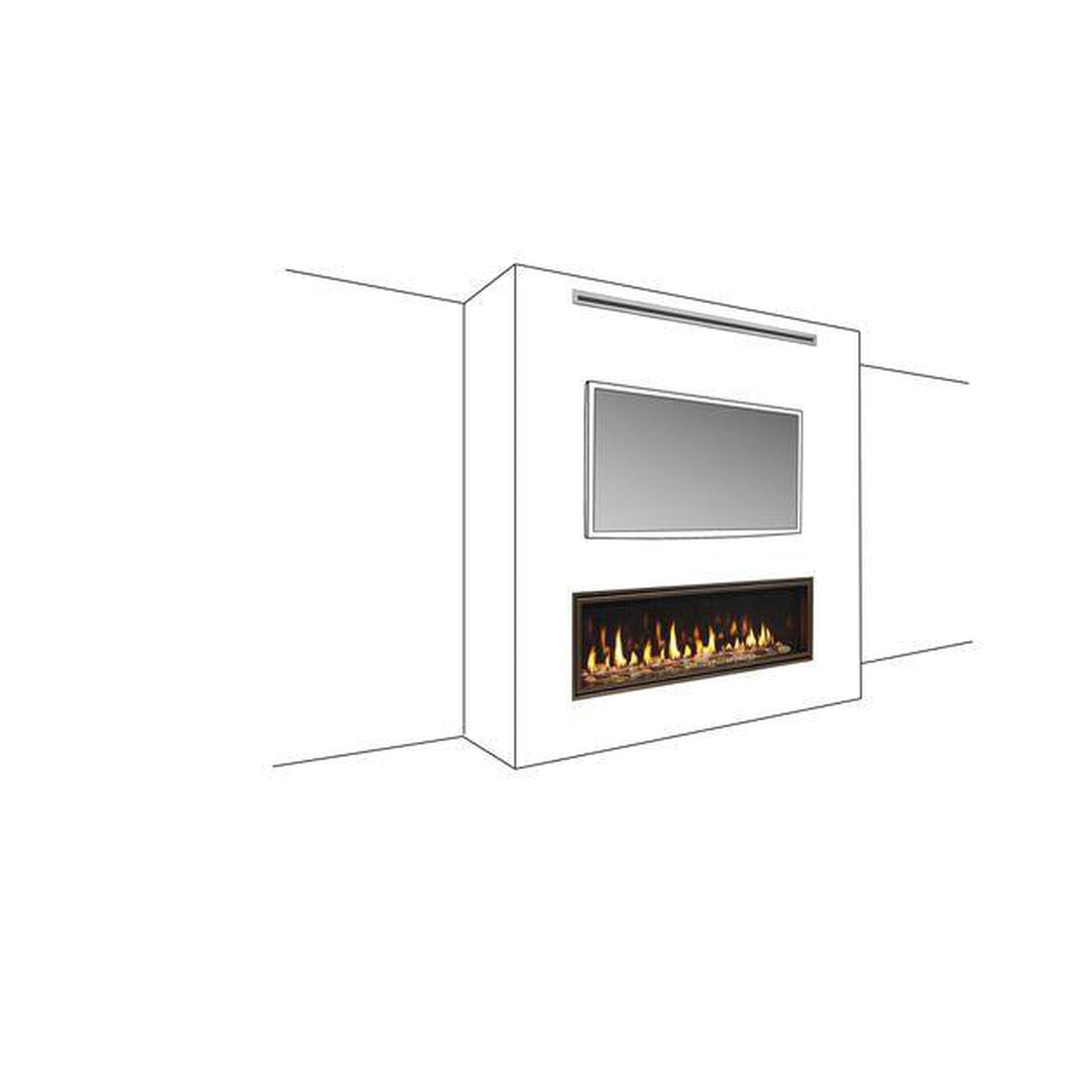

Passive Heat KitAllows heat to disperse naturally (no fan) into the room, reducing surface temperatures. Choose side, front or open wall register. KEY BENEFIT: A TV or heat sensitive materials may be placed just 12" above the fireplace opening without a mantel. Heat-Zone® KitDraw heat from the fireplace to another room in the home, up to 20 feet away. When a Heat-Zone kit is run continuously, it can redirect up to 25% of the heat to another area, also reducing wall temperatures above the fireplace. Two Heat-Zones run continuously will redirect up to 50% of the total heat output. KEY BENEFIT: Maintain a comfortable ambiant temperature while also utilizing any excess heat in other areas of the home. Heat-Out KitDraw heat from the fireplace and direct it outside, up to 25 feet away. When a Heat-Out kit is run continuously on high, it can redirect up to 40% of the heat off the fireplace, also reducing wall temperatures above the fireplace. KEY BENEFIT: Enjoyment of the fire year round while maintaining comfortable ambient temperatures in the home. |
What is Power Venting Technology?Power venting technology makes it possible to install a gas fireplace virtually anywhere. No matter where you want to install your gas fireplace, power venting technology makes it possible. This extremely flexible, versatile technology is small enough to effectively navigate you home to an effective vent location, which in turn provides you with optimal performance, every time. Low Profile Power Vent Install Manual |
What is Zone Heating?This climate control technology provides homeowners with the option to redirect heat output to specific areas of the home, improving heating efficiency. Zone heating is an energy saving way to ensure that you and your family remain comfortable, while reducing your monthly bills. By effectively heating only the areas you spend most of your time, you can avoid wasting fuel and money. This allows you to save up to 40%* on your heating bills. As supplemental heating sources, Majestic fireplaces, stoves, and inserts are beautifully styled and built with superior craftsmanship and technology, delivering powerful performance and efficient heat. Now you can heat only the areas you need, right when you need it. Contact your local Majestic dealer to learn more! * ACEE 1990 Summer Study on Energy Efficiency in Buildings. Proceedings. Vol. 9. |
Common QuestionsSAFETY INSTALLATION The mantel surface above my fireplace is hot to the touch, is this a fire hazard?
Is it safe to mount televisions, electronics or other valuable items above my fireplace?
Our brand new fireplace has smoke coming off the paint, is this normal?
OWNER INFORMATION Can I convert my vent free fireplace or log-set to another gas?
How do I find the model number of my Majestic product?
Our gas appliance worked fine the first few seasons, but now we have to re-light the pilot frequently.
REMOTE CONTROLS What is the length of warranty for Ambient Technologies products?
How far away will the transmitter communicate with the receiver?
The operating instructions state “In manual mode, the transmitter will not turn off the appliance even if the room temperature is above the target temperature.” What does this mean?
I’ve noticed when my wife parks her car in the garage our fireplace comes on. Can an outside source influence the operation of my remote control unit?
I can’t turn off my fireplace with my transmitter. Up until today my remote control unit has operated perfectly. How come I can’t turn it off today?
|
Operating Your Fireplace During a Power OutageDepending on your particular fireplace model, you can easily operate your hearth even during a power outage. Products with standing pilots do not require electricity to ignite, and therefore will work during a loss in power. For newer hearth products with IntelliFire™ or IntelliFire Plus ignition systems, you can still ignite your pilot with the use of each system’s auxiliary battery pack. Batteries are only to be used in the event of a power outage, not as your pilot’s standard power source.
For hearth products using a wireless remote or wall switch, you can operate your product by accessing the control box in the controls below your fireplace or behind your stove. By switching the hearth product to ‘ON’, rather than ‘OFF’ or ‘REMOTE’, your fireplace or stove will operate normally without power. In the event of a power outage, continue to follow all safety precautions including removing any flammable items from the area surrounding your hearth, and keeping children and pets a safe distance away. If your hearth appliance has been exposed to water in any level, please contact your local dealer. For your safety, Hearth & Home Technologies products that have been partially or completely exposed to water, whether by flood, hurricane or leaks should not be used. Click here for warranty information. |
