SKU:GRUF42C-R

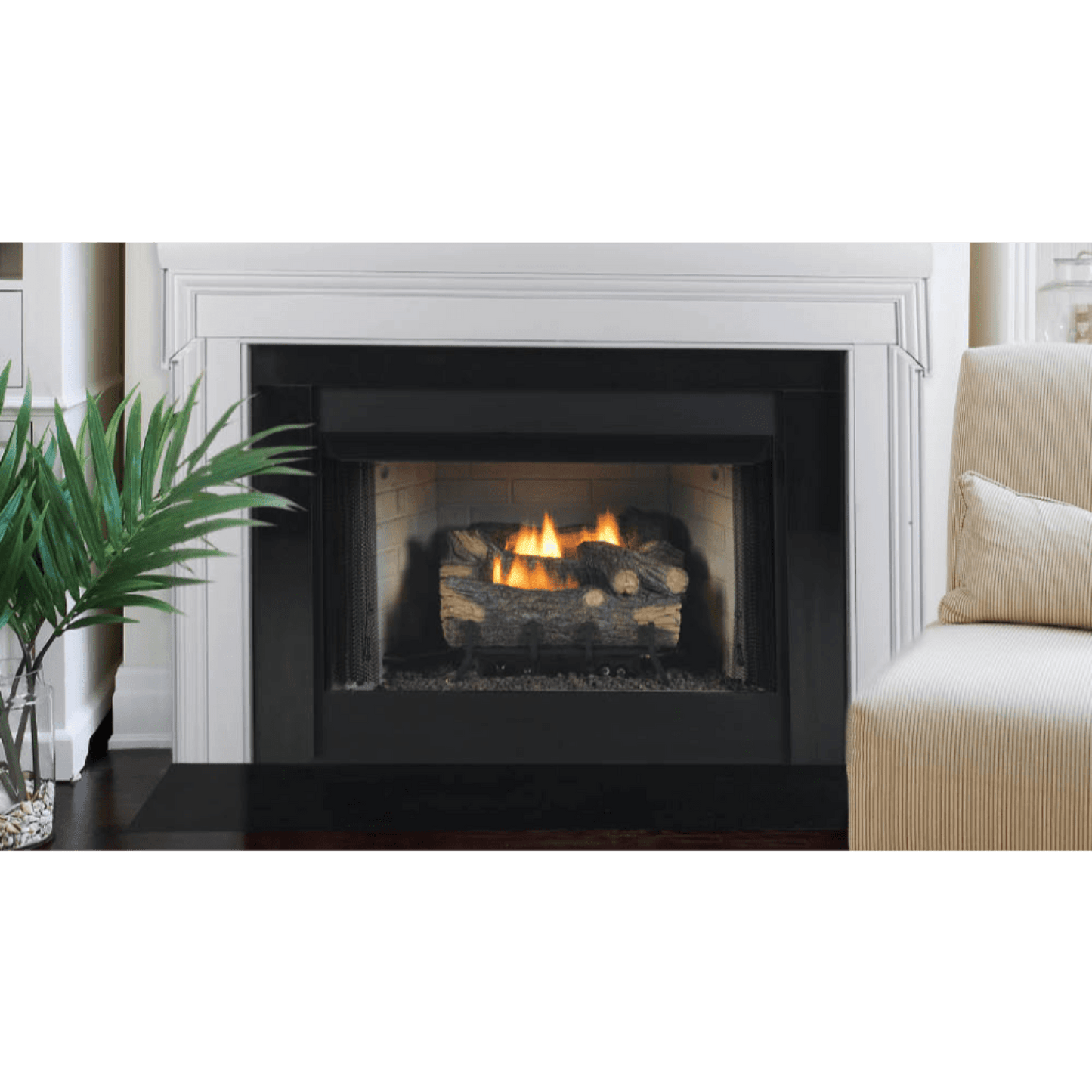

Monessen 42" GCUF/GRUF Series Vent Free Circulating Gas Firebox with Refractory & Cottage Clay Firebrick

Monessen 42" GCUF/GRUF Series Vent Free Circulating Gas Firebox with Refractory & Cottage Clay Firebrick

Regular price $779.00
Regular price $935.00 Sale price $779.00
Sale Sold out
Face Type
Firebrick Type
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

GCUF/GRUF SERIES VENT FREE GAS FIREBOX

The GRUF/GCUF series fireboxes provide the option to choose a louvered design or a radiant, clean face design. Choose from a selection of firebrick options and accessories for a fireplace perfectly suited to your tastes.

The G(C/R)UF series of vent free fireboxes from Monessen offers flexibility with 3 sizes - 32, 36, and 42 inches - and the option of circulating or radiant design to suit your requirements perfectly.

Available with your choice of firebrick as well as a range of optional accessories, the G(C/R)UF series is easy to incorporate into your design requirements.

It has all the features that you certainly need in order to suit all of your preferences quickly and conveniently. It is also available along with your choice of firebrick including the range of other optional accessories. Among the key features of this item includes zero clearance design for straightforward installation and convenience while doing so.

A Monessen vent free firebox is the perfect way to display and operate your Monessen vent free log set. While our log sets can be utilized in an existing approved wood-burning fireplace (converted with a gas line), if your home does not already have an existing fireplace, a vent free firebox is an economical way to add a fireplace to your home. Installed in either your wall or a free-standing cabinet, a vent free firebox is simply the metal combustion chamber of a traditional fireplace system, without the log set and engine. You then add the vent free log set (with engine) of your choice to complete it.

Monessen offers one of the most diverse lineups of vent free gas fireboxes available, making it easy to find the right look for your home. Enjoy beautiful flames, excellent heating, and a customized look with the addition of your choice of Monessen log sets.

Because vent-free fireboxes and log sets are designed to be installed and operated without a chimney, flue, or vent, they can be installed in locations in your home where it would be impossible or cost-prohibitive to install a vented fireplace. They provide the most economical installation, only requiring a connection to a gas line.

Monessen vent free fireboxes allow for zero clearance installation, which means they may be installed flush against any combustible surface such as drywall or wood. This gives you added flexibility and helps save installation dollars when deciding where to install your fireplace, whether on an interior or exterior wall. (It is important to remember that the appliance should be sized to fit the area in which it is to be installed and must meet any additional regional or local requirements.

Monessen offers a large selection of vent-free log sets (sold separately) that are a perfect complement to your new fireplace.

GCUF/GRUF Series Vent Free Circulating Gas Fireboxes are available in 32", 36", and 42" sizes with Refractory & Cottage Clay Firebrick standard.

FEATURES

  • Curtain fire screen
  • CSA Design Certified
  • Black louvers/ Black hood
  • Available in Radiant or Louvered designs
  • Cottage clay ceramic fiber firebrick
  • Electrical junction box included for hook up
  • Efficient and Economical Vent Free Application
  • Designed with heat circulating air ducts for optional blower
  • Available facing options include Perimeter Trims, Classic Arched Faces and Cabinet Doors with Screen and Filigree Panels
  • Large selection of field-installed options, including several styles of designer facings

* Please Note: This item is a vent free appliance and installation of it may be prohibited in your jurisdiction. Customers are responsible for checking local codes and regulations prior to purchase.

PRODUCT SPECIFICATIONS

GCUF-GRUF Series 32 GCUF42C-R/GRUF42C-R/GRUF42C-F/GCUF42C-F
Size: 42
Appliance Width: 47"
Appliance Height: 34-3/4"
Appliance Depth1: 18"
Hearth Front Width: 40"
Hearth Front Height: 21-7/8"
Hearth Depth: 15-3/4"
Hearth Rear Width: 33-3/8"
Hearth Rear Height: 17-5/8"
Viewing Area: 42 x 21-3/4"

VENTING SPECIFICATIONS

  • Vent-free units do not require any venting products

PRODUCT DIMENSIONS

  • Overall dimensions - 47" W (front) x 34 1/2" H x 18" D x 38" W (rear)
  • Rough framing dimensions - 47 1/4" W x 35" H x 17 1/2" D
  • Minimum hearth dimensions - 40" W (front) x 21 7/8" H x 15 3/4" D x 33 3/8" W (rear)
  • Weight - 140 lbs/120 lbs/110 lbs/95 lbs.

SHOWN WITH

  • Refractory firebrick liner (standard)
  • Radiant Panel Kit (optional)
  • Cottage clay ceramic fiber firebrick (standard)
  • 30" Ceramic Fiber Charred Timber Log Set (optional)
  • 30" Millivolt Ignition, Triple Play Burner (optional)
  • Custom Installation and Surround

CA Residents: See Prop 65 WARNING

CORNER INSTALLATION

FRONT VIEW

MINIMUM HEARTH DIMENSIONS

SIDE VIEW

TOP VIEW

OPTIONS & ACCESSORIES

Burners (Required to Complete)

Click to see Burners

EYF24PM/EYF24NM/EYF24PV/EYF24NV

Monessen popular EYF burner raise for dancing flames. Enjoy dancing, realistic flames with the EYF burner. The available EYF burner produces a fine yellow flame, heavy duty grate assembly adds an authentic touch.

FEATURES

  • Fuel Type: NG or LP
  • Ignition Type: Manual Control/Millivolt Control
  • Burner Only: 24" EYF Burner
  • For use with firebox
  • Use with 24" Charred Hickory 5-piece Multi-Log Set, 24" Mountain Oak 5-piece Multi-Log Set and 30" Mountain Oak 5-piece

* Please Note: This is for the gas burner only. No logs are included.

    GG24NV/GG24PV

    Glow Getter burner are available in 18" and 24" sizes, these burners feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready.

    FEATURES

    • Fuel Type: NG or LP
    • Ignition Type: Millivolt Control
    • Burner Only: 24" Glow Getter Burner
    • For use with firebox
    • Use with 24" Charisma Burncrete Hybrid 8 pc Log Set and 30" Charisma Burncrete Hybrid 8 pc Log Set.
    • Use with 24" Dynamo Burncrete Hybrid 7 pc Log Set and 30" Dynamo Burncrete Hybrid 7 pc Log Set.
    • Use with 24" Moxie Burncrete Hybrid 8 pc Log Set and 30" Moxie Burncrete Hybrid 8 pc Log Set.

    * Please Note: This is for the gas burner only. No logs are included.

      GG24NIF/GG24PIF

      Glow Getter burner are available in 18" and 24" sizes, these burners formats. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control.

      FEATURES

      • Fuel Type: NG or LP
      • Ignition Type: IPI Control
      • Burner Only: 24" Glow Getter Burner
      • For use with firebox
      • Use with 24" Charisma Burncrete Hybrid 8 pc Log Set and 30" Charisma Burncrete Hybrid 8 pc Log Set.
      • Use with 24" Dynamo Burncrete Hybrid 7 pc Log Set and 30" Dynamo Burncrete Hybrid 7 pc Log Set.
      • Use with 24" Moxie Burncrete Hybrid 8 pc Log Set and 30" Moxie Burncrete Hybrid 8 pc Log Set.

      * Please Note: This is for the gas burner only. No logs are included.

        NB24NV/NB24PV

        Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas formats and feature a cast iron grate, volcanic rock, rock wool, on/off switch, manual variable flame height control and are remote ready.

        FEATURES

        • Fuel Type: NG or LP
        • Ignition Type: Millivolt Control
        • Burner Only: 24" Natural Blaze Burner
        • For use with firebox
        • Use with 24" Beachcomber Burncrete refractory 6-piece log set and 30" Beachcomber Burncrete refractory 6-piece log set
        • Use with 24" Berkley Oak fiber ceramic 7-piece log set and 30" Berkley Oak fiber ceramic 7-piece log set
        • Use with 24" Berkley Oak refractory 7-piece log set and 30" Berkley Oak refractory 7-piece log set
        • Use with 24" Highland Oak Refractory 7-piece log set and 30" Highland Oak Refractory 7-piece log set
        • Use with 24" Stony Creek refractory 11-piece log set and 30" Stony Creek refractory 11-piece log set

        * Please Note: This is for the gas burner only. No logs are included.

          NB24NIF/NB24PIF

          Natural Blaze burner available in 18" and 24" sizes, these burners come in both natural and propane gas. Featuring the IntelliFire Plus with ODS system for five-step flame adjustment, these burners come complete with cast iron grate, volcanic rock, rock wool, on/off switch, touch button command center, electronic ignition and RC300 thermostat remote control.

          FEATURES

          • Fuel Type: NG or LP
          • Ignition Type: IPI Control
          • Burner Only: 24" Natural Blaze Burner
          • For use with firebox
          • Use with 24" Beachcomber Burncrete refractory 6-piece log set and 30" Beachcomber Burncrete refractory 6-piece log set
          • Use with 24" Berkley Oak fiber ceramic 7-piece log set and 30" Berkley Oak fiber ceramic 7-piece log set
          • Use with 24" Berkley Oak refractory 7-piece log set and 30" Berkley Oak refractory 7-piece log set
          • Use with 24" Highland Oak Refractory 7-piece log set and 30" Highland Oak Refractory 7-piece log set
          • Use with 24" Stony Creek refractory 11-piece log set and 30" Stony Creek refractory 11-piece log set

          * Please Note: This is for the gas burner only. No logs are included.

            PH24PM/PH24NM/PH24PV/PH24NV

            PH burner are available in 18" and 24" sizes, these burners feature manual control and come in both Natural Gas and Propane. Also available in remote-control ready burners come in both Natural Gas and Propane. Millivolt Control Valve comes with On/Off Switch and Manual Variable Flame Height Control.

            FEATURES

            • Fuel Type: NG or LP
            • Ignition Type: Manual Control/Millivolt Control
            • Burner Only: 24" PH Burner
            • For use with firebox
            • Use with 24" Mountain Cedar 6-piece Multi-Log Set and 30" Mountain Cedar 6-piece Multi-Log Set

            * Please Note: This is for the gas burner only. No logs are included.


              Logs (Required to Complete)

              Click to see Logs

              EYF30-R

              • 30" Mountain Oak Design
              • 5 Piece Refractory Log Set
              • For use with 24" EYF burner system
              • Refractory cement for fine detailing
              • Detailed log design
              • Includes volcanic rock
              • Available in millivolt and manual control

              CR30-H

              • 30" Charisma design
              • 8 Piece burncrete hybrid log set
              • For use with 24" Millivolt Control Glow Getter Burner
              • For use with 24" IntelliFire Plus Glow Getter Burner with Remote Control
              • New Burncrete® hybrid technology includes provides sharp detail and glowing logs
              • Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed
              • Whole log with natural bark detail eight-piece log stack – so authentic its indistinguishable from the real thing
              • Hand-painted details create a true log look
              • Gorgeous colors and beautiful detail complement any décor
              • Available in IntelliFire Plus® or millivolt control
              • No chimney or venting required makes installation fast, easy, and affordable
              • Includes volcanic rock, rock wool embers and ember bed log switch

              DY30-H

              • 30" Dynamo design
              • 7 Piece burncrete hybrid log set
              • For use with 24" Millivolt Control Glow Getter Burner
              • For use with 24" IntelliFire Plus Glow Getter Burner with Remote Control
              • Burncrete® hybrid technology includes provides sharp detail and glowing logs
              • Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed
              • Stout, authentic-looking log with natural bark detail in a robust seven-piece log stack
              • Hand-painted details create a true log look
              • Gorgeous colors and beautiful detail complement any décor
              • Available in IntelliFire Plus® or millivolt control
              • No chimney or venting required makes installation fast, easy, and affordable
              • Includes volcanic rock, rock wool embers and ember bed log switch

              MX30-H

              • 30" Moxie design
              • 8 Piece burncrete hybrid log set
              • For use with 24" Millivolt Control Glow Getter Burner
              • For use with 24" IntelliFire Plus Glow Getter Burner with Remote Control
              • New Burncrete® hybrid technology includes provides sharp detail and glowing logs
              • Exclusive Glow Getter burner technology boasts dancing multi-peak flames and a glowing, active, ember bed
              • Split oak style nine-piece log stack looks like you chopped it yourself
              • Hand-painted details create the authentic look
              • Gorgeous colors and beautiful detail complement any décor
              • Available in IntelliFire Plus® or millivolt control
              • No chimney or venting required makes installation fast, easy, and affordable
              • Includes volcanic rock, rock wool embers and ember bed log switch

              BC30-R

              • 30" Beachcomber design
              • 6 Piece buncrete refractory log set
              • For use with 24" Millivolt Control Natural Blaze Burner
              • For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control
              • EXCLUSIVE Natural Blaze Technology
              • Available with the IntelliFire Plus® system or millivolt control
              • Cast iron grate standard with burner
              • Volcanic rock, rock wool embers and ember bed log switch

              BO30-F

              • 24" Berkley oak design
              • 7 Piece ceramic fiber log set
              • For use with 24" Millivolt Control Natural Blaze Burner
              • For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control
              • EXCLUSIVE Natural Blaze Technology
              • Available with the IntelliFire Plus® system or millivolt control
              • Low profile design for a true glowing ember look
              • Refractory cement for fine detailing or ceramic fiber to reflect more heat
              • Includes volcanic rock and rock wool embers

              BO30-R

              • 30" Berkley oak design
              • 7 Piece refractory log set
              • For use with 24" Millivolt Control Natural Blaze Burner
              • For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control
              • EXCLUSIVE Natural Blaze Technology
              • Available with the IntelliFire Plus® system or millivolt control
              • Cast iron grate standard with burner
              • Volcanic rock, rock wool embers and ember bed log switch

              HO30-R

              • 30" Highland oak design
              • 7 Piece refractory log set
              • For use with 24" Millivolt Control Natural Blaze Burner
              • For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control
              • EXCLUSIVE Natural Blaze Technology
              • Available with the IntelliFire Plus® system or millivolt control
              • Cast iron grate standard with burner
              • Volcanic rock, rock wool embers and ember bed log switch

              SC30-R

              • 30" Stoney creek design
              • 11 Piece refractory log set
              • For use with 24" Millivolt Control Natural Blaze Burner
              • For use with 24" IntelliFire Plus Natural Blaze Burner with Remote Control
              • EXCLUSIVE Natural Blaze Technology
              • Available with the IntelliFire Plus® system or millivolt control
              • Cast iron grate standard with burner
              • Volcanic rock, rock wool embers and ember bed log switch

              PH30R

              • 30" Mountain cedar Design
              • 6 Piece Refractory Log Set
              • For use with 24" PH burner system
              • Refractory cement for fine detailing
              • Available in millivolt and manual control
              • Includes volcanic rock

              Log Accessories

              Click to see Optional Log Accessories

              SC2430EK

              The Monessen 24" & 30" Stony Creek Vent Free Gas Log Set features the choice to add the two top log enhancement kit. This enhancement kit is priced reasonably and adds two additional logs to the very top of the stack to make a fuller look that goes well with larger fireplaces. Each log has been made with the utmost take care of a realistic, authentic look that you simply won't find anywhere else.

              • Size: 24 inch & 30 inch
              • Unique, hand-painted finish
              • Designed for use with 24 & 30-inch stony creek gas log sets

              Accessories

              Click to see Optional Fronts Door (Cabinet door frame is required for use with Cabinet Doors)


              DD42CDB

              • Includes screen
              • Black cabinet fireplace doors
              • Designed for use with Monessen 32/36/42 inch fireplace systems

              Compatible with the following Monessen appliances

              • 32", 36", 42" GCUF/GRUF Series Vent Free Circulating Gas Firebox
              DD42CDFB
              • Black cabinet door frame
              • Designed to fit Monessen 32/36/42 inch fireplace systems

              Compatible with the following Monessen appliances

              • 32", 36", 42" GCUF/GRUF Series Vent Free Circulating Gas Firebox
              VD42AFB
              • Available in black
              • Arched front with lower control door
              • Designer black arched front-facing
              • Designed to fit Monessen GCUF Models
              • Woven lattice grill design and graceful arch adds a distinctive appearance
              • Crafted using state of the art processes to provide exciting finish details and flawless operation

              Please Note: Not for use with GRUF models.

              Compatible with the following Monessen appliances

              • 32", 36", 42" GCUF Series Vent Free Circulating Gas Firebox

              Click to see Optional Air Blower
               BLOTMC
              • Powerful 135 cfm fan
              • Variable thermostat control
              • Works with multiple Monessen gas fireplaces
              • Improves fireplace and firebox heat distribution
              • Heat activated- Comes on when the fireside gets hot and pops when the fireside cools down
              • Includes a variable speed control that permits you to show the blower on and off also as higher or lower

              Compatible with the following Monessen appliances

              • Exacta BUF Vent Free Circulating Firebox
              • GRUF and GCUF Universal Vent-Free Circulating Fireboxes
              • Lo-Rider LCUF Vent-Free Fireboxes
              • Magnum MCUF Vent-Free Fireboxes
              • Aria/VFF Vent-Free Gas Fireplaces
              • DFS Vent-Free Gas Fireplaces

              Click to see Optional Trim Kits

              BLMTK42C

              • Medium Trim Kit
              • Available in Black

              Compatible with the following Monessen appliances

              • 32", 36", 42" GCUF/GRUF Series Vent Free Circulating Gas Firebox

                Click to see Optional Filigree Panel

                DC42FPB

                • Available in black
                • Decorative black filigree panels
                • Designed to fit Monessen 32/36/42 inch fireplace insert

                Please Note: For use only with GCUF models. Not for use with GRUF models.

                Compatible with the following Monessen appliances
                • 32", 36", 42" GCUF Series Vent Free Circulating Gas Firebox

                  Click to see Optional Air Kit

                  AK4

                  • Fits various Monessen gas fireplaces
                  • Allows the fireplace to use outside air for combustion when piped to the outside of the home

                  Compatible with the following Monessen appliances

                  • GCUF/GRUF Series Vent Free Firebox
                  • LCUF Lo-Rider Series Firebox
                  • Magnum Series Vent Free Firebox
                  • Aria/VFF Series Fireplace



                    You Can Also Buy Available Flat/Corner Wood Cabinet with This Product

                    Kenwood Flat Wood Cabinet

                    Kenwood Corner Wood Cabinet

                    You Can Also Buy Available Flat/Corner Cabinet Base with This Product

                    Kenwood Flat Wood Cabinet Base

                    Kenwood Corner Wood Cabinet Base

                    You Can Also Buy Available Marble, Granite & Slate with This Product

                    Arctic Gray Marble Set

                    Beige Marble Set

                    Konya Marble Set

                    Marron Brown Marble Set

                    Absolute Black Granite Set

                    Caledonia Granite Set

                    Steel Gray Granite Set

                    Venetian Granite Set

                    Wheatfield Granite Set

                    Slate Legs

                    Slate Header

                    Slate Hearth

                    DOWNLOADS

                    View full details
                    • Researched and ordered my fireplace from US FIreplace Store. Pricing was a fair value however, the customer service was EXCELLENT! I had an issue with the direct vent venting. I called US Fireplace and the correct items were sent out the next day AND Janessa stayed on top of my return authorization and sent me the permissions and documents I needed to return the incorrect item and no cost to me, including return shipping. Overall, I am a very satisfied customer and my fireplace looks and operates flawlessly. I am glad that I selected US FIreplace to source my direct vent fireplace. Thank you for the great service.

                      Clay

                      Monteagle, TN

                    • I had placed an order, through Lowe's Home Improvement, for an Electric Firebox: Revillusion RBF42. Ordered 1st part of January. Was told I would have it in 3 weeks. When checking to see is it came in, was told it was delayed to 3/15. Was then told is was delayed until 4/25. Waited until 4/27 to check on it. Was then told it was now delayed until August. This firebox was going in a new Sun Room addition. I could not get my final inspection until the Firebox was installed. I went on line and googled for this same product. US Fireplace Store web site was given to me. This was on a Saturday. I call and reached a very nice man. Explain what I was look for. He checked and told me they had 30 of them in stock. I almost fell out of my chair. I clarified with him the product I was wanting. I ask how soon could I get it. He told me it would ship today. Again, was amazed. It arrived on the following Monday. What a pleasure and a relief working with US Fireplace Store and their employees. Exceed my expectations.

                      Thomas W.

                      Fort Mill, SC

                    • Great prices, quick delivery and fast hassle free services on the issue I encountered. I had purchased an electric fireplace unit that would not fit into the existing fireplace space. With one email I was able to get the wrong fireplace refunded and picked up at my home at no extra cost and the new one I purchased and delivered free of charge. Great company.

                      John P.

                      Denvers, MA

                    1 of 12
                    • Live Chat Support

                      No chatbots. Speak with a human. Average response time is 48 seconds.

                    • Easy Returns

                      Need to return the merchandise? We accept returns for 30 days from the date of delivery.

                    • 7 Days/Week Service

                      We're here to help on live chat, email & phone. 8:00 AM - 11:59 PM Eastern Time.

                    • 100,000+ Products

                      America's largest selection of hearth & heating products. Fireplaces, stoves, fire pits, heaters, log sets and more.

                    • Pay Over Time

                      0% APR is available for 3 and 12- month financing.* See if you prequalify today.

                    • Staff Picks

                      Check out the Staff Picks collection. See the top products selected by our team.
