Rasmussen

CS16-B-N

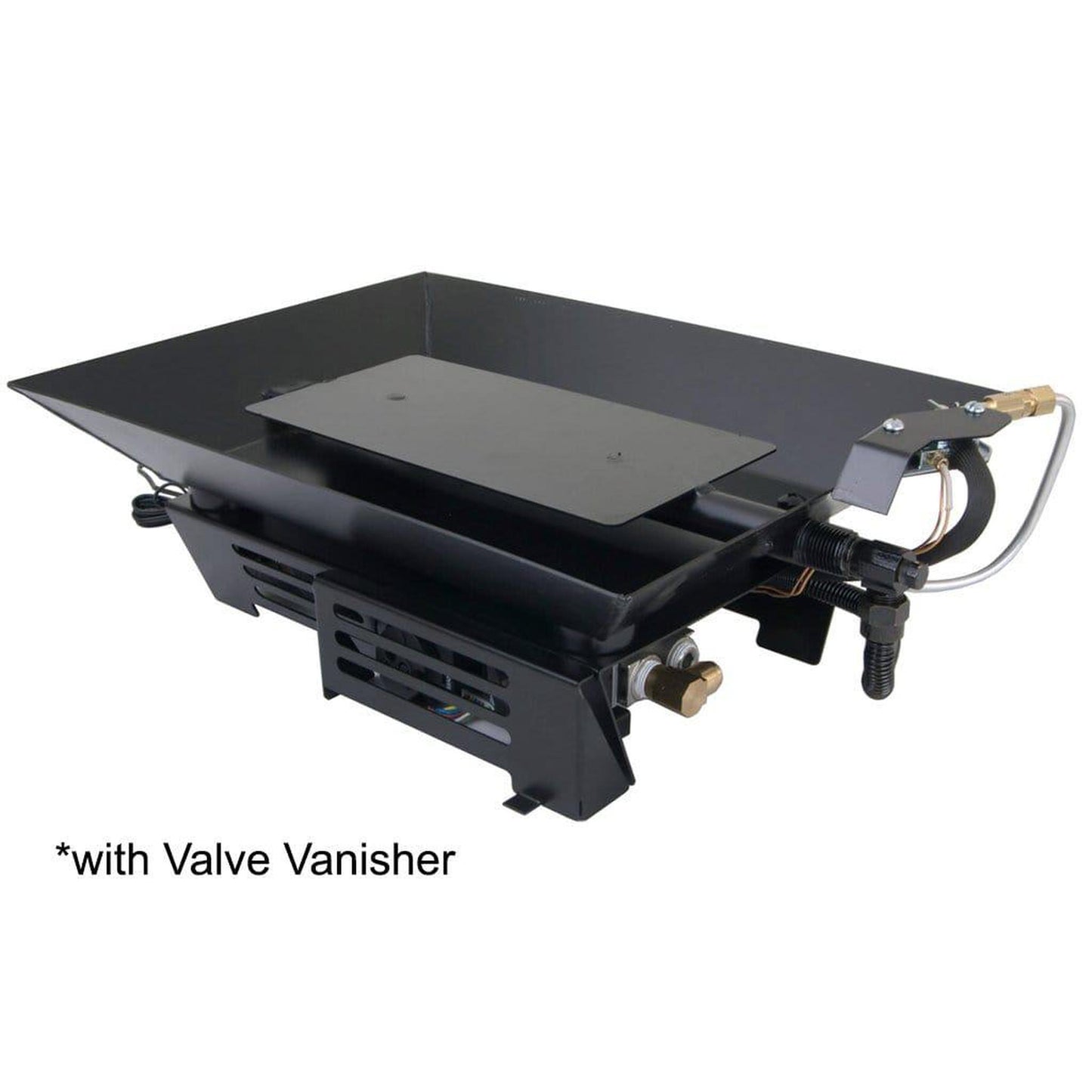

Rasmussen 16" Custom Pan Vented Burner with Strap Legs

Fuel Type: Natural Gas
Control System: Match Lit


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Descriptions

The CS Burner is the original pan tube burner, which can be used with legs for a clean look or without legs for a pit fire look. The CS Burner may also be used in See-Through fireplaces with Double Face logs. The logs reside inside the burner on the pan filler – no grate is to be used with the CS Burner.

  • Available in 5 Sizes: 16"18", 21", 24", & 30"
  • Can be used with either Natural Gas or Propane
  • Can be used for 12", 15" and 16" Gas logs
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Weight: 32lbs
  • Certification: RIW
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
65,000
N/A
Manual Safety Pilot
65,000
27,000
Remote Ready
65,000
27,000
Variable Remote
65,000
27,000
Variable Electronic Ignition
65,000
27,000
Millivolt w/Valve Vanisher
65,000
35,000
Manual Valve w/Valve Vanisher
65,000
35,000
Millivolt Remote Ready
65,000
27,000

Burner Kits Includes: Pan Filler, Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

 Match Lit
 Front Width 22"
Rear Width 17"
Depth 14"
Standing Pilot
Front Width 28"
Rear Width 20"
Depth 14"
Valve Vanisher
Front Width 20"
Rear Width 20"
Depth 14"
