website

Rasmussen

CS21-B-N

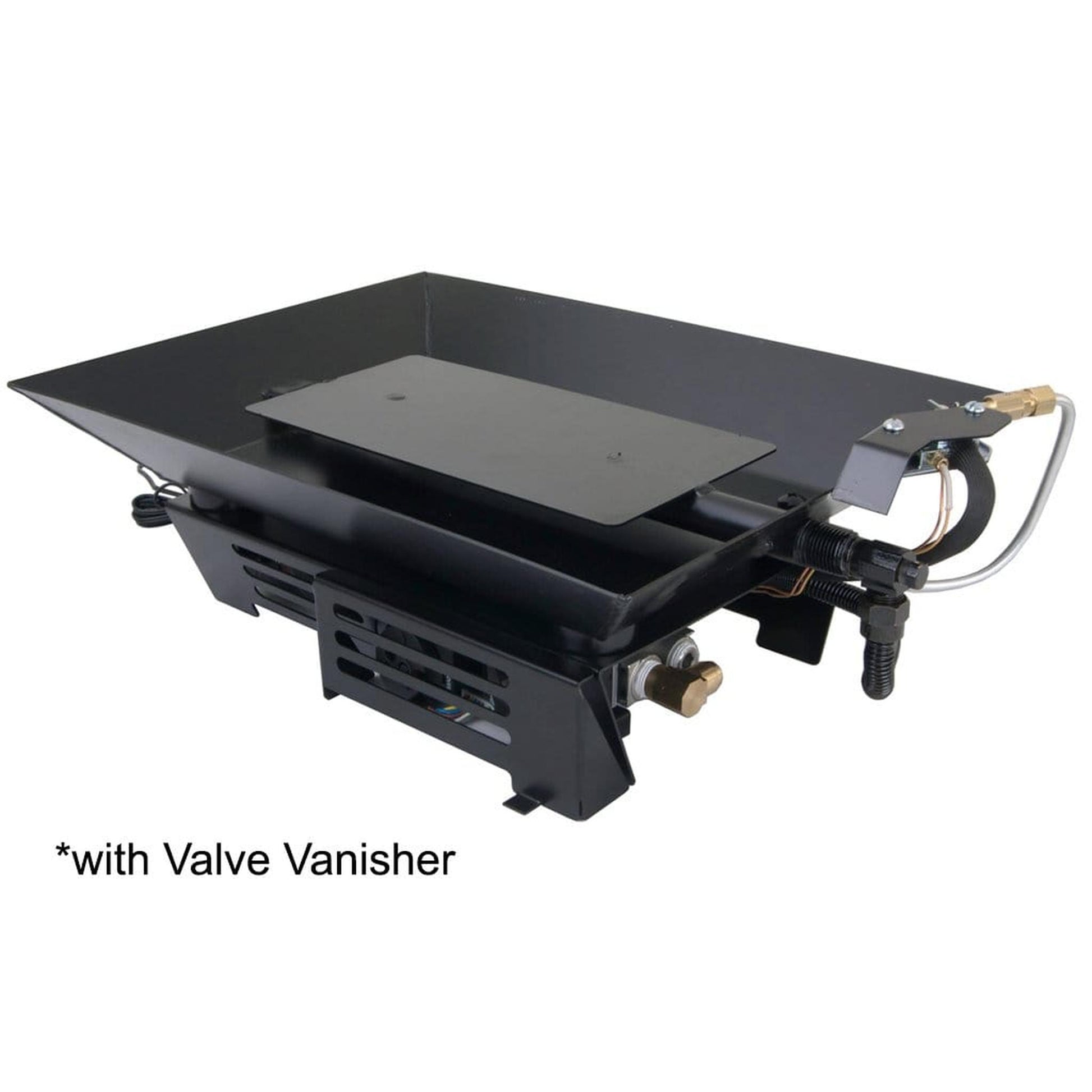

Rasmussen 21" Custom Pan Vented Burner with Strap Legs

Fuel Type: Natural Gas
Control System: Match Lit


Estimated Arrival: Between and . (To All Contiguous States)


✔ Same-Day Order Processing
✔ Free Returns
✔ No Restocking Fees
✔ Financing Options Available

Text or call 888-992-1556, start live chat, or email support@usfireplacestore.com with any questions. Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Descriptions

The CS Burner is the original pan tube burner, which can be used with legs for a clean look or without legs for a pit fire look. The CS Burner may also be used in See-Through fireplaces with Double Face logs. The logs reside inside the burner on the pan filler – no grate is to be used with the CS Burner.

  • Available in 5 Sizes: 16"18", 21", 24", & 30"
  • Can be used with either Natural Gas or Propane
  • Can be used for 20" and 21" Gas logs
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Weight: 32lbs
  • Certification: RIW
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
76,000
N/A
Manual Safety Pilot
76,000
35,000
Remote Ready
76,000
35,000
Variable Remote
76,000
35,000
Variable Electronic Ignition
75,000
35,000
Millivolt w/Valve Vanisher
75,000
35,000
Manual Valve w/Valve Vanisher
75,000
35,000
Millivolt Remote Ready
75,000
35,000

Hearth Kits Includes: Pan Filler, Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

 Match Lit
 Front Width 27"
Rear Width 22"
Depth 14"
Standing Pilot
Front Width 33"
Rear Width 25"
Depth 14"
Valve Vanisher
Front Width 26"
Rear Width 26"
Depth 14"
