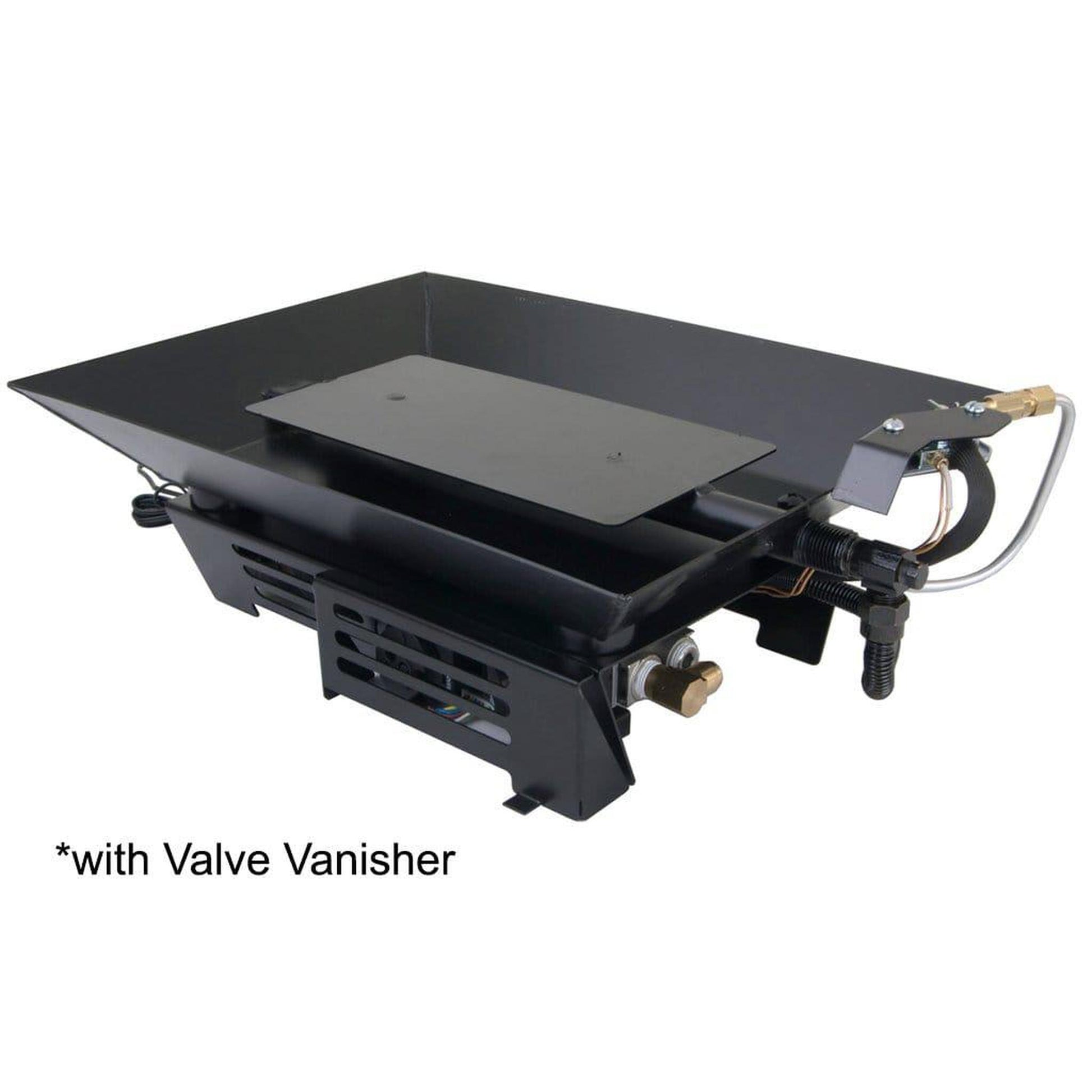

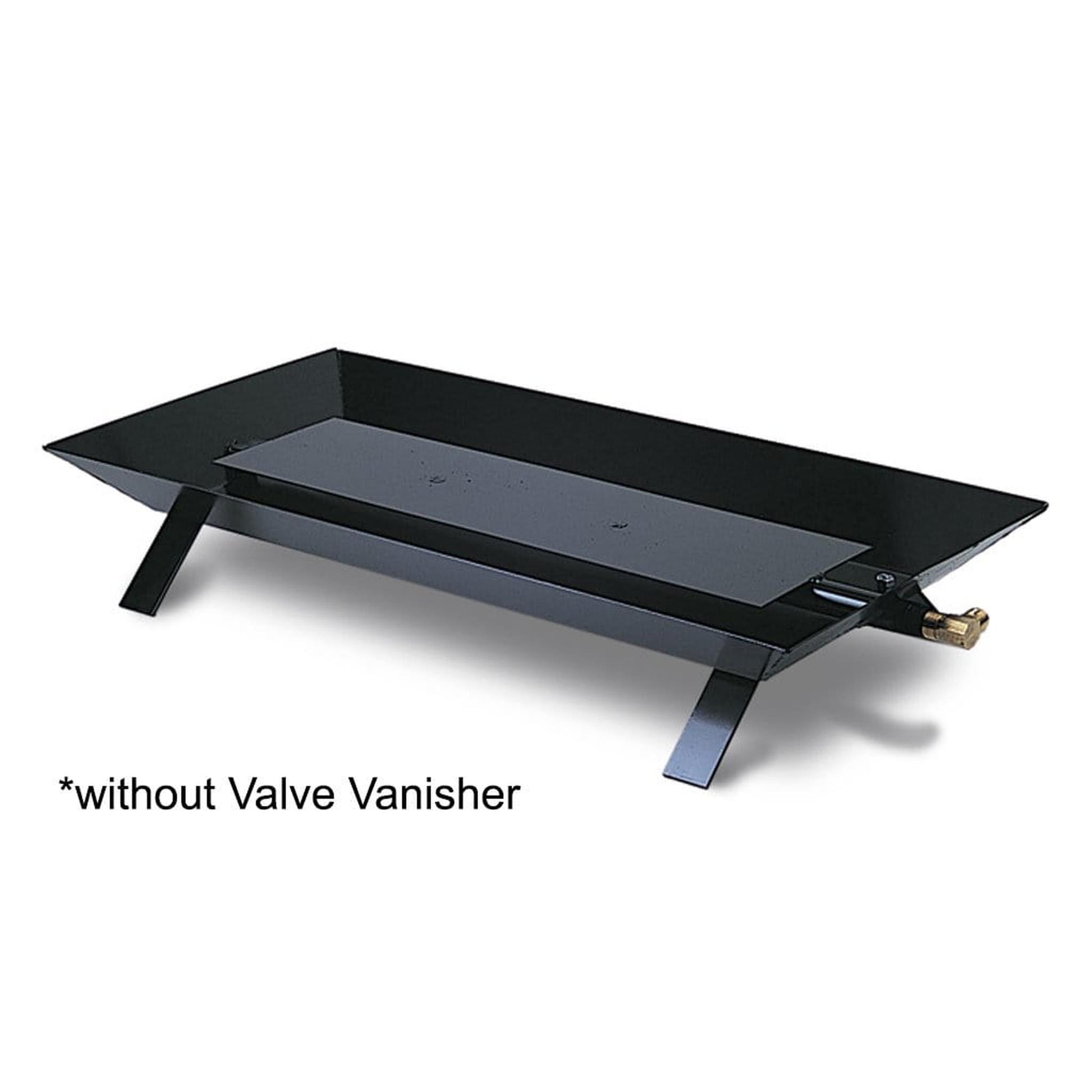

Rasmussen 18" Custom Pan Vented Burner with Strap Legs

Rasmussen 18" Custom Pan Vented Burner with Strap Legs

Regular price $287.00
Regular price Sale price $287.00
Sale Sold out
Fuel Type
Control System
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 888-992-1556
• Email support@usfireplacestore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Descriptions

The CS Burner is the original pan tube burner, which can be used with legs for a clean look or without legs for a pit fire look. The CS Burner may also be used in See-Through fireplaces with Double Face logs. The logs reside inside the burner on the pan filler – no grate is to be used with the CS Burner.

  • Available in 5 Sizes: 16"18", 21", 24", & 30"
  • Can be used with either Natural Gas or Propane
  • Match Lit, Manual Safety Pilot, Remote Ready, Variable Remote Ready, Variable Remote Electronic Ignition w/ Valve Vanisher, Millivolt Remote Ready w/Valve Vanisher, Manual Safety Pilot w/Valve Vanisher, Millivolt Remote Ready
  • Weight: 32lbs
  • Certification: RIW
Valve
Natural Gas BTU:
Propane BTU:
Match Lit
75,000
N/A
Manual Safety Pilot
75,000
27,000
Remote Ready
75,000
27,000
Variable Remote
75,000
27,000
Variable Electronic Ignition
75,000
27,000
Millivolt w/Valve Vanisher
75,000
40,000
Manual Valve w/Valve Vanisher
75,000
40,000
Millivolt Remote Ready
75,000
27,000

Hearth Kits Includes: Pan Filler, Ember Magic, Flexible Non-Whistling Connector Kit, Damper Clamp, & Instructions.

NOTE: Burners for Vented Sets produce soot and other combustion products and are for use ONLY in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass Doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control valves and components.

Minimum Fireplace Dimensions

 Match Lit
 Front Width 24"
Rear Width 19"
Depth 14"
Standing Pilot
Front Width 30"
Rear Width 22"
Depth 14"
Valve Vanisher
Front Width 22"
Rear Width 22"
Depth 14"



Downloads
